Transmission Speed Sensor, M/T

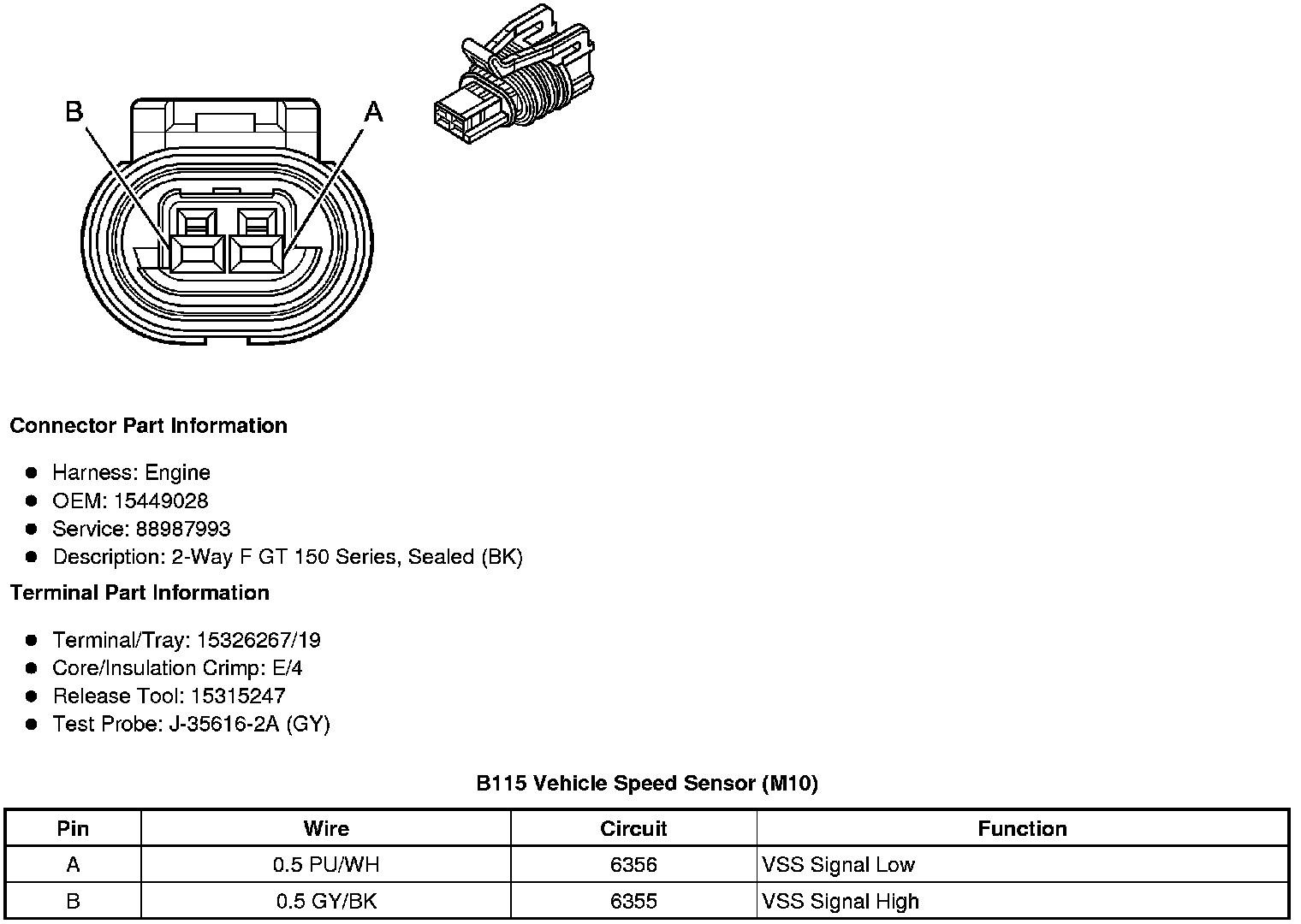

Component Connector End Views

B115 Vehicle Speed Sensor (MV5)





B115 Vehicle Speed Sensor (M10)
