Removal Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the lower trim cover. Refer to Steering Column Trim Covers Replacement .
Remove the tilt lever spring (2).
Remove the retaining bolt (3) from the tilt lever.

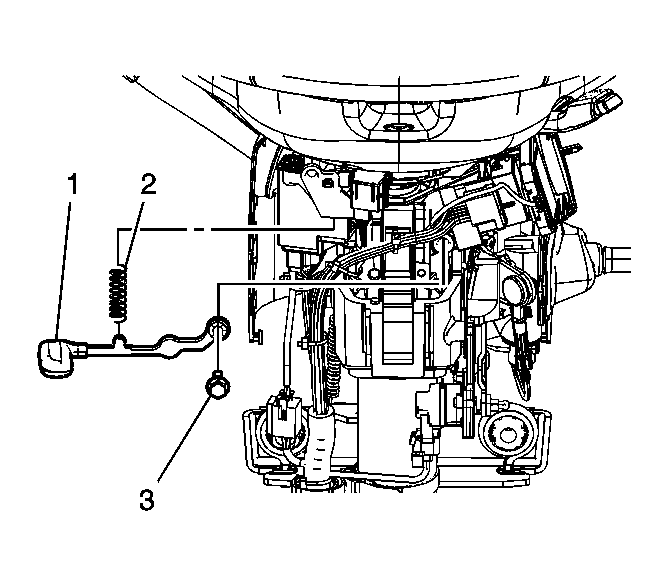

Fig 1: Identifying Tilt Lever Components

Courtesy of GENERAL MOTORS CORP.

Remove the tilt lever (1).
