Fuel Tank Components (SWB)




Wheels/Vehicle Underbody Component Views

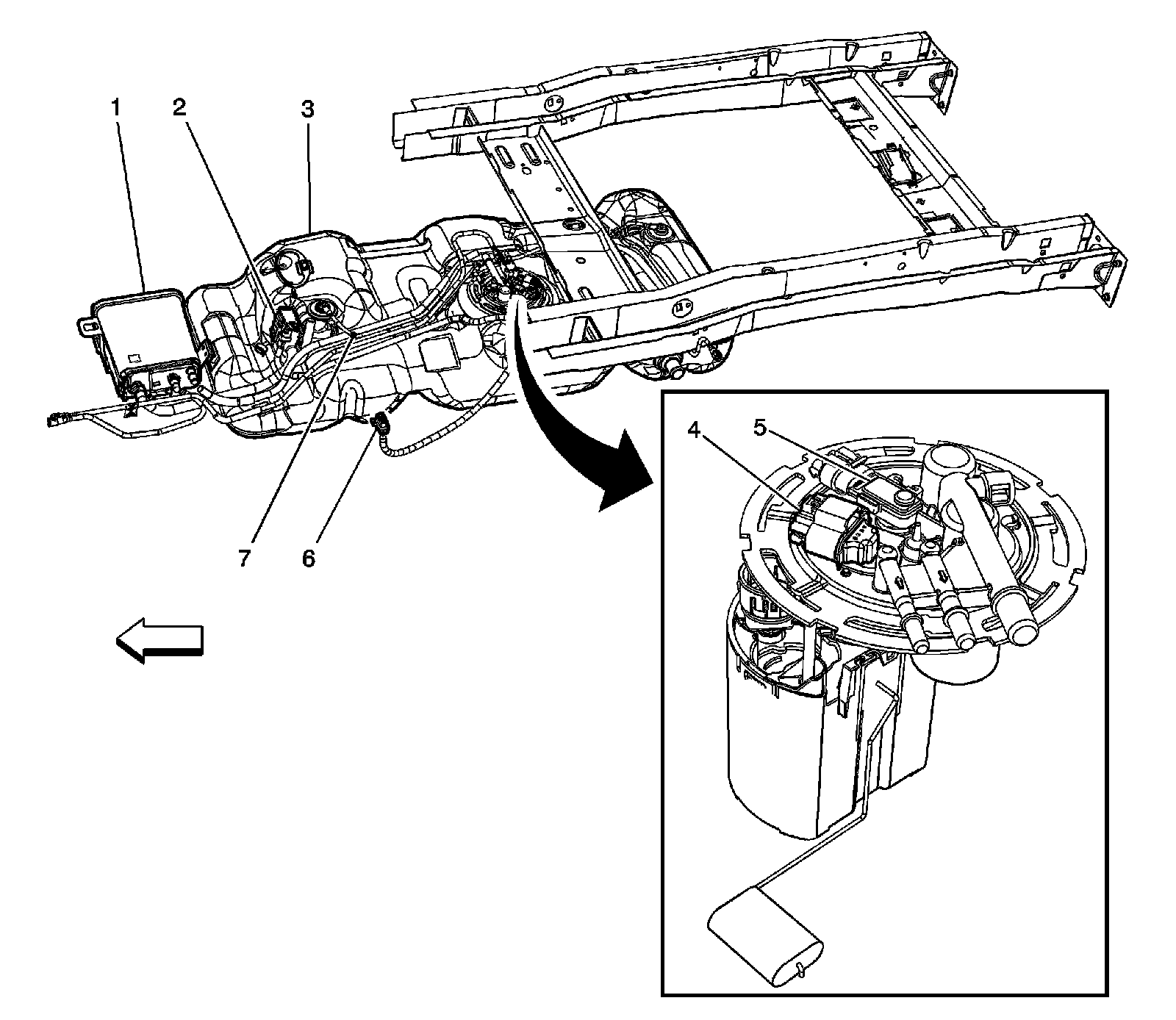

Fuel Tank Components (SWB)




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Tank
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
6 - X305
7 - J371
