Traverse LS, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Wiring Systems And Power Management - Introduction
>>
Schematic and Routing Diagrams
>>
Ground Distribution Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ground Distribution Schematics

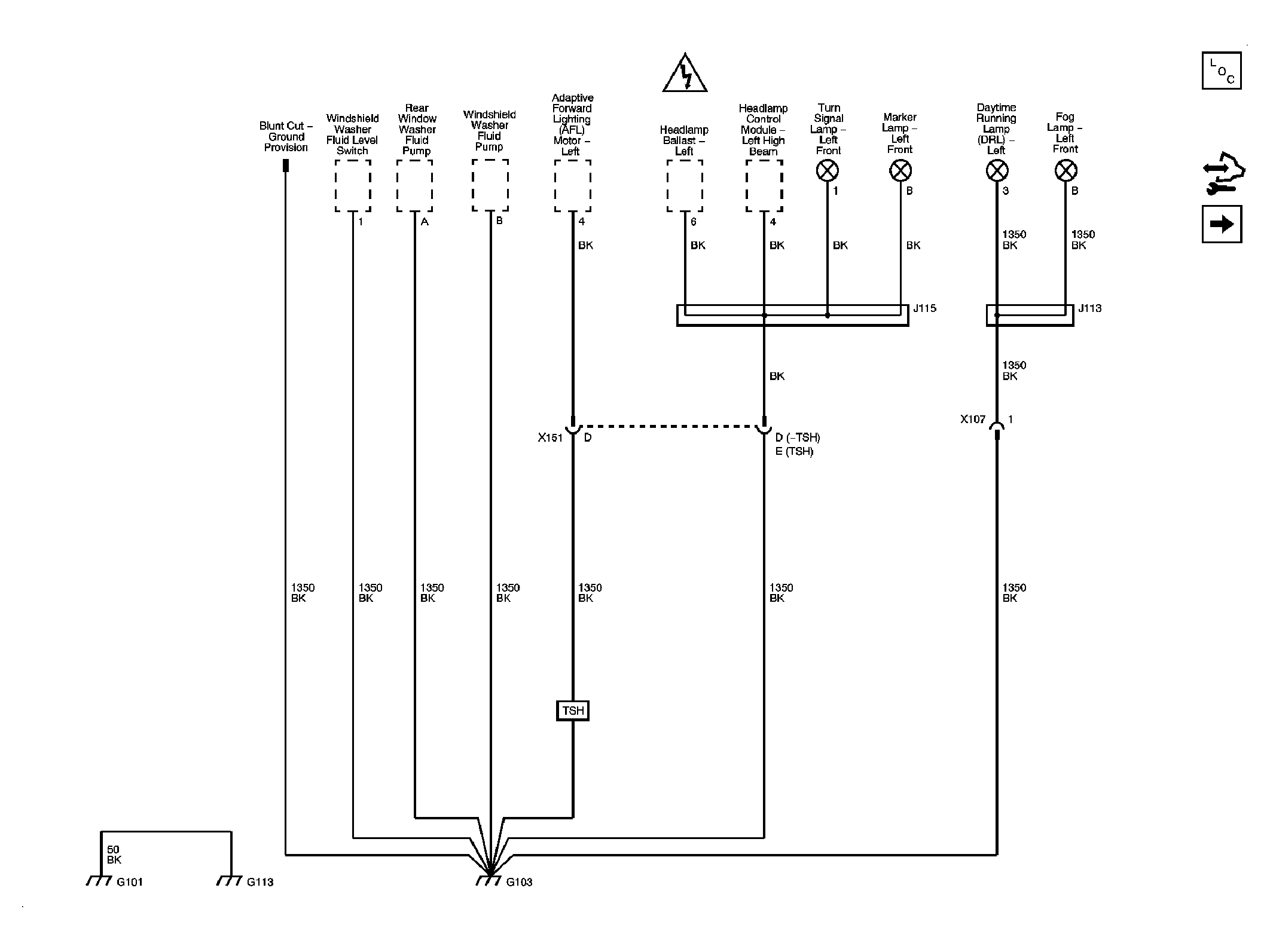

Fig 1: G101, G103, and G113 Circuit Schematic(W49)
Courtesy of GENERAL MOTORS CORP.

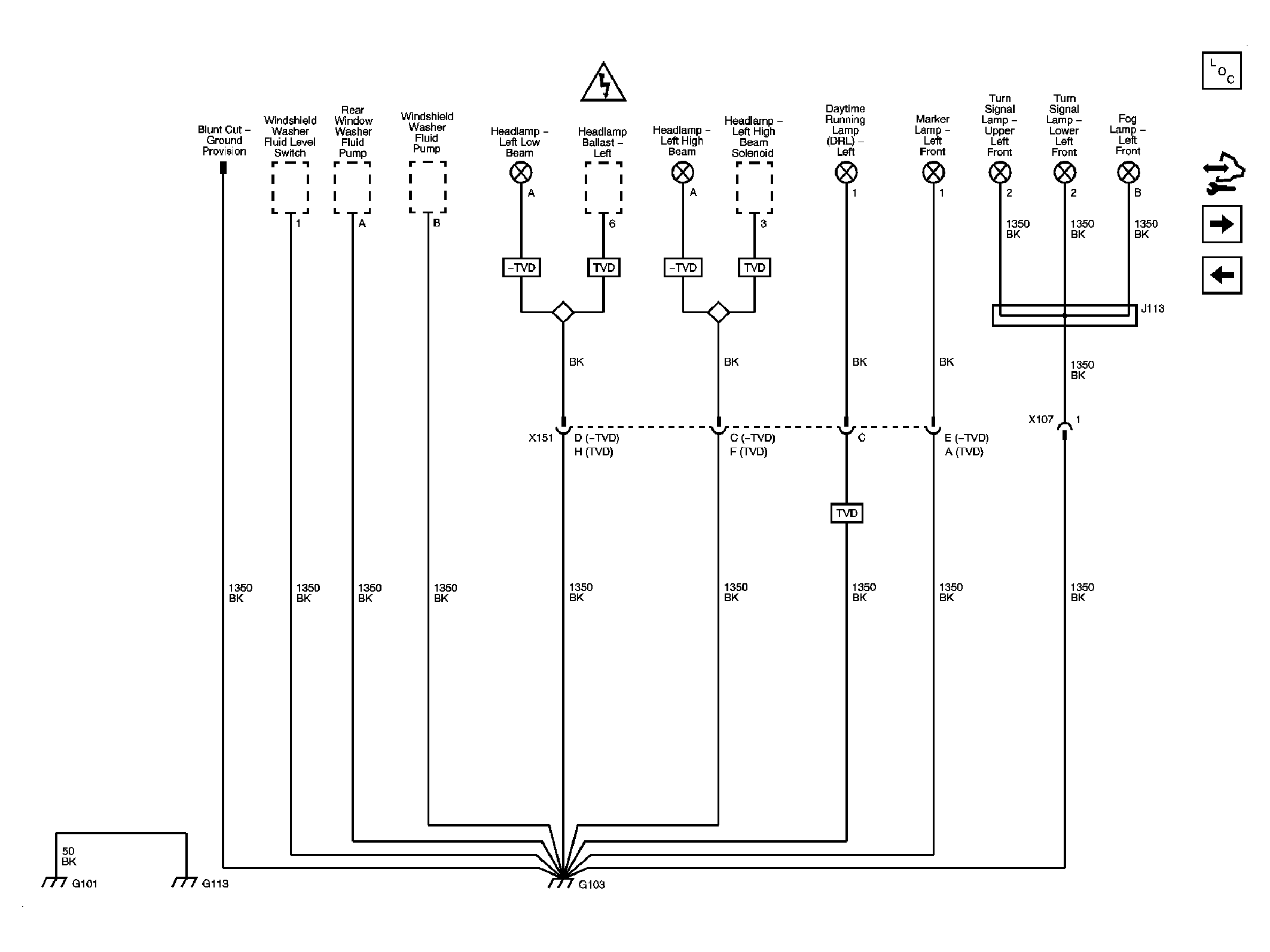

Fig 2: G101, G103, and G113 Circuit Schematic (WDA)
Courtesy of GENERAL MOTORS CORP.

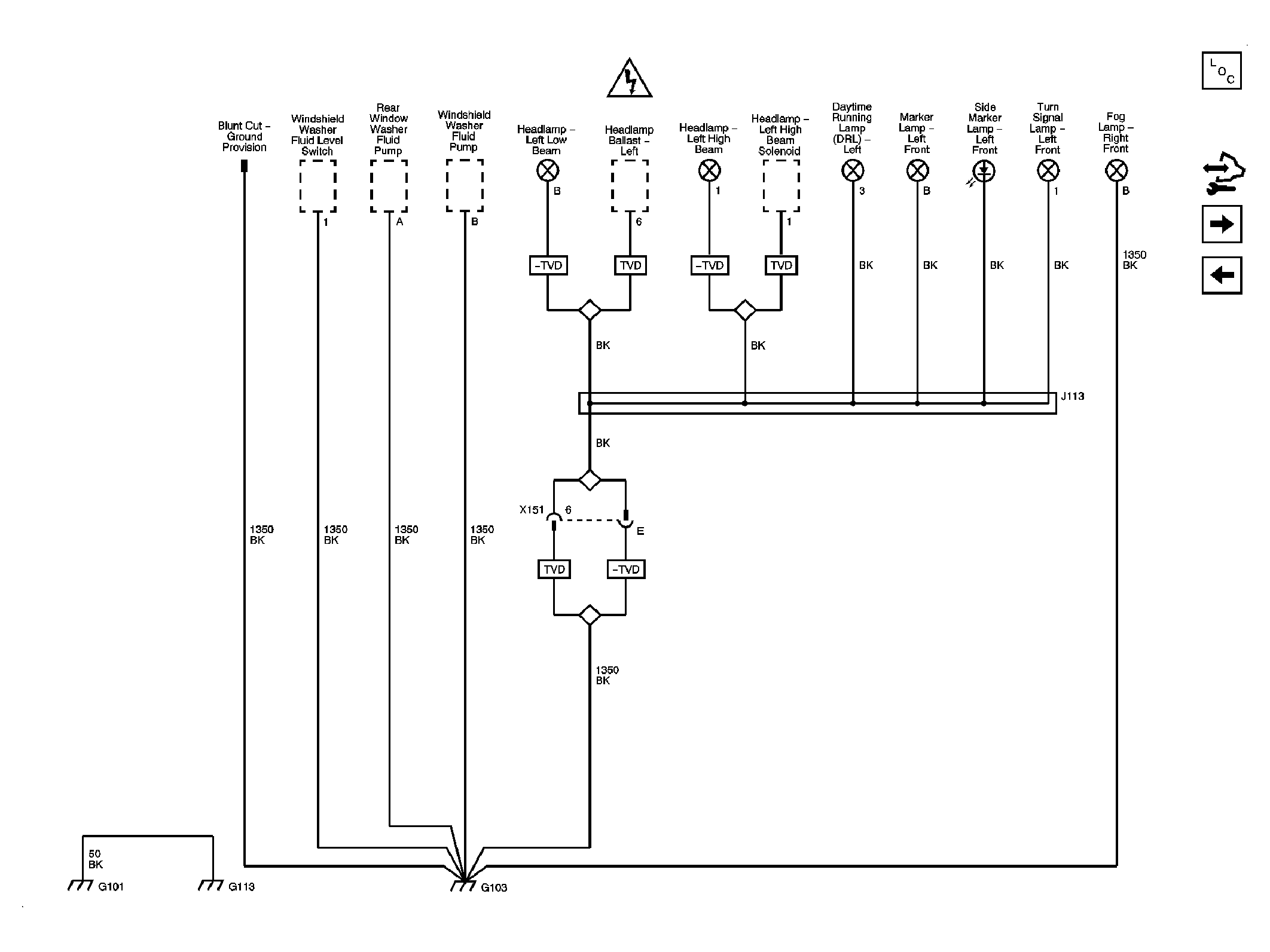

Fig 3: G101, G103, and G113 Circuit Schematic (Z88)
Courtesy of GENERAL MOTORS CORP.

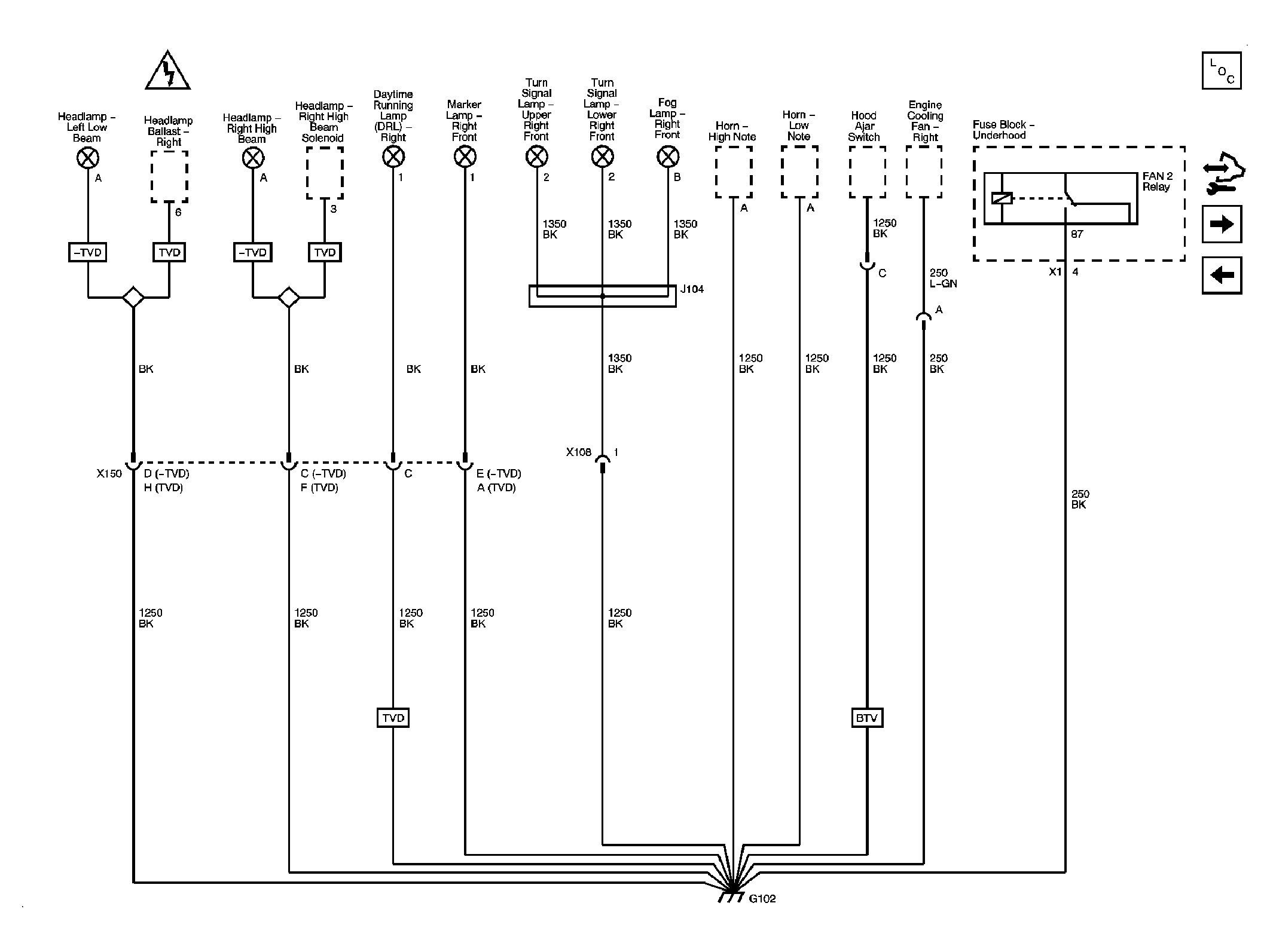

Fig 4: G102 Circuit Schematic (W49)
Courtesy of GENERAL MOTORS CORP.

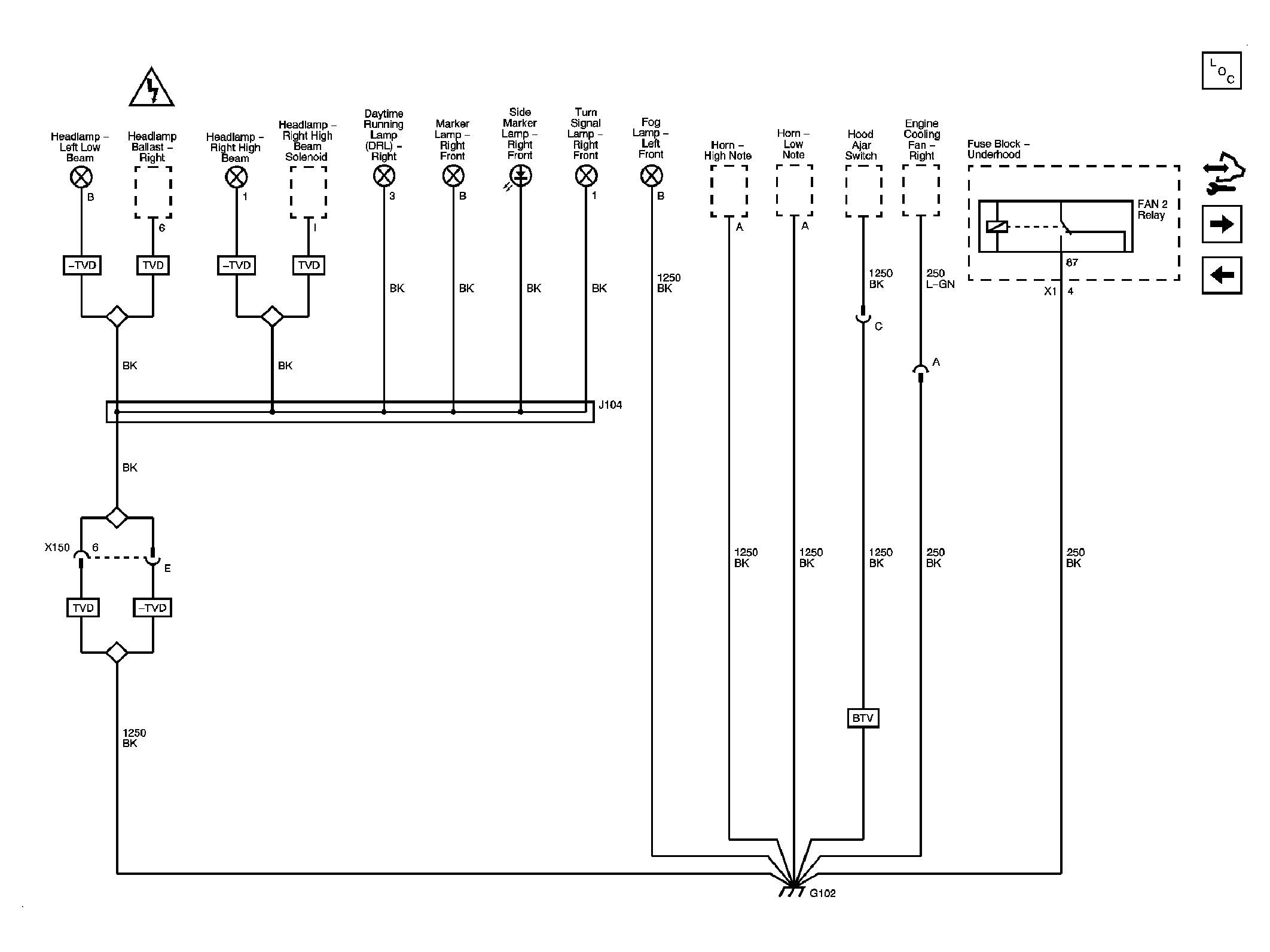

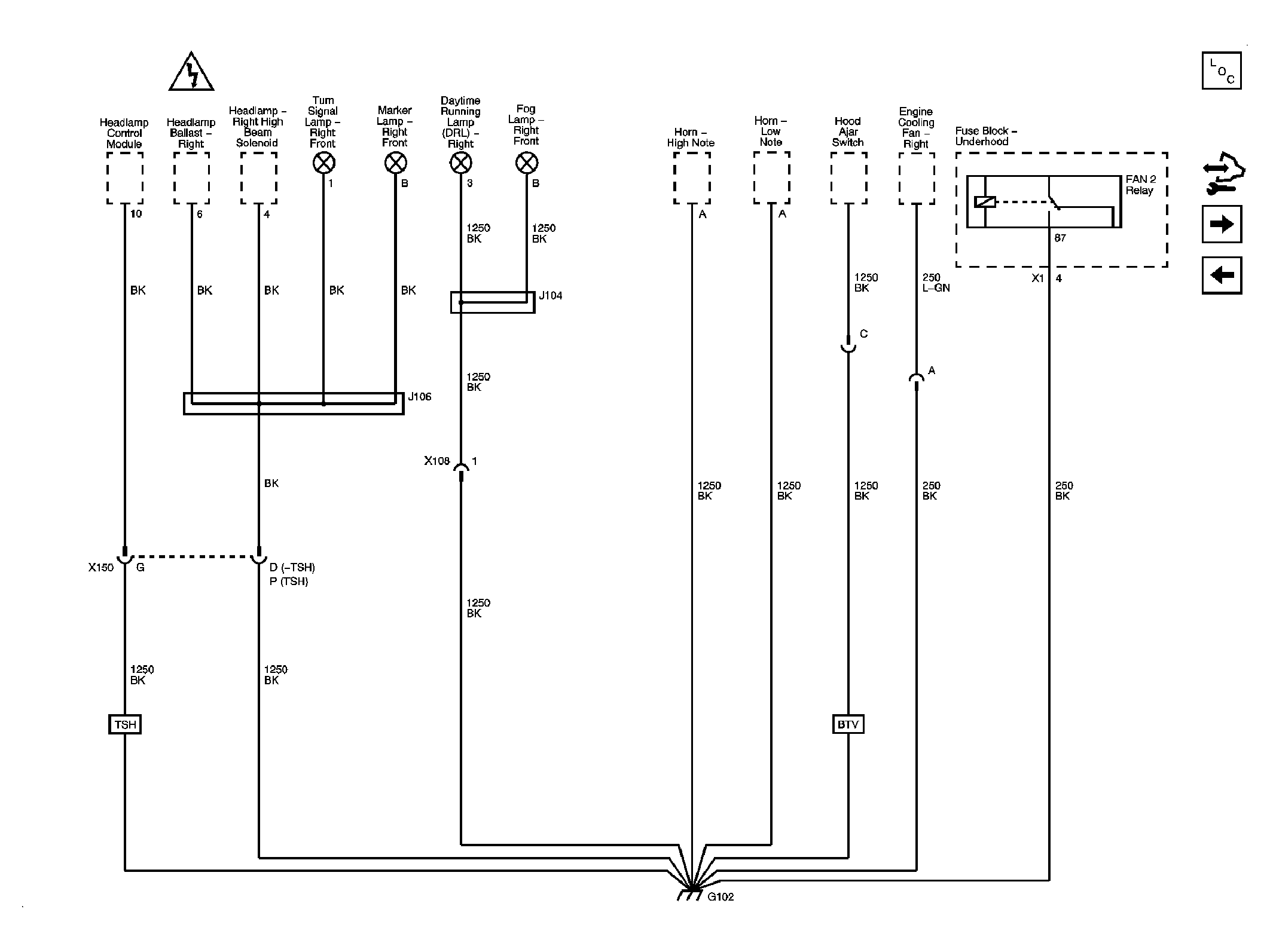

Fig 5: G102 Circuit Schematic (WDA)
Courtesy of GENERAL MOTORS CORP.
Fig 6: G102 Circuit Schematic (Z88)
Courtesy of GENERAL MOTORS CORP.
Fig 7: G105 and G110 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

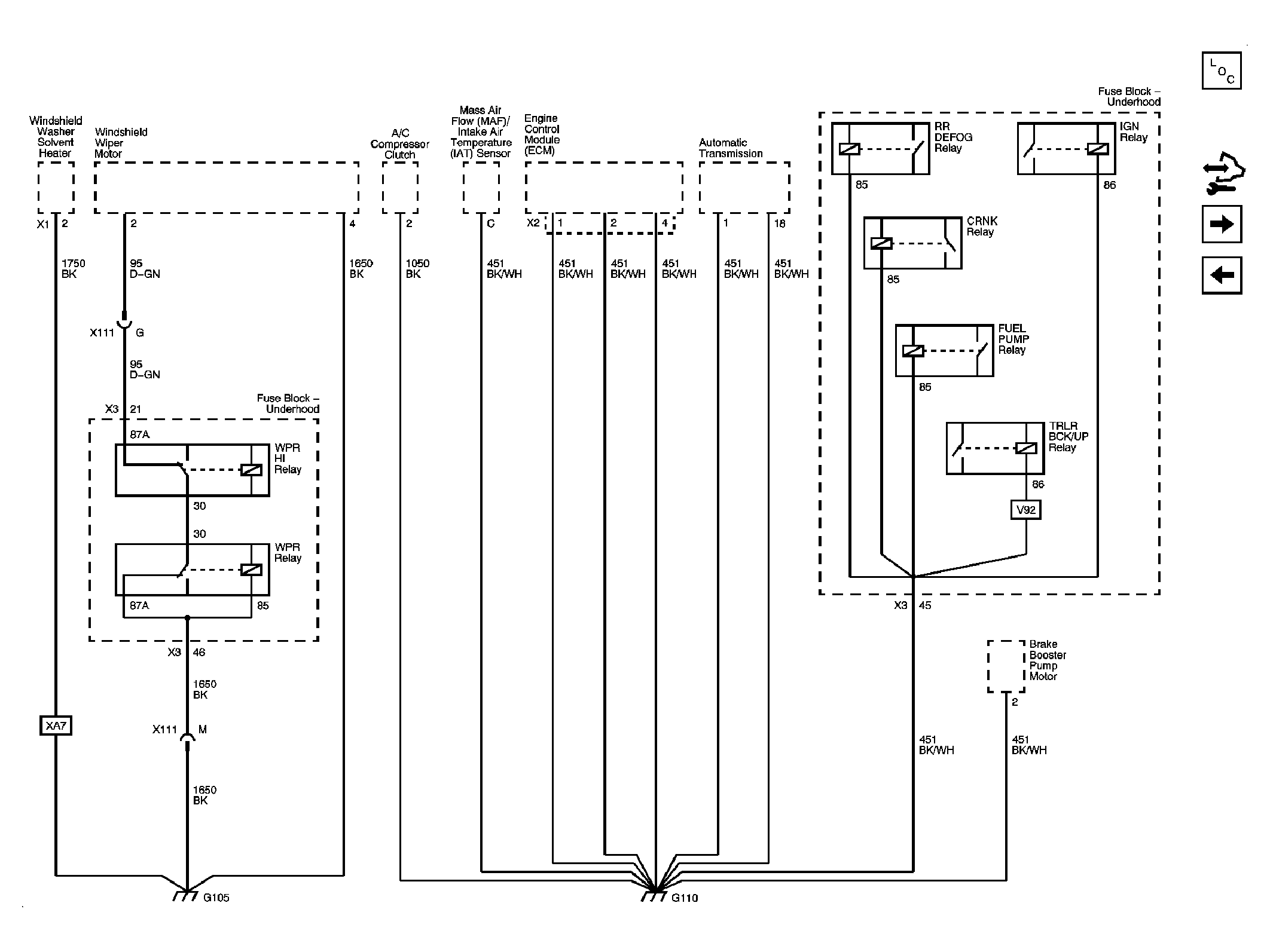

Fig 8: G112, G114, and G115 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 9: G300 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 10: G301 Circuit Schematic 1 of 2
Courtesy of GENERAL MOTORS CORP.
Fig 11: G301 Circuit Schematic 2 of 2
Courtesy of GENERAL MOTORS CORP.

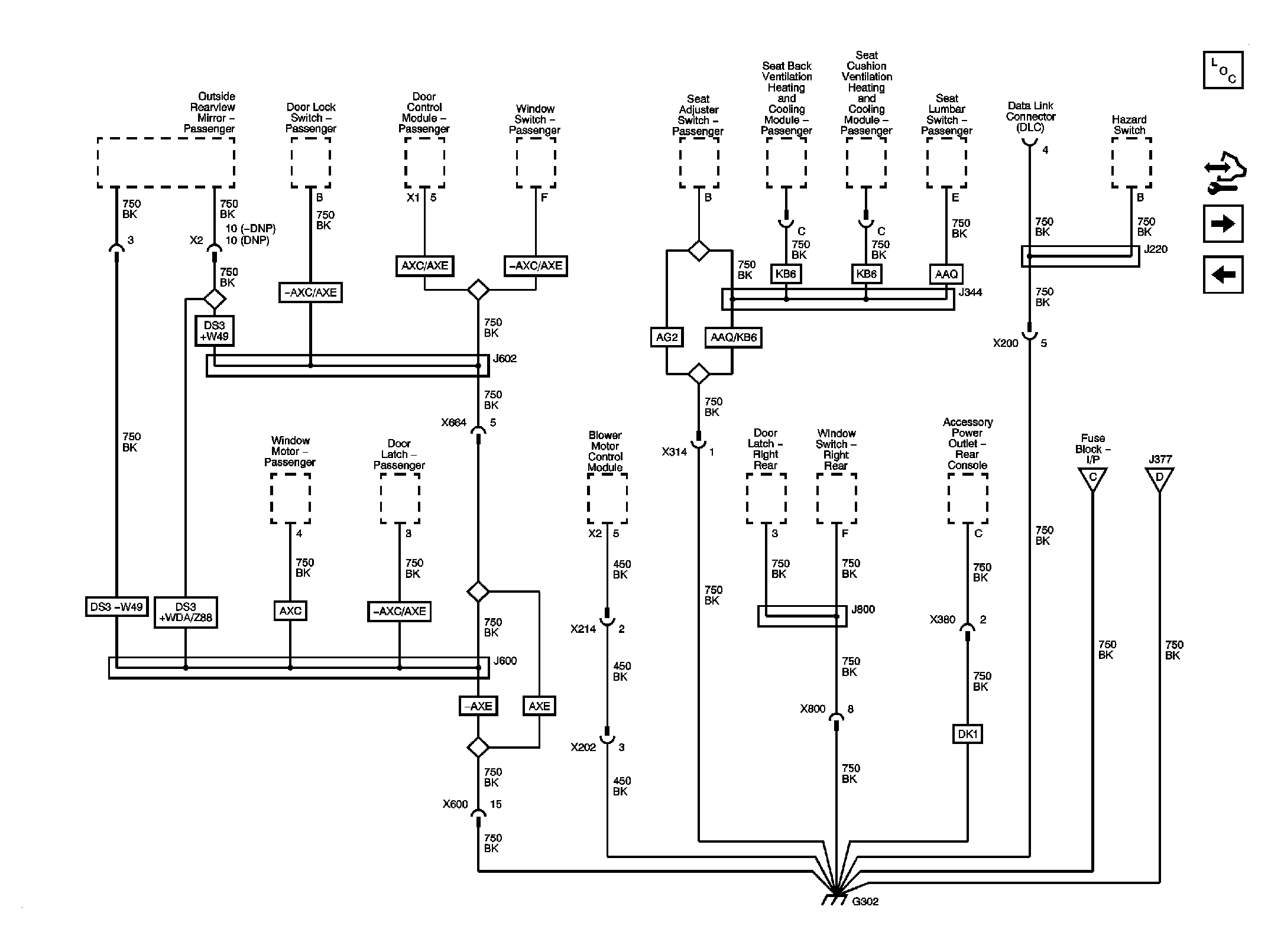

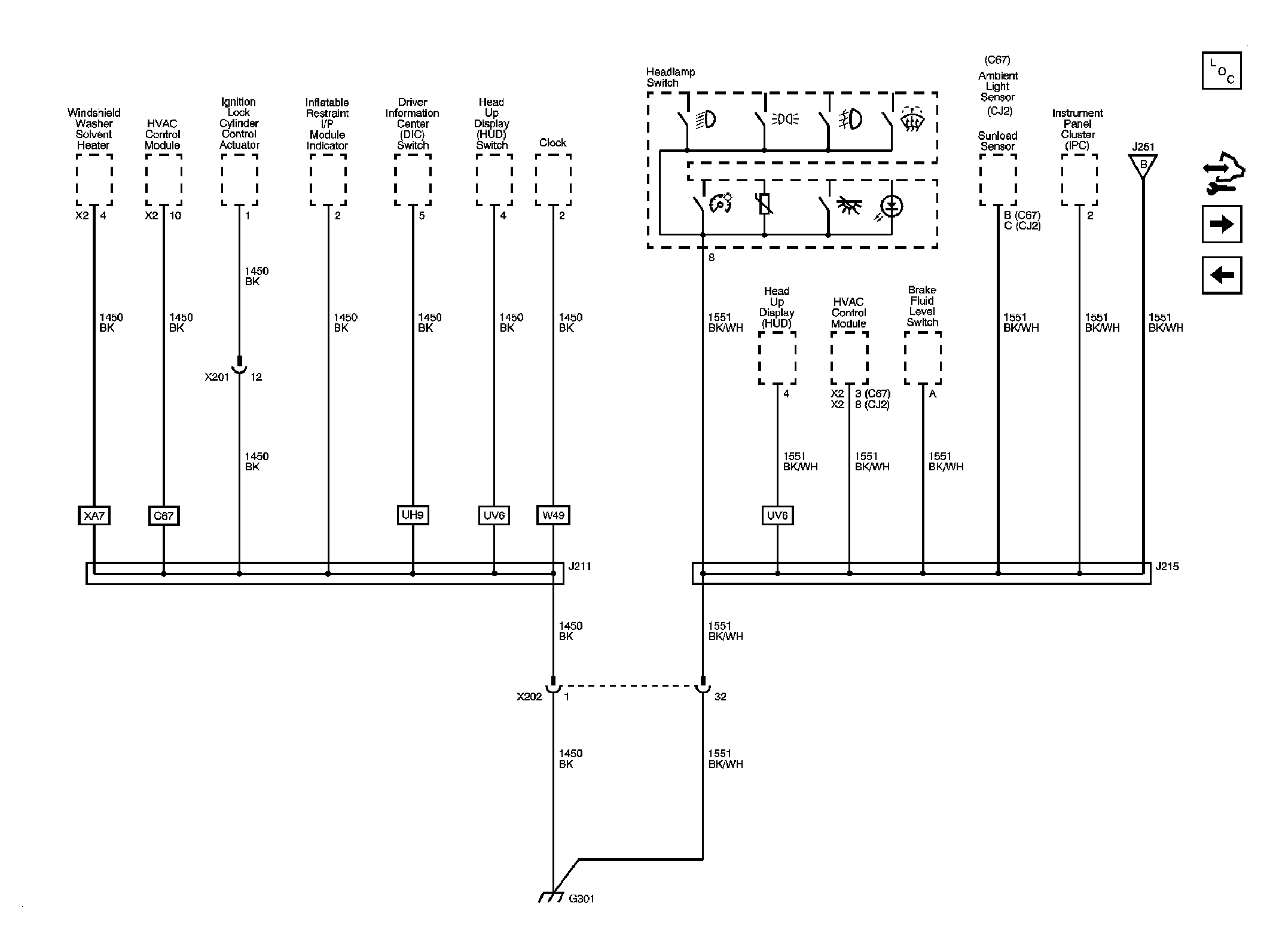

Fig 12: G302 Circuit Schematic 1 of 3
Courtesy of GENERAL MOTORS CORP.
Fig 13: G302 Circuit Schematic 2 of 3
Courtesy of GENERAL MOTORS CORP.
Fig 14: G302 Circuit Schematic 3 of 3
Courtesy of GENERAL MOTORS CORP.
Fig 15: G303 Circuit Schematic 1 of 2
Courtesy of GENERAL MOTORS CORP.

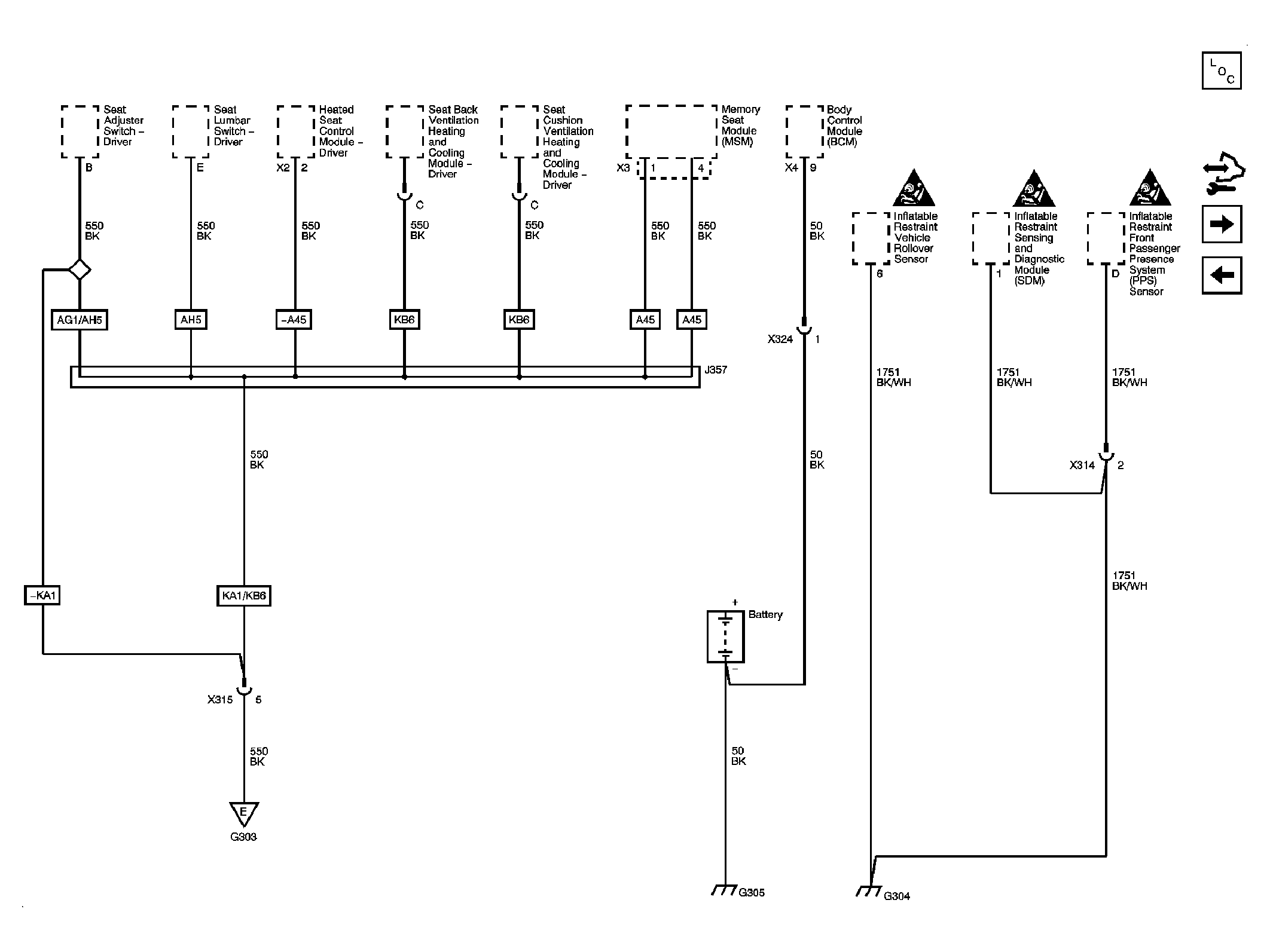

Fig 16: G303 2 of 2, G304, and G305 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

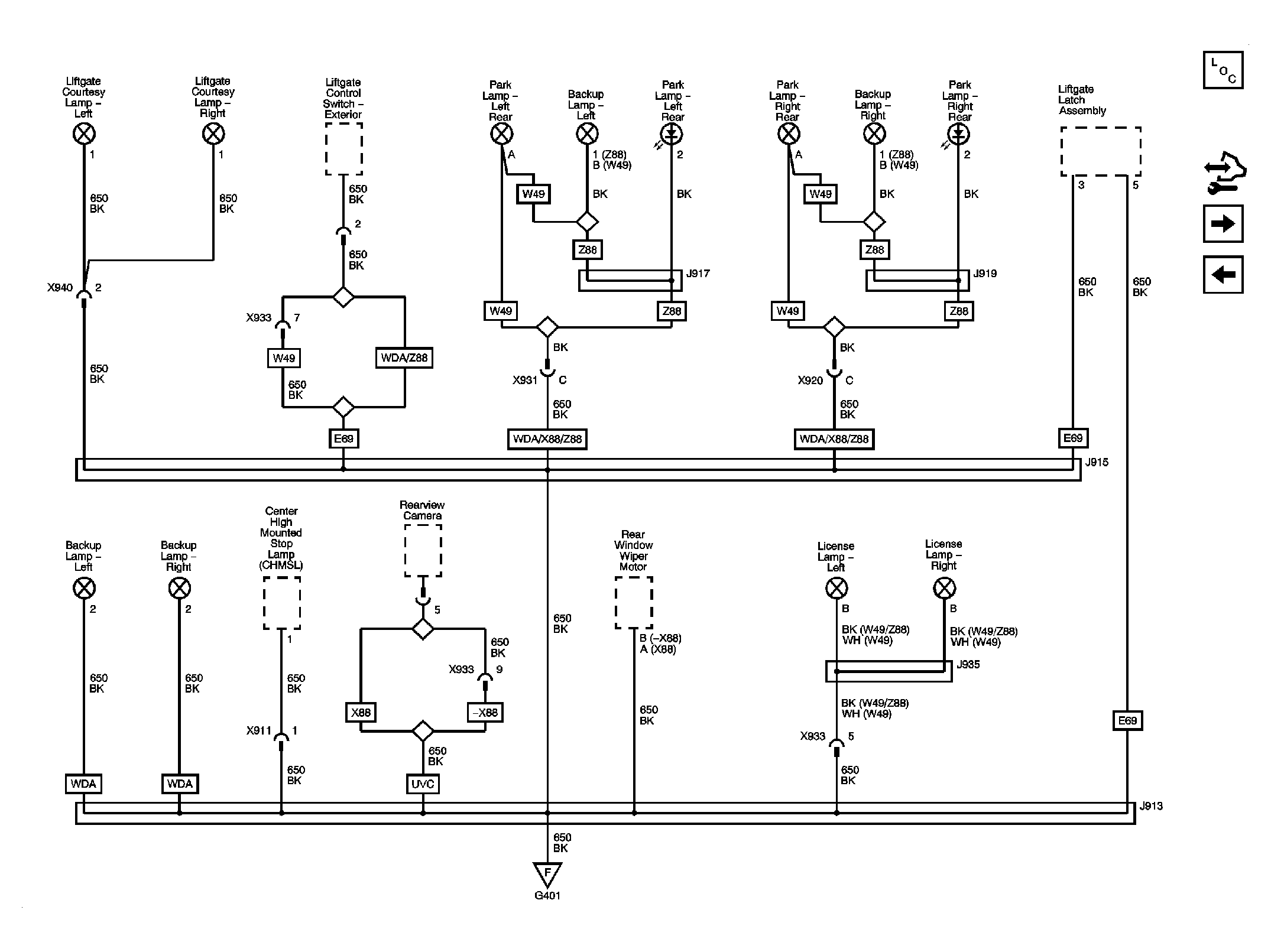

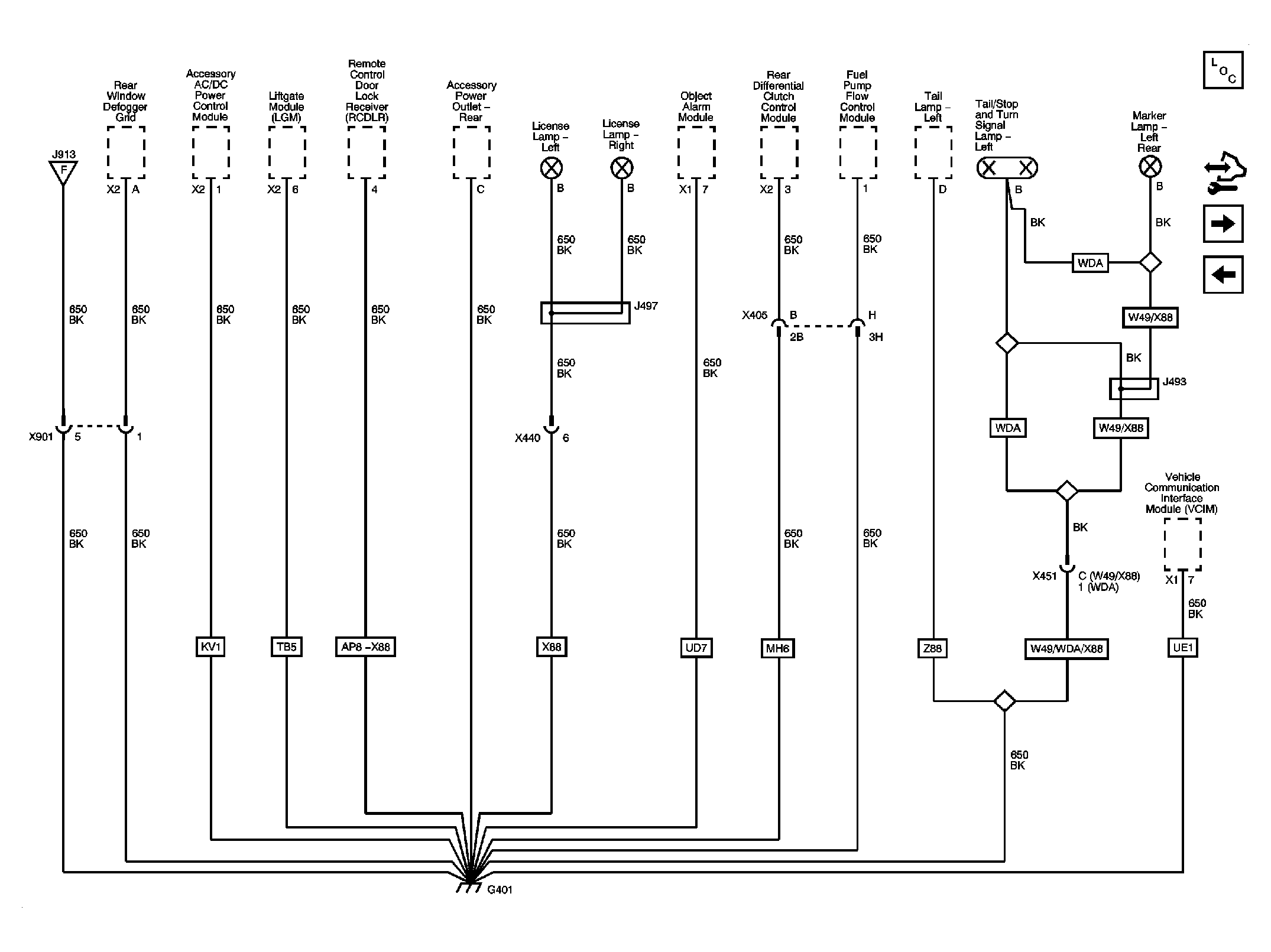

Fig 17: G401 1 of 2 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 18: G401 2 of 2 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

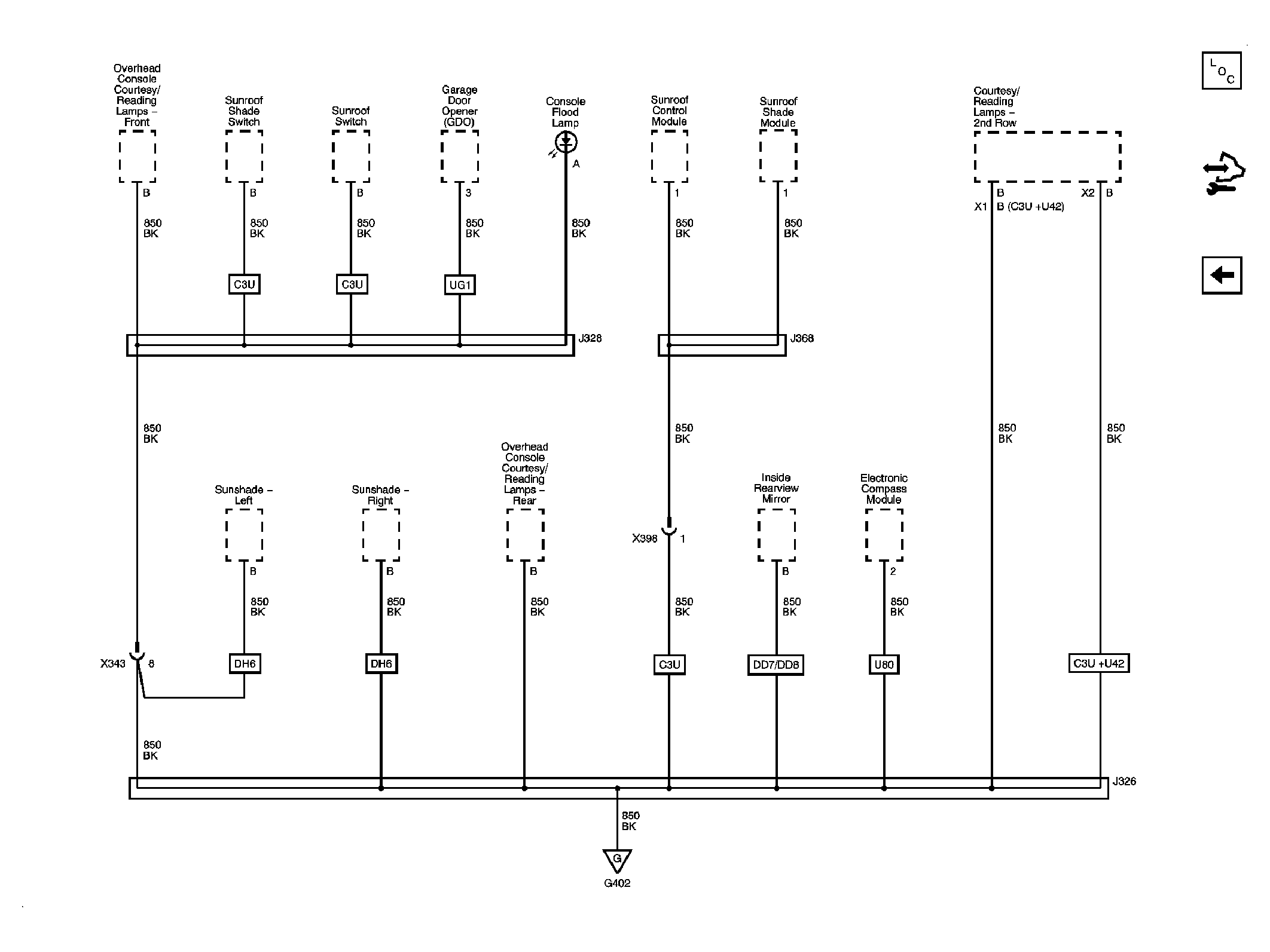

Fig 19: G402 1 of 2 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

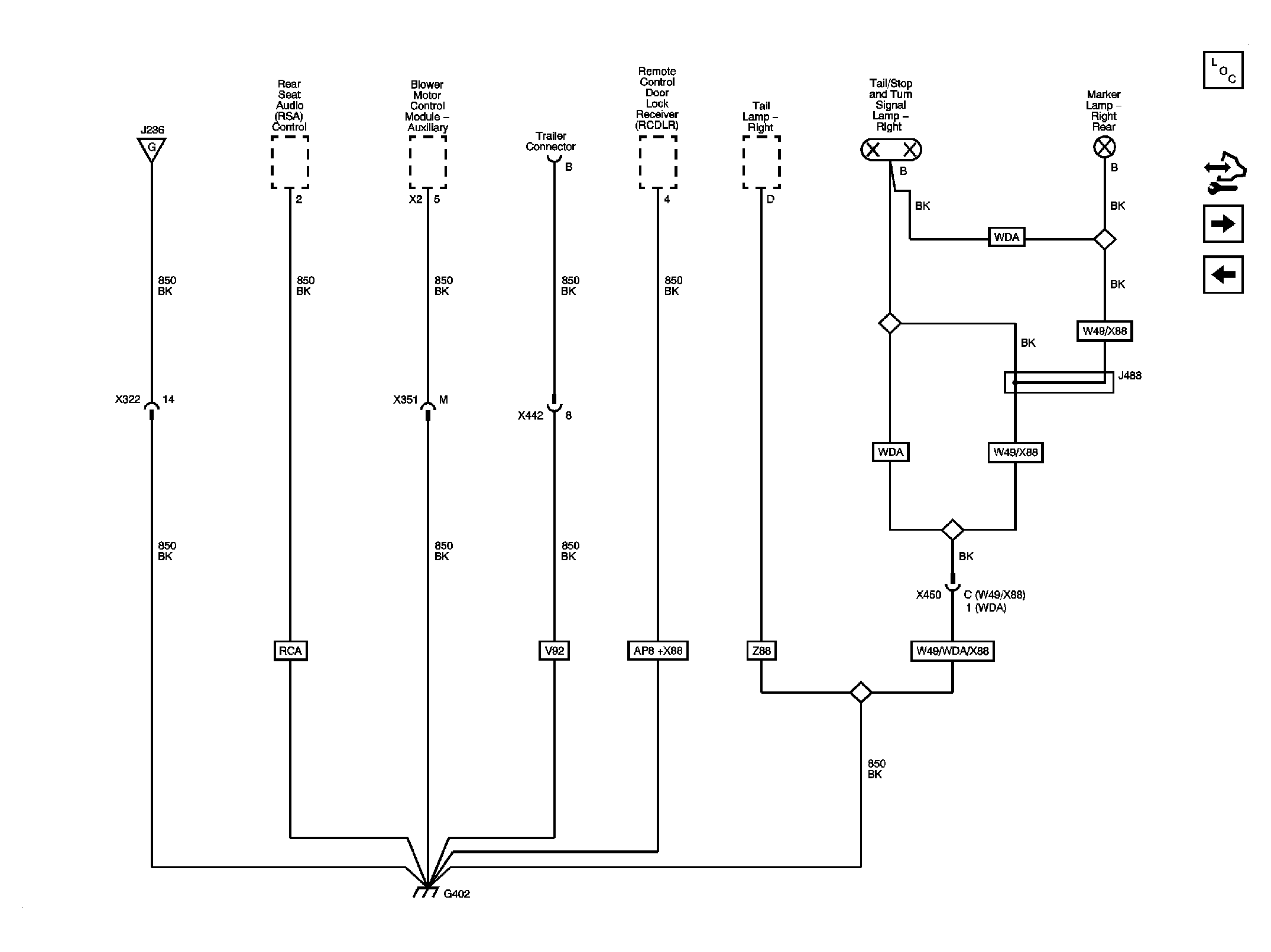

Fig 20: G402 2 of 2 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
