High Mount Stop Lamp Replacement (Traverse)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

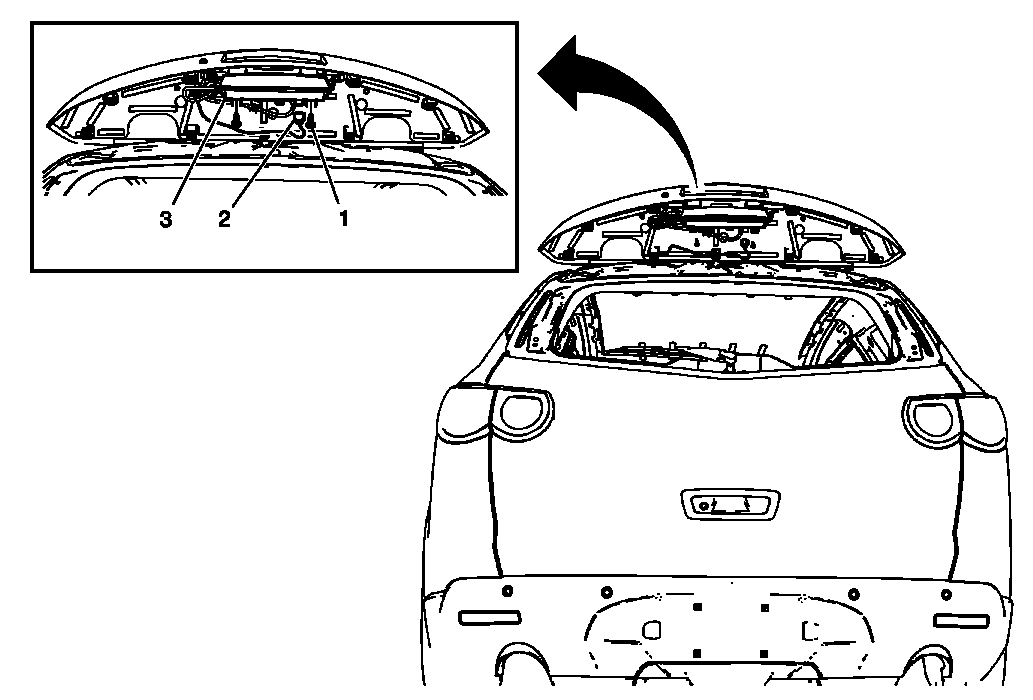

Fig 1: Identifying High Mount Stop Lamp (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the liftgate. Remove the rear spoiler. Refer to Rear Spoiler Replacement (Enclave, Traverse) . Place the rear spoiler on a clean protected surface in order to remove the Light Emitted Diode (LED) high mounted stop lamp.
1	High Mount Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	High Mount Stop Lamp Electrical Connector
3	High Mount Stop Lamp Assembly Procedure: Remove the high mount (LED) stop lamp from the bottom side of the rear spoiler.
