Daytime Running Lamp Bulb Replacement (OUTLOOK)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

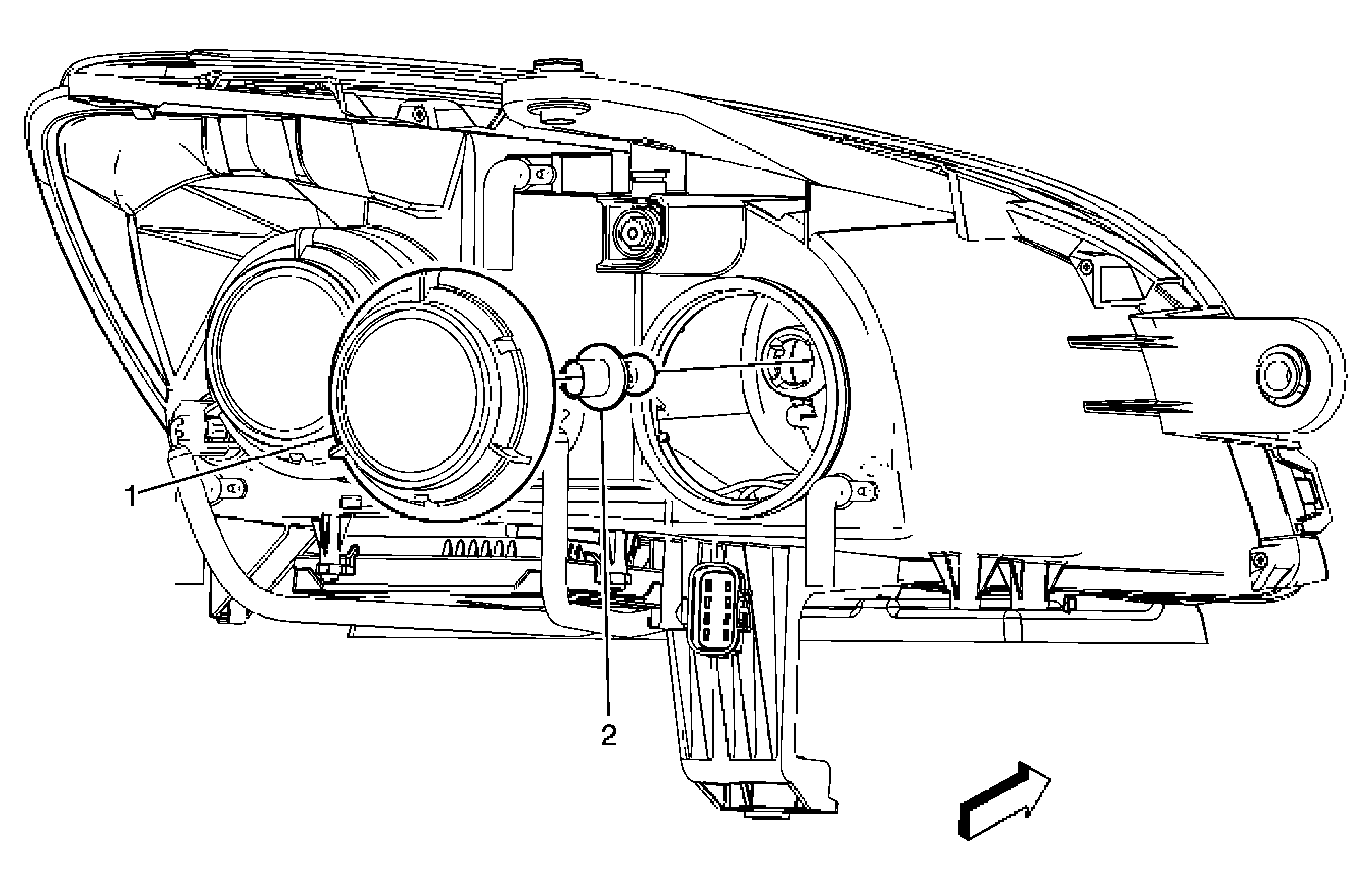

Fig 1: View Of Daytime Running Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamp capsule from the vehicle. Refer to Headlamp Capsule Replacement (OUTLOOK) .
1	Headlamp Bulb Accessory Cover Procedure: Rotate the bulb cover counterclockwise from the headlamp capsule and remove.
2	Daytime Running Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure: Rotate the bulb socket and disconnect the electrical connector from the bulb socket.
