Special Tools

Illustration Tool Number/Description
GM3432Courtesy of GENERAL MOTORS CORP.
 J 38758
Parasitic Draw Test Switch
GM404758Courtesy of GENERAL MOTORS CORP.
 J 42000
Battery Tester

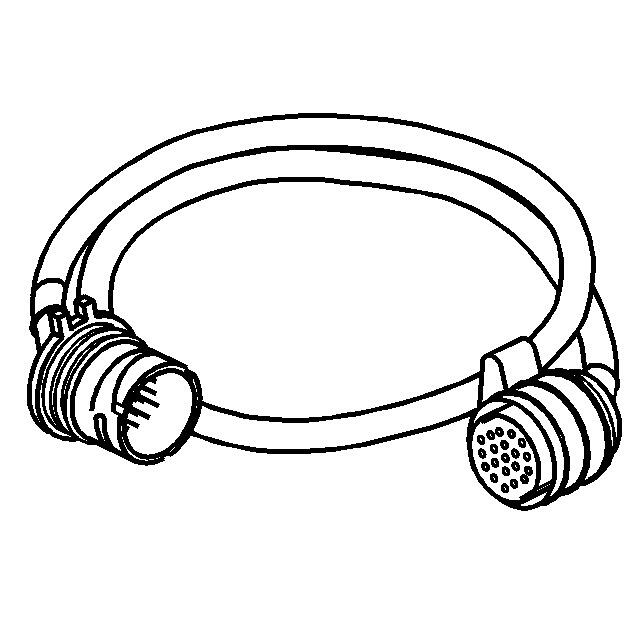

GM817264Courtesy of GENERAL MOTORS CORP.
 J 45681
Jumper Harness
GM878636Courtesy of GENERAL MOTORS CORP.
 SA9130Z
Parasite Load Tester
GM878718Courtesy of GENERAL MOTORS CORP.
 SA9154Z
Starting and Charging System Tester
