Blower Motor: Service and Repair

Blower Motor Replacement

Removal Procedure

1. Remove the right closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Service and Repair).
2. Remove the I/P storage compartment door. Refer to Instrument Panel Compartment Door Replacement (Service and Repair).




3. Disconnect the blower motor electrical connector.
4. Remove the blower motor mounting screws.
5. Remove the blower motor cooling tube.

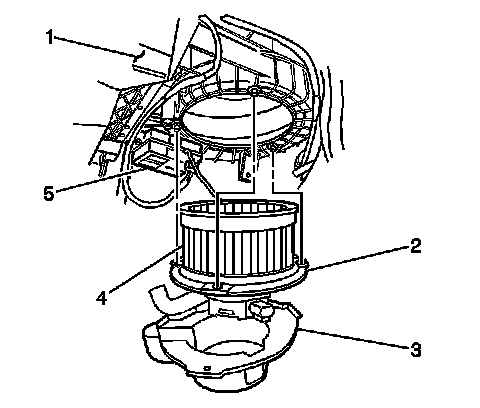

6. Remove the blower motor (2).

Installation Procedure




1. Install the blower motor (2).
2. Install the blower motor cooling tube.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the blower motor mounting screws.

Tighten the screws to 2 Nm (18 lb in).

4. Connect the blower motor electrical connector.
5. Install the right closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Service and Repair).
