Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

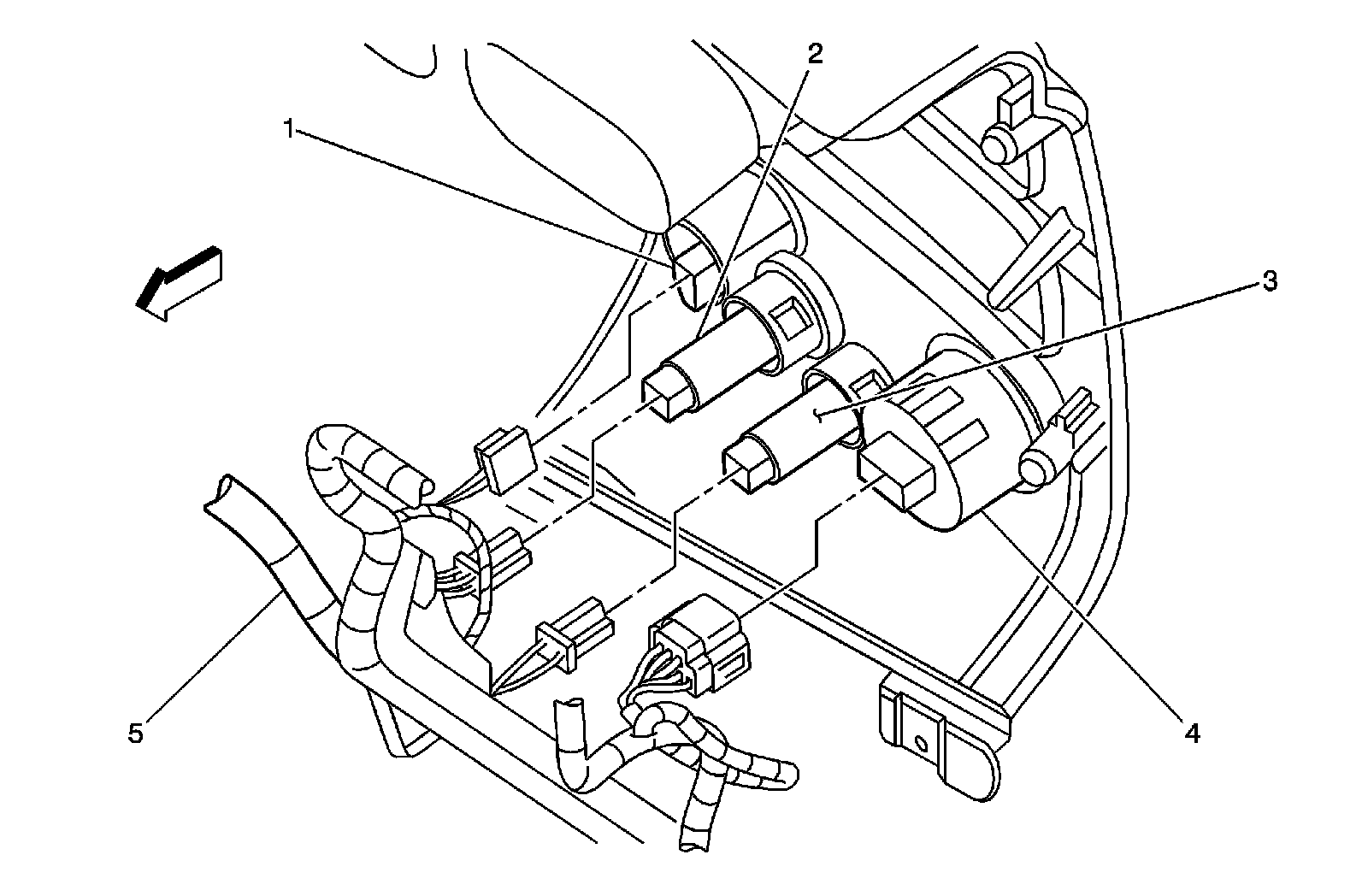

Behind the Center of the I/P Components (Z88/Z89)




1 - Rear Window Wiper/Washer Switch
2 - Auxiliary Power Outlet - Front
3 - Cigar Lighter
4 - Transfer Case Shift Control Switch (NP8)
5 - Instrument Panel Harness

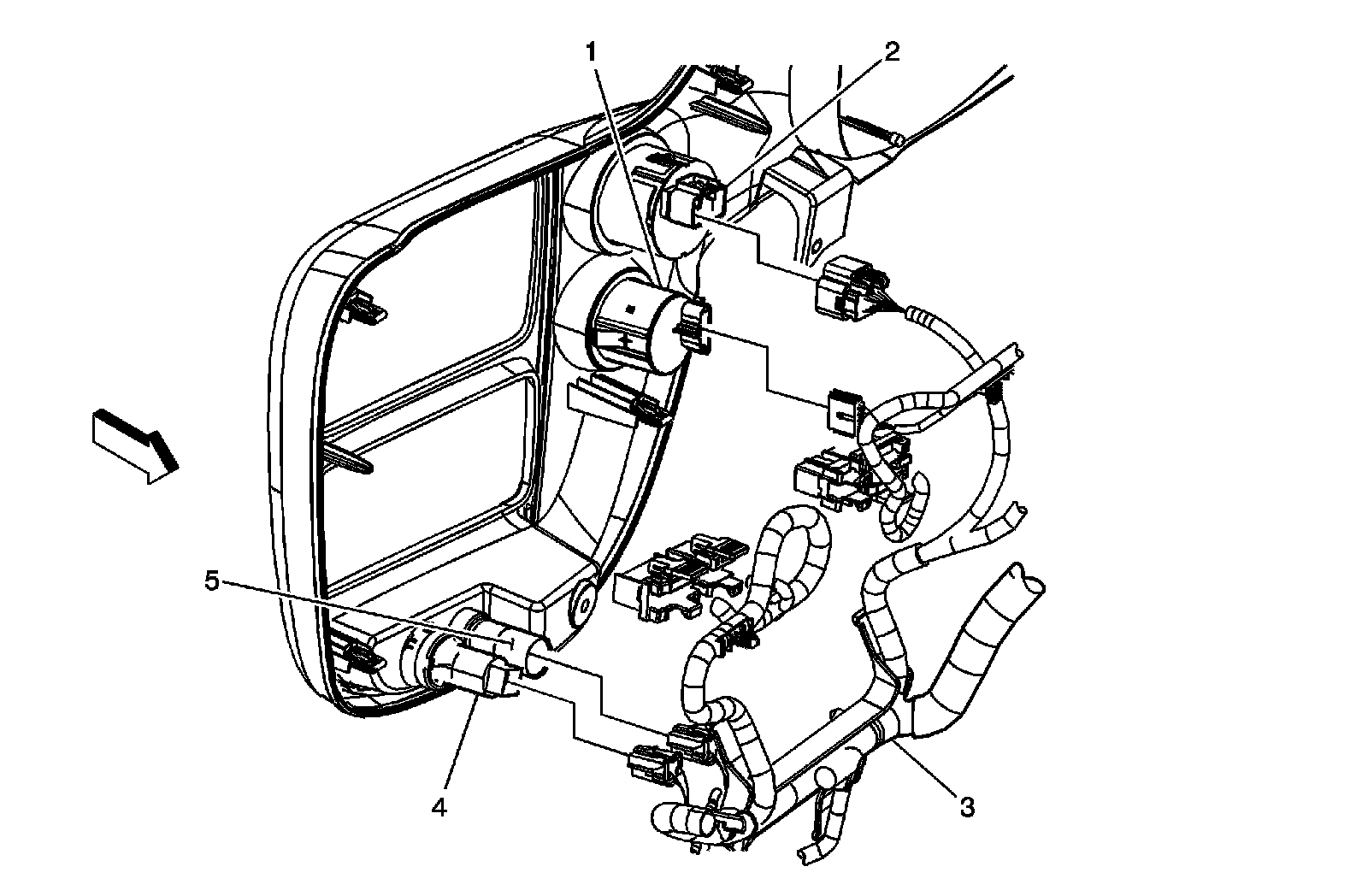

Behind the Center of the I/P Components (X88)




1 - Rear Window Wiper/Washer Switch
2 - Transfer Case Shift Control Switch (NP8)
3 - Instrument Panel Harness
4 - Auxiliary Power Outlet - Front
5 - Cigar Lighter
