Alarm Module: Diagrams




Component Connector End Views

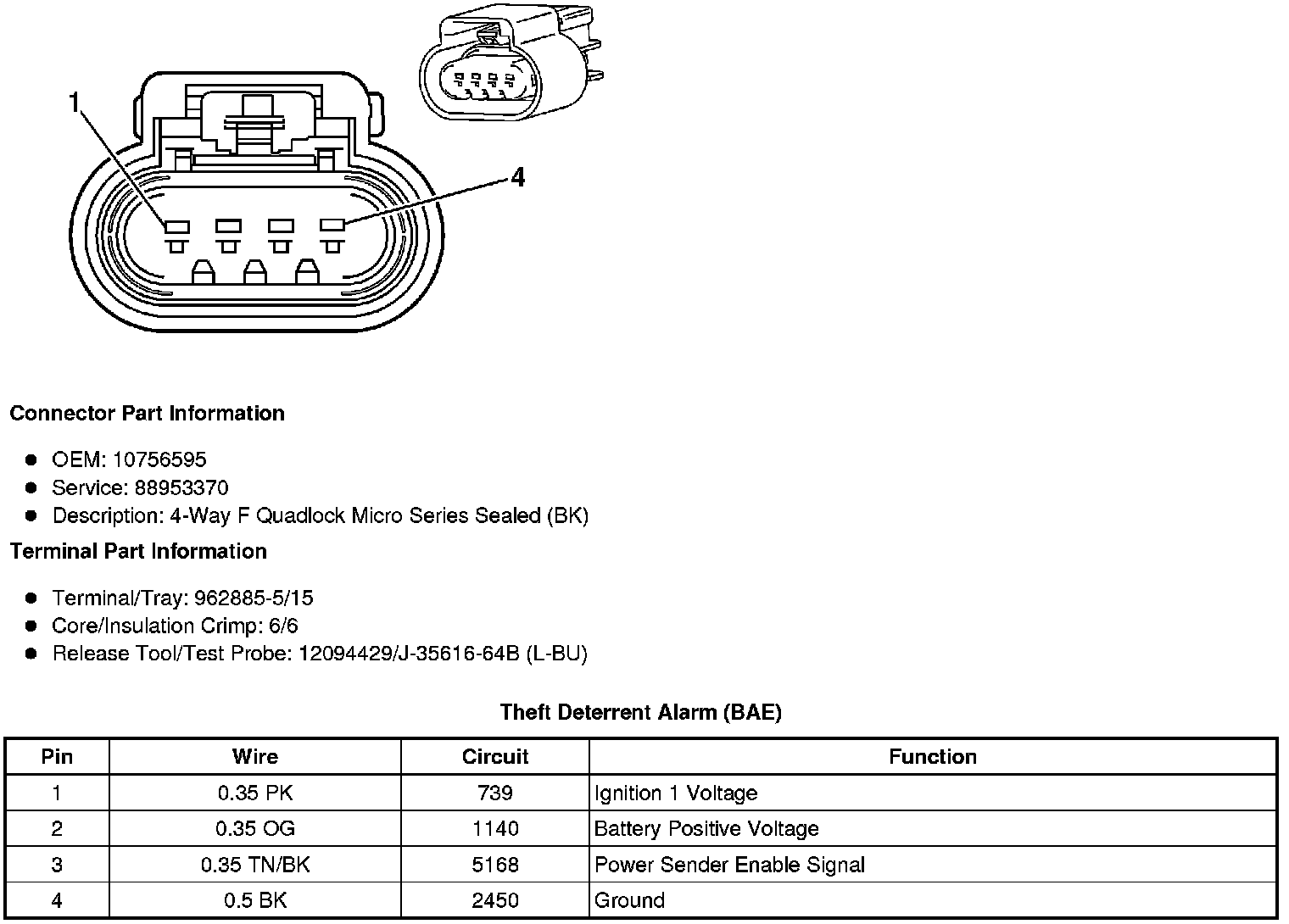

Theft Deterrent Alarm (BAE)






Theft Deterrent Control Module (BAE)
