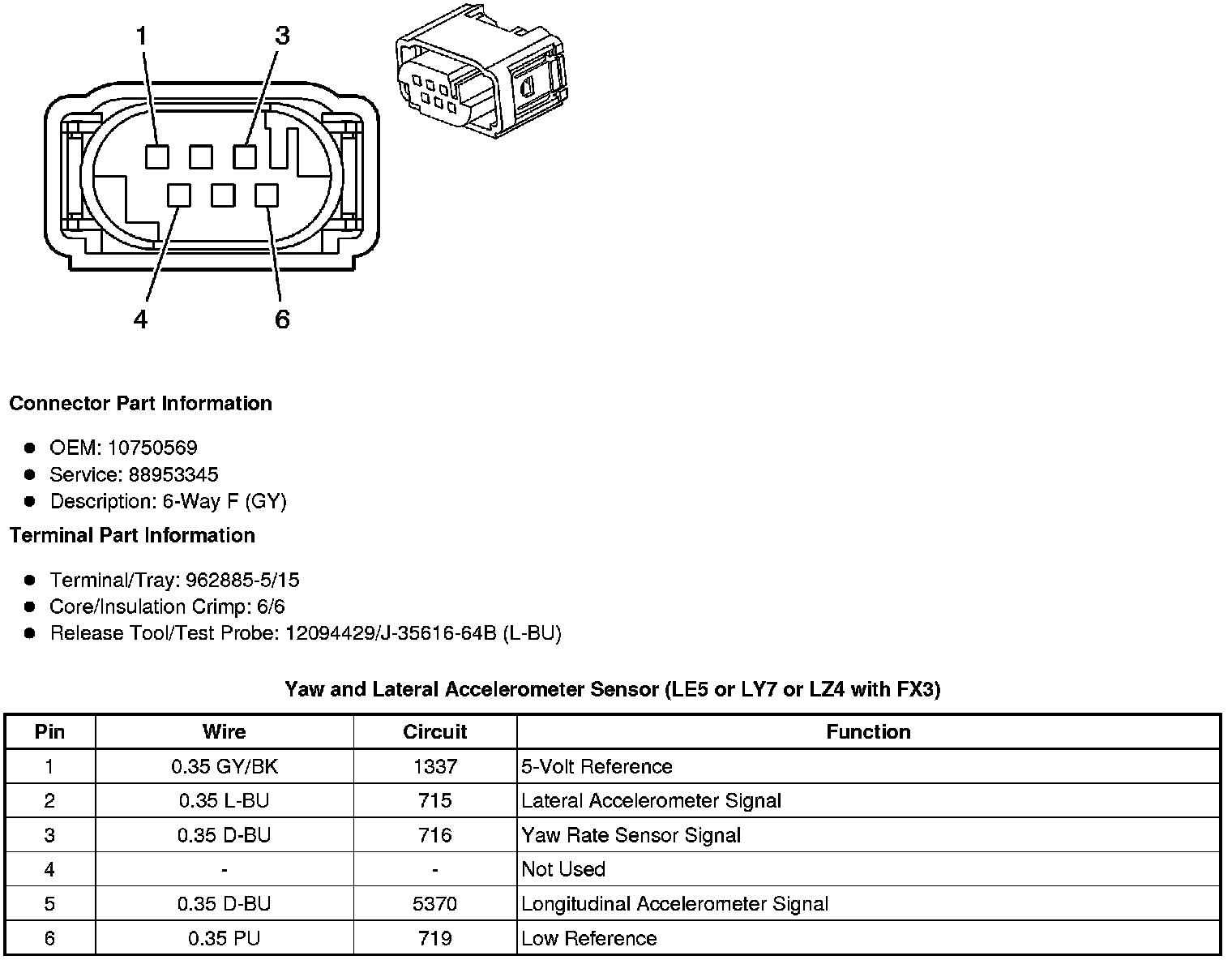

Lateral Accelerometer




Component Connector End Views

Yaw and Lateral Accelerometer Sensor (LE5 or LY7 or LZ4 with FX3)
