Battery Control Module: Diagrams




Component Connector End Views

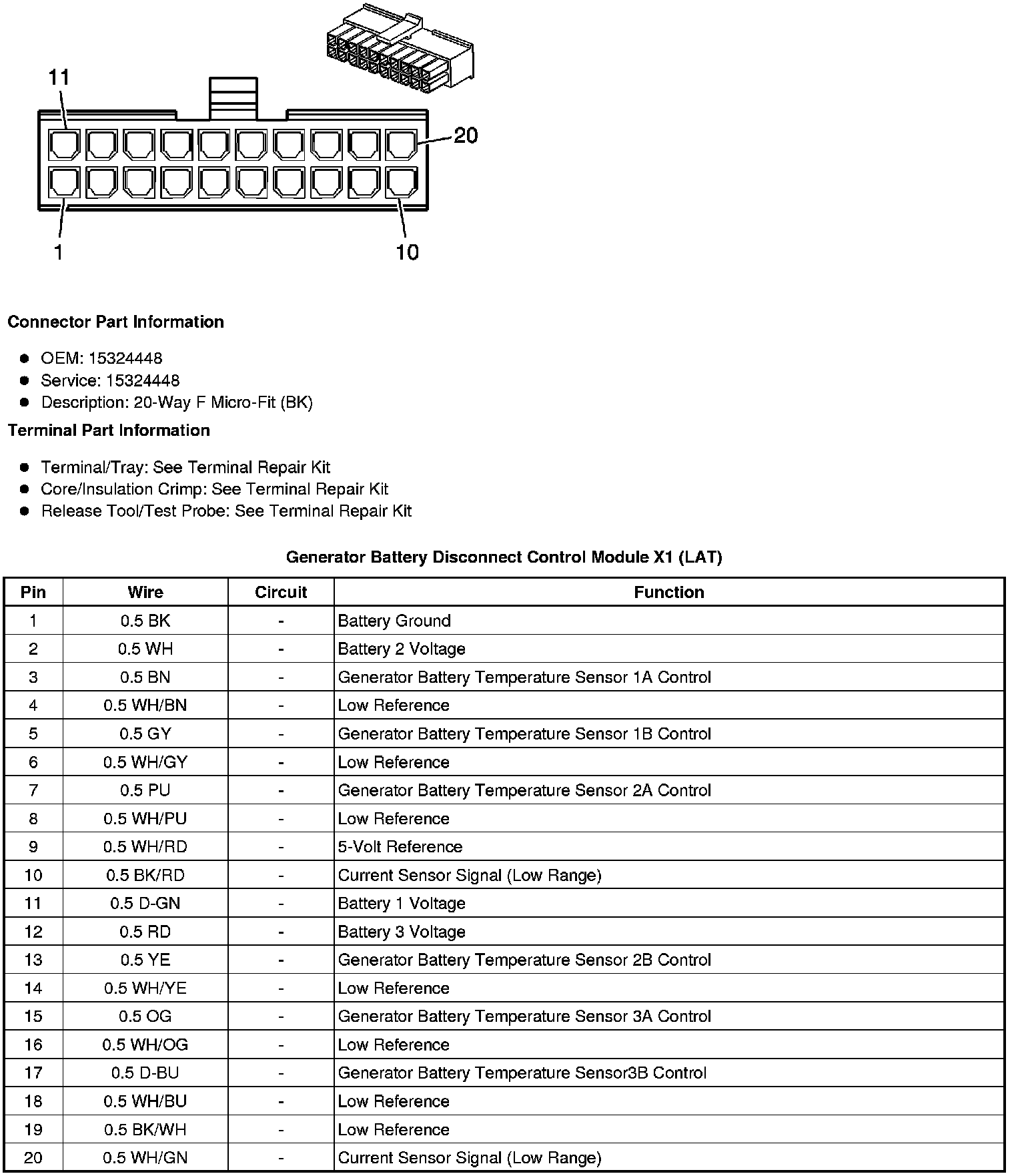

Generator Battery Disconnect Control Module X1 (LAT)

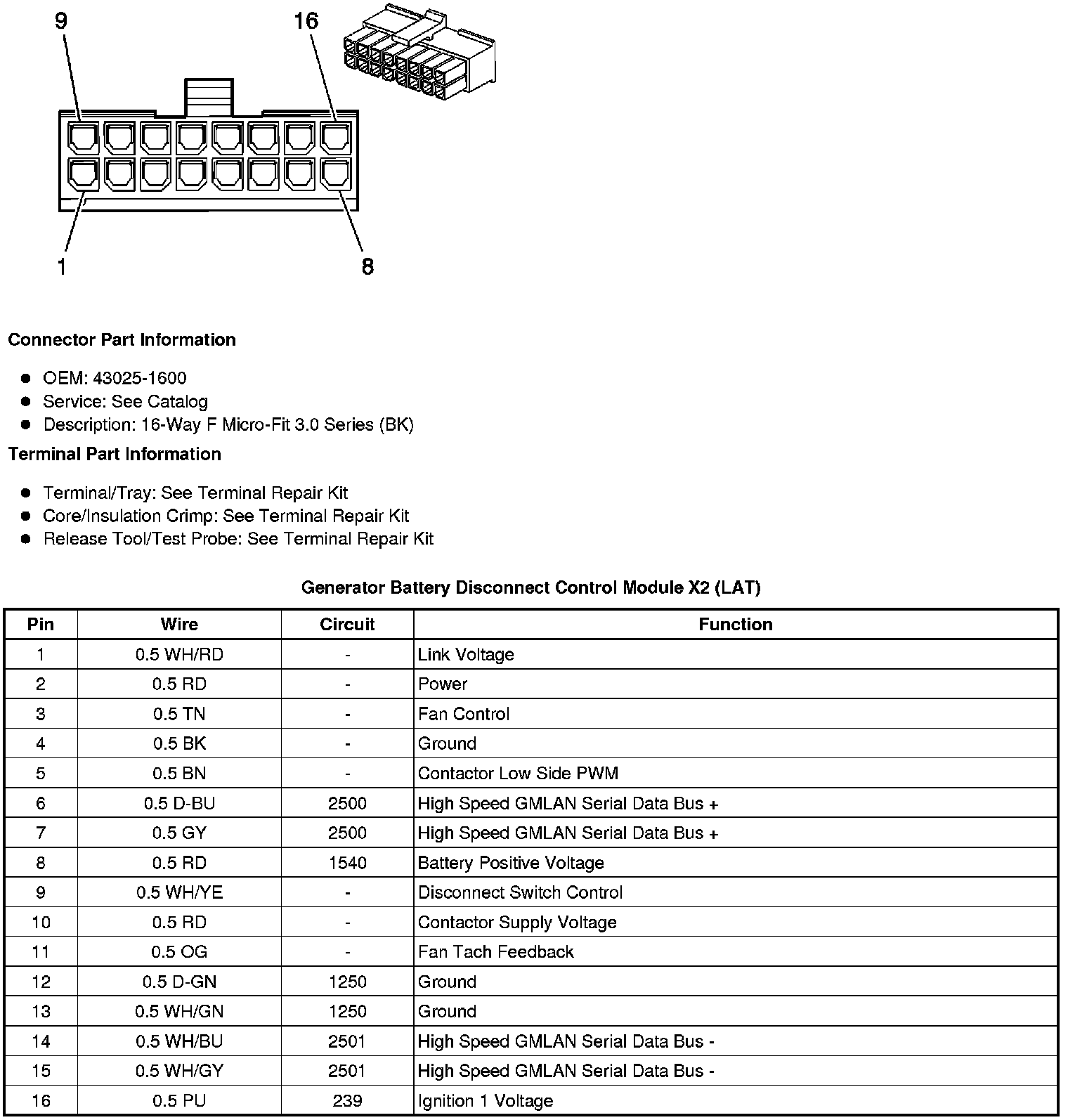

Generator Battery Disconnect Control Module X2 (LAT)
