Camshaft Position Sensor: Diagrams




Component Connector End Views

Camshaft Position (CMP) Sensor - Exhaust (LAT or LE5)

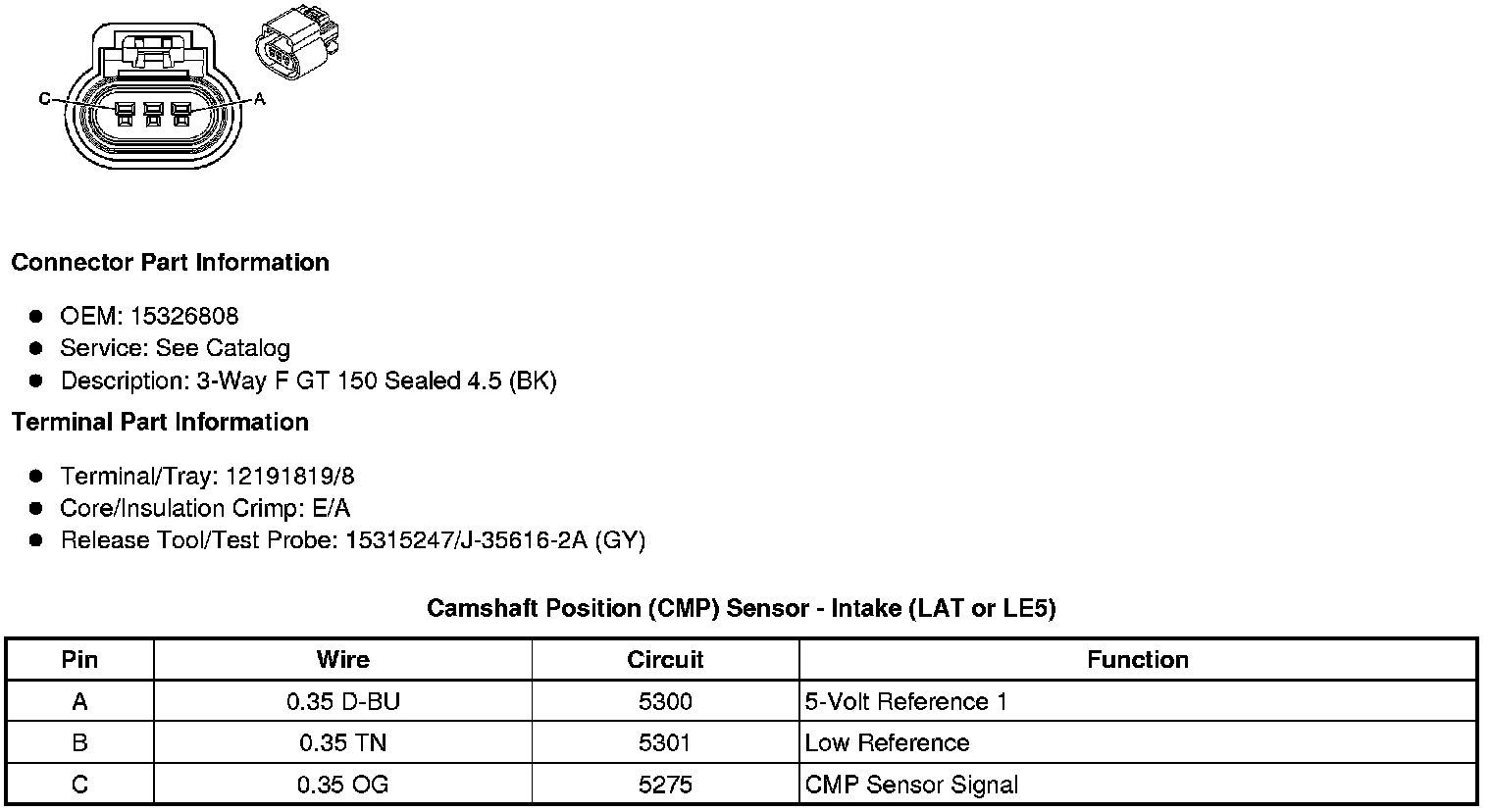

Camshaft Position (CMP) Sensor - Intake (LAT or LE5)
