Front Seat Lumbar Control Switch Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

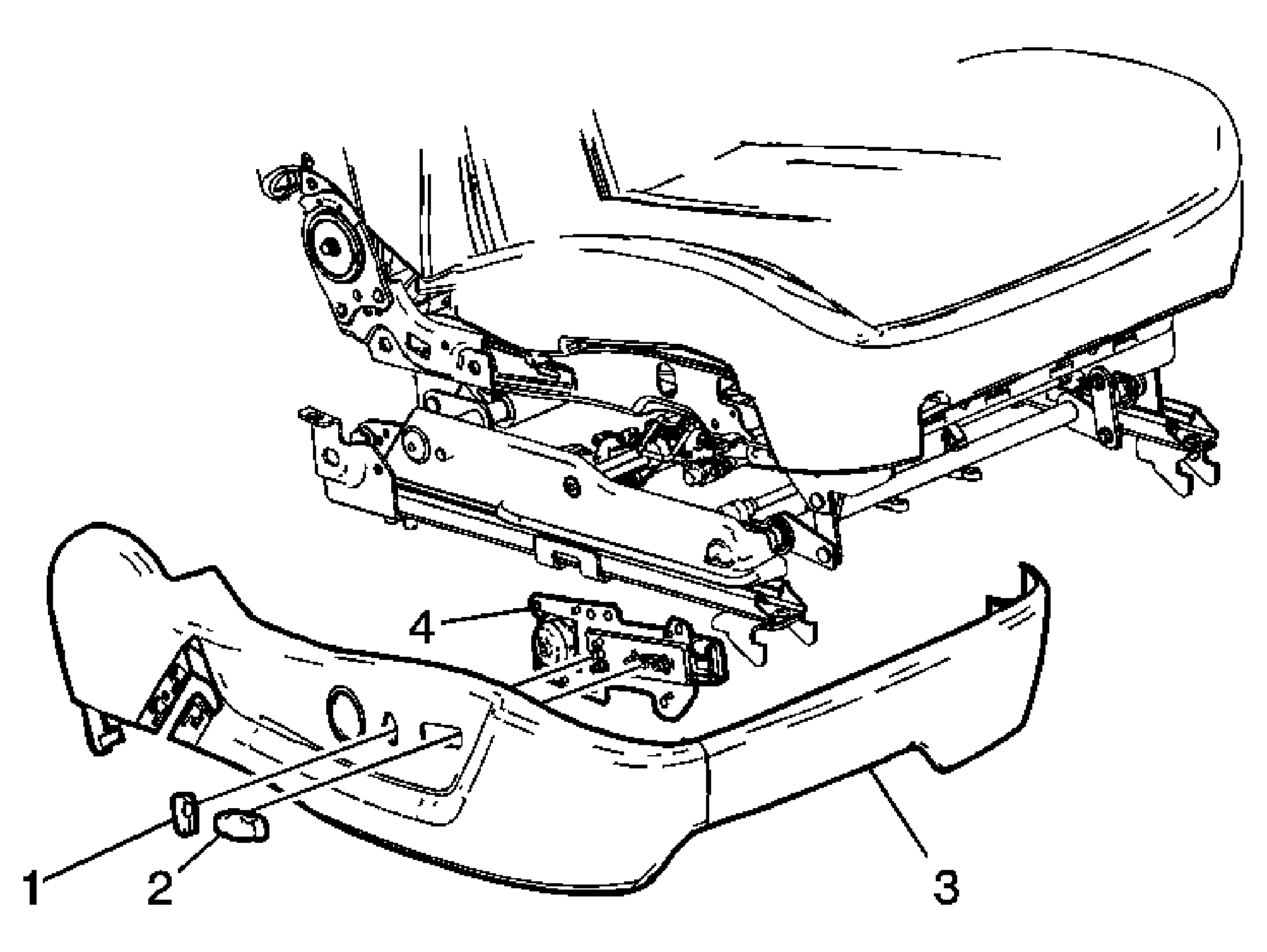

Fig 1: Lumbar Switch Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Knob, Front Seat Recliner Tip: Pull outward to remove.
2	Knob, Front Seat Adjuster Tip: Pull outward to remove.
3	Cover, Seat Cushion Side Outer Refer to Front Seat Cushion Outer Trim Panel Replacement .
4	Switch Assembly, Front Seat Lumbar Control Tip: Disconnect the electrical connector and separate from outer trim cover.
