Ignition Coil: Diagrams




Component Connector End Views

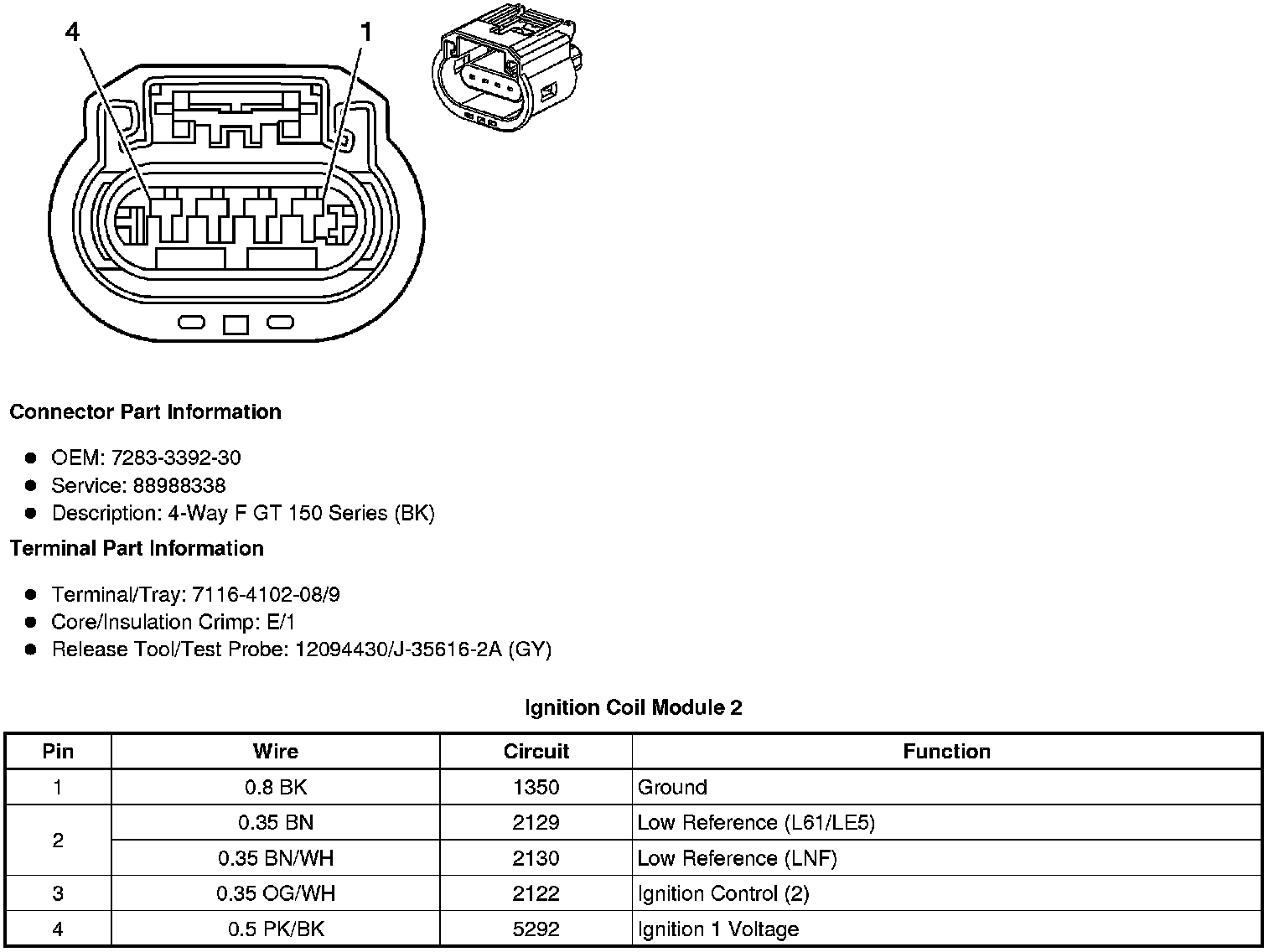

Ignition Coil Module 1






Ignition Coil Module 2

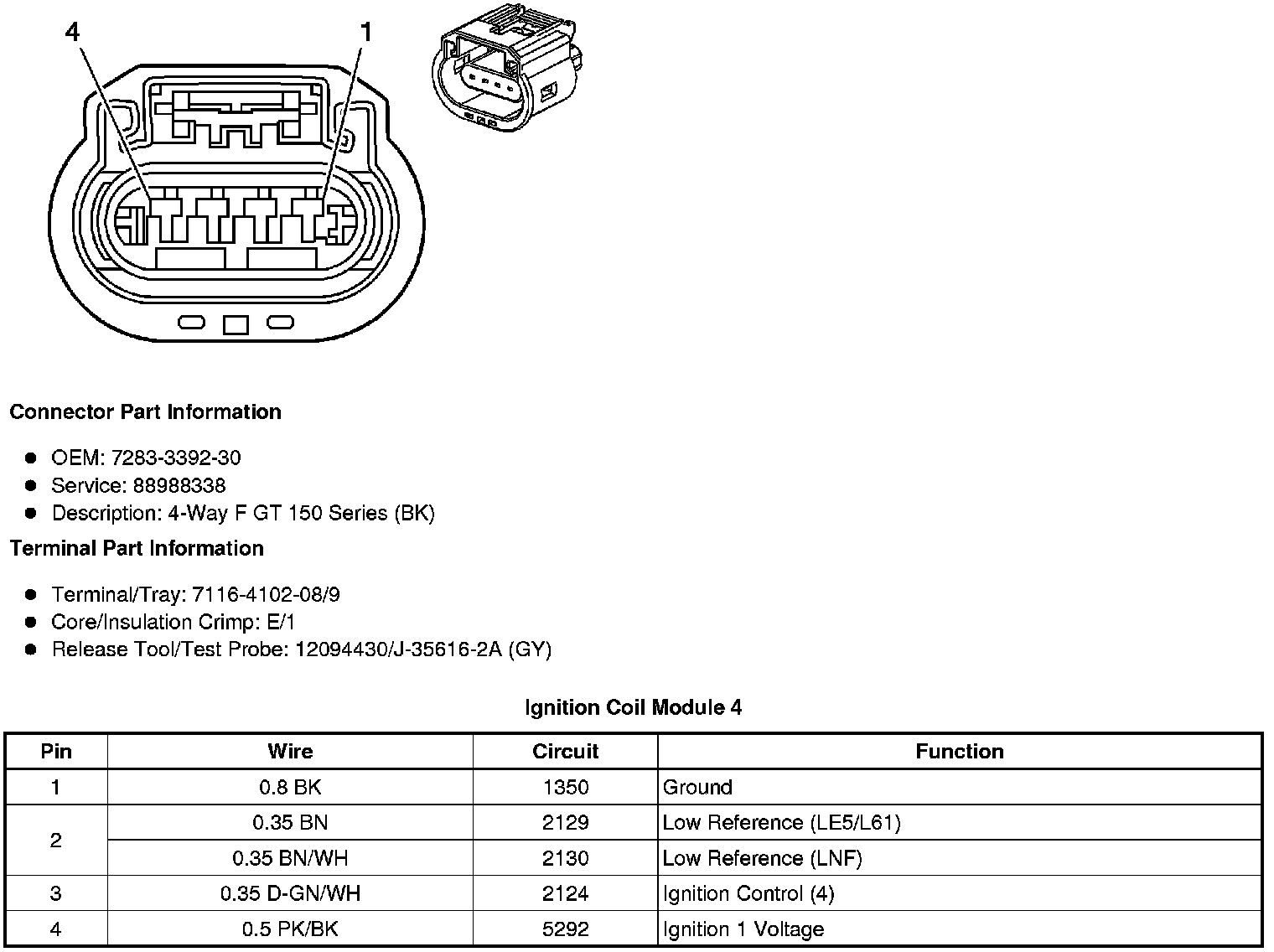

Ignition Coil Module 3






Ignition Coil Module 4
