Auxiliary Heater and Air Conditioning Control Replacement - Rear

Auxiliary Heater and Air Conditioning Control Replacement - Rear

Removal Procedure

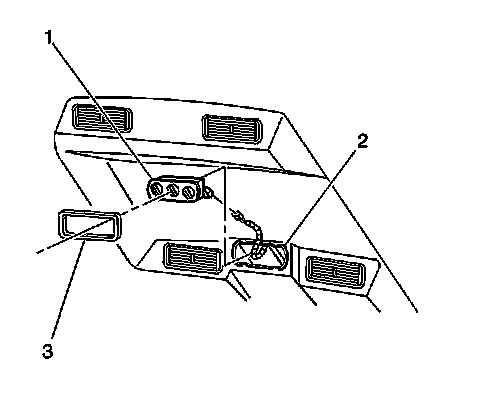

1. Remove the HVAC control assembly bezel (3) from the headliner (2).
2. Lower the front headliner to access the rear of the HVAC control assembly (1). Refer to Headlining Front Trim Panel Replacement (Service and Repair).
3. Disconnect the electrical connectors.
4. Remove the HVAC control assembly from the front headliner.

Installation Procedure




1. Install the HVAC control assembly (1) in the front headliner and attach the bezel (3).
2. Connect the electrical connectors.
3. Install the front headliner (2). Refer to Headlining Front Trim Panel Replacement (Service and Repair).
