Manual Mirror Replacement

Manual Mirror Replacement

Removal Procedure




1. Remove the front door garnish molding. Refer to Front Side Door Front Garnish Molding Replacement (Service and Repair).

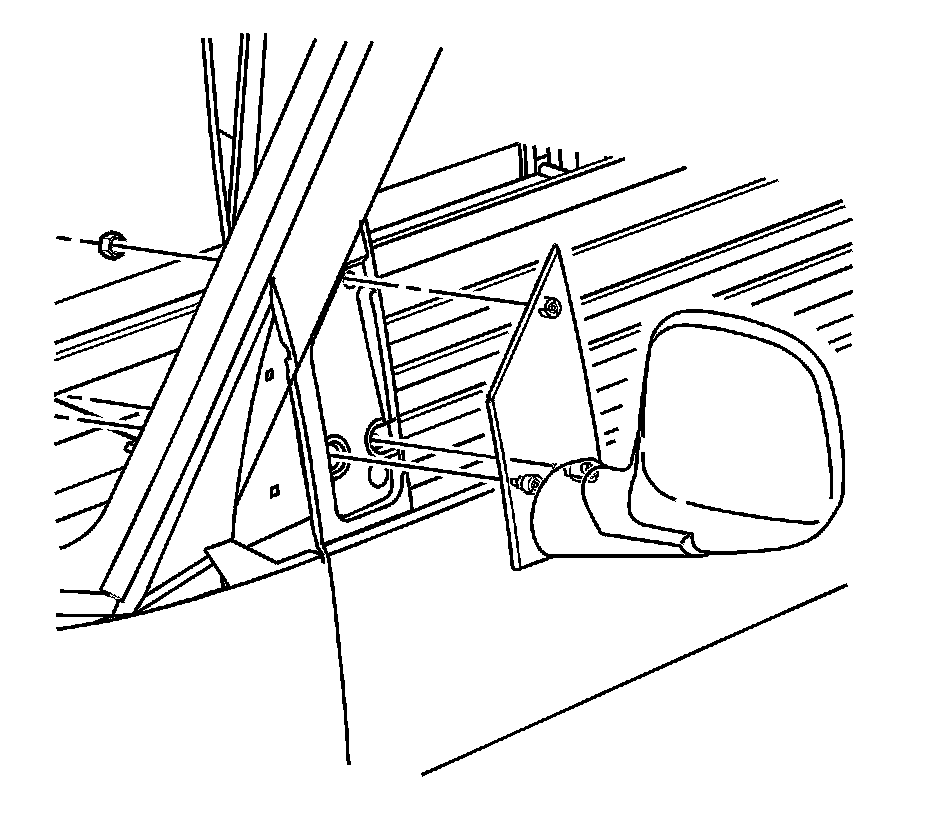

2. Remove the nuts that retain the rearview mirror to the door.
3. Remove the rearview mirror from the door.

Installation Procedure




1. Install the rearview mirror to the door.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the nuts in order to retain the rearview mirror to the door and tighten to 10 Nm (89 lb in).
3. Install the front door front garnish molding. Refer to Front Side Door Front Garnish Molding Replacement (Service and Repair).
