Removal Procedure

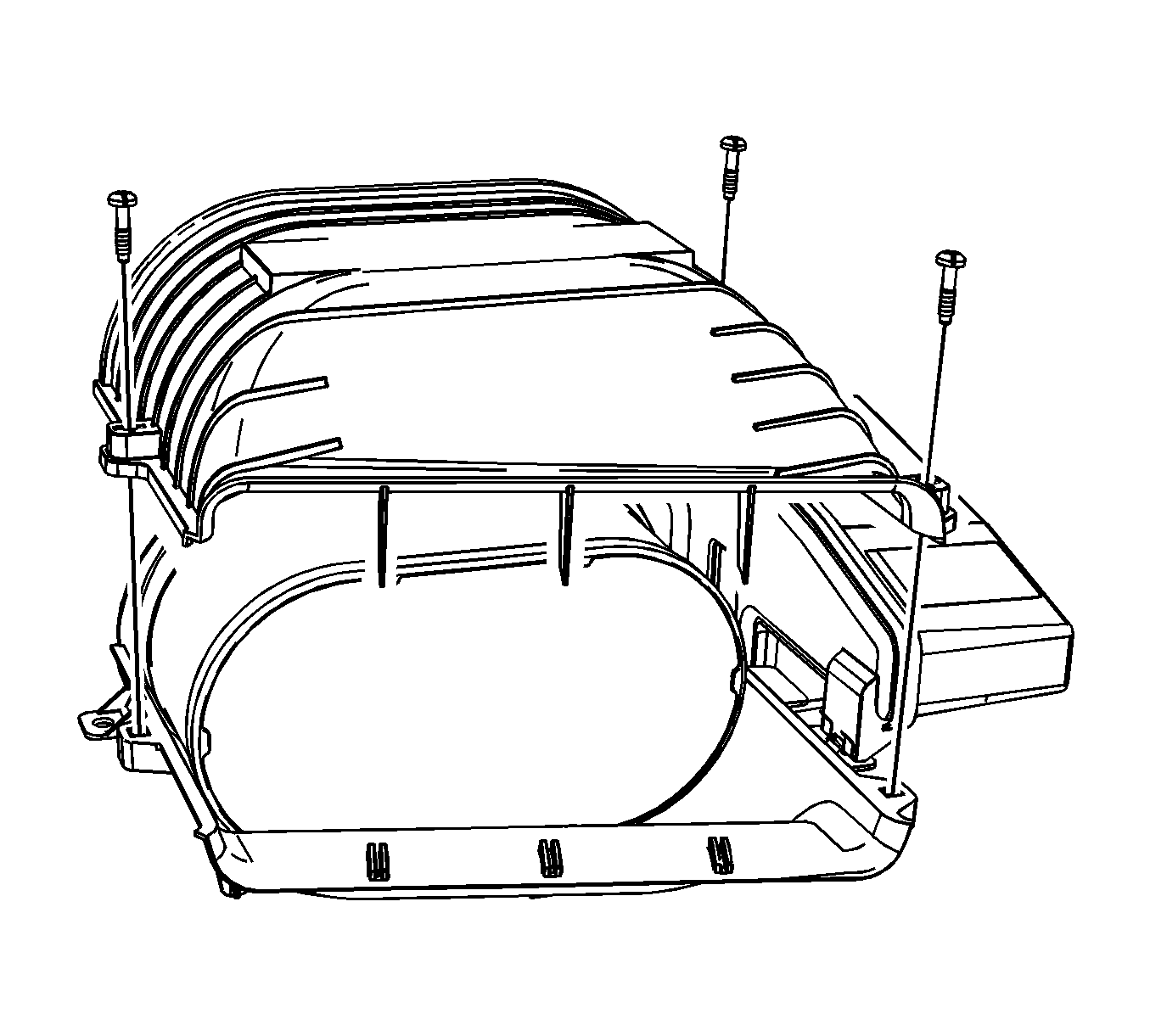

    Fig 1: Identifying Air Cleaner Cover Bolts
    GM1661286Courtesy of GENERAL MOTORS CORP.
  1. Remove 3 air cleaner cover bolts.
  2. Remove the air cleaner cover.

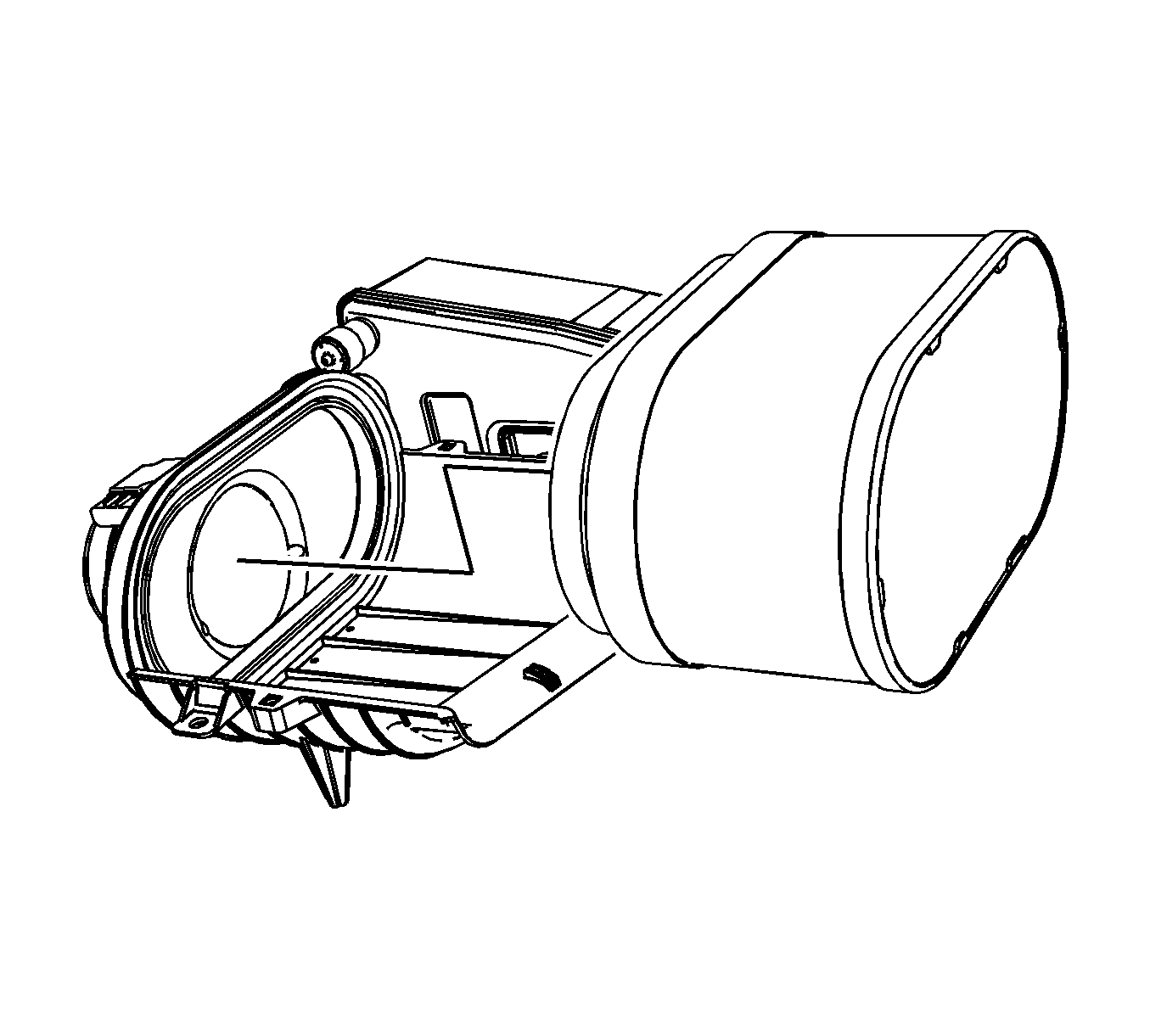

    3. Fig 2: View Of Air Cleaner Element
    GM1661288Courtesy of GENERAL MOTORS CORP.
  3. Remove the air cleaner element.
