Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1

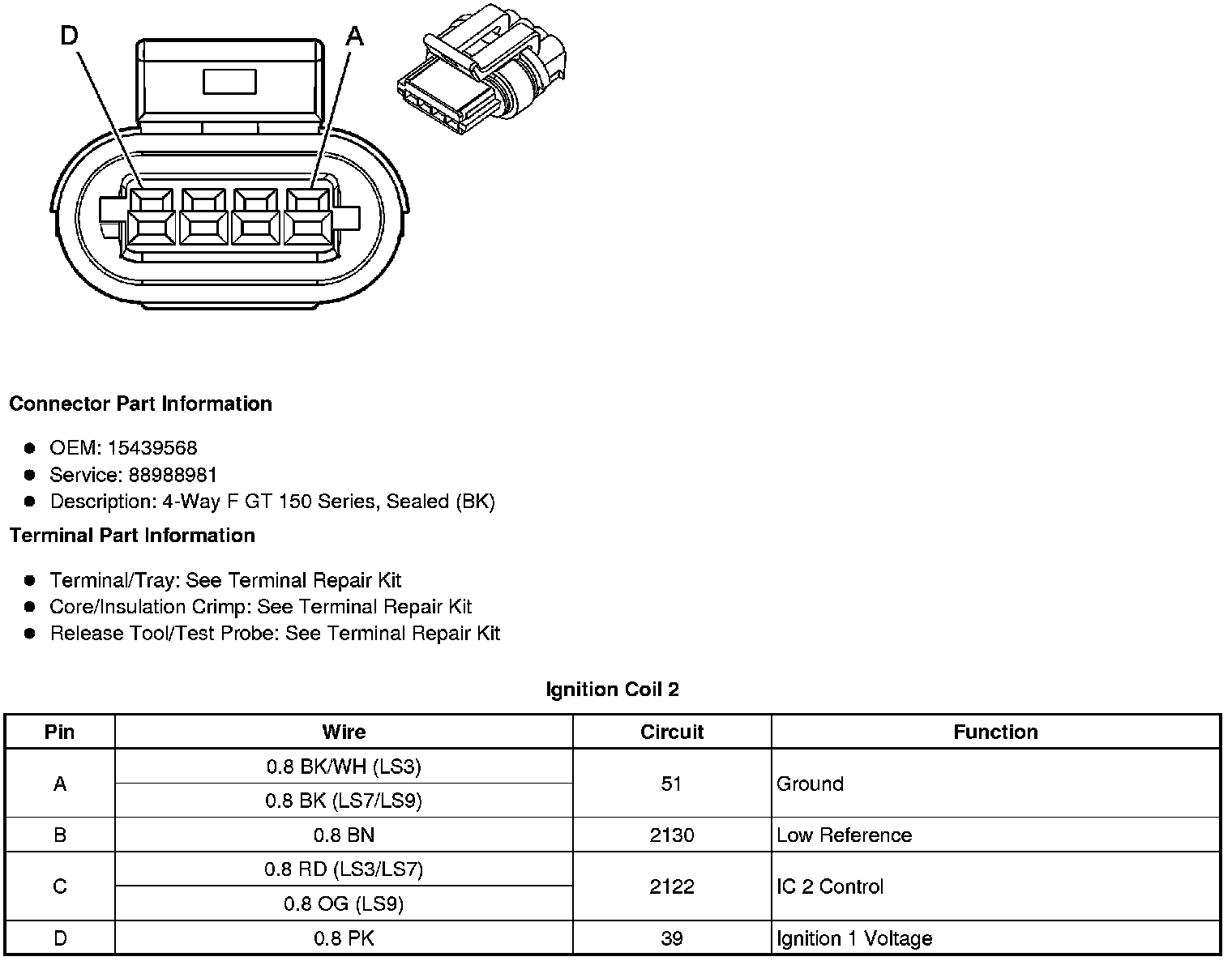

Ignition Coil 2






Ignition Coil 3

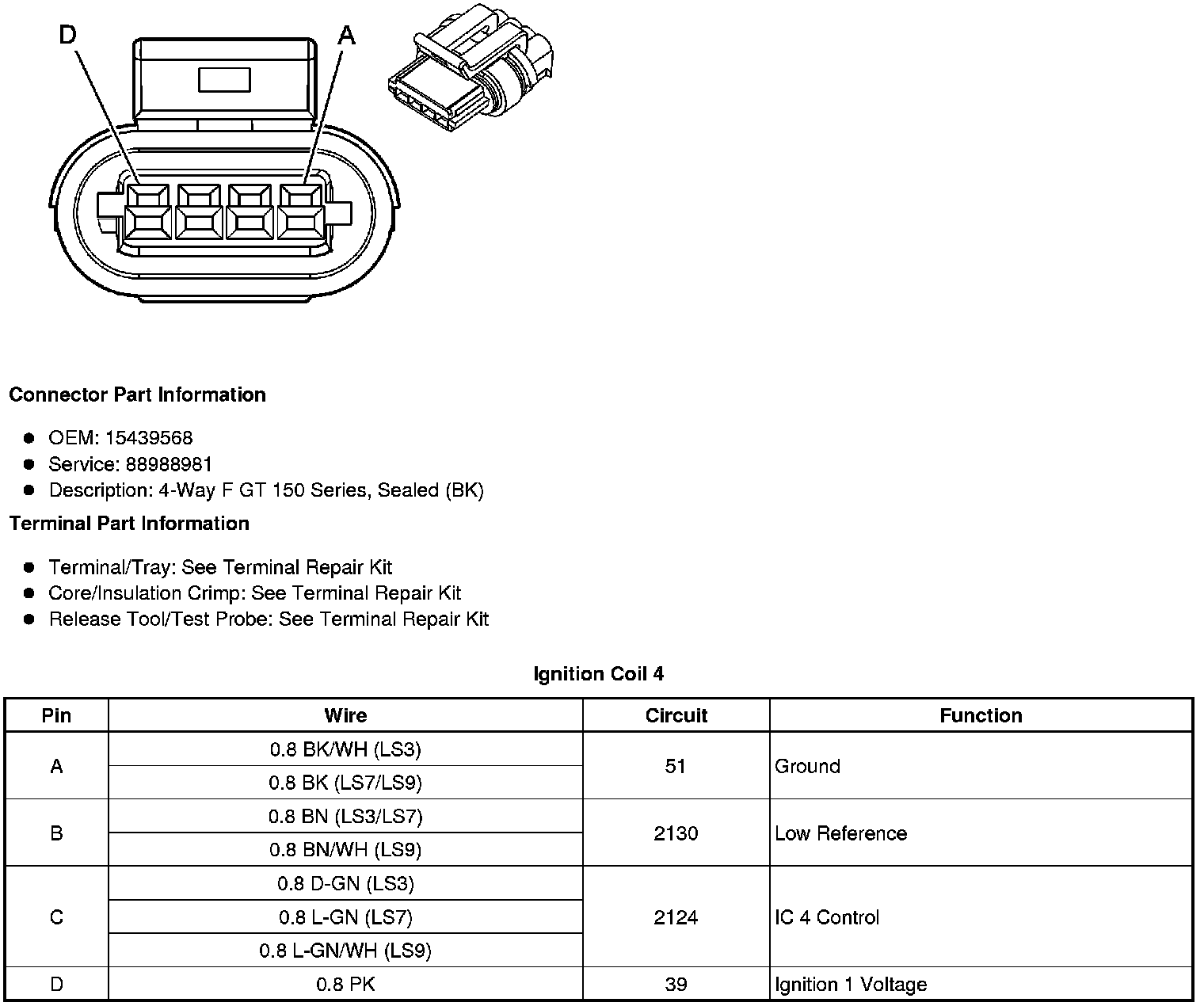

Ignition Coil 4






Ignition Coil 5

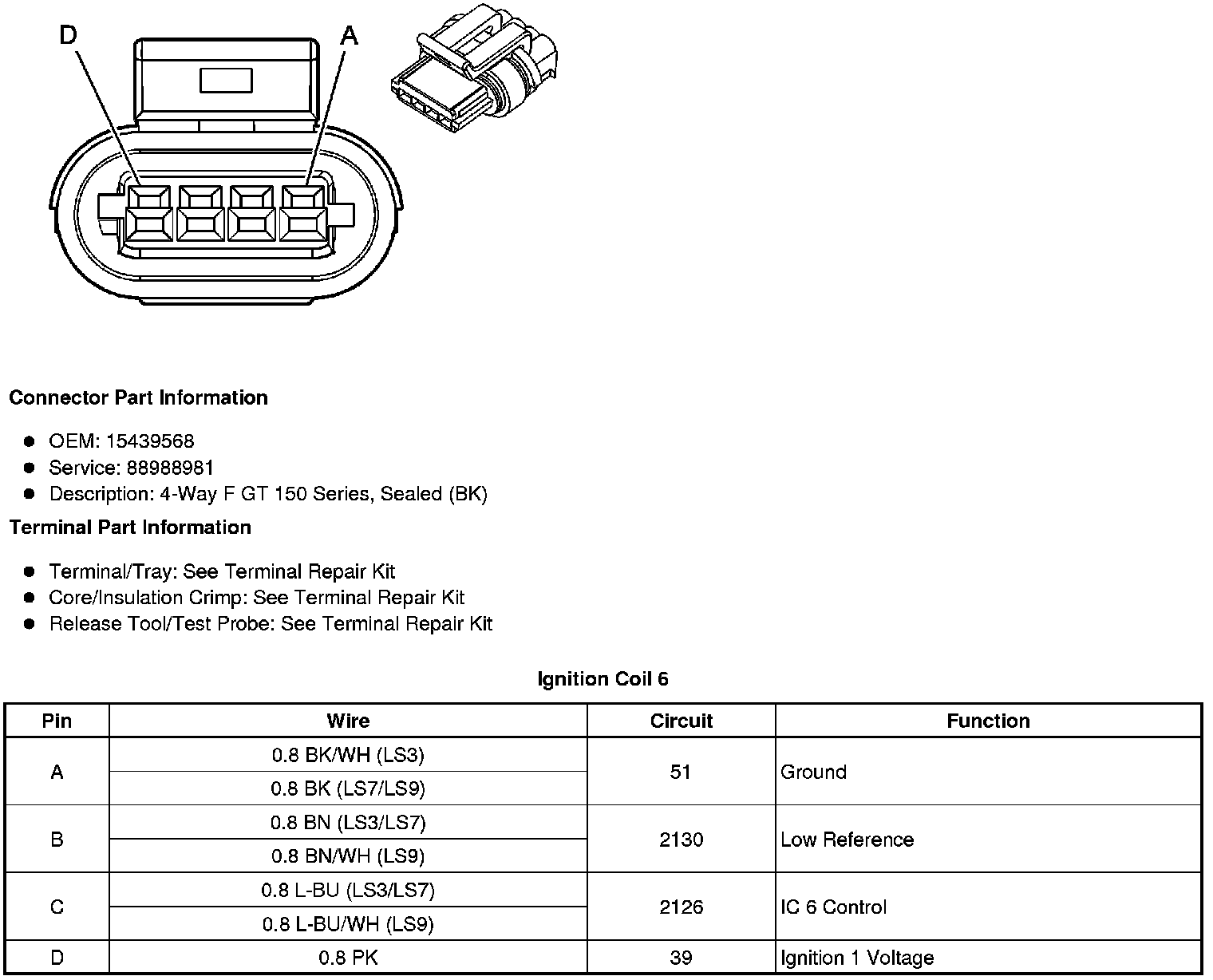

Ignition Coil 6






Ignition Coil 7






Ignition Coil 8
