Fuel Pump Flow Control Module Relay X1 (LS9)

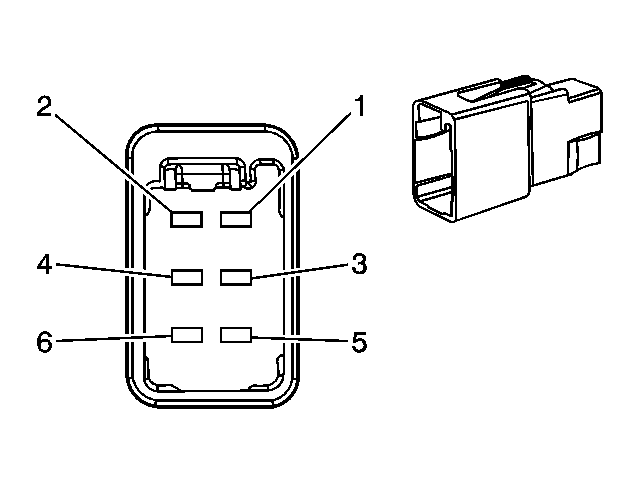

Fig 1: Fuel Pump Flow Control Module Relay X1 (LS9) Connector End View
GM1566759Courtesy of GENERAL MOTORS CORP.
Fuel Pump Flow Control Module Relay X1 (LS9)

Pin Wire Circuit Function
1 - - Not Used
2 3.0 D-GN 999 Phase 3
3 3.0 RD/WH 1940 Battery Positive Voltage
4 3.0 L-BU 998 Phase 2
5 3.0 BK 650 Ground
6 3.0 RD 997 Phase 1
Connector Part Information
  • OEM: 772-716-501
  • Service: See Catalog
  • Description: 6-Way F
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
