Marker Lamp




Component Connector End Views

Marker Lamp - Left Front

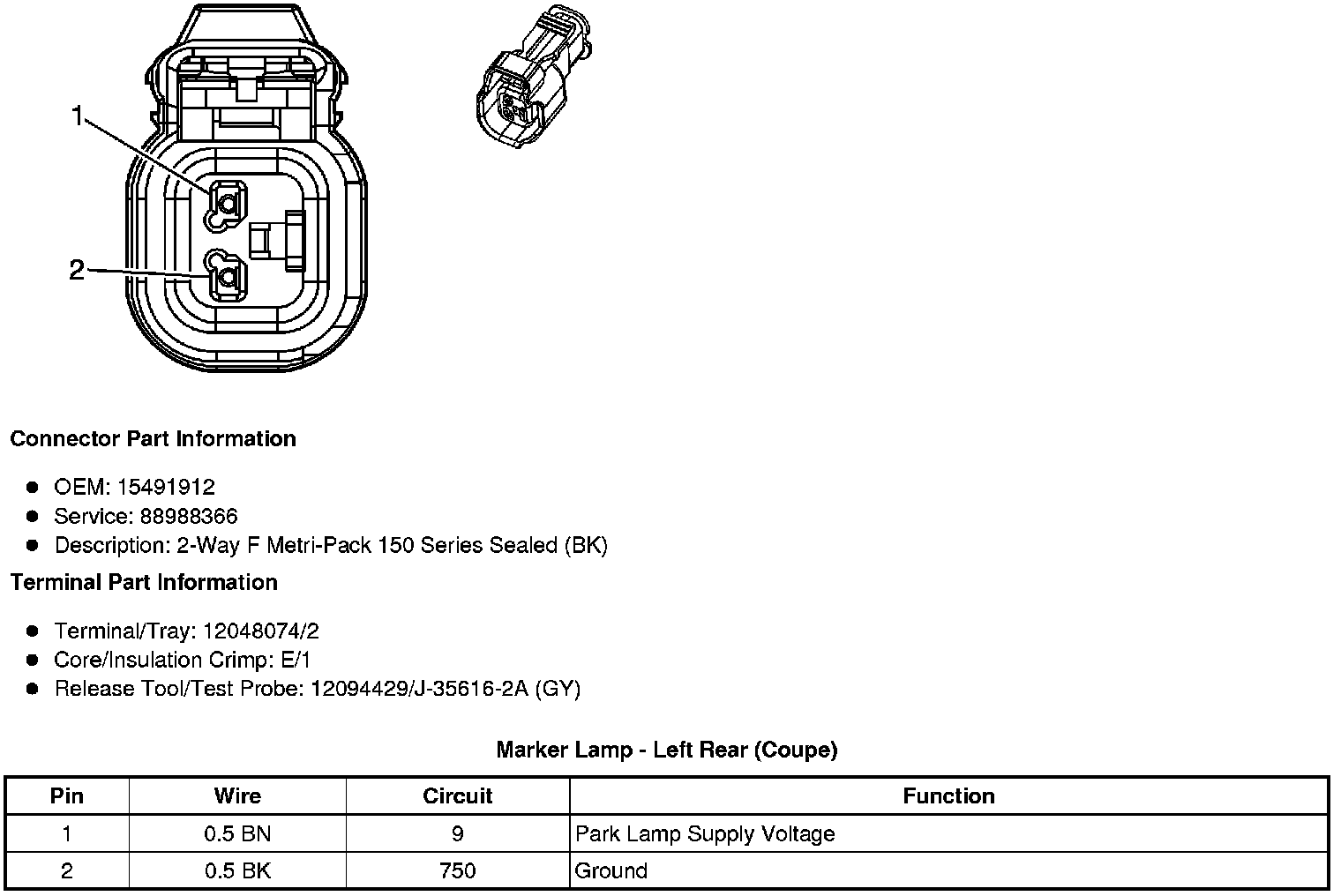

Marker Lamp - Left Rear (Coupe)

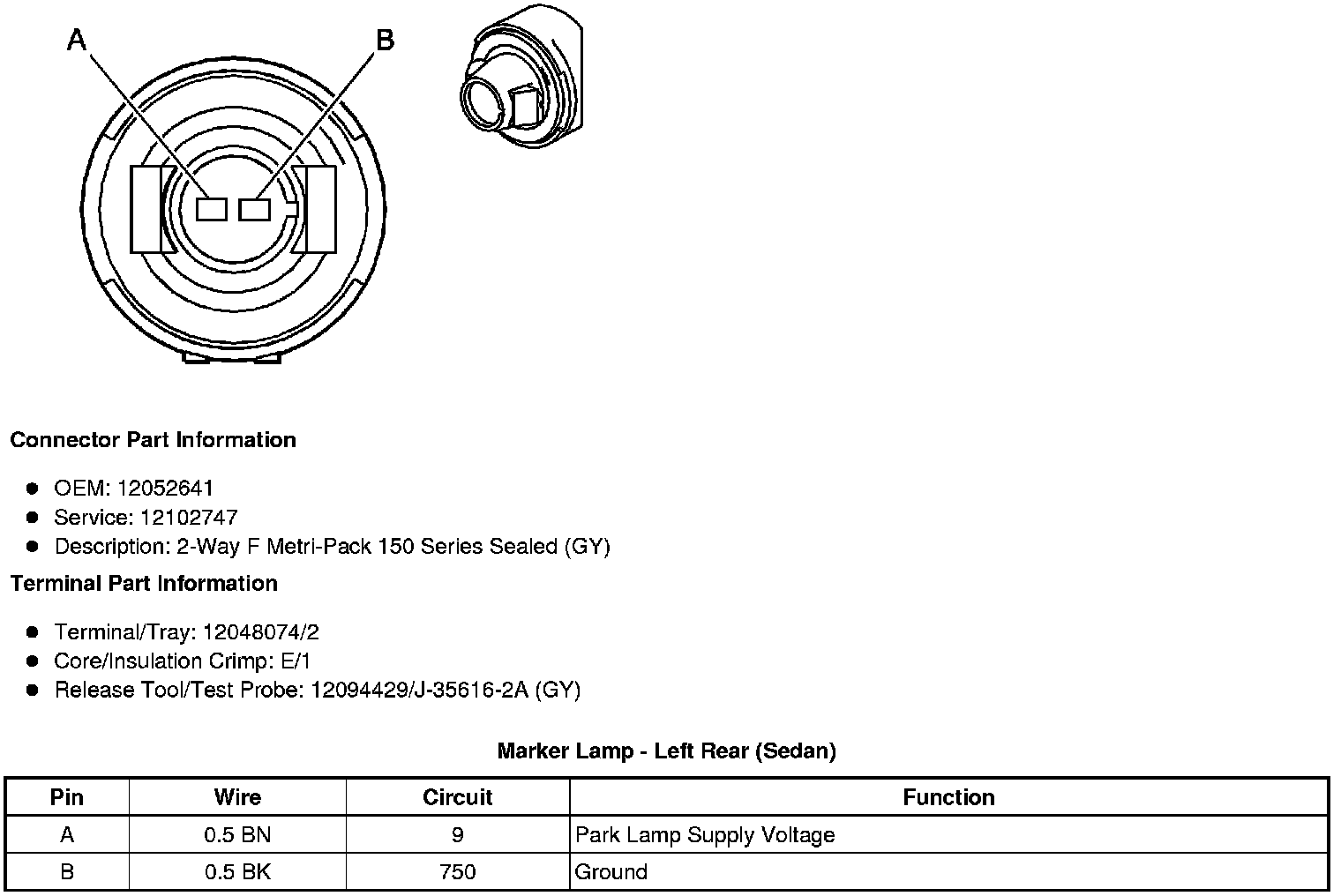

Marker Lamp - Left Rear (Sedan)

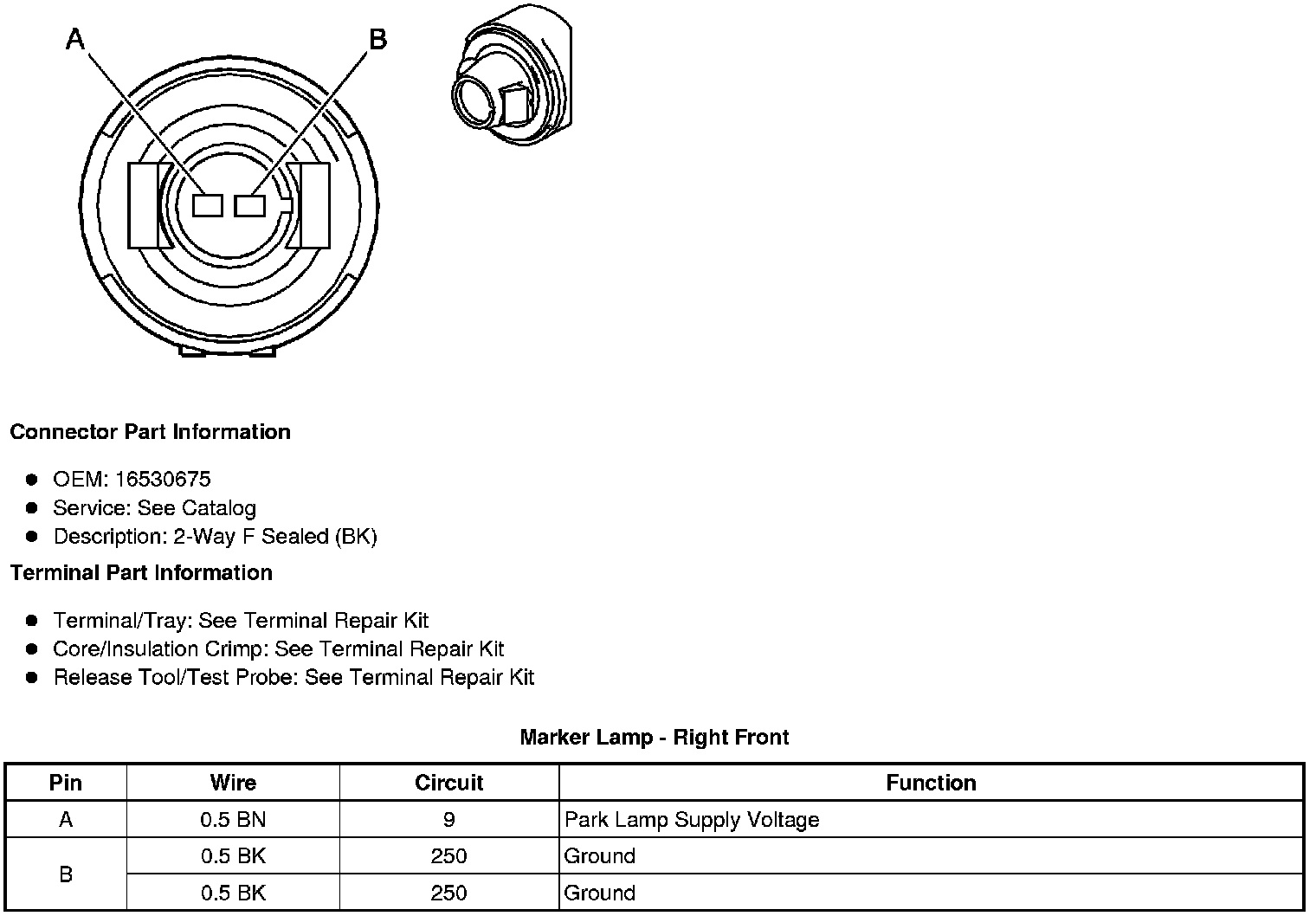

Marker Lamp - Right Front





Marker Lamp - Right Rear (Coupe)

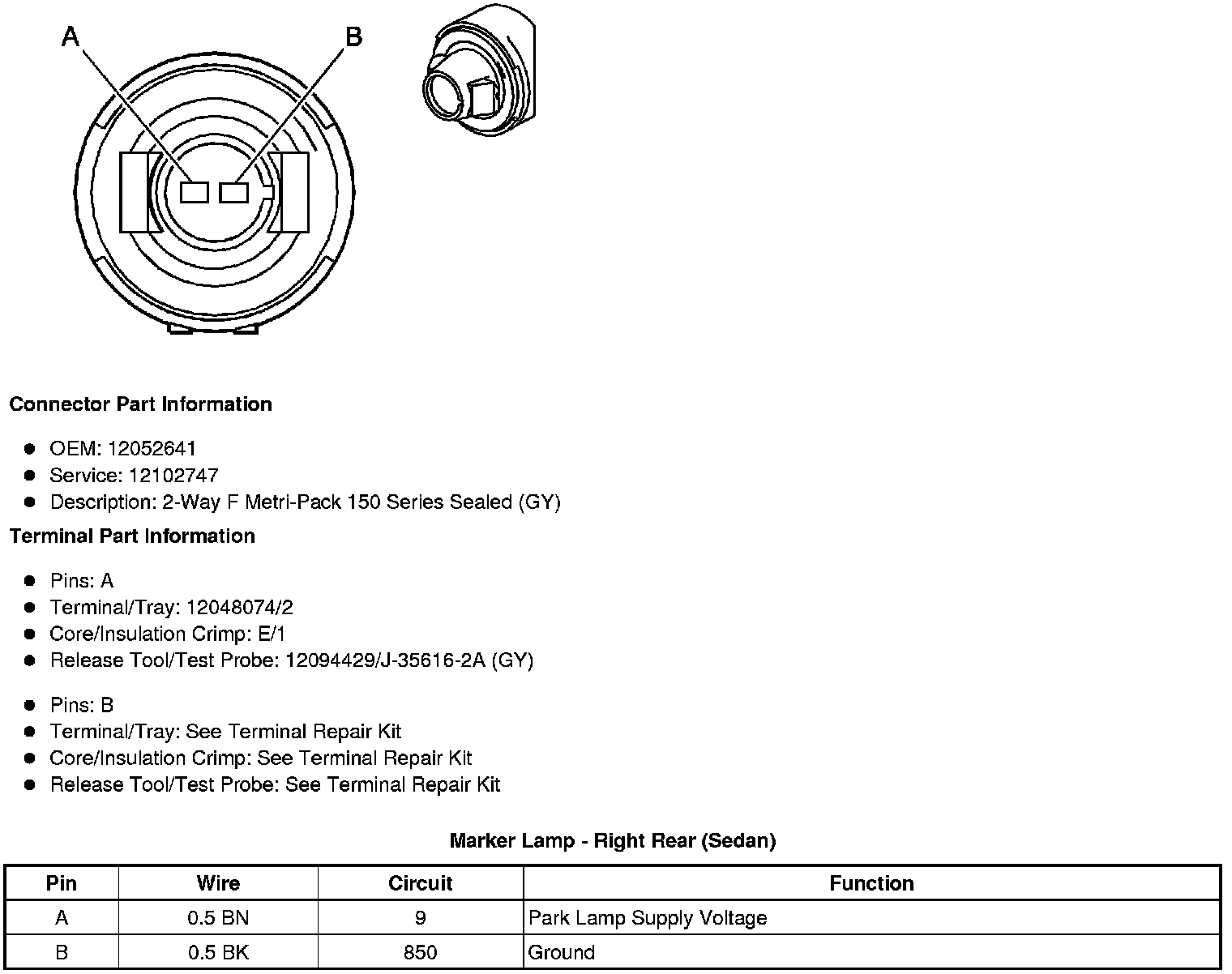

Marker Lamp - Right Rear (Sedan)
