Ground Distribution Schematics

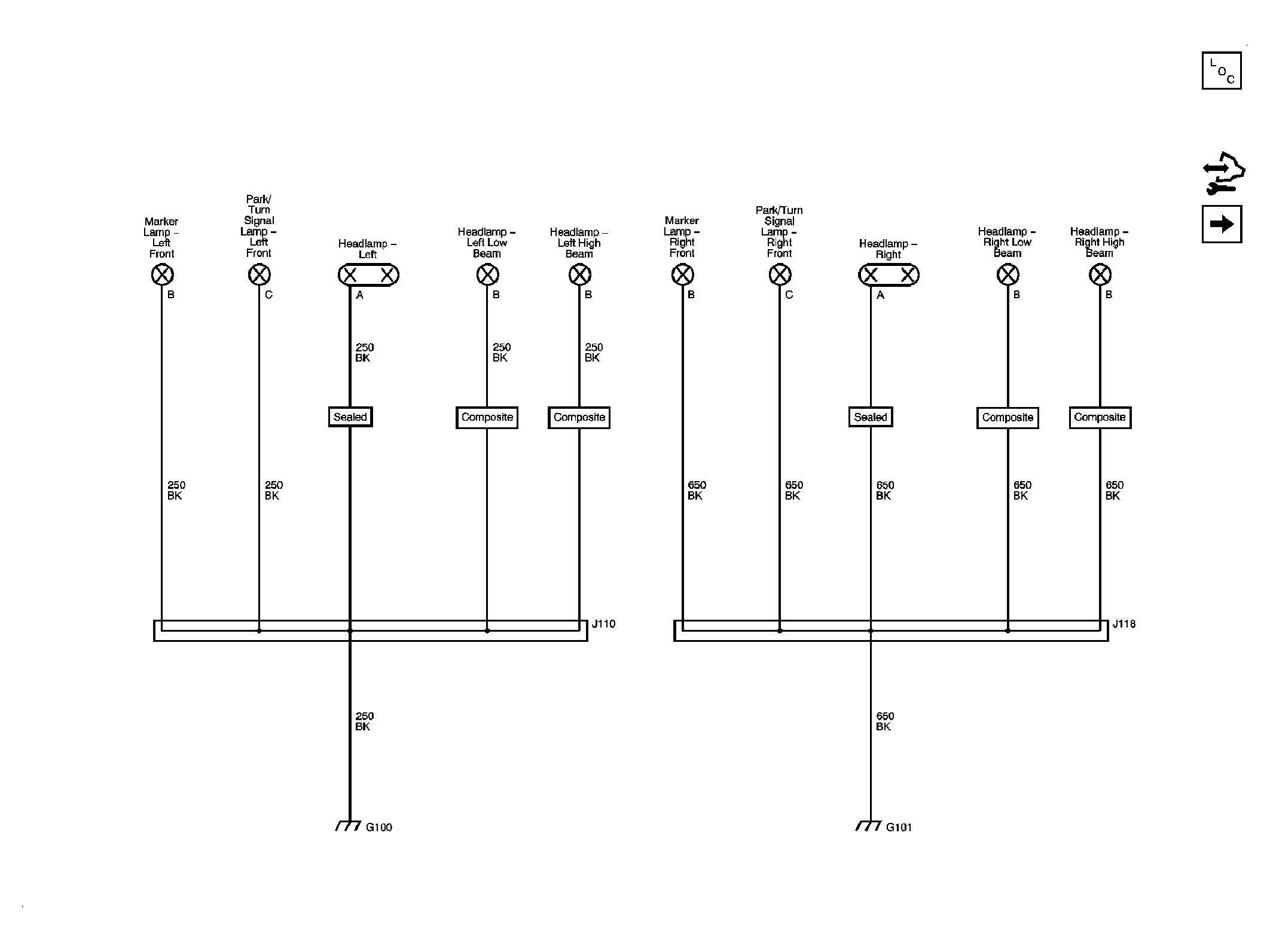

Fig 1: G100 and G101 Schematic
GM2080490Courtesy of GENERAL MOTORS CORP.

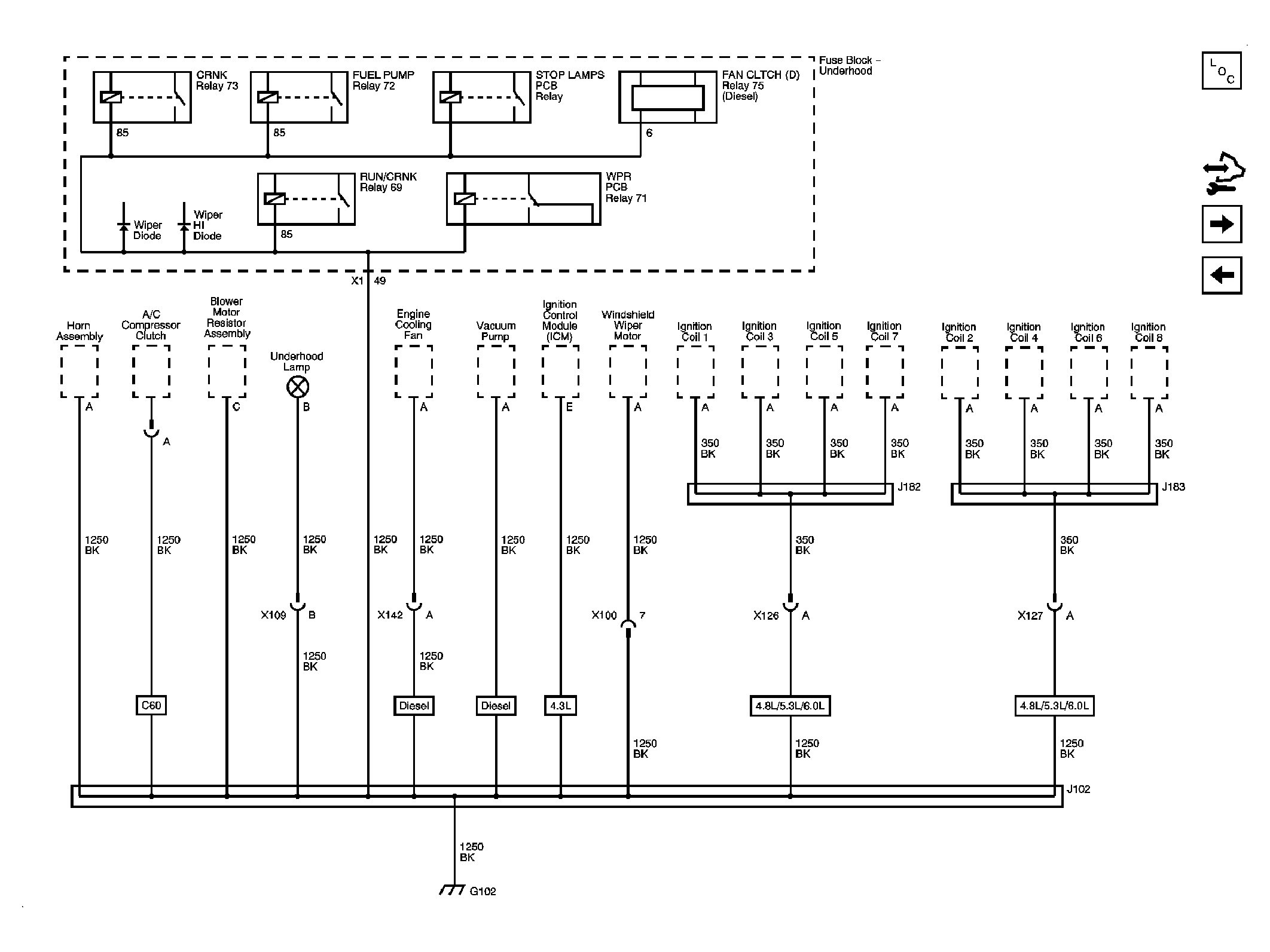

Fig 2: G102 Schematic
GM2080500Courtesy of GENERAL MOTORS CORP.

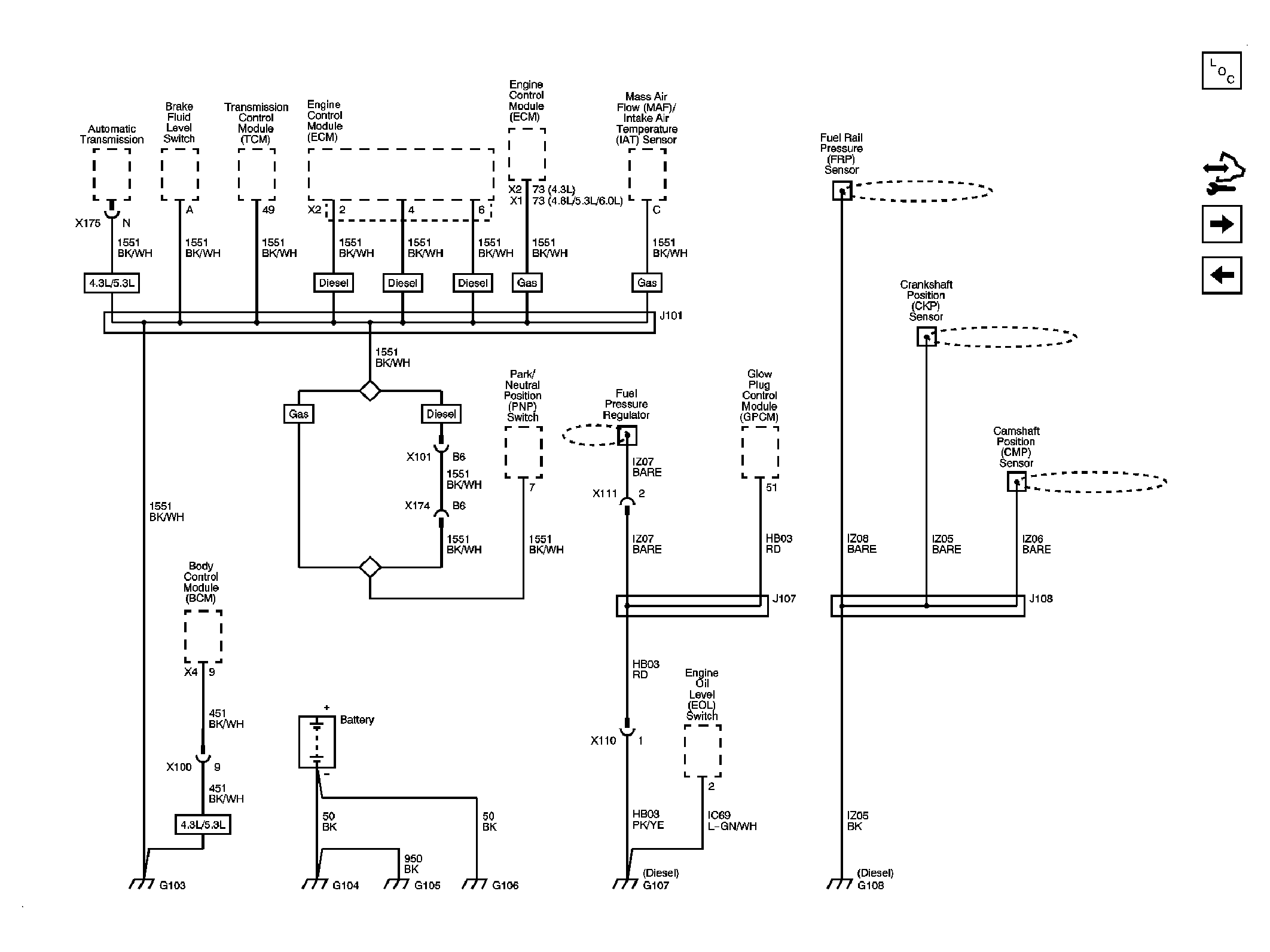

Fig 3: G103, G104, G105, G106, G107 and G108 Schematic
GM2080502Courtesy of GENERAL MOTORS CORP.

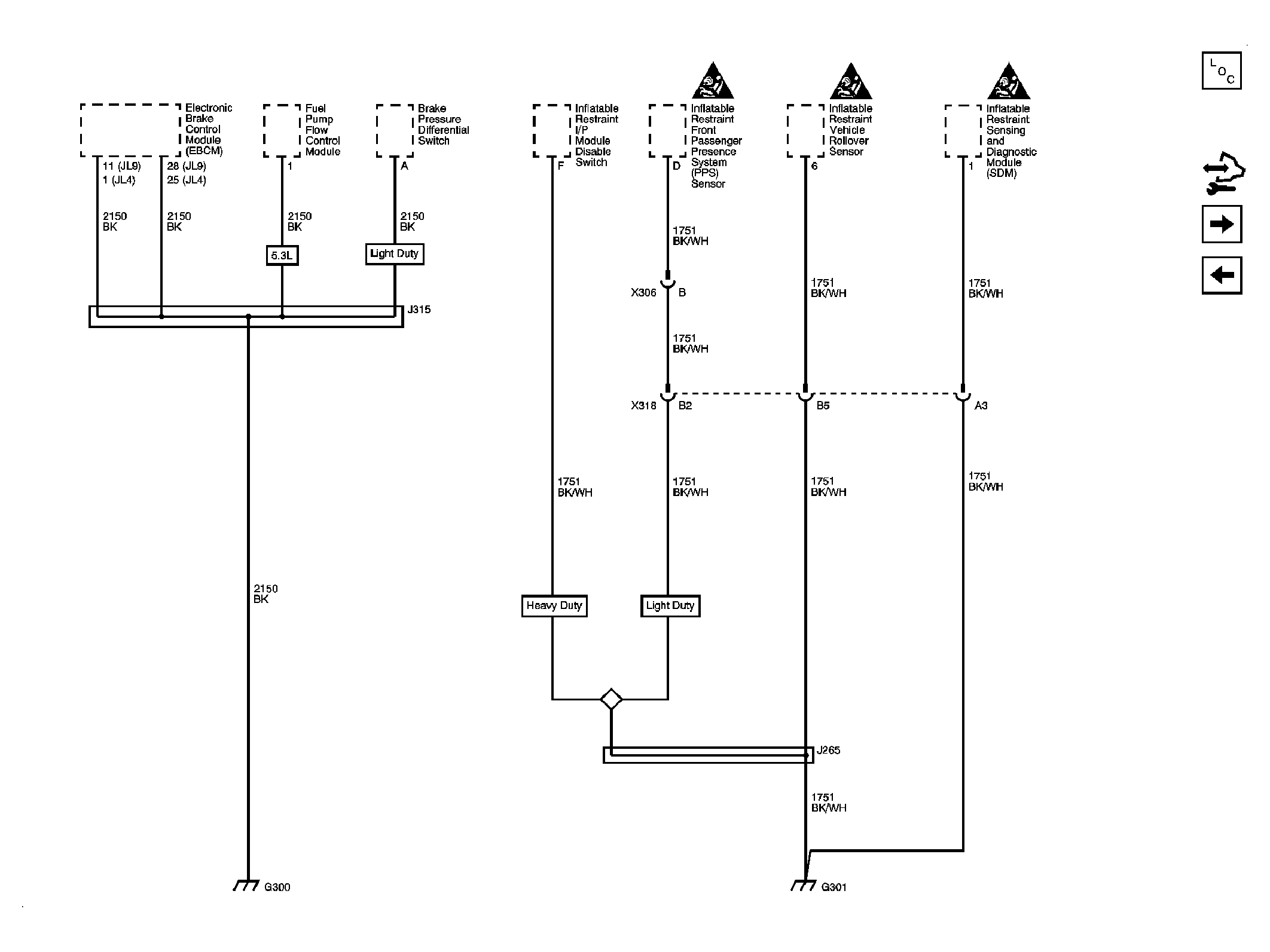

Fig 4: G300 and G301 Schematic
GM2080506Courtesy of GENERAL MOTORS CORP.

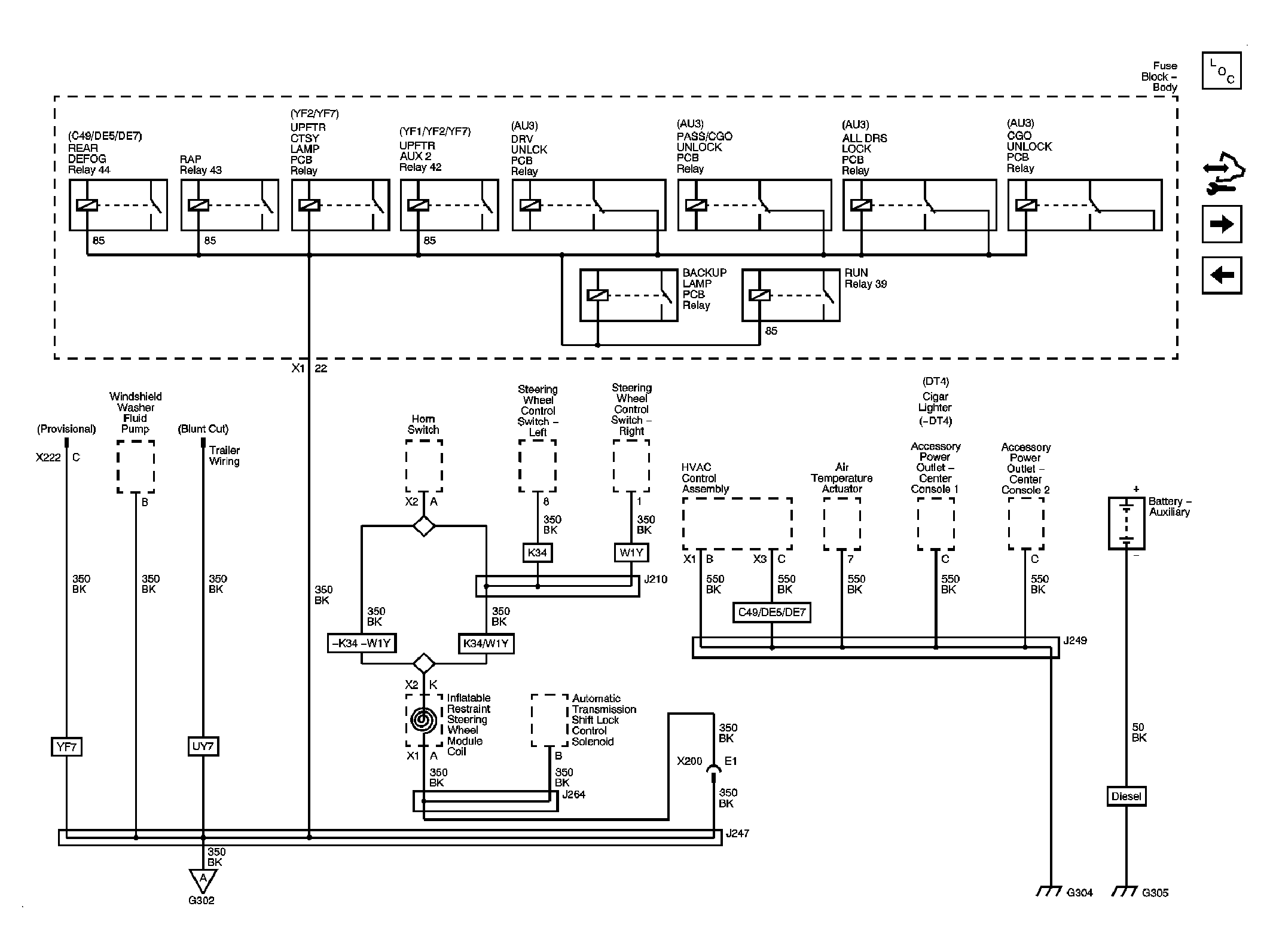

Fig 5: G304 and G305 Schematic
GM2080510Courtesy of GENERAL MOTORS CORP.

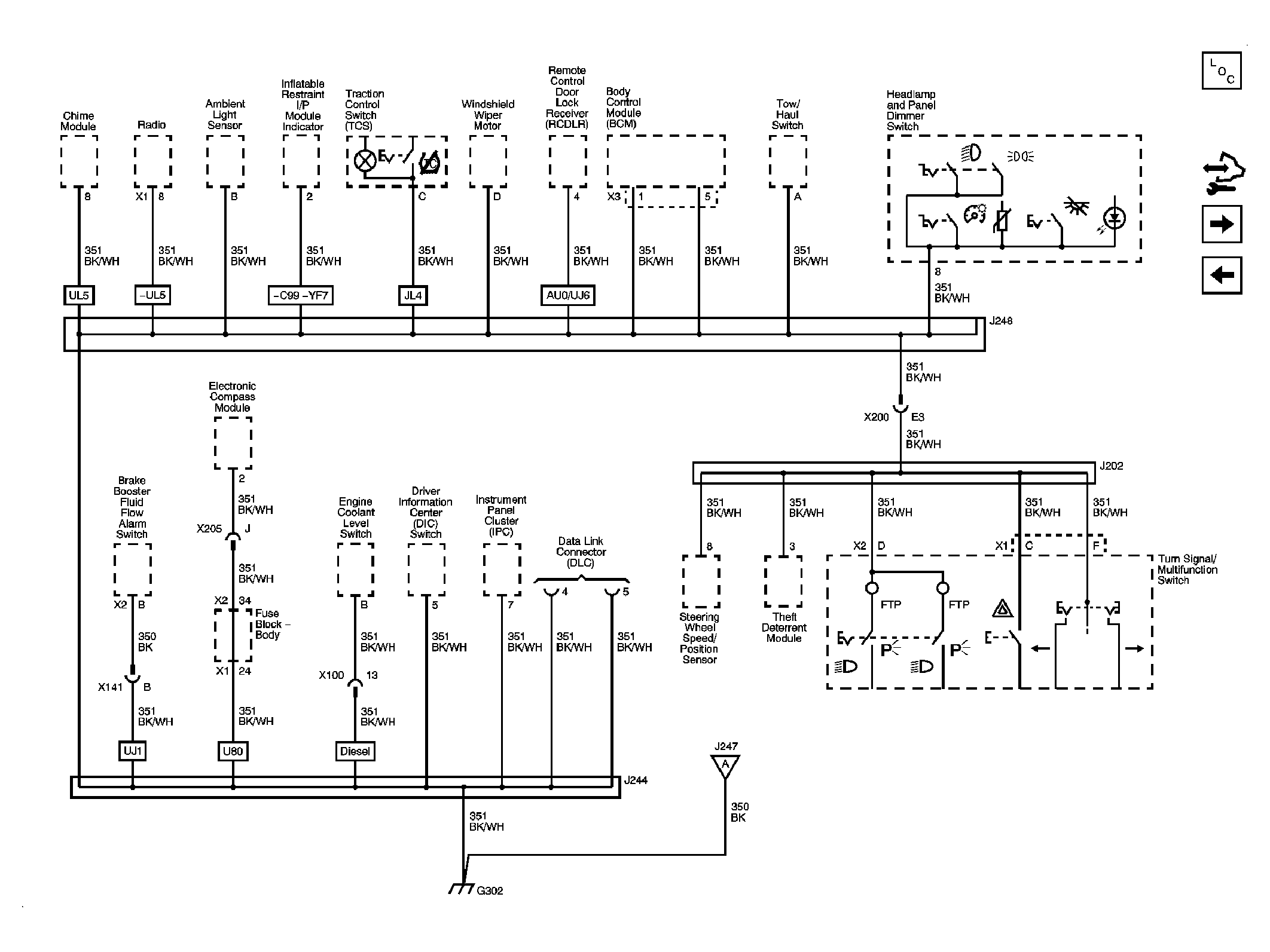

Fig 6: G302 Schematic
GM2080512Courtesy of GENERAL MOTORS CORP.

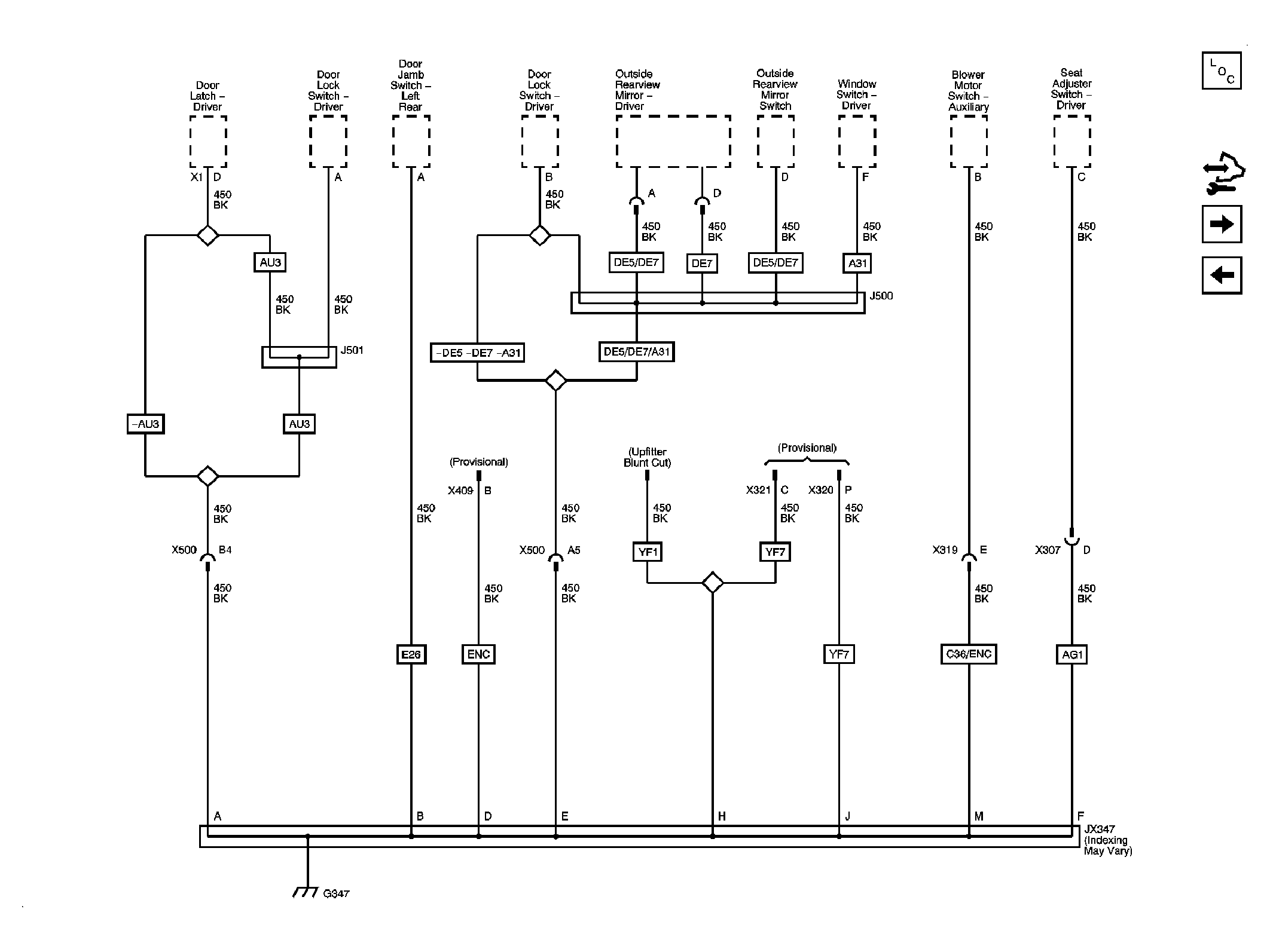

Fig 7: G347 Schematic
GM2080516Courtesy of GENERAL MOTORS CORP.

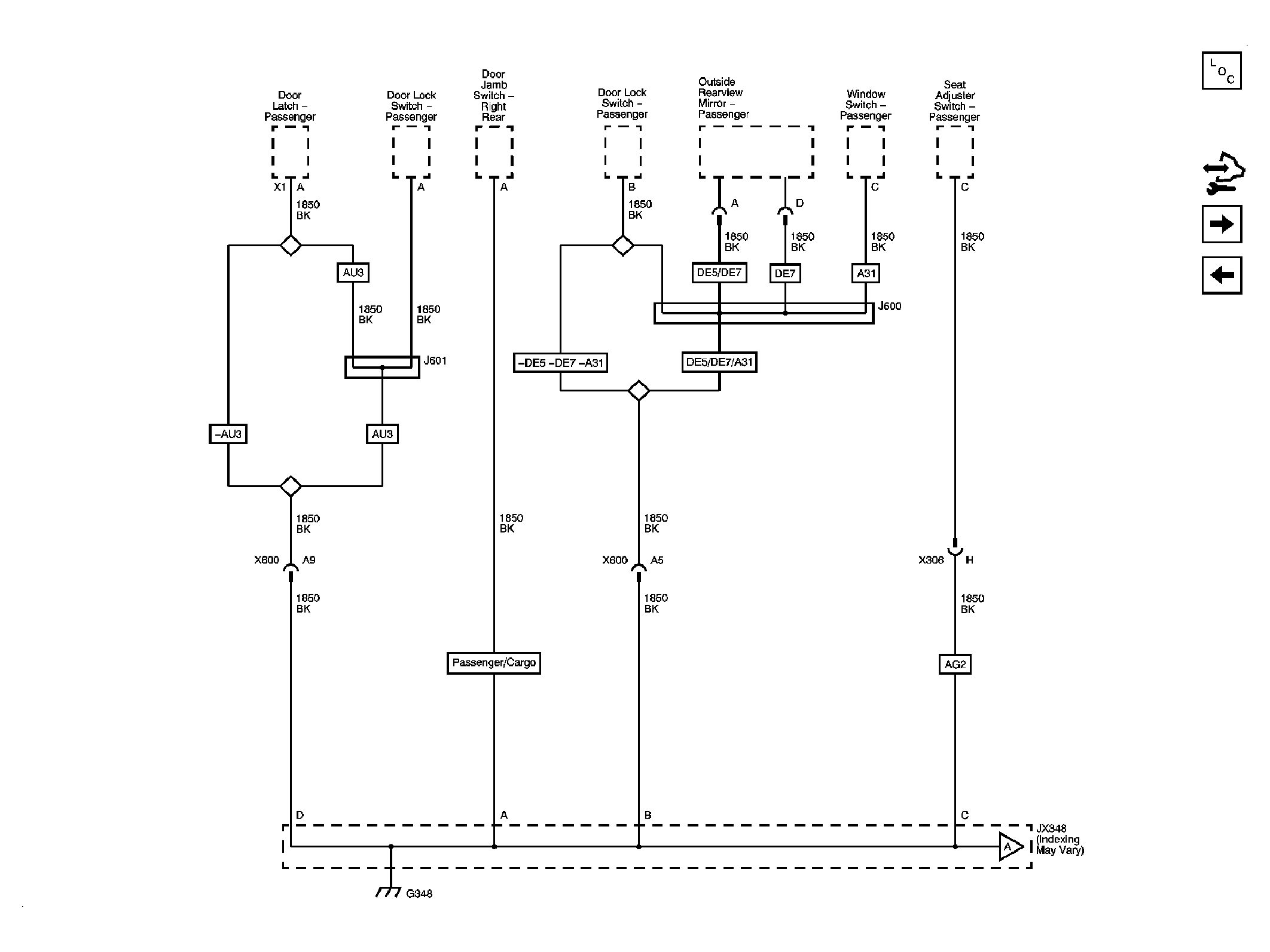

Fig 8: G348 Schematic (1 of 2)
GM2080517Courtesy of GENERAL MOTORS CORP.

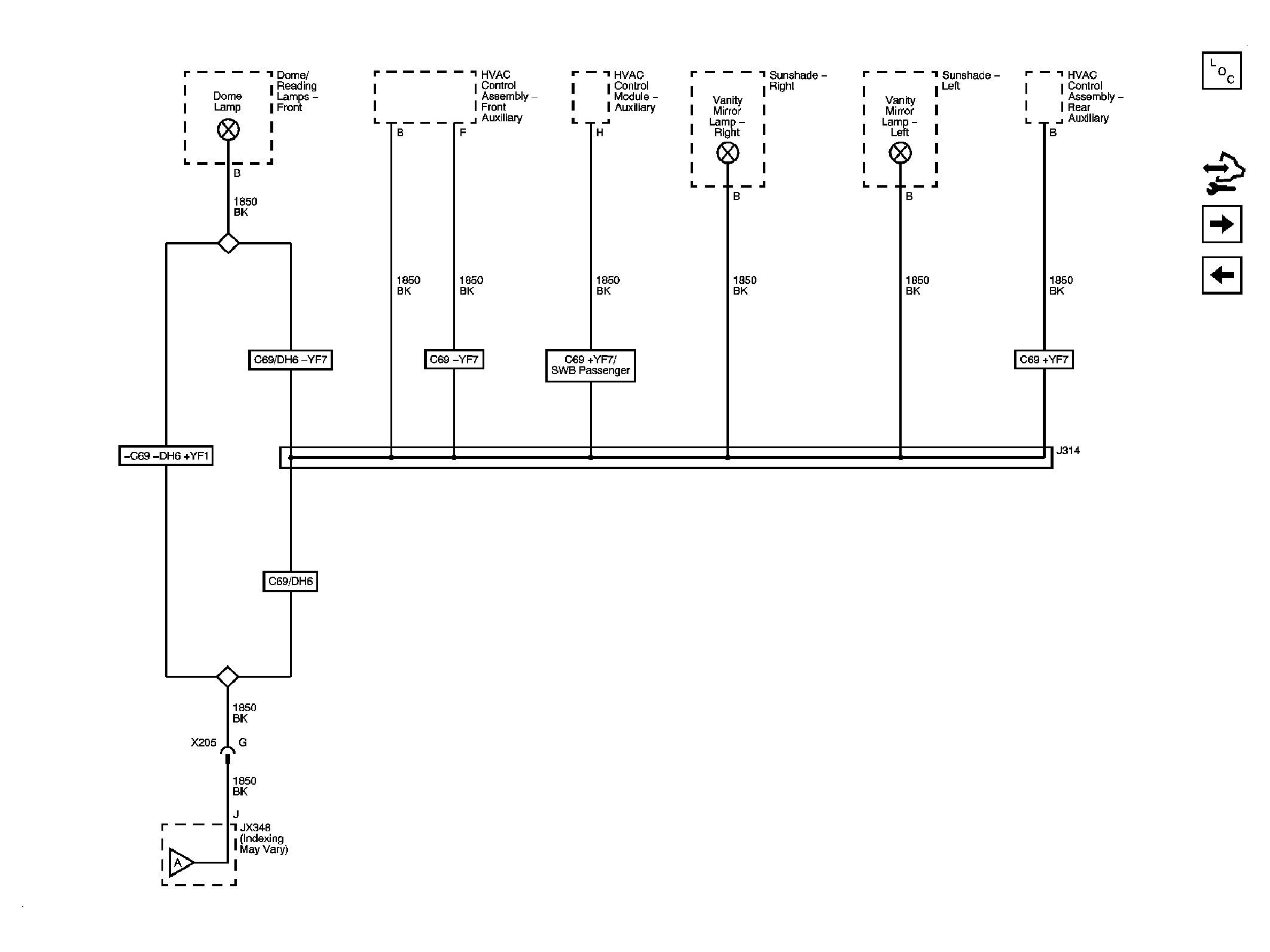

Fig 9: G348 Schematic (2 of 2)
GM2080520Courtesy of GENERAL MOTORS CORP.

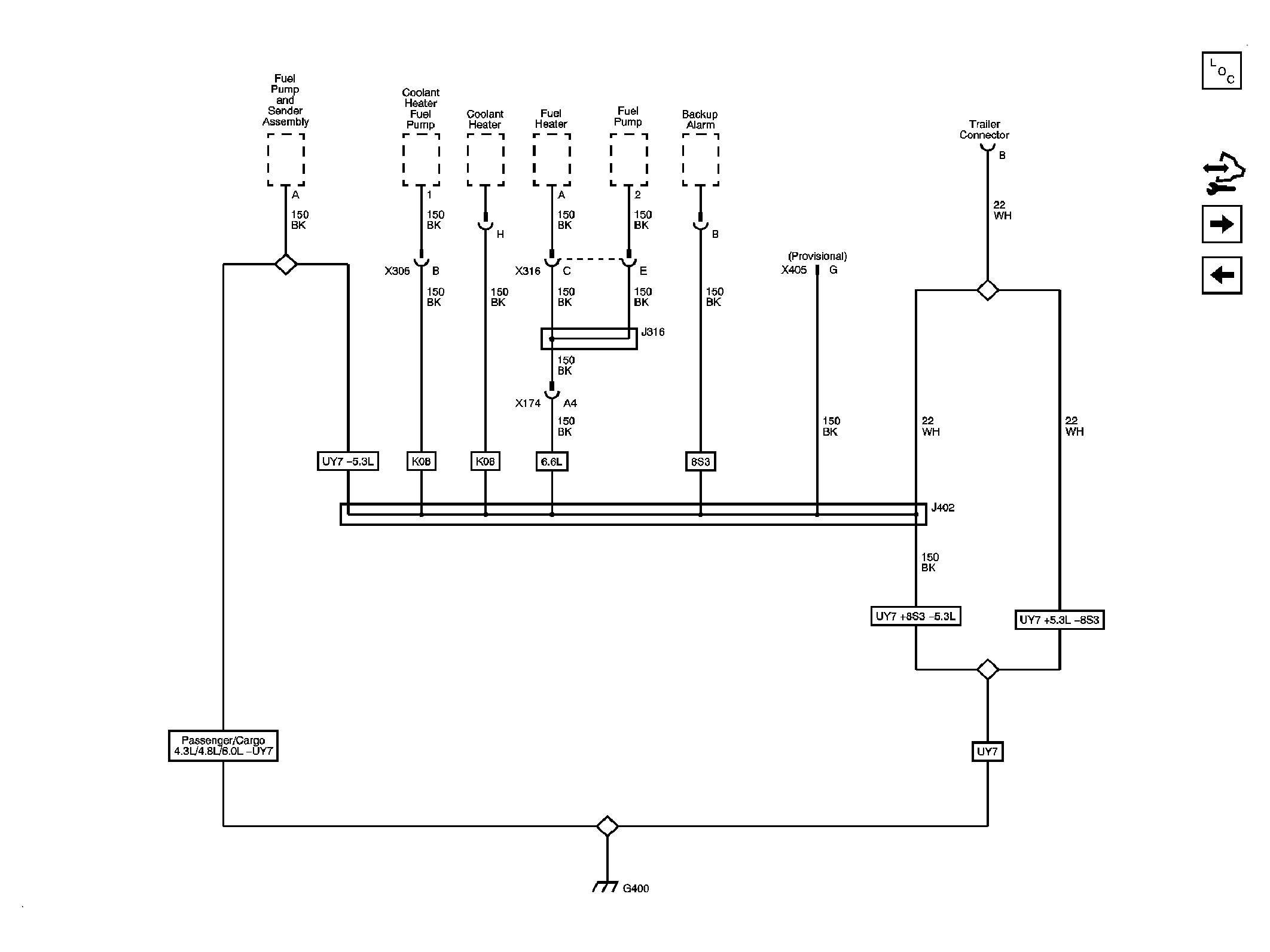

Fig 10: G400 Schematic
GM2080522Courtesy of GENERAL MOTORS CORP.

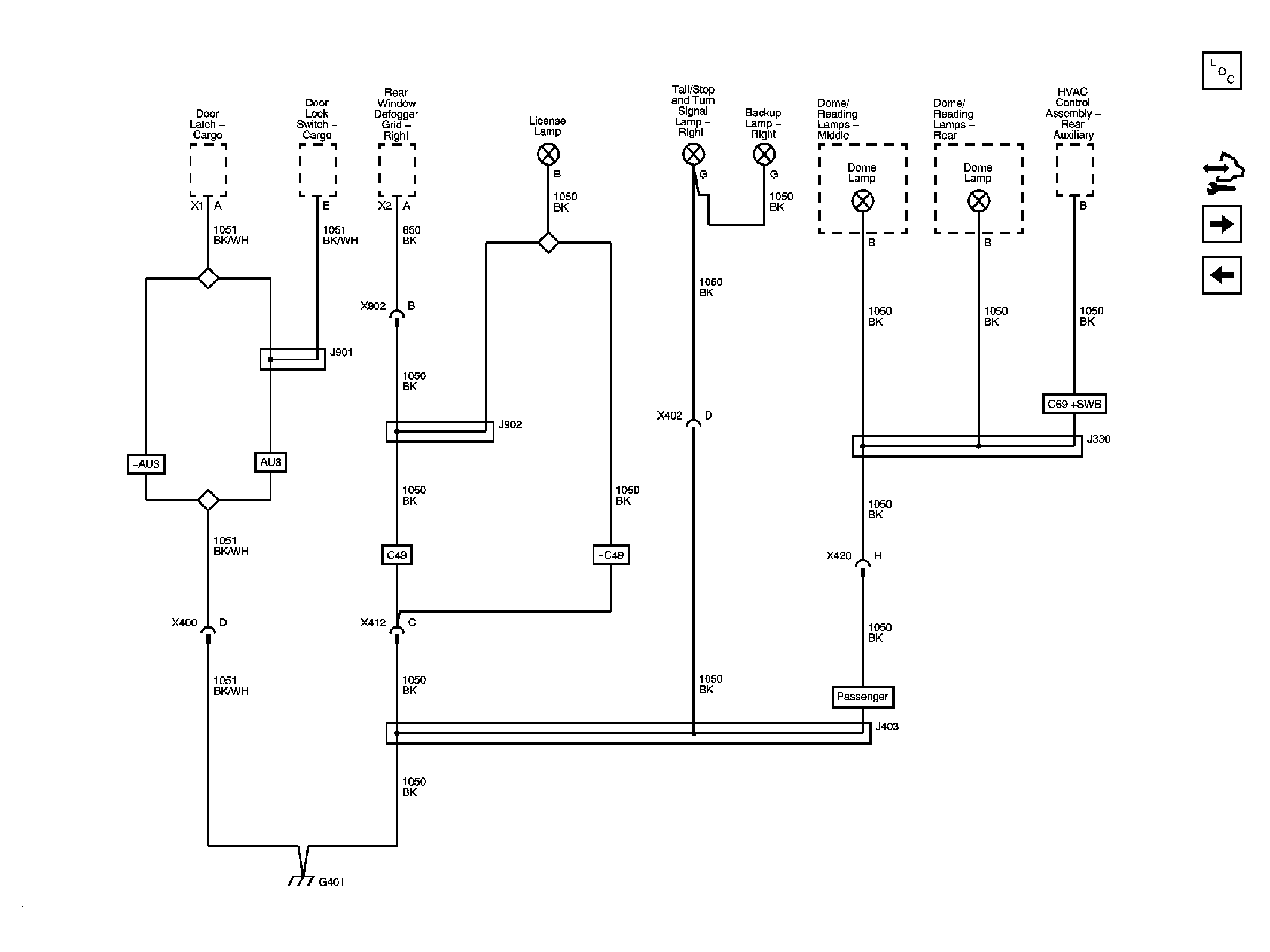

Fig 11: G401 Passenger/Cargo Schematic
GM2080524Courtesy of GENERAL MOTORS CORP.

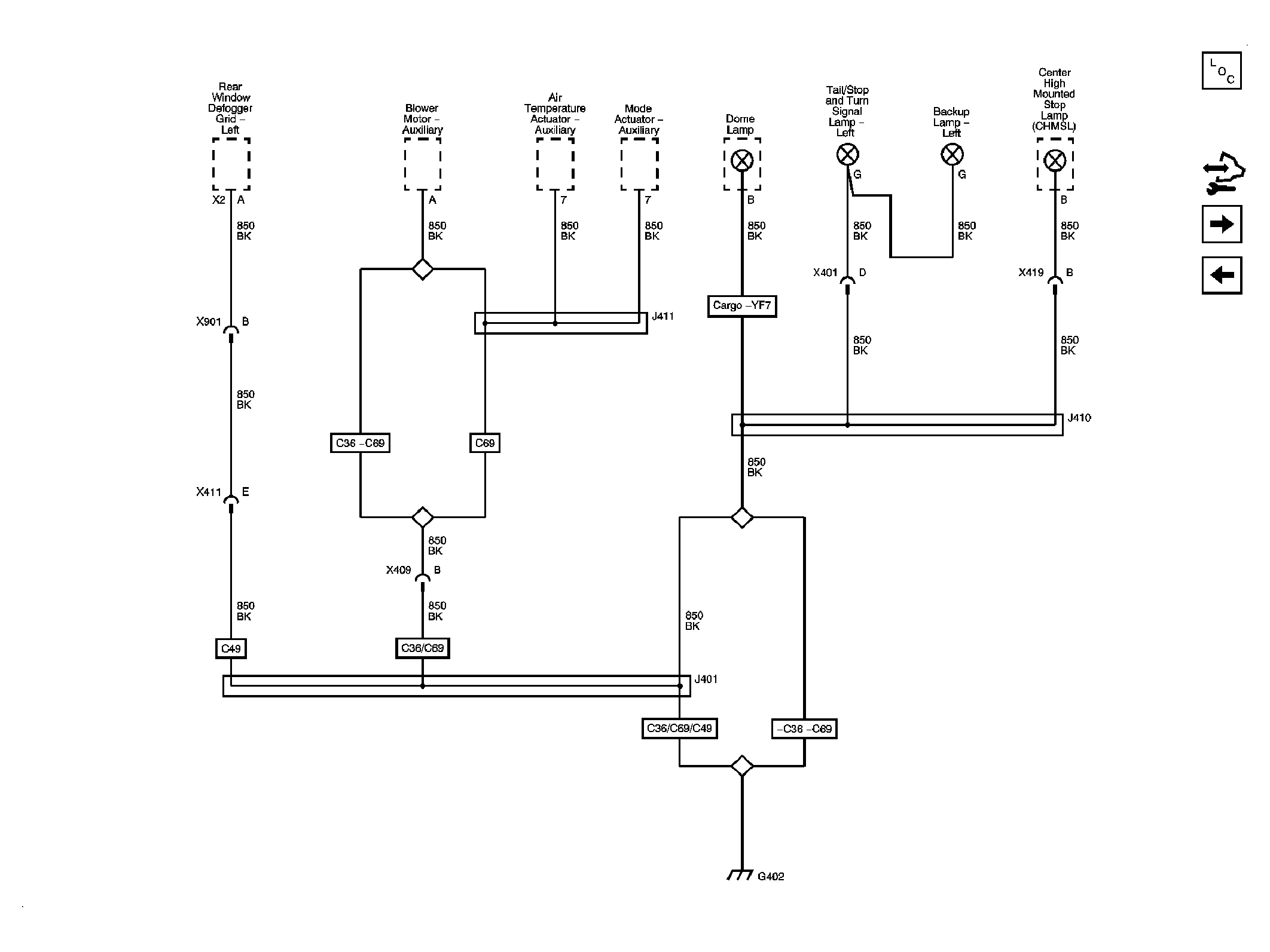

Fig 12: G402 Passenger/Cargo Schematic
GM2080526Courtesy of GENERAL MOTORS CORP.

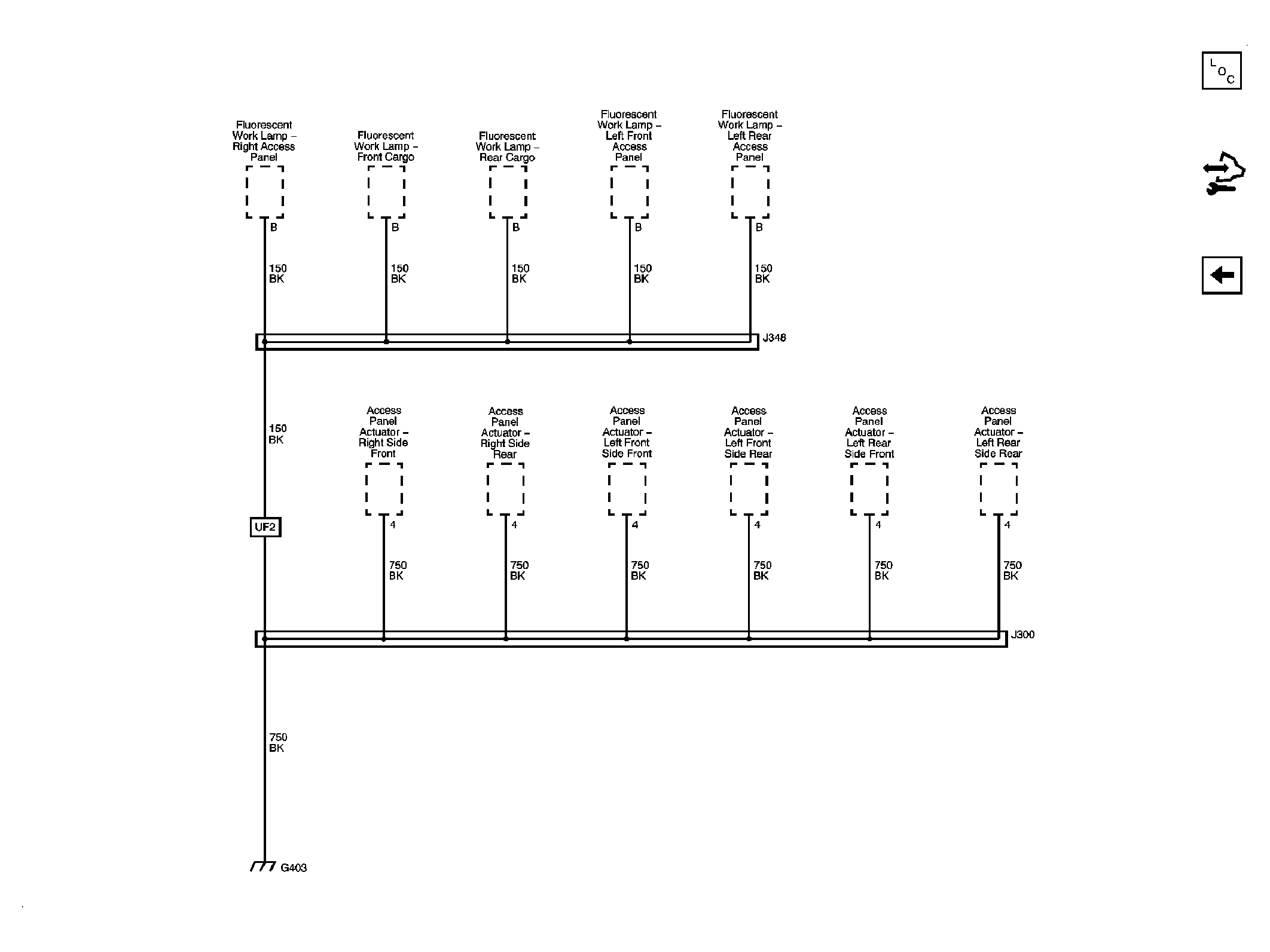

Fig 13: G403 PRP Schematic
GM2080528Courtesy of GENERAL MOTORS CORP.
