Suspension Control Module




Component Connector End Views

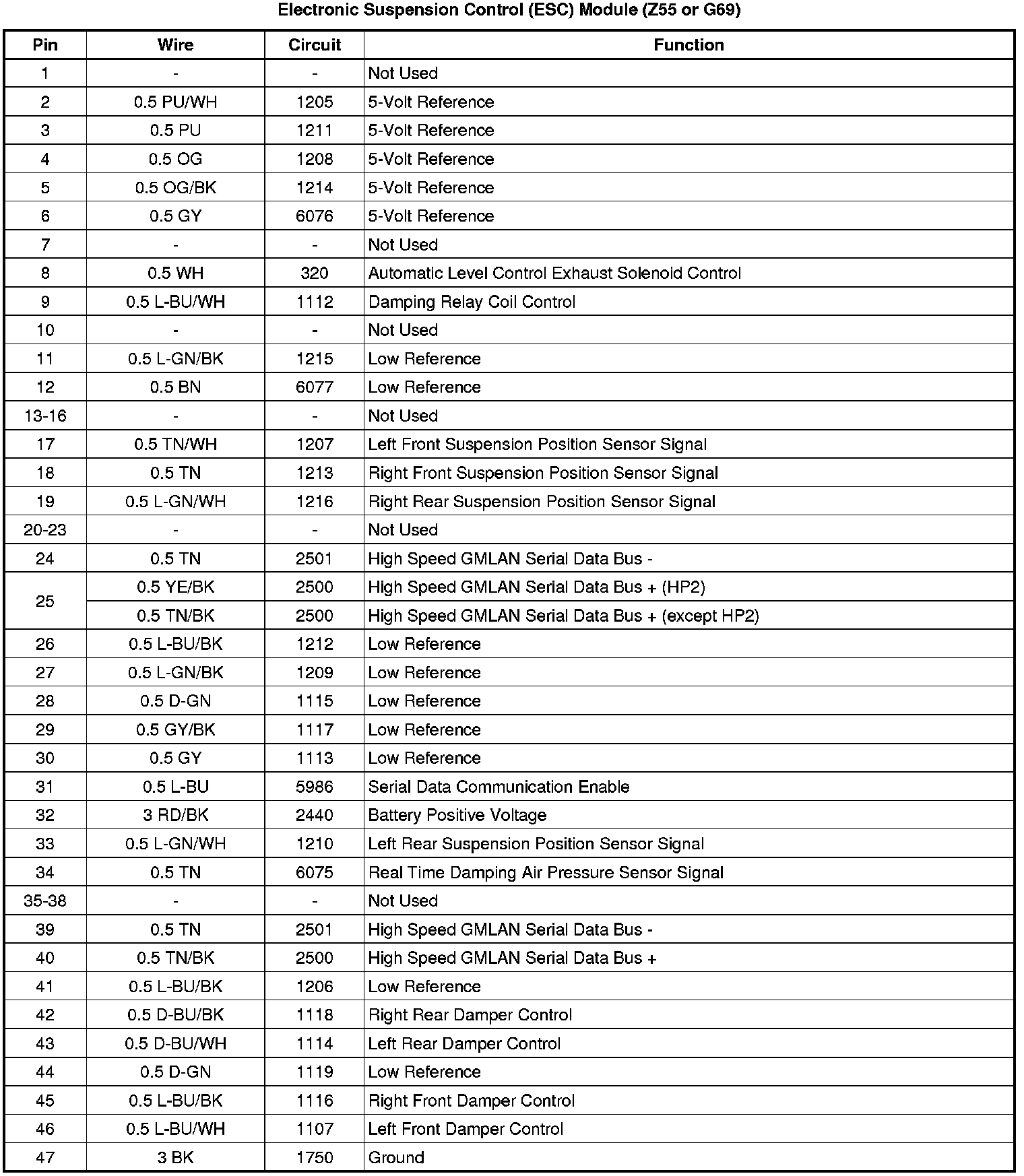

Electronic Suspension Control (ESC) Module (Z55 or G69)
