Power Window Switch




Component Connector End Views

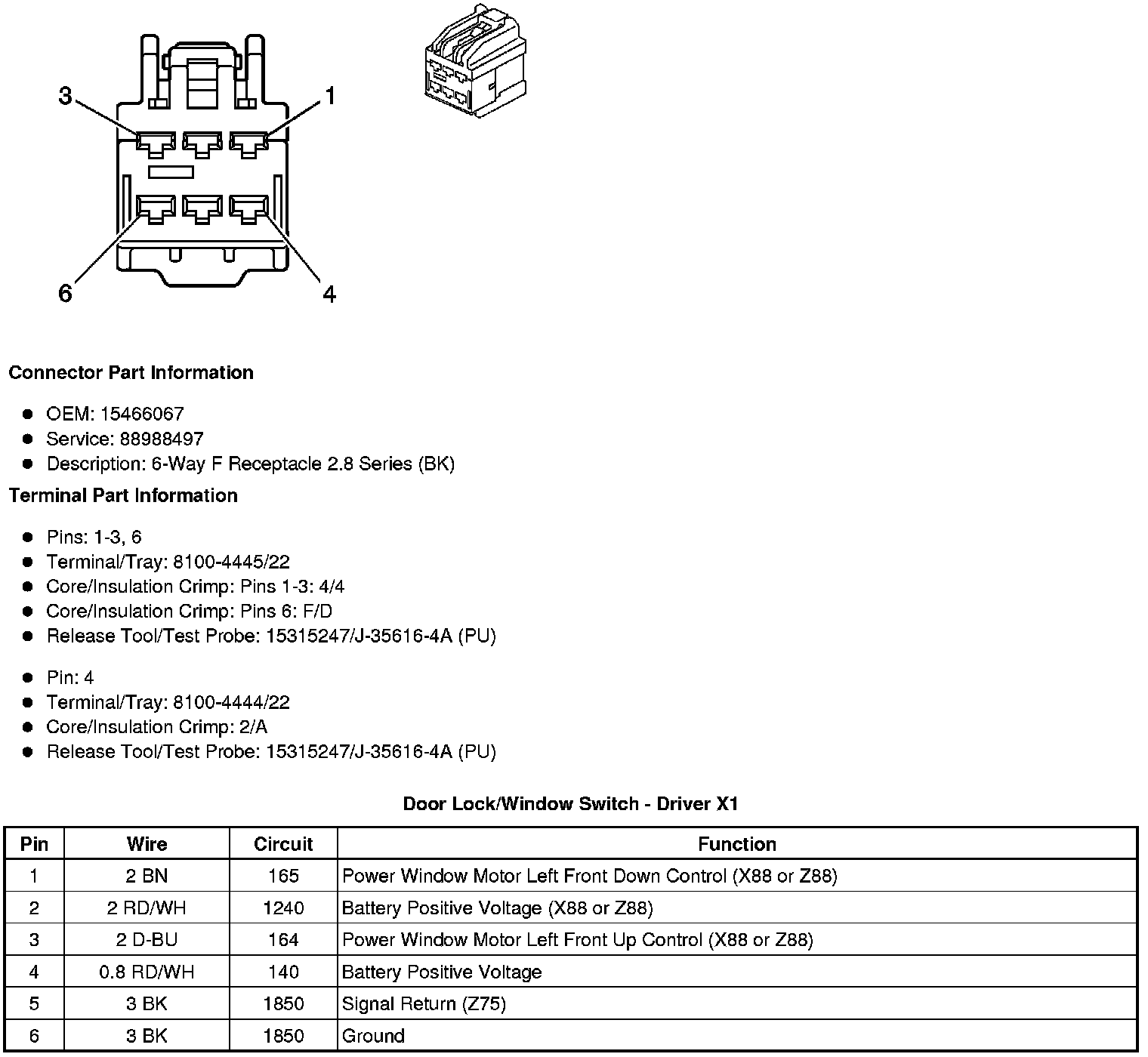

Door Lock/Window Switch - Driver X1

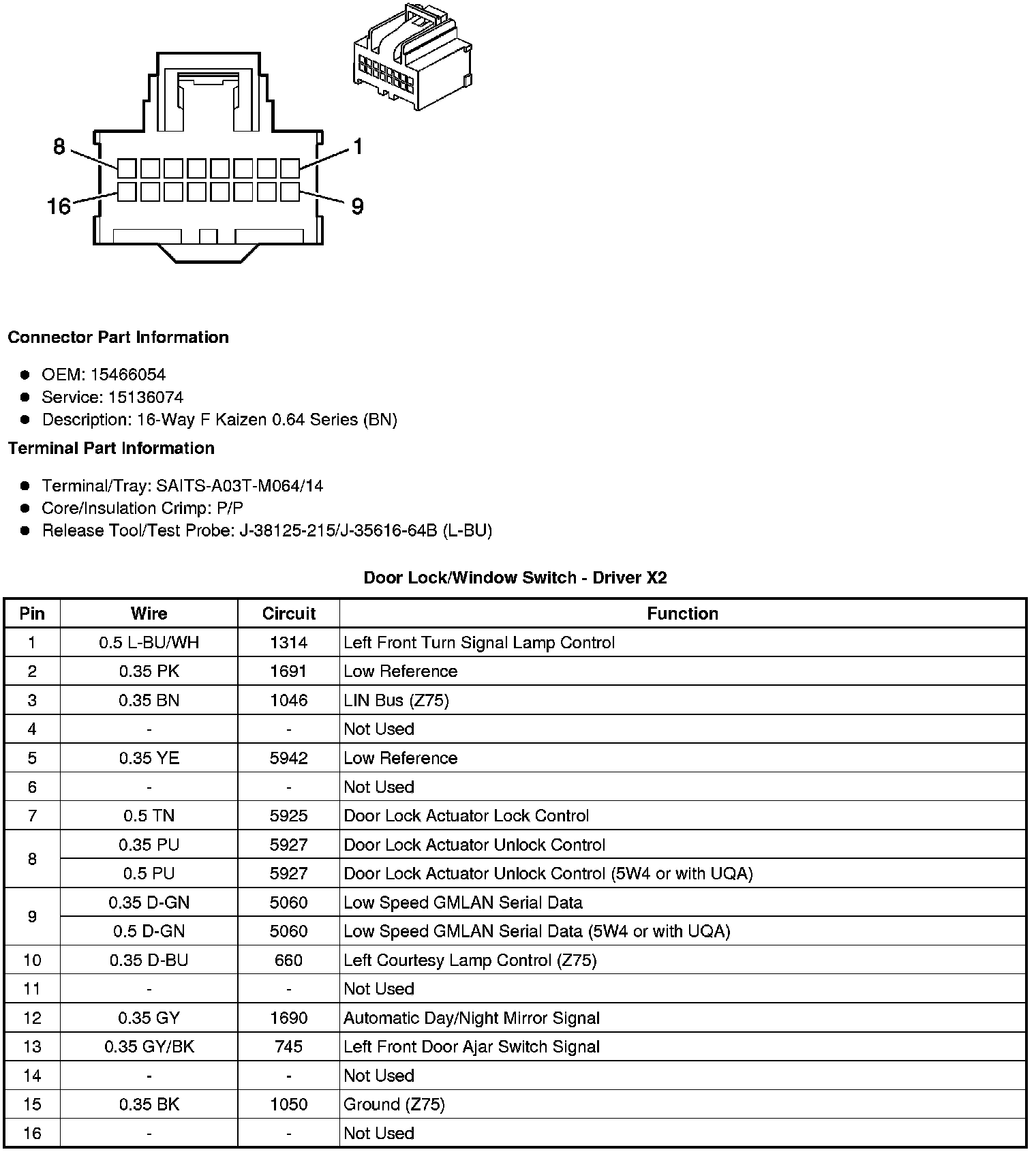

Door Lock/Window Switch - Driver X2

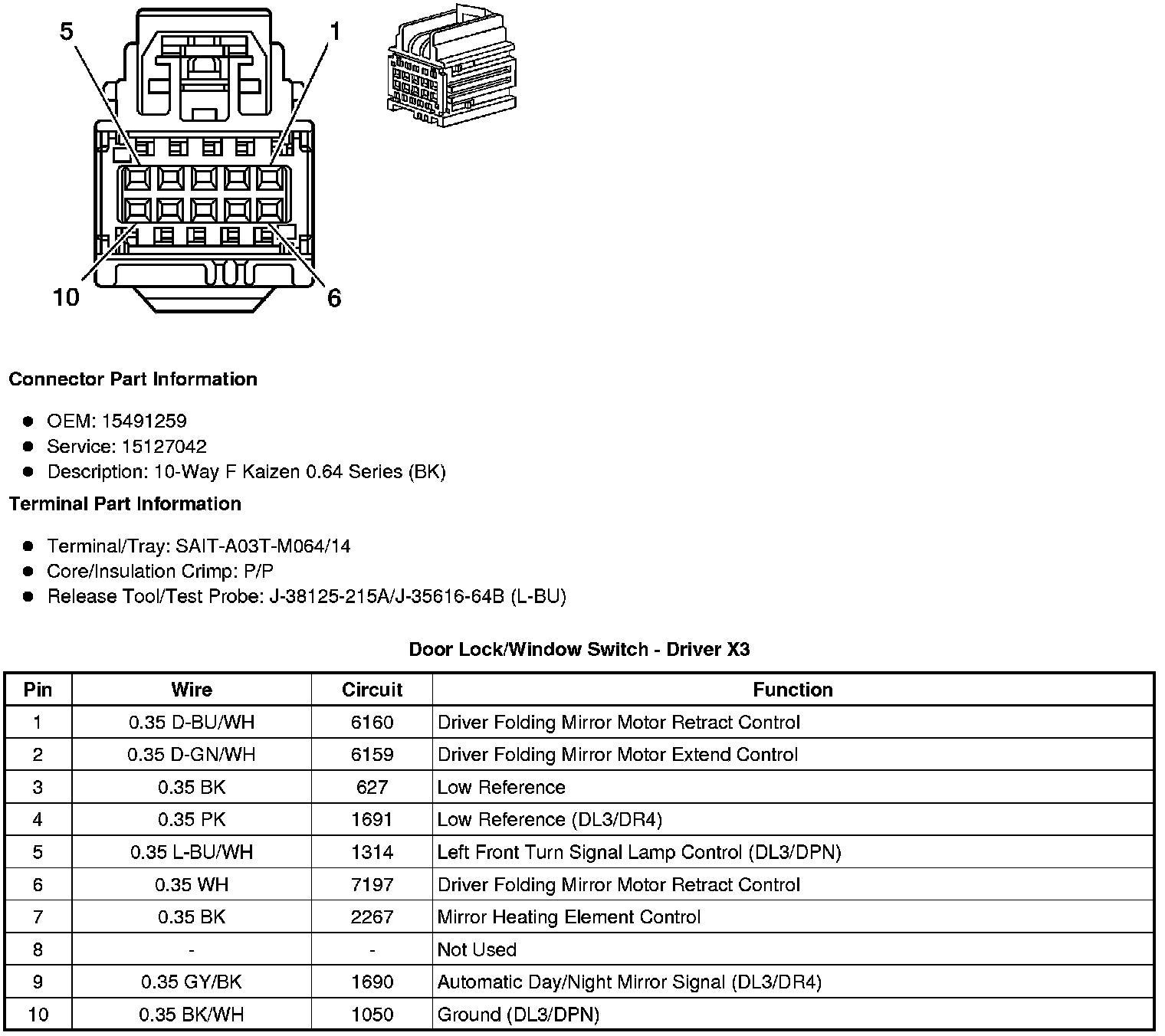

Door Lock/Window Switch - Driver X3

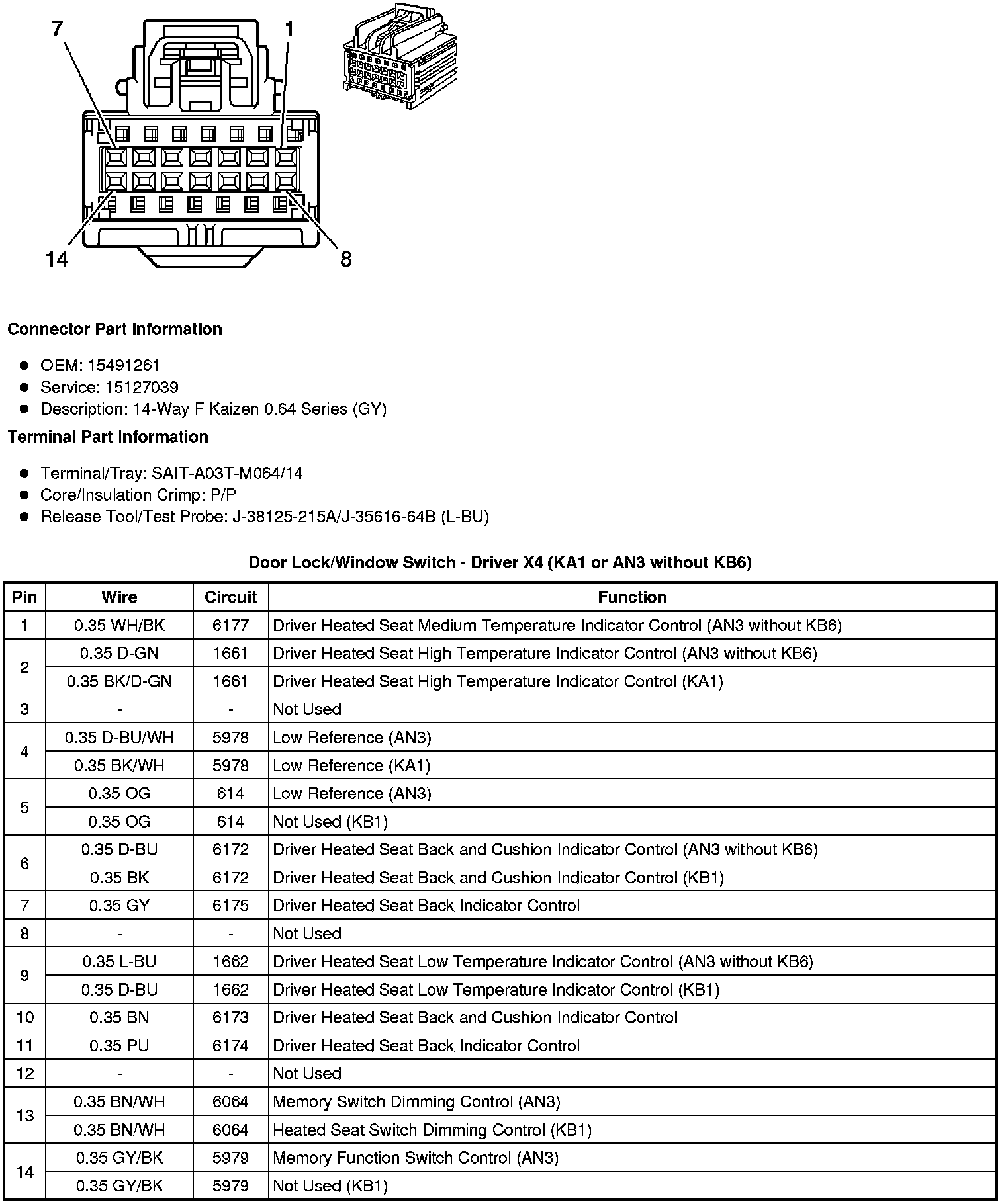

Door Lock/Window Switch - Driver X4 (KA1 or AN3 without KB6)

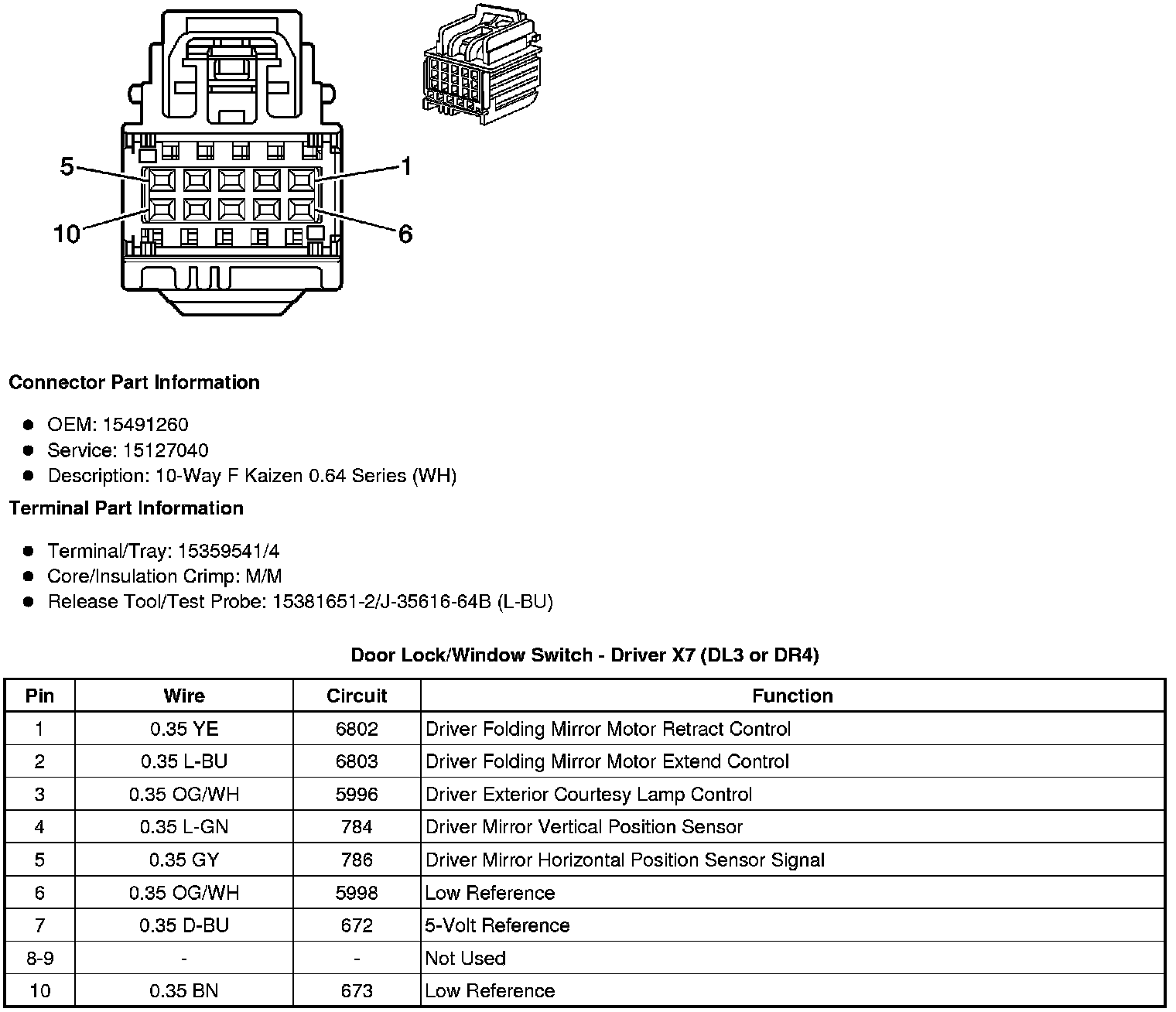

Door Lock/Window Switch - Driver X7 (DL3 or DR4)

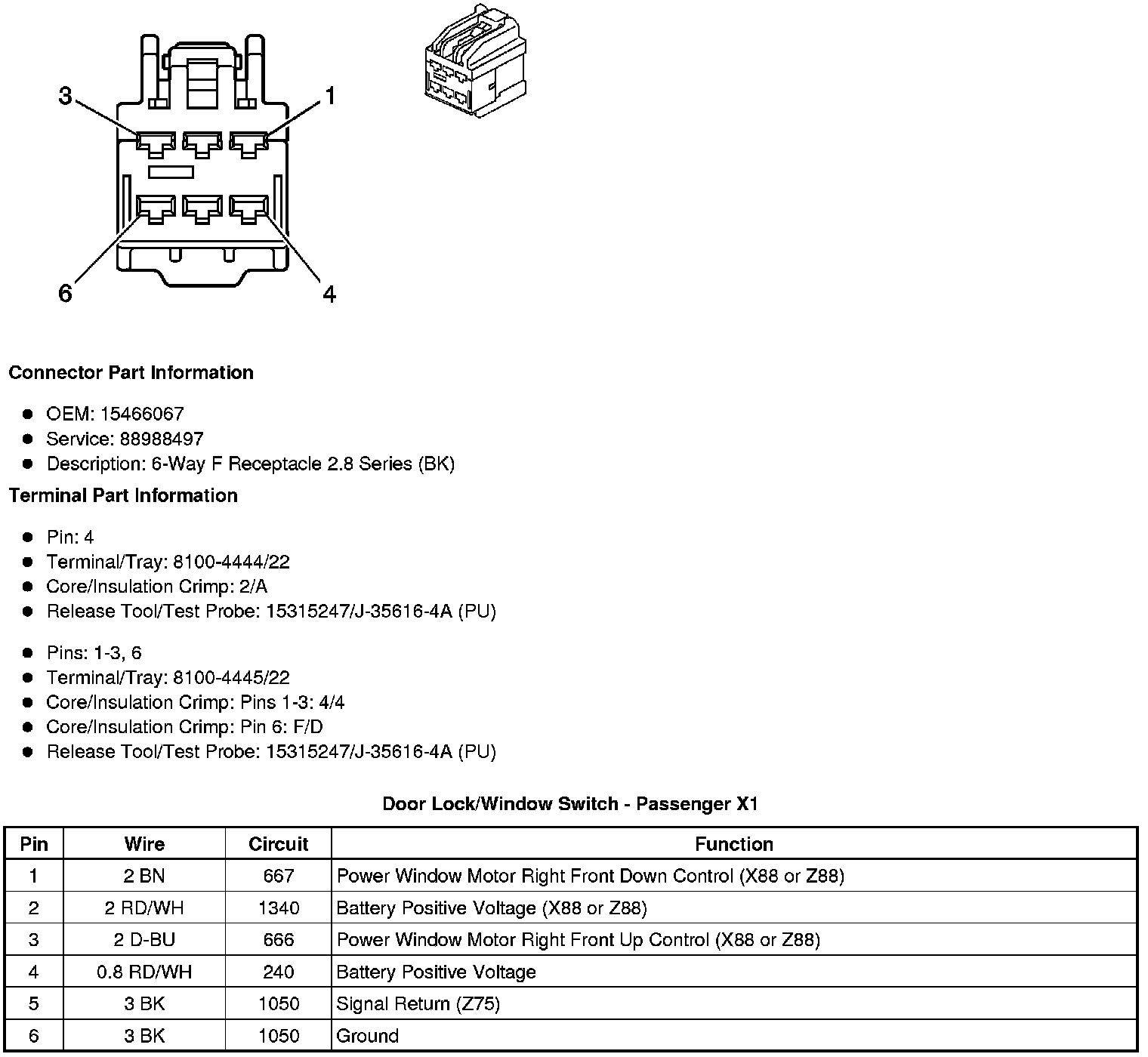

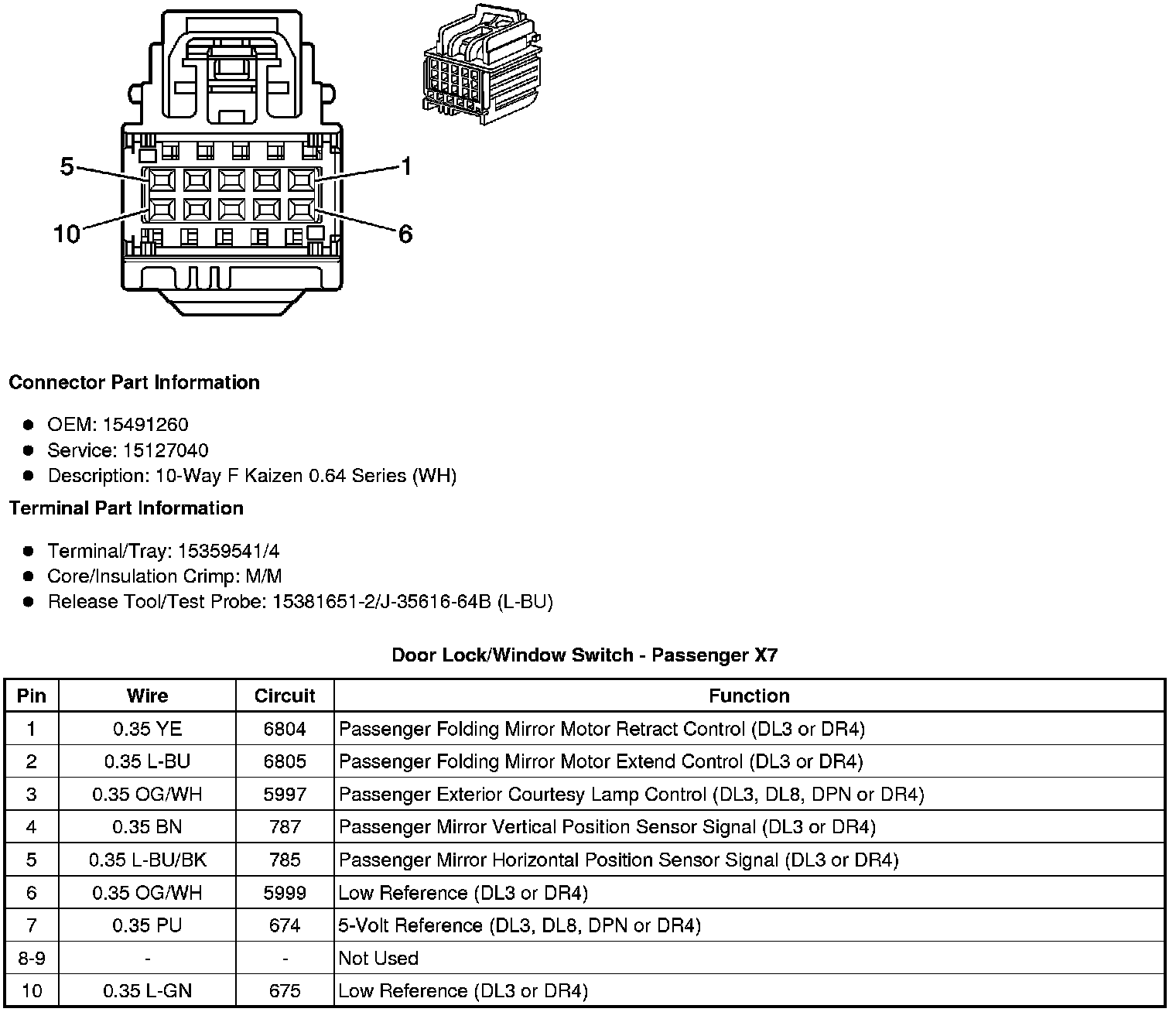

Door Lock/Window Switch - Passenger X1

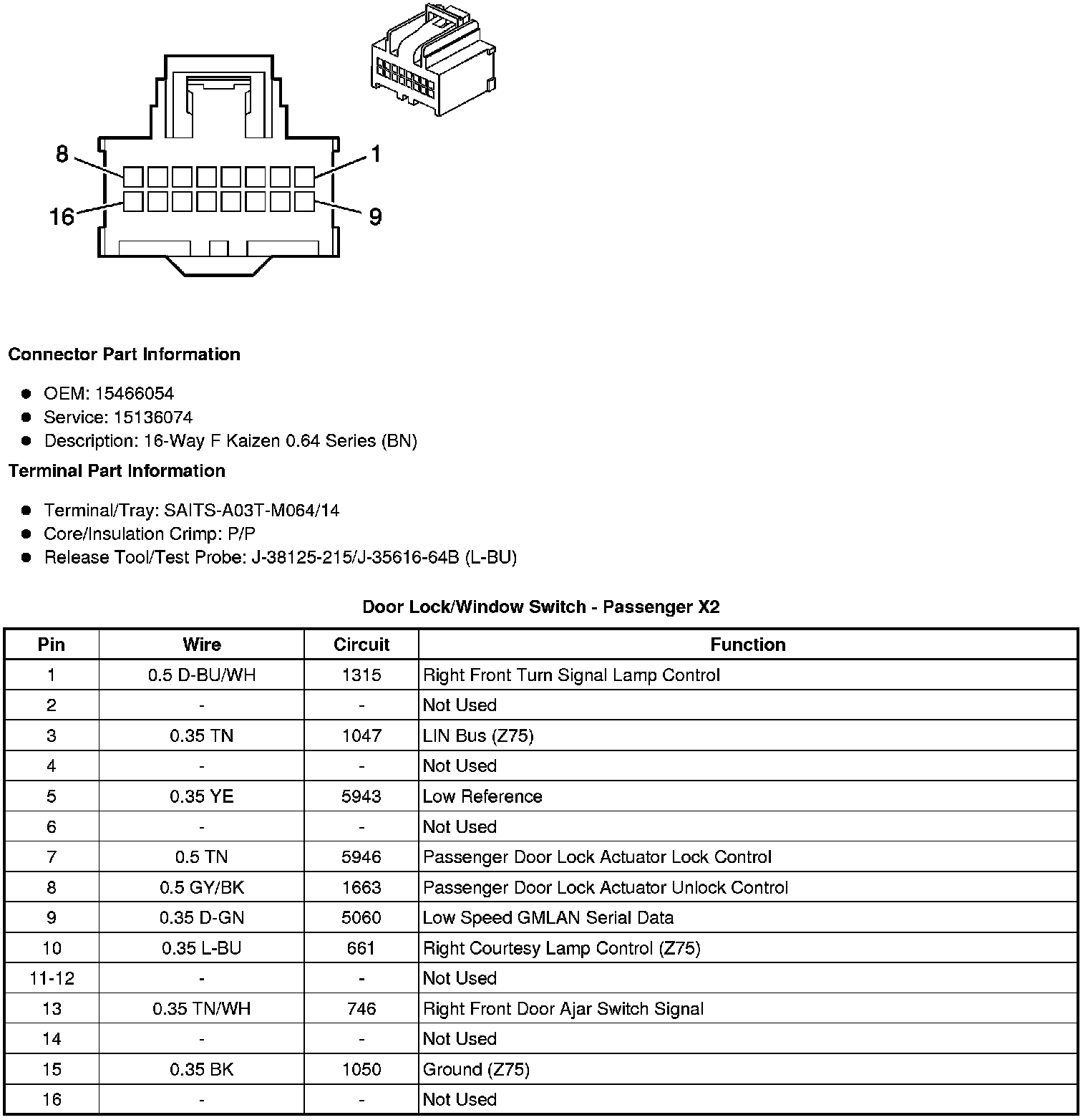

Door Lock/Window Switch - Passenger X2

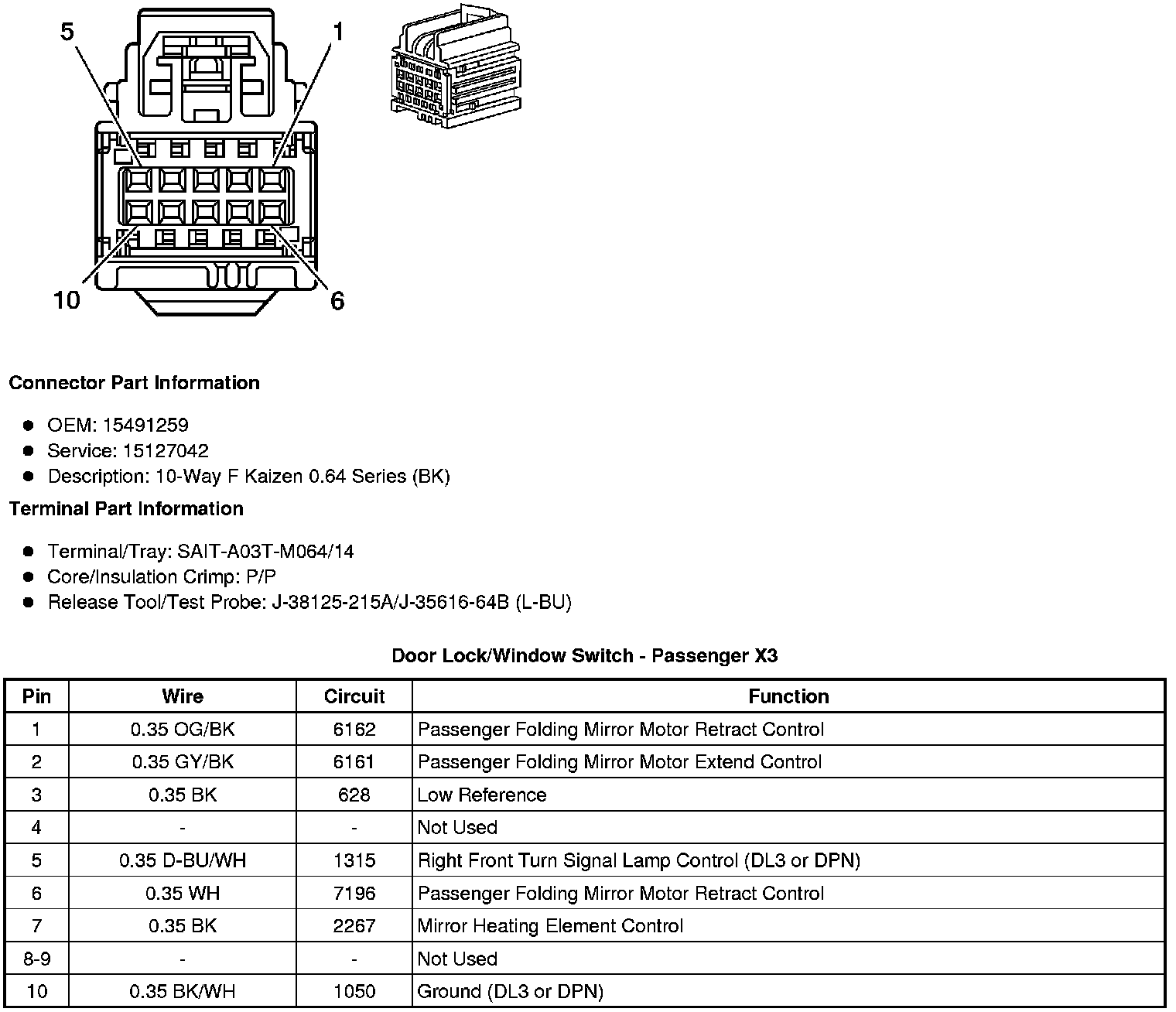

Door Lock/Window Switch - Passenger X3

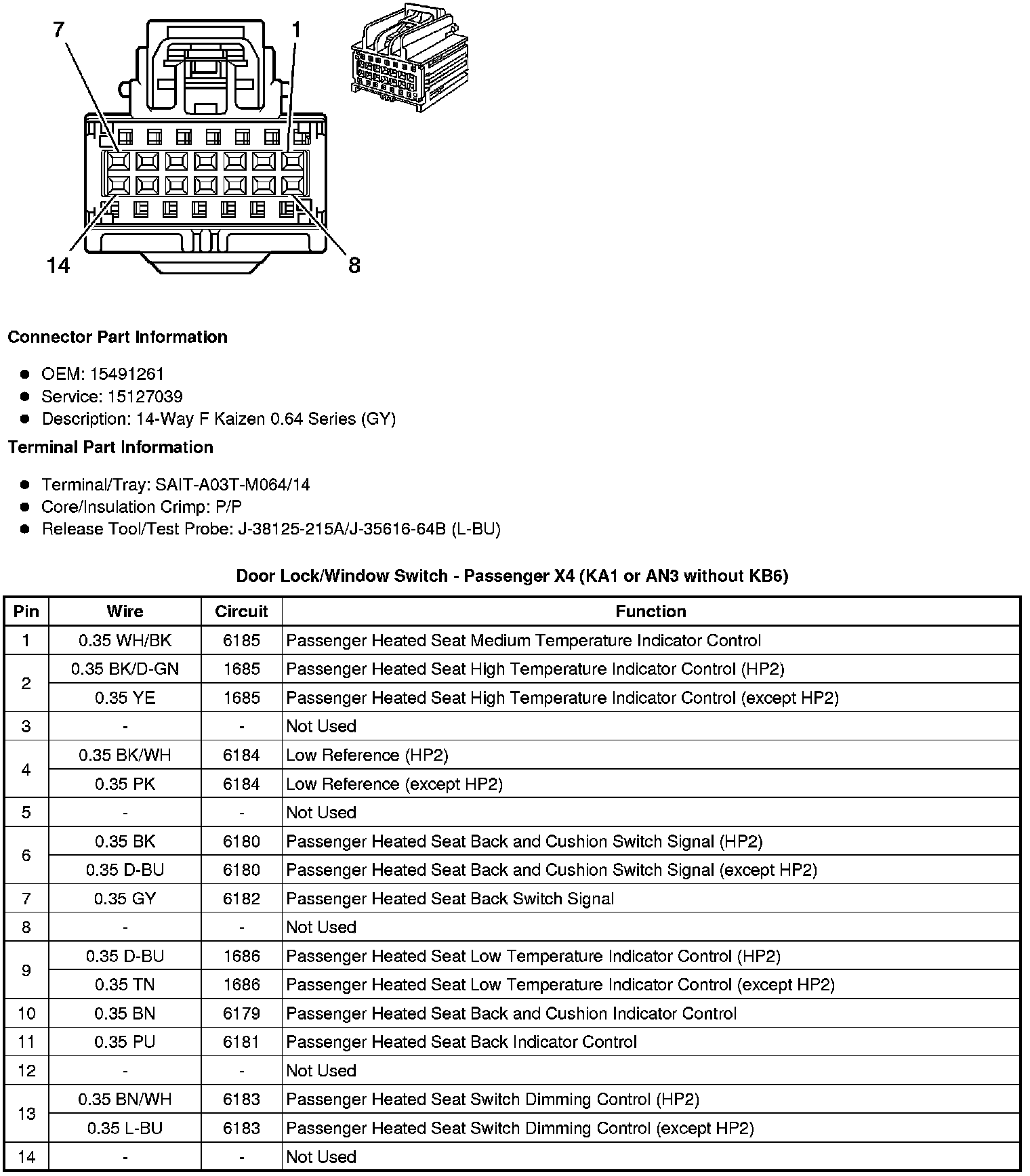

Door Lock/Window Switch - Passenger X4 (KA1 or AN3 without KB6)





Door Lock/Window Switch - Passenger X7

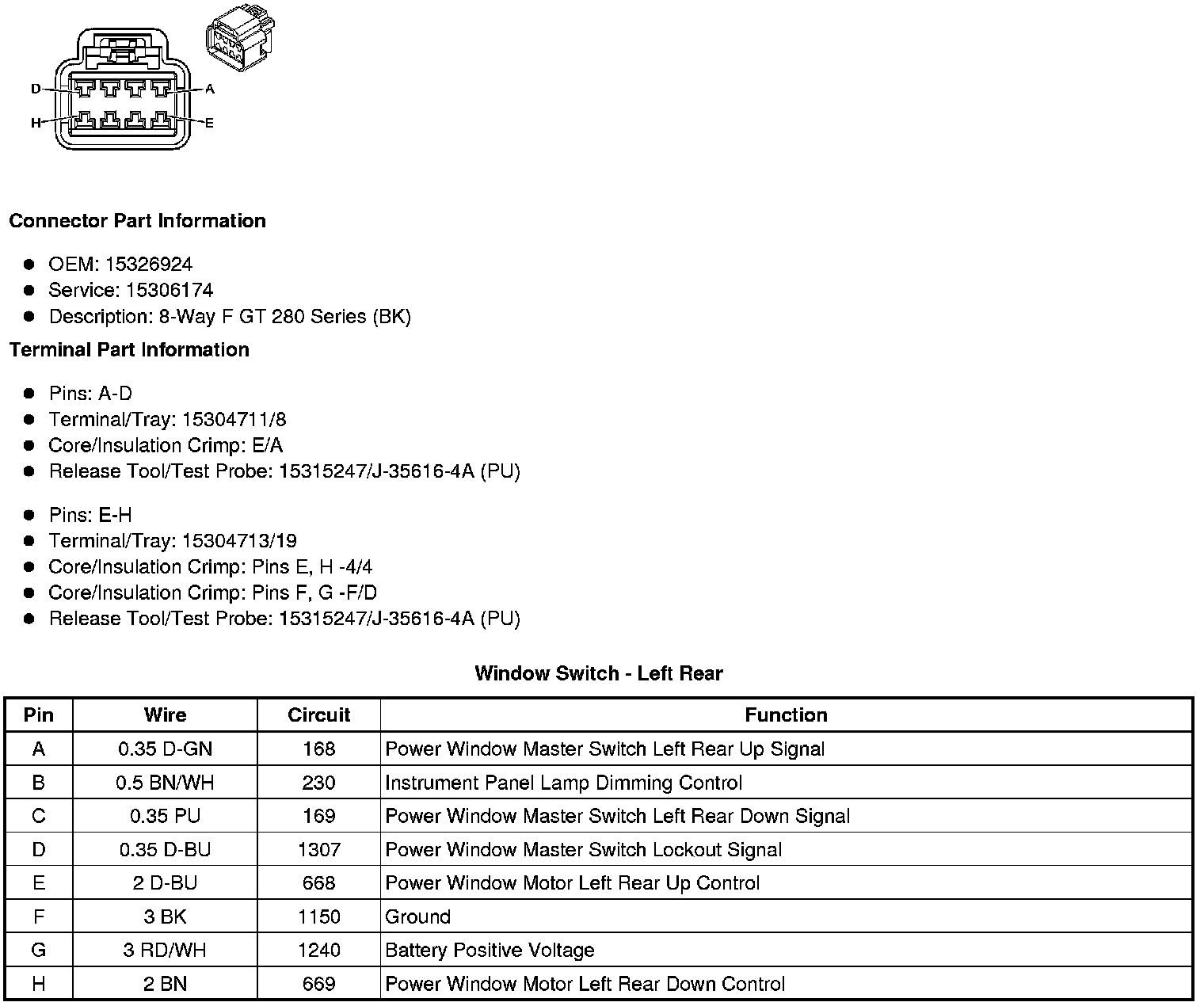

Window Switch - Left Rear

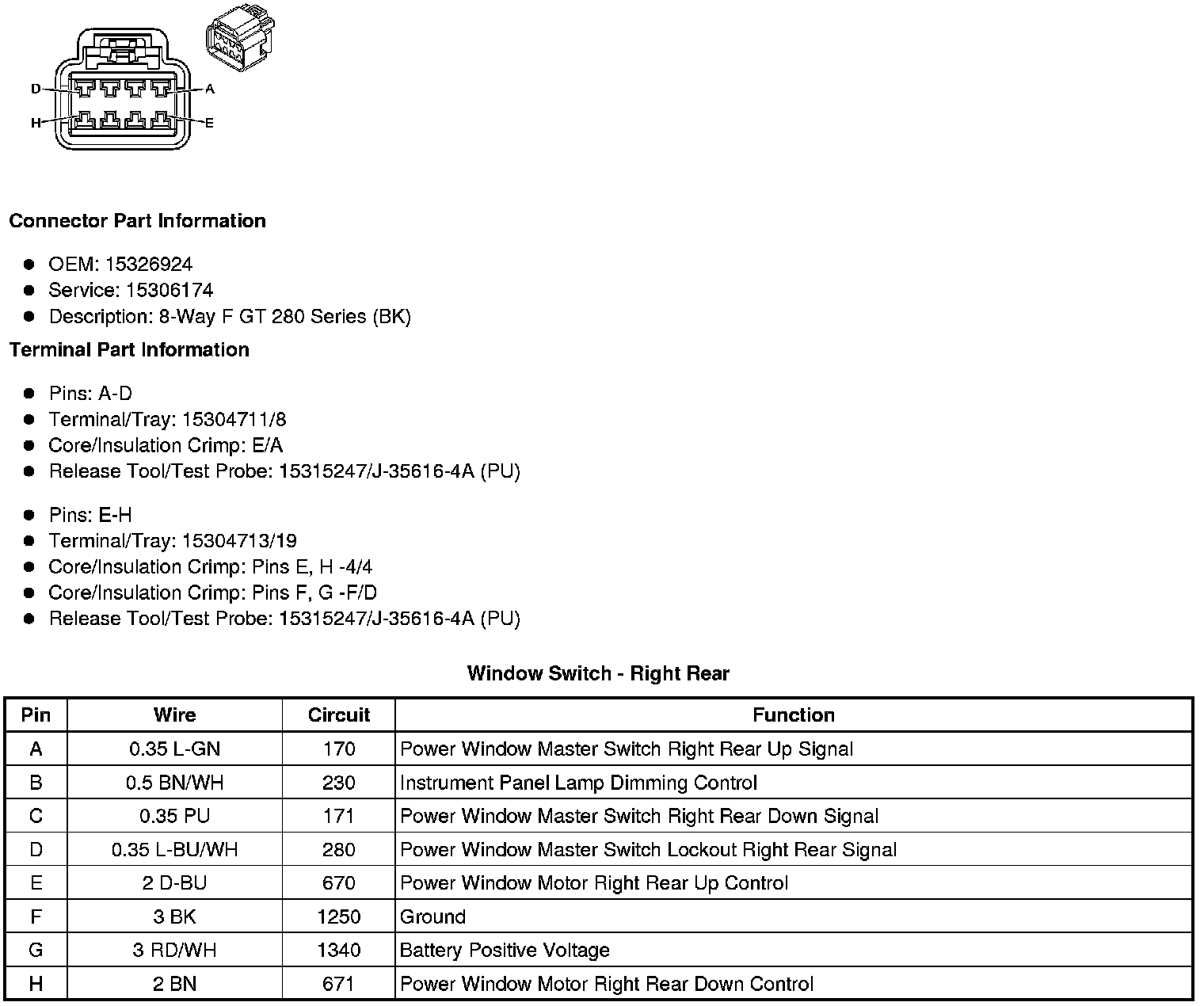

Window Switch - Right Rear
