Steering Column



Inline Harness Connector End Views

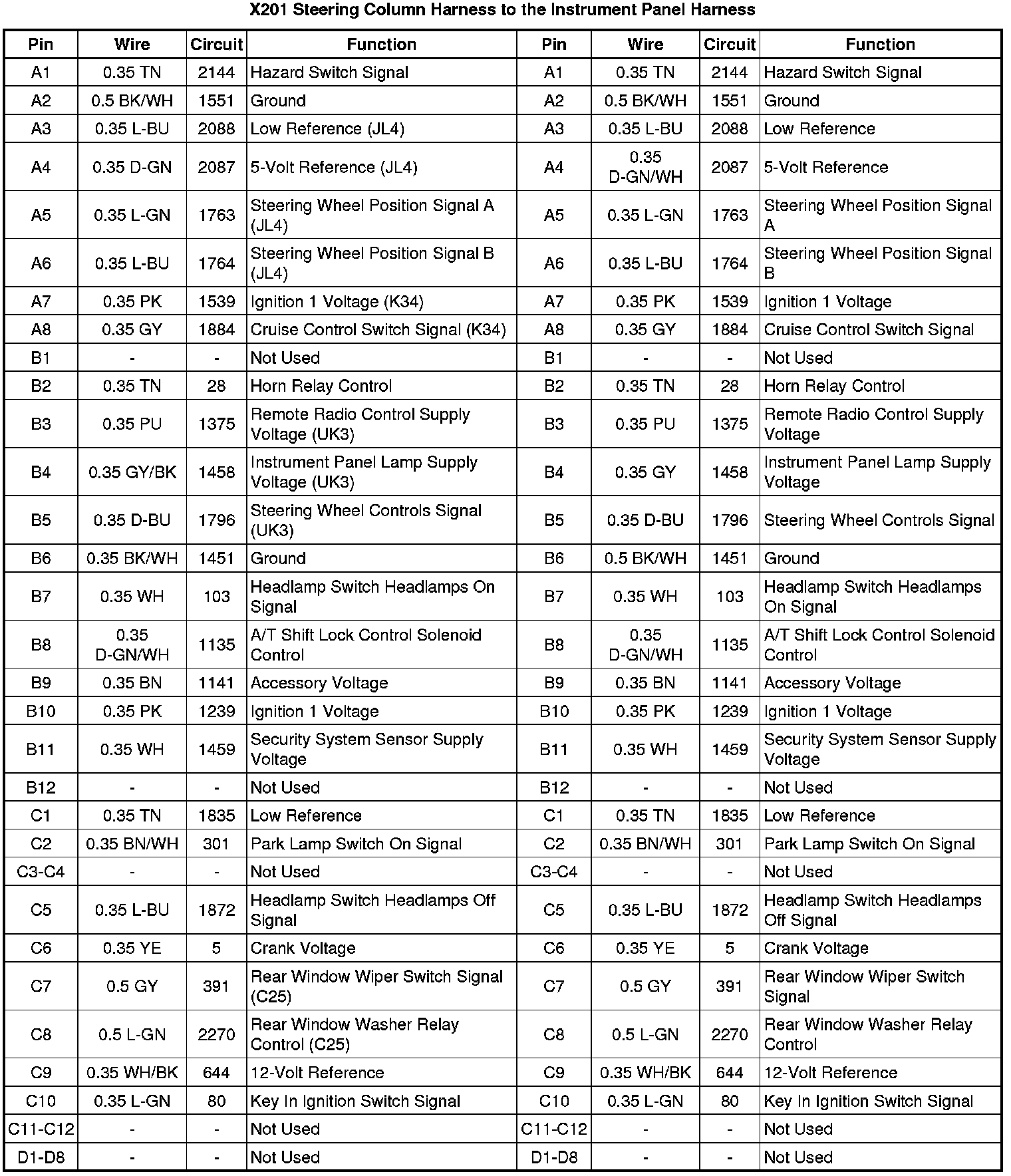

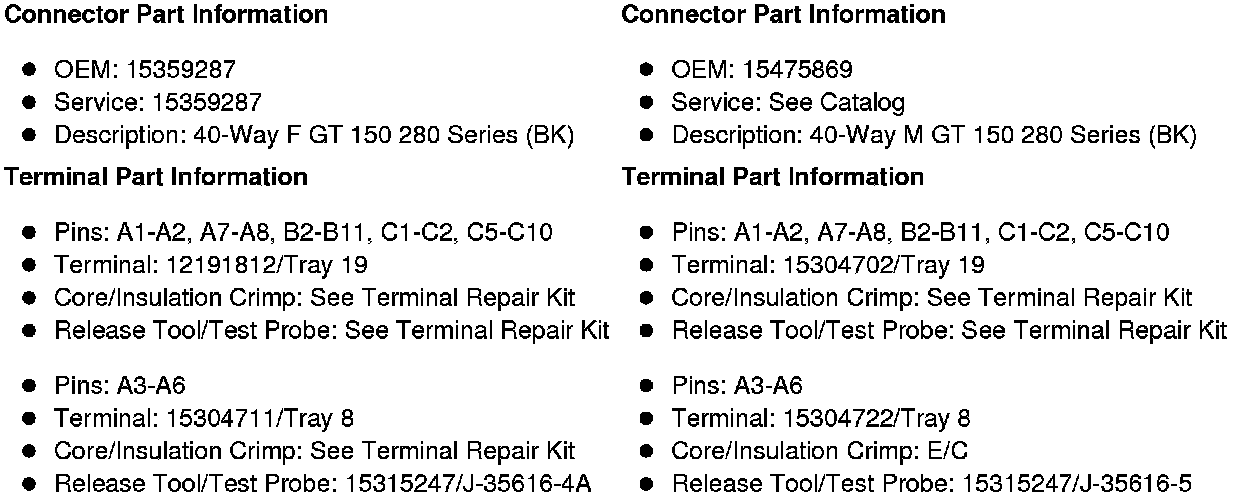

X201 Steering Column Harness to the Instrument Panel Harness

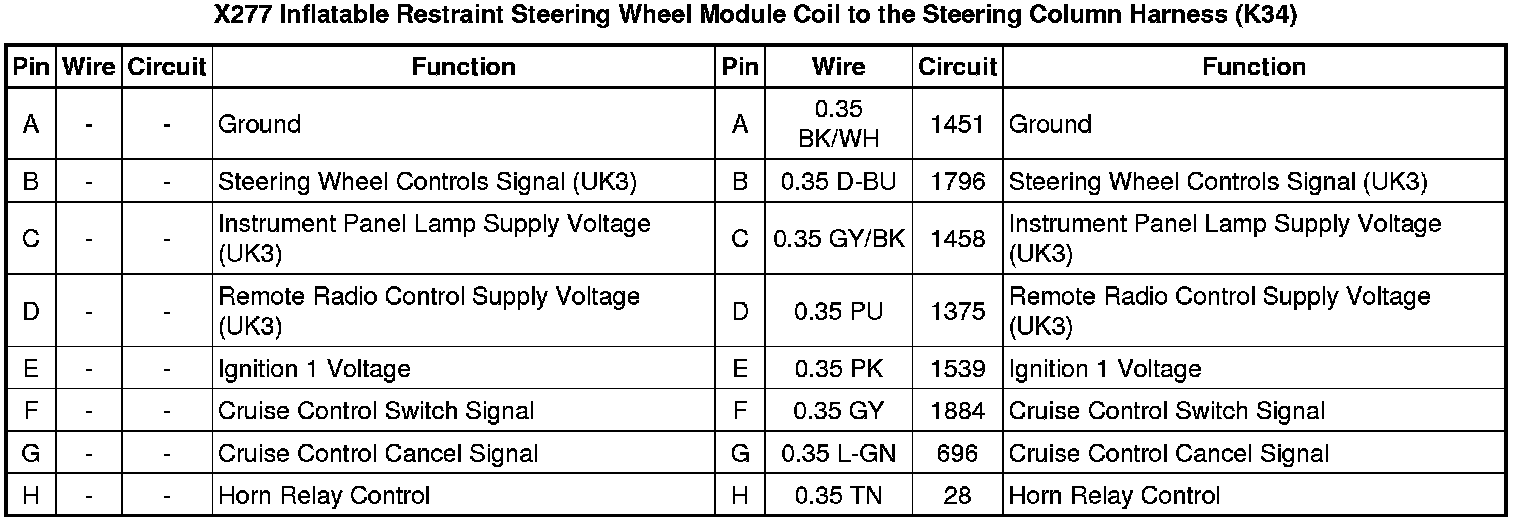

X277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (K34)













X277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (- K34)
