Multifunction Switch - Overhead Console



Component Connector End Views

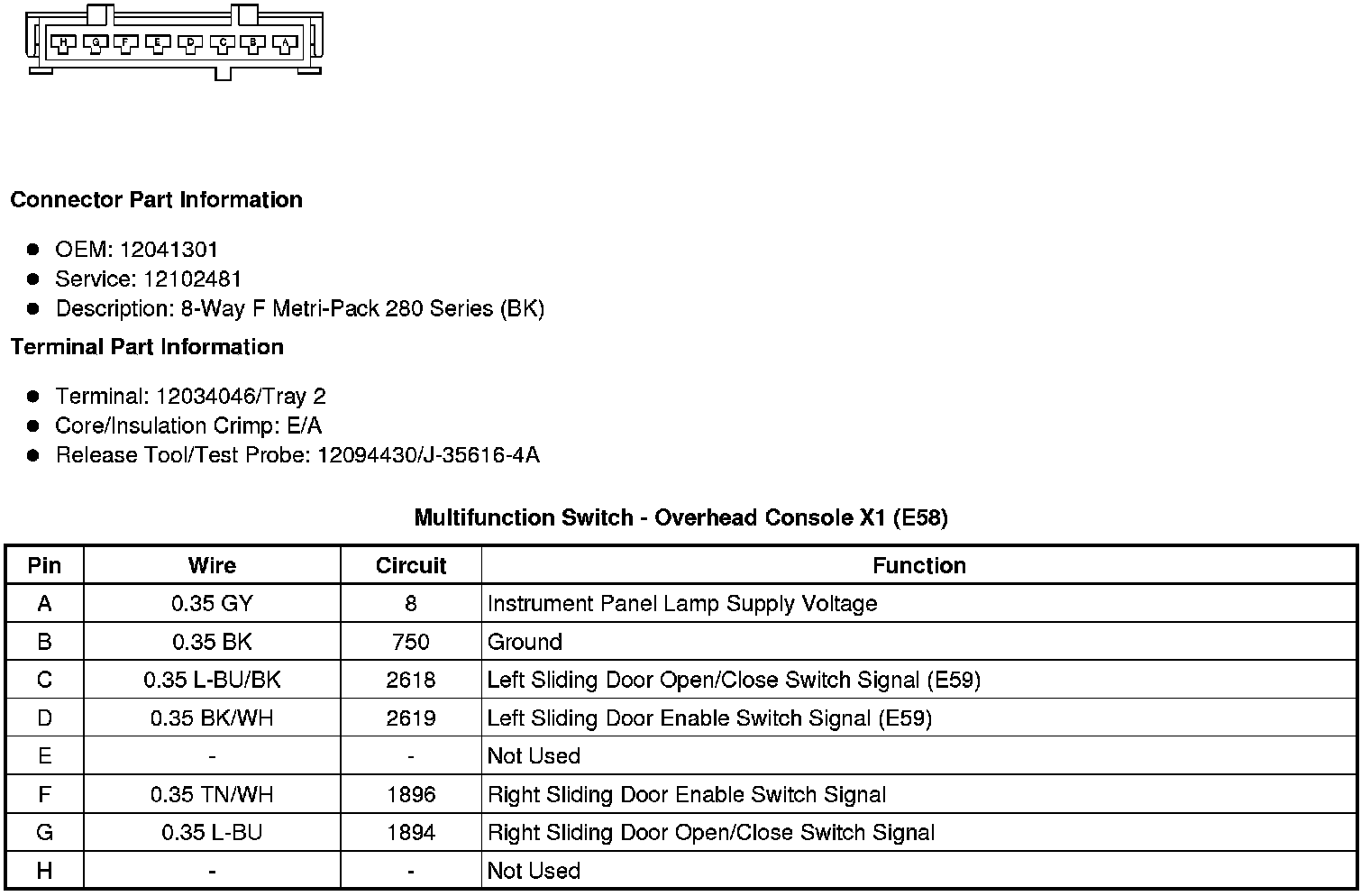

Multifunction Switch - Overhead Console X1 (E58)

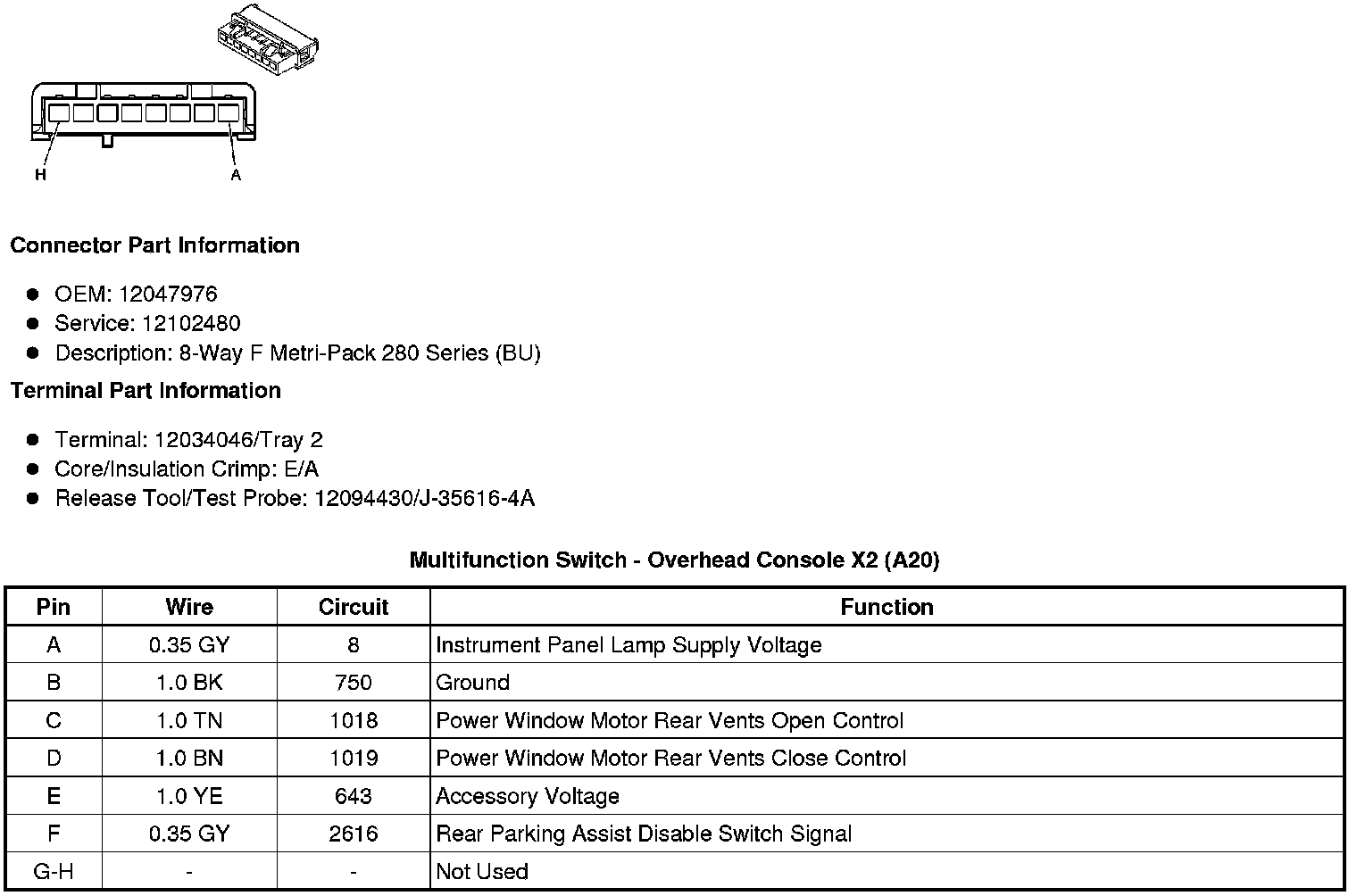

Multifunction Switch - Overhead Console X2 (A20)
