Auxiliary Power Outlet



Component Connector End Views

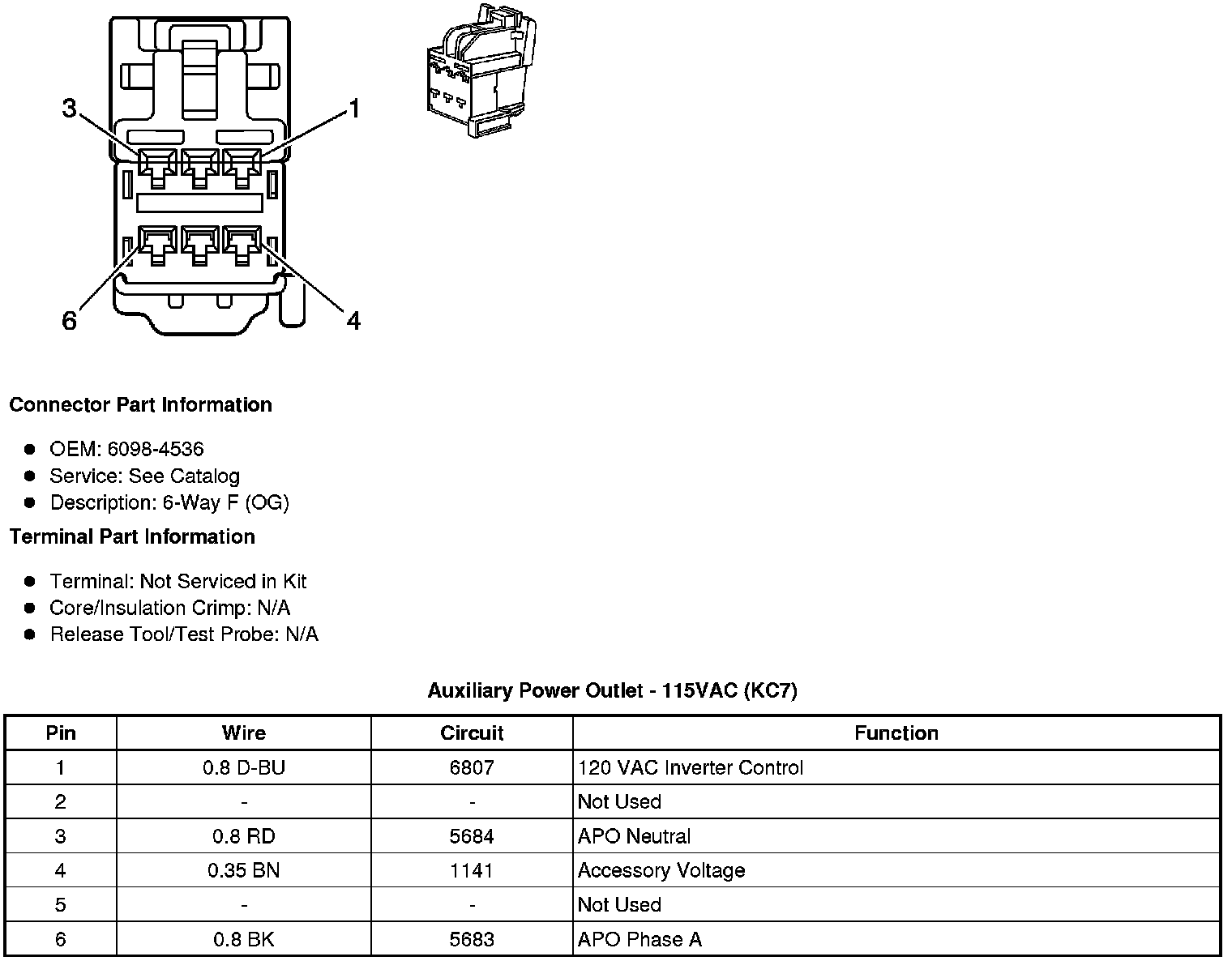

Auxiliary Power Outlet - 115VAC (KC7)





Auxiliary Power Outlet - Front





Auxiliary Power Outlet - Rear
