Passenger Compartment/Roof Component Views

Fig 1: Antenna Components
GM1542521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Antenna (U2K)
2 Cellular and Navigational Antenna (UE1)
3 Digital Radio Receiver (U2K)
4 Vehicle Communication Unit (VCU) (UE1)
5 Radio
6 X300 (U2K)
7 X304 (UE1)
8 X298
9 Radio Antenna
Fig 2: Identifying Front Headliner Components
GM1536136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Courtesy/Reading Lamp - Front
2 Multifunction Switch - Overhead Console
3 Courtesy/Reading Lamp - Front
4 OnStar Button Assembly (UE1)
5 Garage Door Opener (UG1)
6 Garage Door Opener Buttons (UG1)
7 Vanity Mirror Lamp - Right (DH6)
8 Multifunction Switch Overhead Console
9 Vanity Mirror Lamp - Left (DH6)
10 Cellular Microphone (UE1)
Fig 3: Identifying Rear Headliner Components
GM1539219Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Rail Reading Lamp - Left
2 Cargo Lamp
3 Rear Parking Assist (RPA) Display (UD7)
4 Roof Rail Reading Lamp - Right
Fig 4: Headliner Harness Components
GM1510513Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right B-Pillar
2 Sliding Door Open/Close Switch - Right (E58) Connector
3 X308
4 G302
5 Courtesy/Reading Lamp - Center
6 Cargo Lamp
Fig 5: Center of Overhead Console
GM1551713Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Video Disc (DVD) Player (U42/U56)
2 Overhead Console
Fig 6: Identifying Left B Pillar Area Components - Body Harness
GM1536071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G301
2 Sliding Door Open/Close Switch - Left (E59) Connector
3 Inflatable Restraint Side Impact Module - Left (AJ7/AW9)
4 Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AJ7/AW9)
5 Body Harness
6 X315 (AJ7/AW9)
7 X305
8 Seatbelt Pretensioner - Left Front
9 Door Contact Plate - Left X1
Fig 7: Identifying Right B Pillar Area Components - Body Harness
GM1536097Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AJ7/AW9)
2 G302
3 Door Contact Plate - Right X1
4 Seatbelt Pretensioner - Right Front
5 Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 Body Harness
7 X316 (AJ7/AW9)
8 Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor
9 Inflatable Restraint Side Impact Module - Right (AJ7/AW9)
Fig 8: Driver Seat Component View
GM1542694Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch - Left
2 Seat Back Cover
3 Heated Seat Element - Driver Back (KA1)
4 Inflatable Restraint Side Impact Module - Left (AJ7/AW9), Inflatable Restraint Side Impact Module - Left Rear (AW9) Similar
5 Memory Seat Module - Driver (AG0)
6 Seat Adjuster Motor Assembly - Driver (AG0/AG1)
7 Seat Adjuster Switch - Driver (AG0/AG1)
8 Heated Seat Element - Driver Cushion (KA1)
9 Seat Cushion Cover
Fig 9: Front Passenger Presence System (PPS) Components
GM1555810Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2 Inflatable Restraint Front Passenger Presence System (PPS) Module
Fig 10: Passenger Seat Component View
GM1542695Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Module - Right (AJ7/AW9), Inflatable Restraint Side Impact Module - Right Rear (AW9) Similar
2 Seat Back Cover
3 Heated Seat Element - Passenger Back (KA1)
4 Seat Belt Switch - Right
5 Seat Cushion Cover
6 Heated Seat Element - Passenger Cushion (KA1)
7 Seat Adjuster Switch - Passenger (AG2/AH8)
8 Seat Adjuster Motor Assembly - Passenger (AG2/AH8)

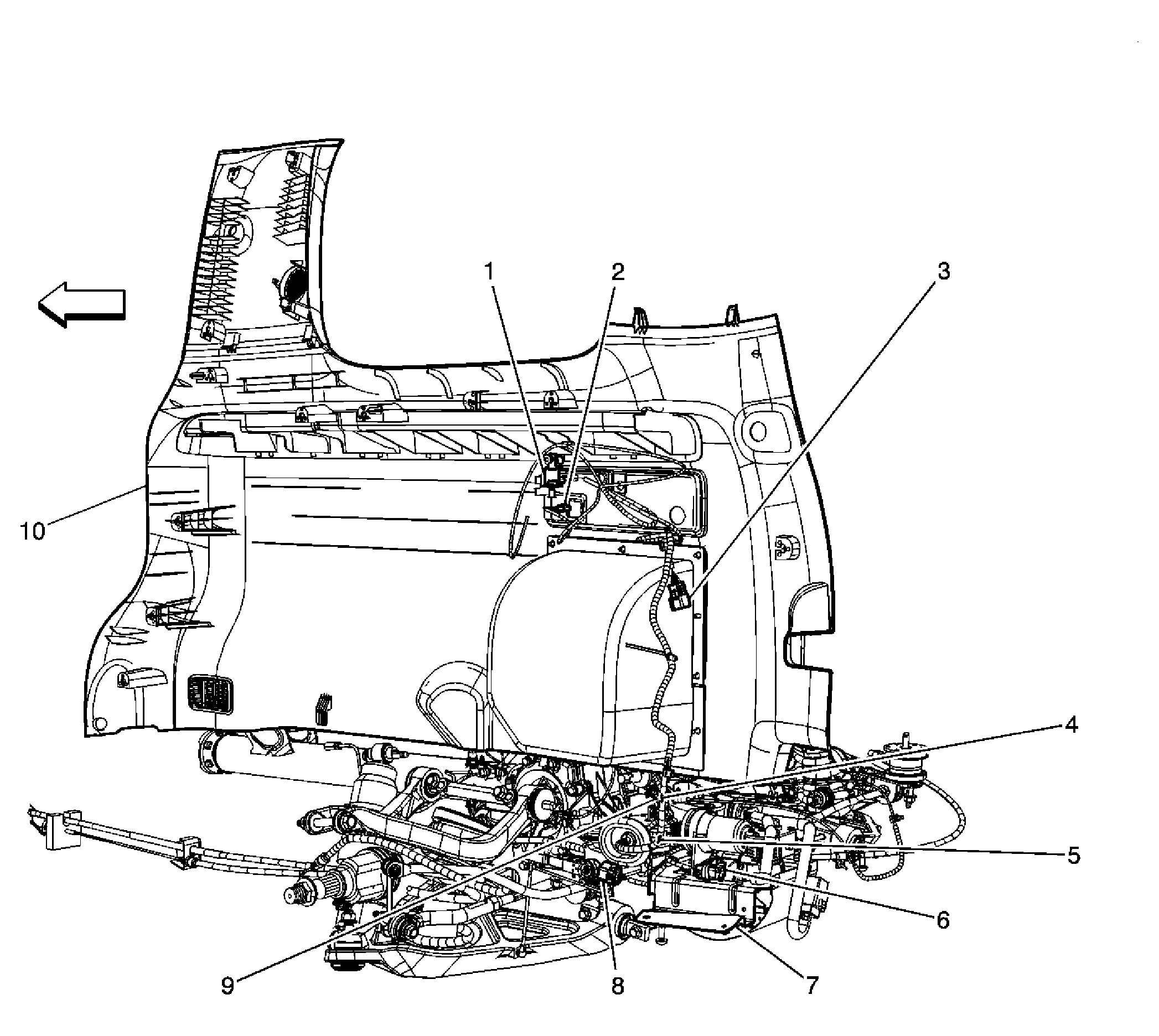

Fig 11: Left Rear Frame and Underbody
GM1510497Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Level Control (ALC) Solenoid Valve (G67 -Z10)
2 Automatic Level Control (ALC) Inflator Air Switch (G67 -Z10)
3 X405 (G67)
4 J431 (G67)
5 J433 (G67)
6 Automatic Level Control (ALC) Compressor Connector (G67)
7 Automatic Level Control (ALC) Compressor (G67)
8 Automatic Level Control (ALC) Sensor (G67)
9 X409 (G67)
10 Left Rear Cargo Trim Panel

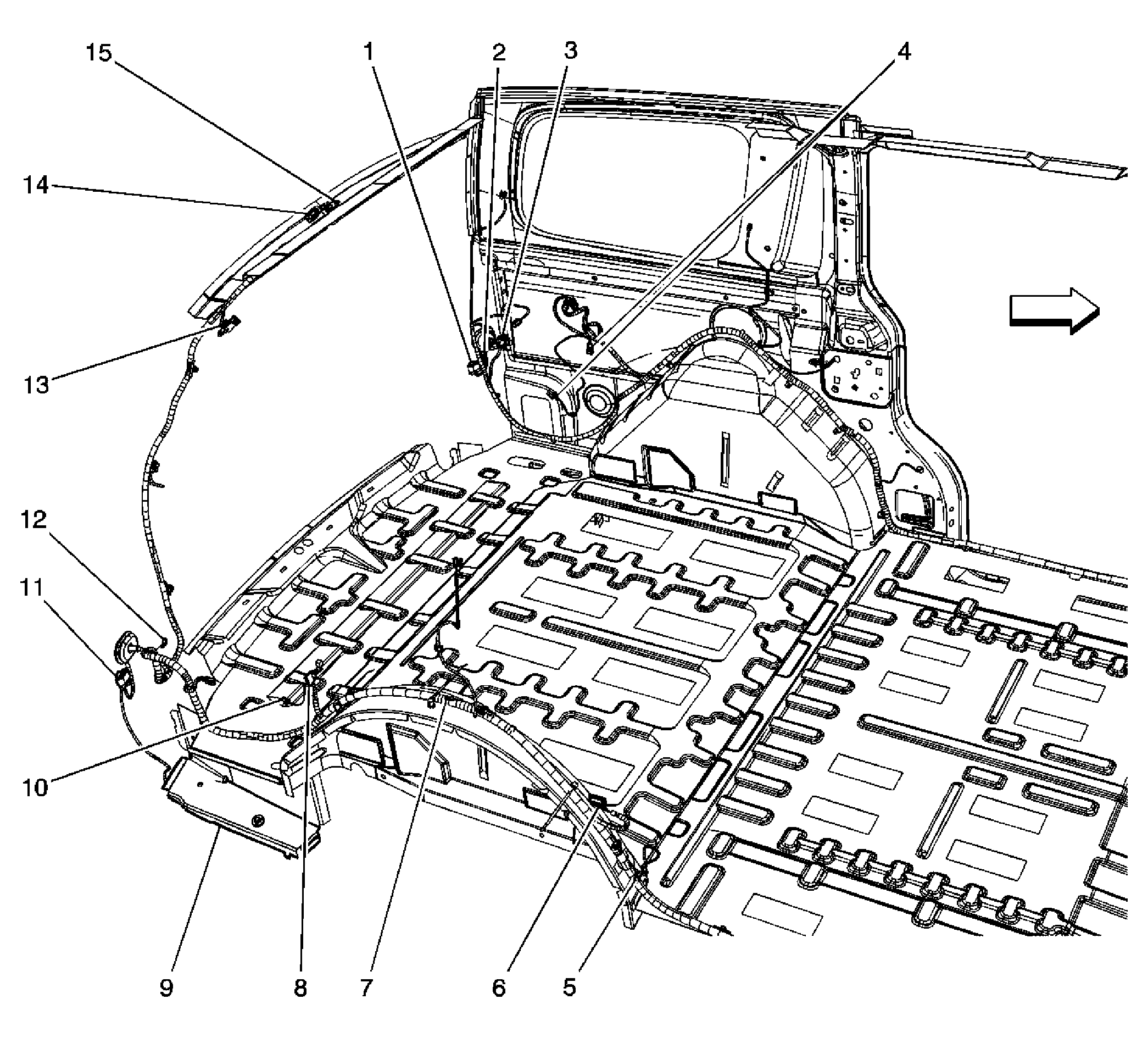

Fig 12: Rear Passenger Compartment Components
GM1511496Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X479
2 G401
3 X405 (G67)
4 Auxiliary HVAC Connectors
5 Sliding Door Jamb Switch - Right
6 Rear Object Sensor Control Module (UD7)
7 Rear Parking Assist (RPA) Diagnostic Connector (UD7)
8 Right Sliding Door Module (RSDM) (E58)
9 X440 (UD7)
10 X426 KC7)
11 X480
12 G400
13 X420 (UD7)
14 X400
15 X402
