Electrical Diagrams



Automatic Transmission Controls Schematics (5.3L/6.0L)

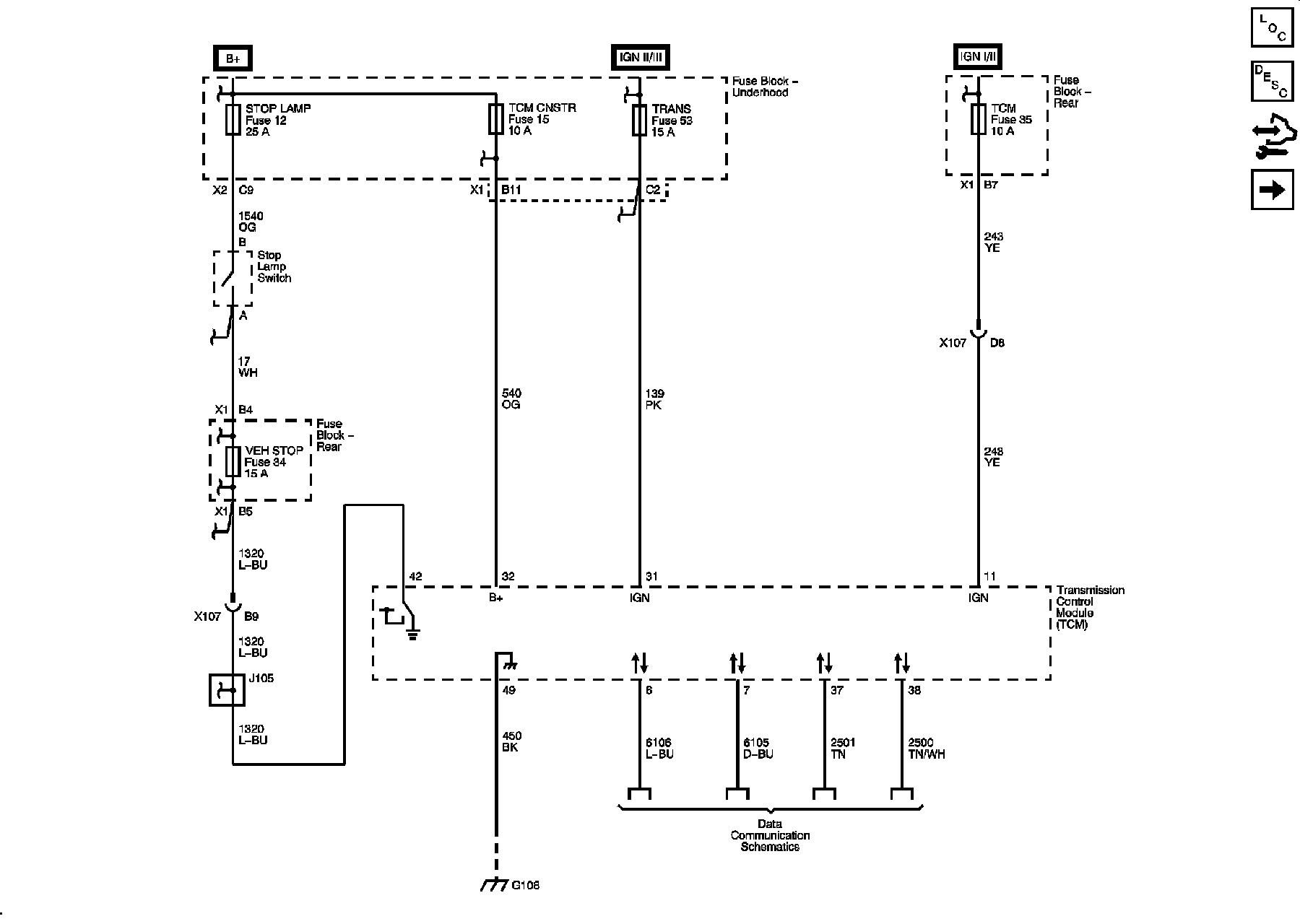

Module Power, Ground, Serial Data, and Stop Lamp Switch

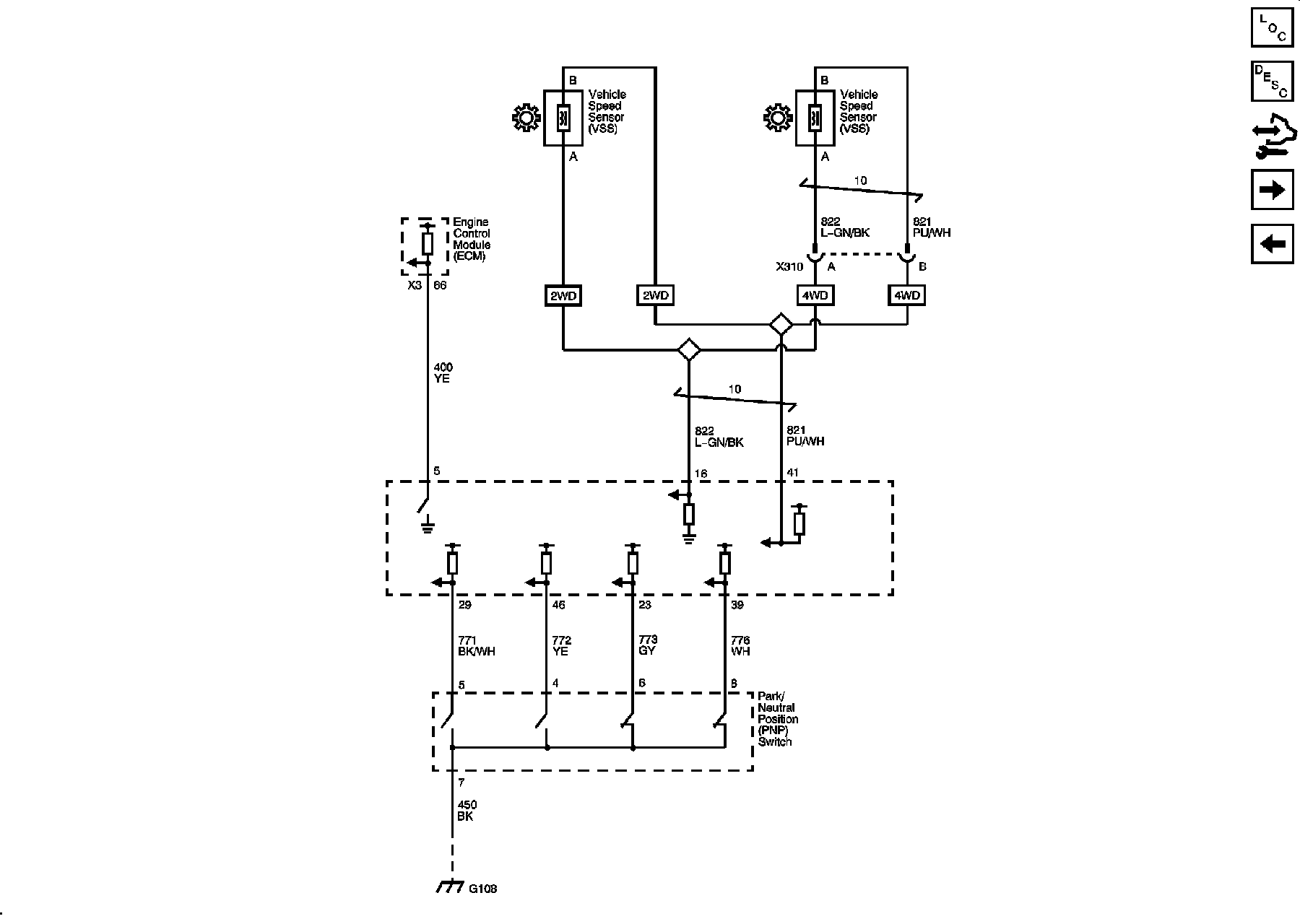

PNP Switch and VSS

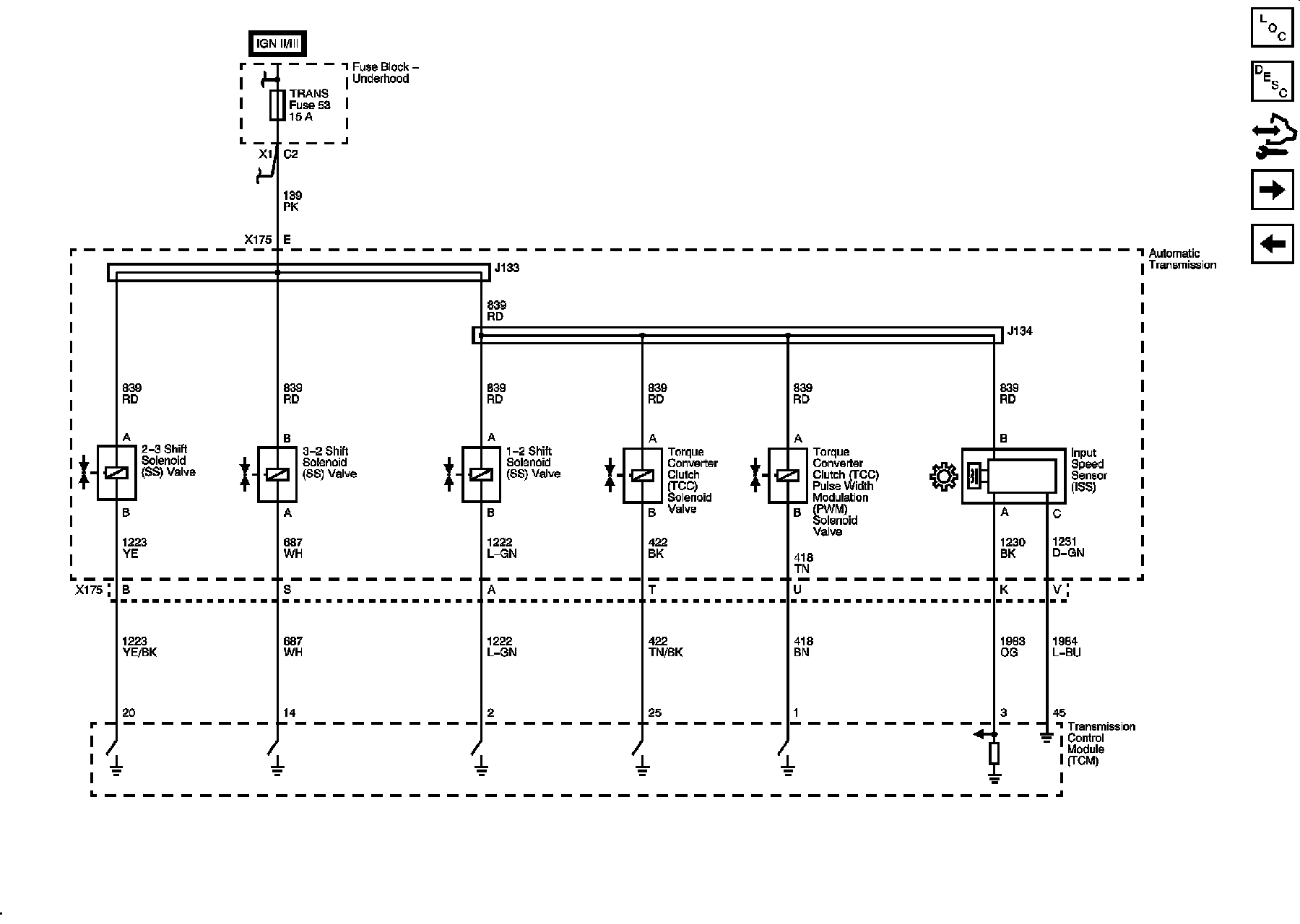

Shift Controls

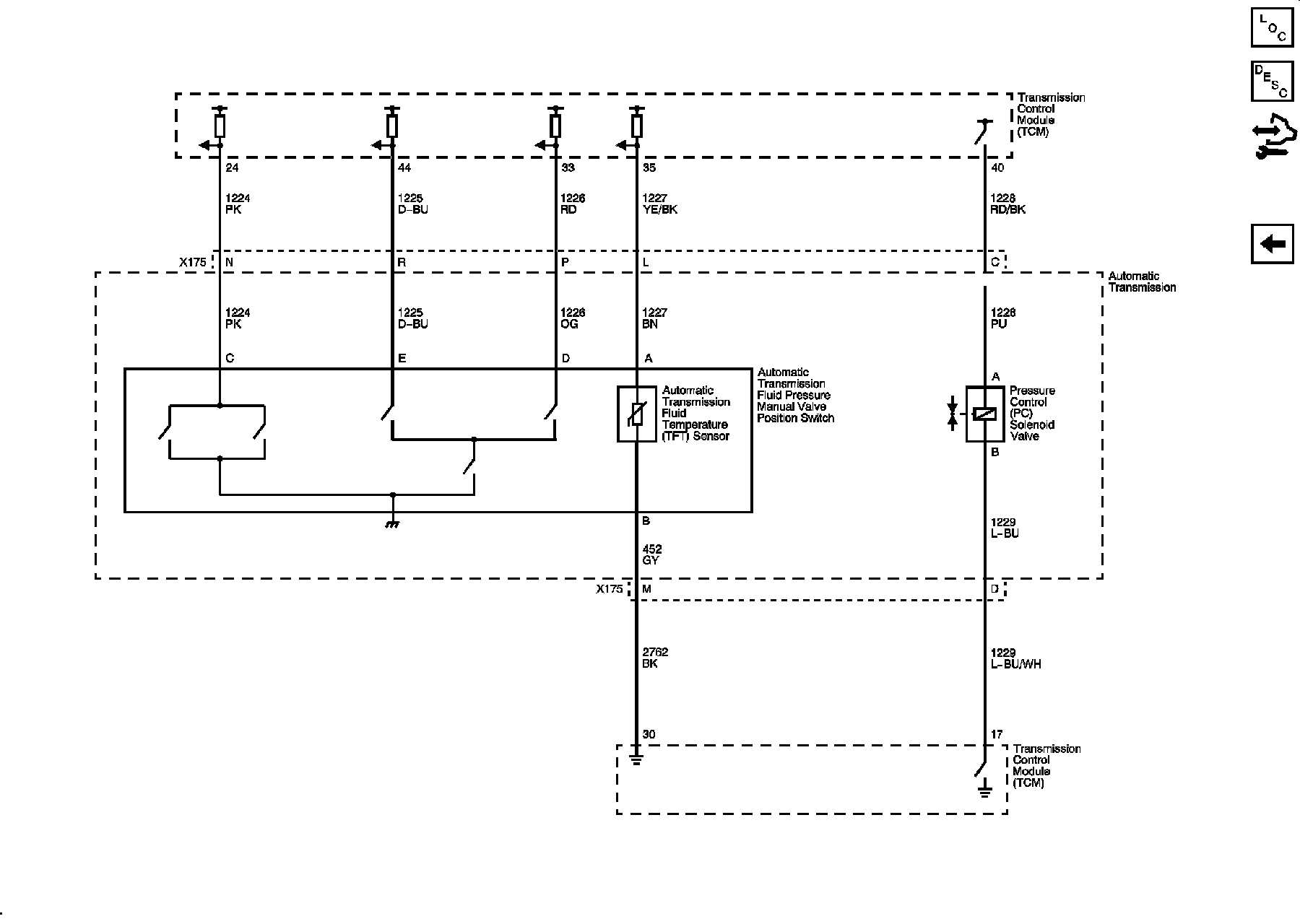

Temperature and Pressure Controls
