Control Assembly: Diagrams



Component Connector End Views

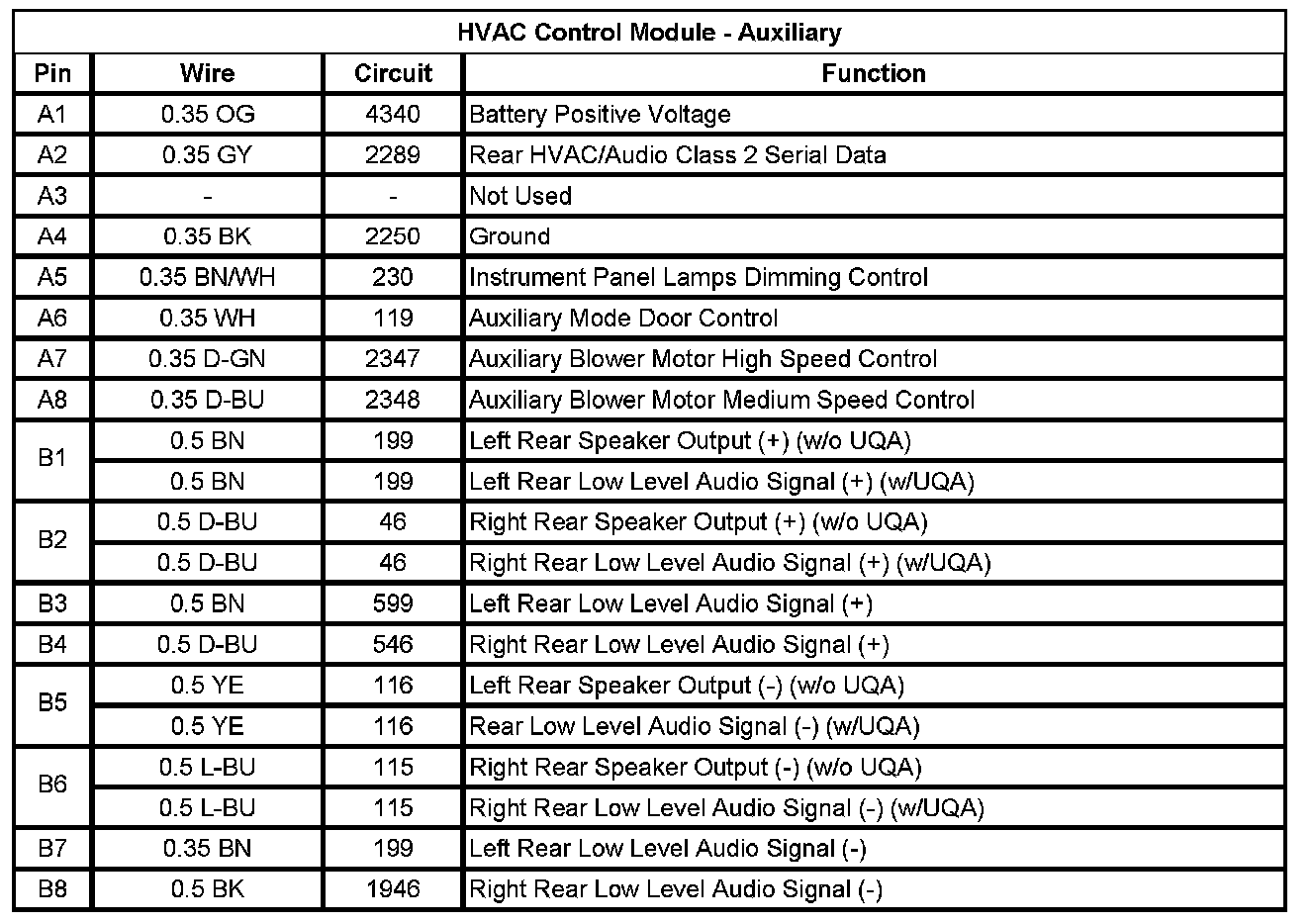

HVAC Control Module - Auxiliary

Transfer Case Shift Control Module - C1:














HVAC Control Module - Auxiliary

Steering Wheel Speed/Position Sensor:

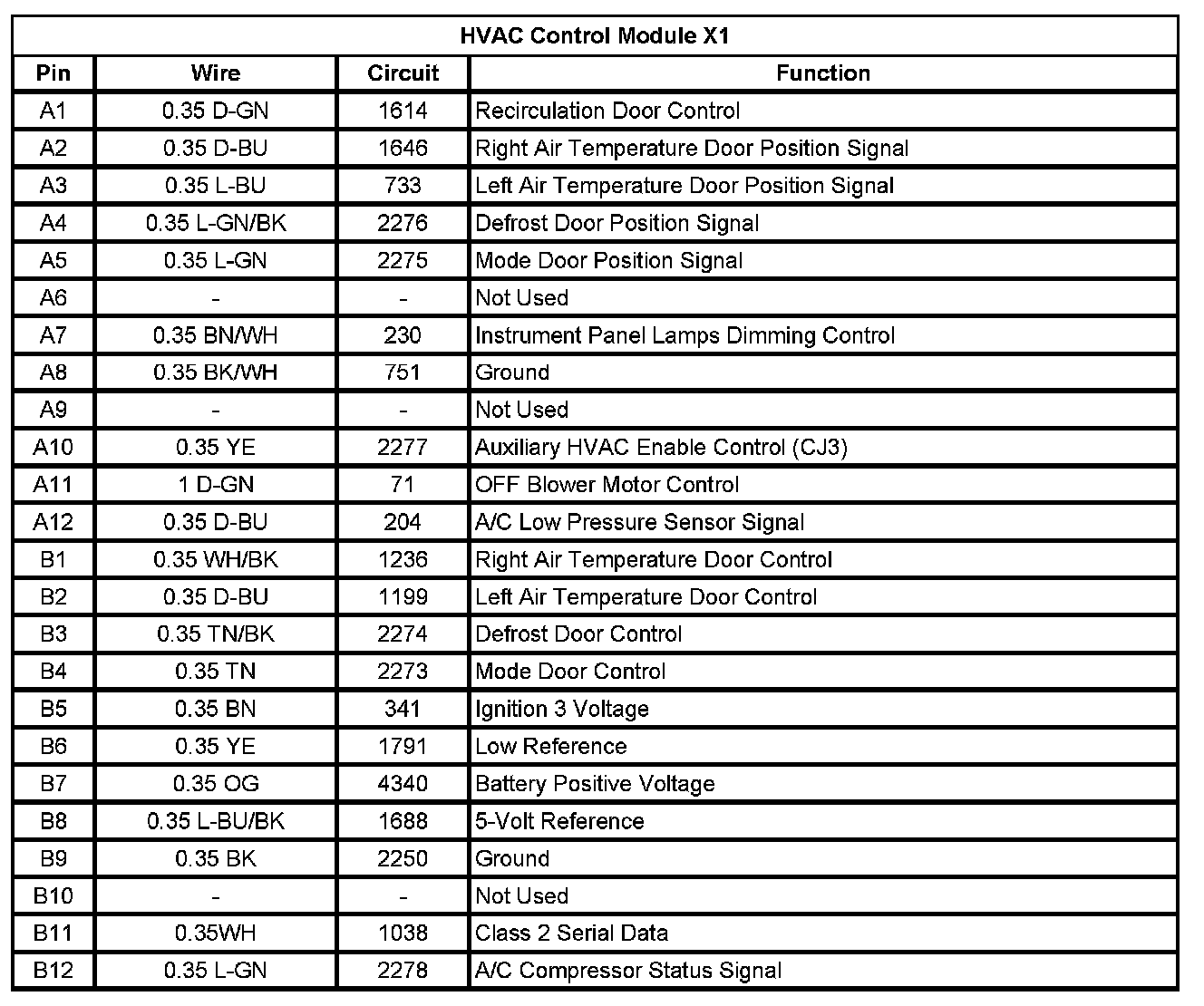

HVAC Control Module X1














HVAC Control Module X2 (CJ2)














HVAC Control Module X2 (CJ3)
