Installation Procedure

    NOTE: Refer to Fastener Notice .

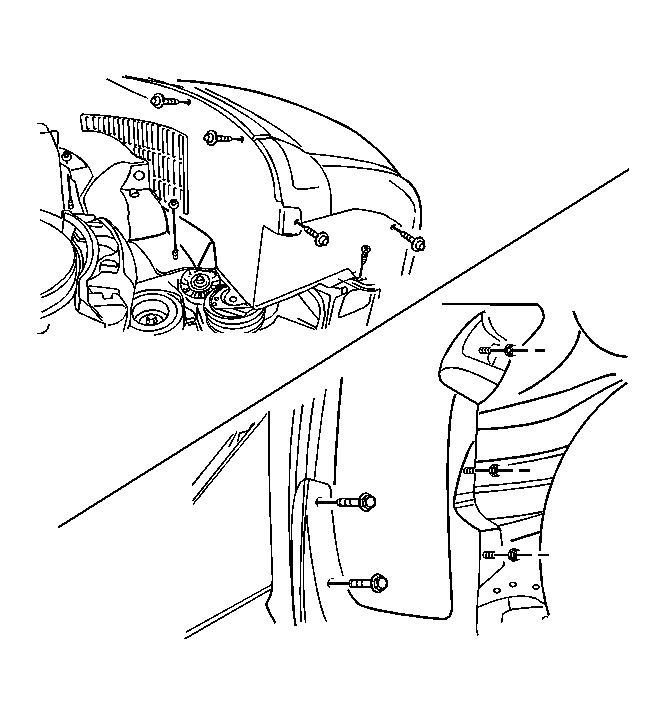

    Fig 1: View Of Front Wheel Well Splash Shield And Screws
    GM1309223Courtesy of GENERAL MOTORS CORP.
  1. Install the screws and the front wheel well splash shield.

    Tighten:  Tighten the front wheel well splash shield screws to 2 N.m (18 lb in)  .

  2. Install the front mud guard. Refer to Rear Mud Flap Guard Replacement .
  3. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  4. Lower the vehicle.
