Window Systems Connector End Views



Window Systems Connector End Views

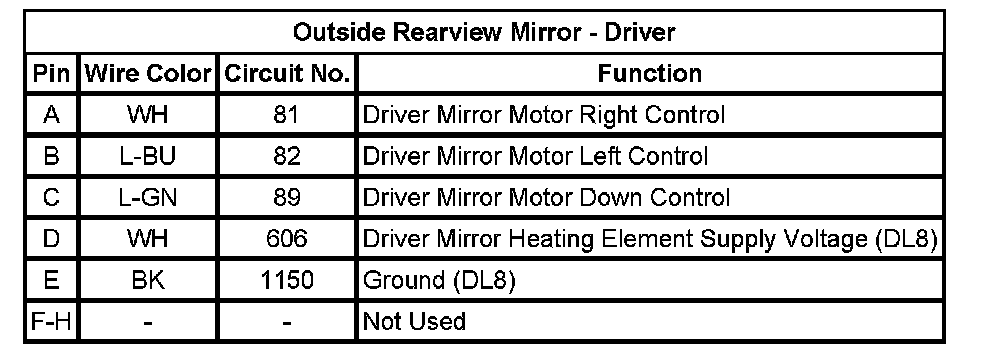

Outside Rearview Mirror - Driver

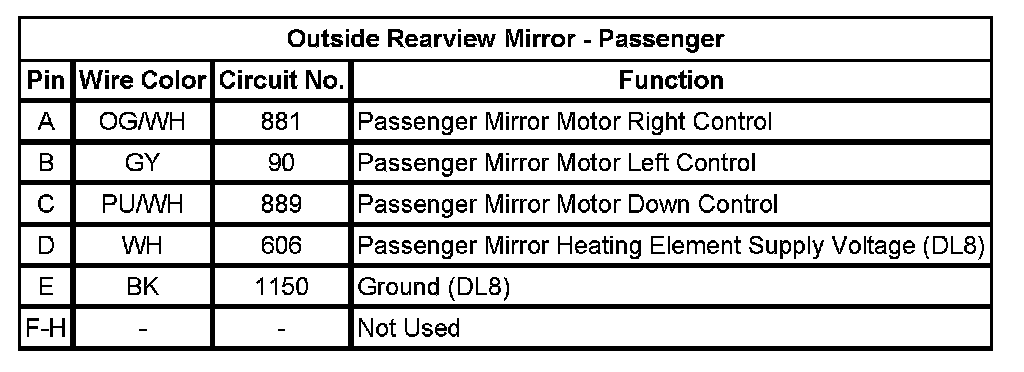

Outside Rearview Mirror - Passenger

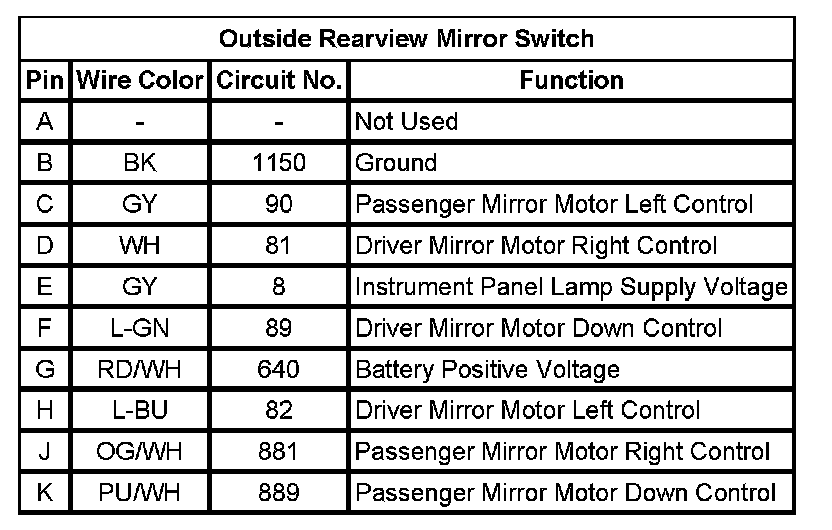

Outside Rearview Mirror Switch
