Powertrain Component Views



Powertrain Component Views

Left Front of the Engine Compartment

LF of the Engine Compartment:




1 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
2 - Brake Booster Vacuum Sensor (LZG/LS4)
3 - Windshield Wiper Motor
4 - Electronic Brake Control Module (EBCM)
5 - A/C Refrigerant Pressure Sensor
6 - Transmission Control Module (TCM)
7 - Engine Control Module (ECM)
8 - G101
9 - Inflatable Restraint Front End Sensor - Left

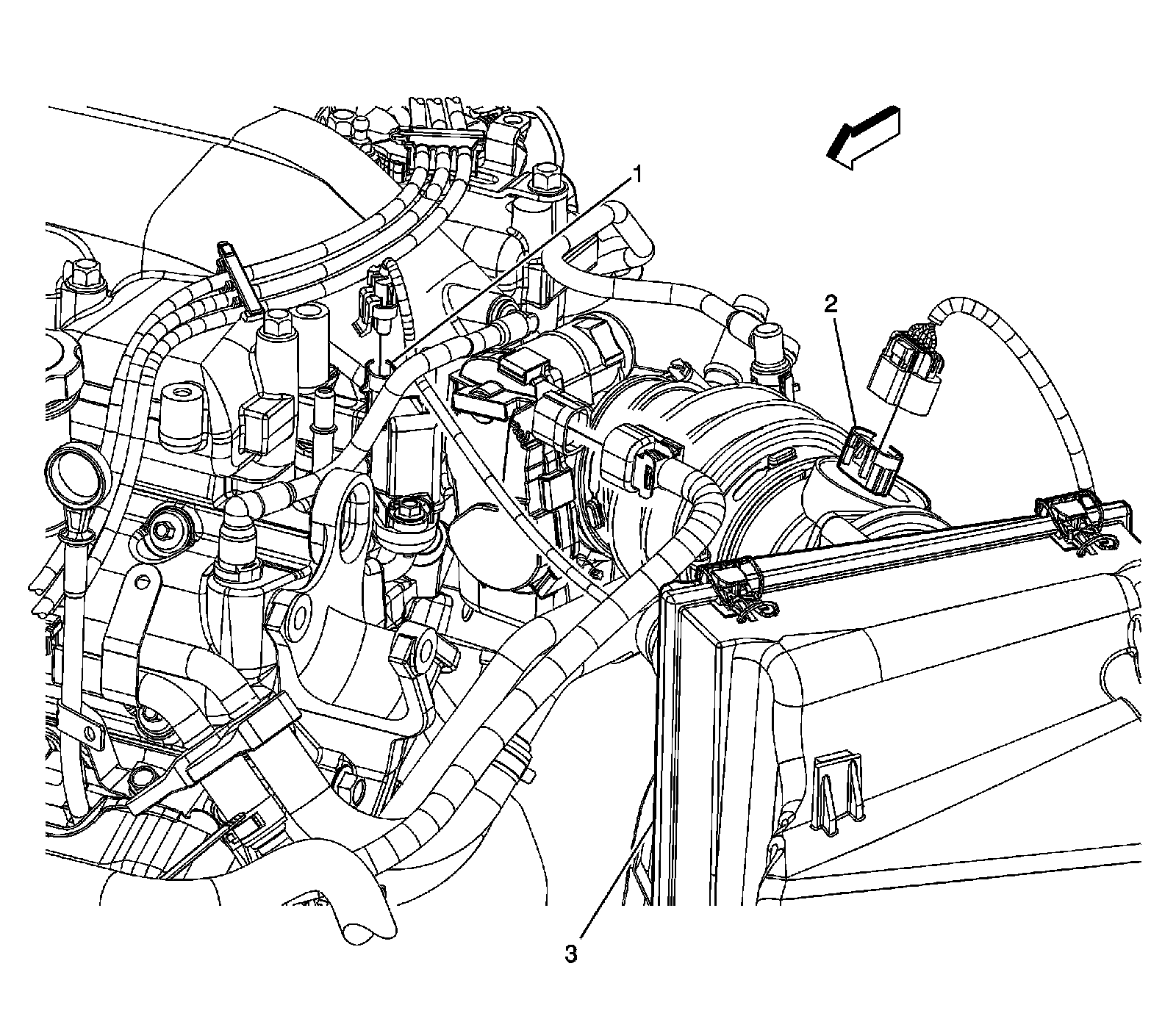

Near the Air Cleaner Duct (LZE/LZ4/LZG)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
3 - Air Cleaner Housing

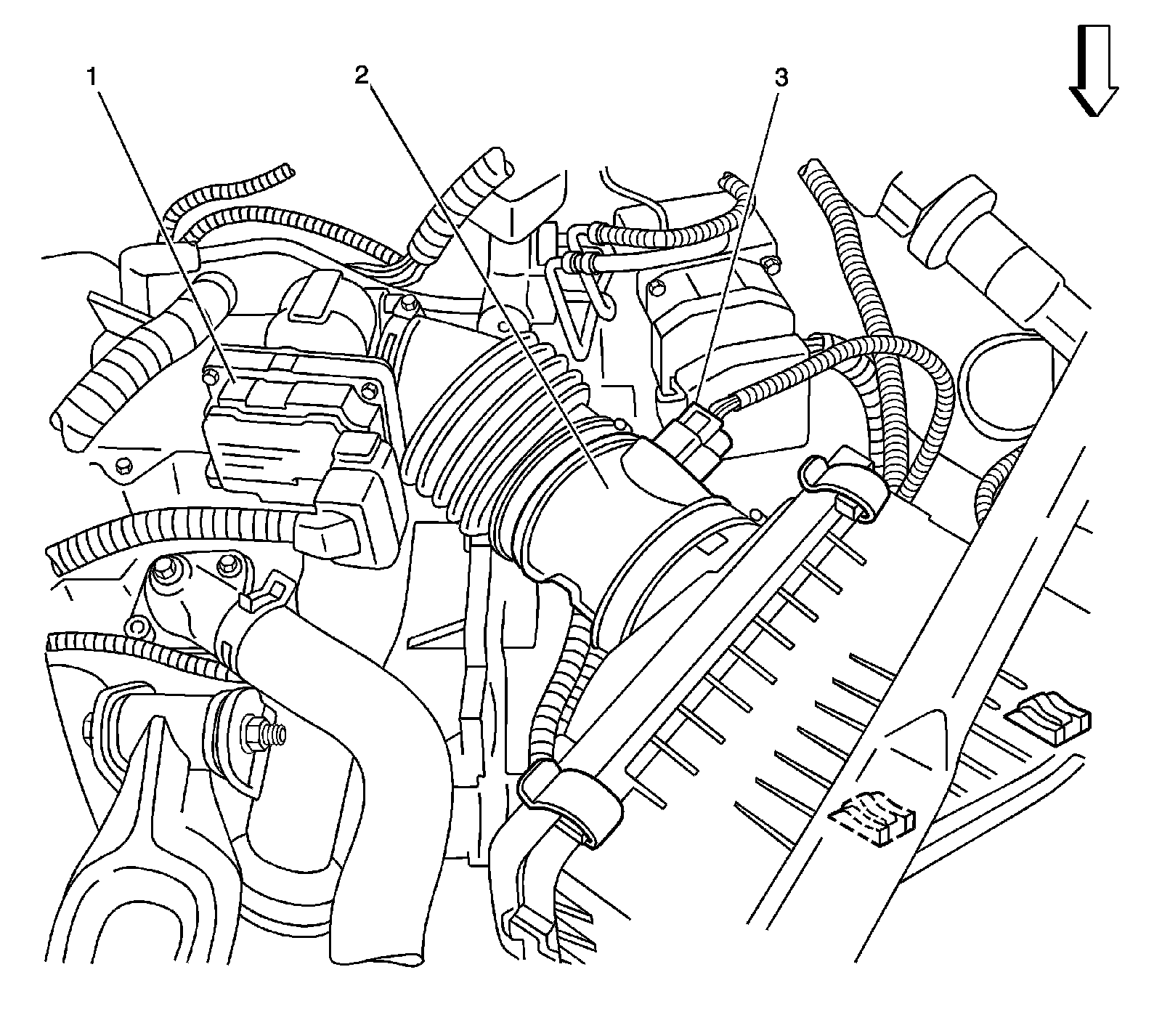

Left Top Side of Engine

Left Top Side Of Engine:




1 - Throttle Body
2 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
3 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor Connector
