Power Steering Schematics

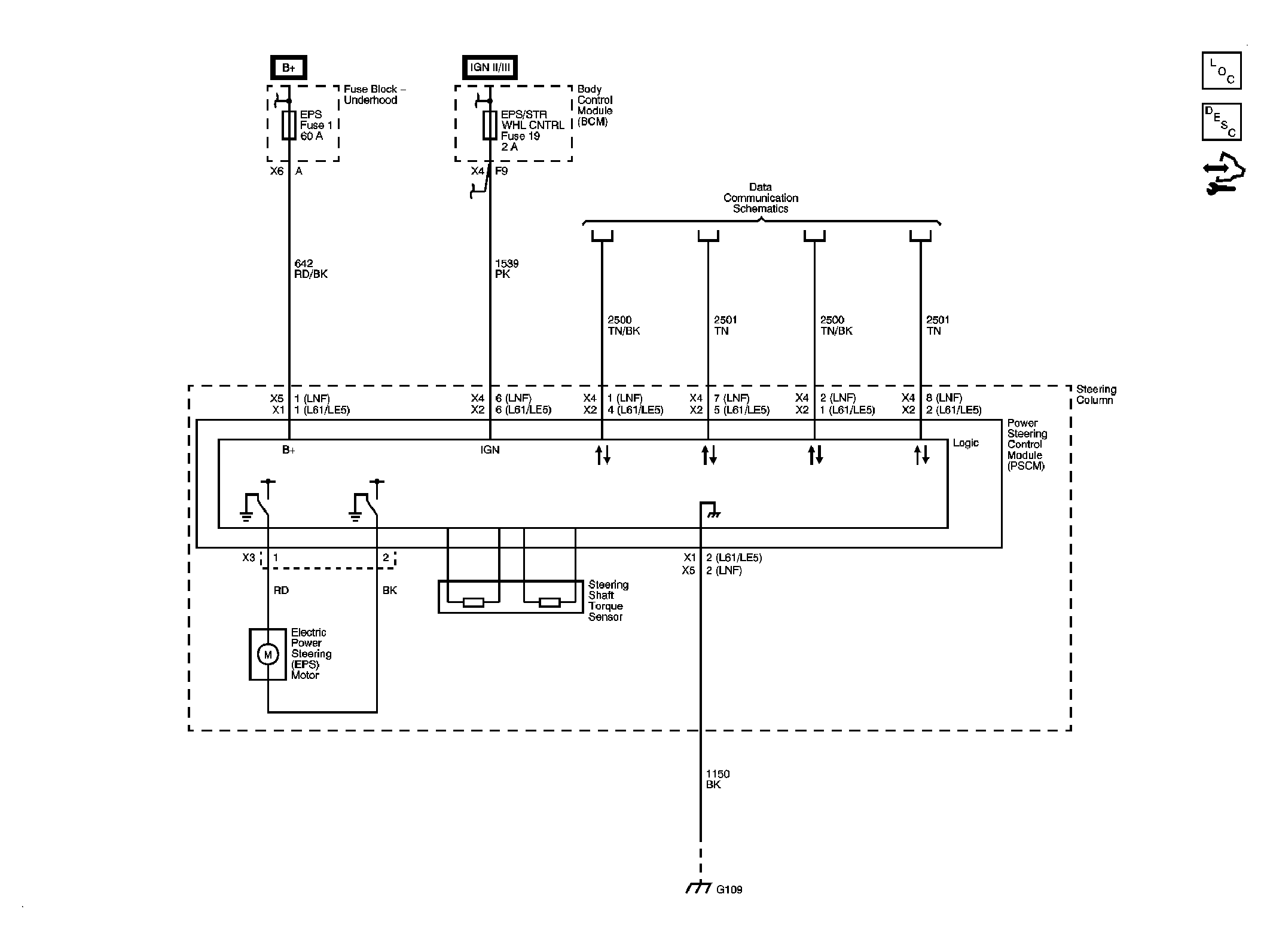

Fig 1: L61/LE5 - Schematic
GM1887481Courtesy of GENERAL MOTORS CORP.
Fig 2: LNF - Schematic
GM2033723Courtesy of GENERAL MOTORS CORP.
