Passenger Compartment/Roof Component Views

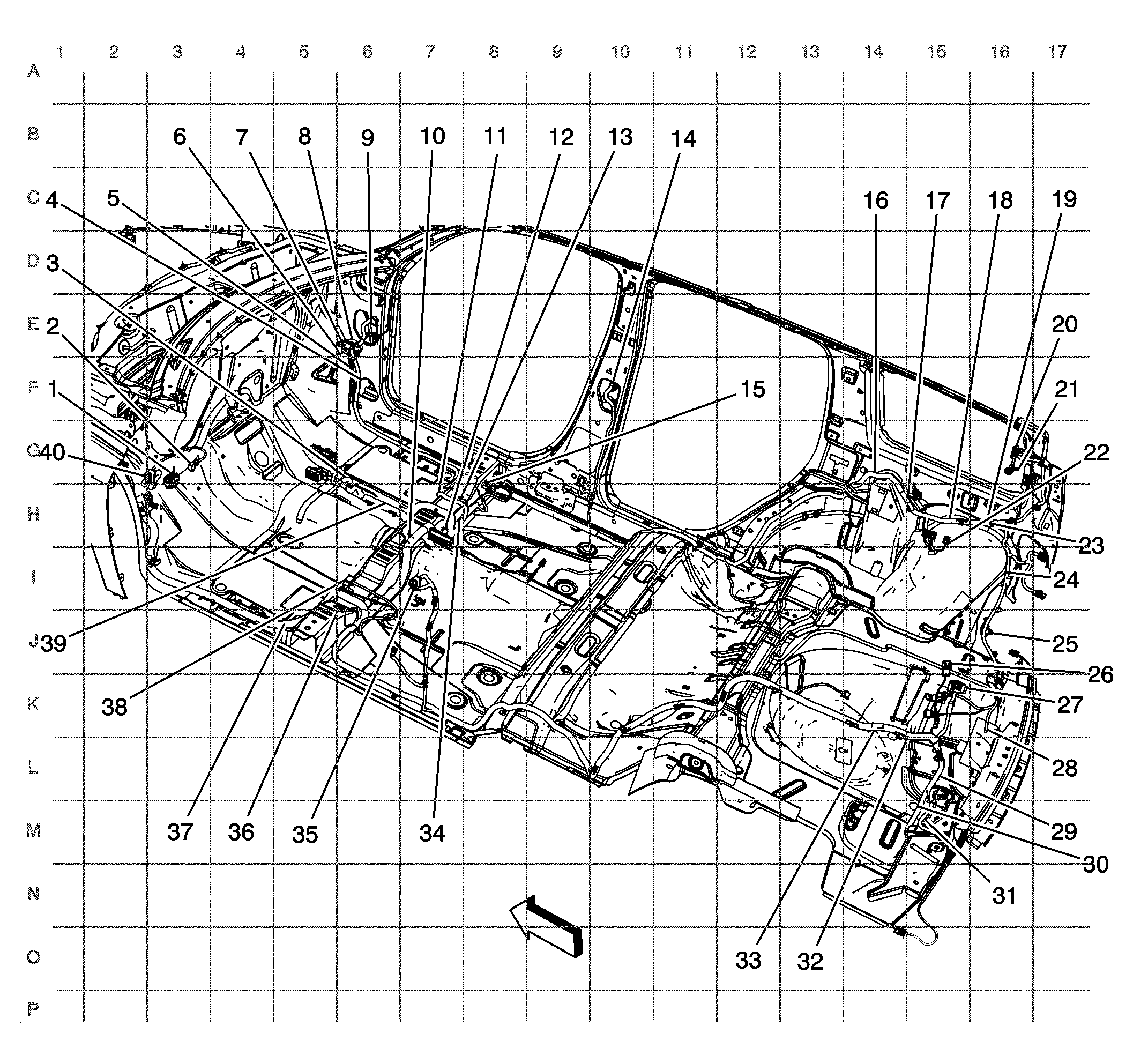

Fig 1: Body Harness - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X201
2	X205
3	J312
4	J318 (U2K)
5	J317 (U2K)
6	J204
7	X200
8	X211
9	X300
10	J311
11	J302
12	G306
13	G302
14	X310
15	X316
16	J405
17	J401
18	J407 (UE1)
19	J408 (UE1)
20	X400
21	X402
22	Inflatable Restraint Roof Rail Module - Left (ASF)
23	J403
24	J400
25	G402
26	Inflatable Restraint Roof Rail Module - Right (ASF)
27	X405 (w/o UE1)
28	X403
29	J303
30	J402
31	G401
32	J409 (UE1)
33	J404
34	J307
35	X311
36	G301
37	J301
38	X315
39	J300
40	X301

Fig 2: Audio Components

Courtesy of GENERAL MOTORS CORP.

Fig 3: Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint Instrument Panel (I/P) Module
3	Inflatable Restraint Roof Rail Module - Right (ASF)
4	Floor Pan
5	Inflatable Restraint Steering Wheel Module

Fig 4: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver (KA1)
2	Lumbar Adjuster Switch - Driver (AJ6)
3	Seat Front Vertical Motor - Driver (AJ6)
4	Seat Adjuster Switch - Driver (AJ6)
5	Heated Seat Control Module Driver (KA1)
6	Seat Horizontal Motor - Driver (AJ6) (KA1)
7	Seat Rear Vertical Motor - Driver (AJ6)
8	Seat Belt Switch - Left
9	Seat Lumbar Motor - Driver (AJ6)

Fig 5: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger (KA1)
2	Seat Belt Switch - Right
3	Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	Heated Seat Control Module Passenger (KA1)
6	Inflatable Restraint Front Passenger Presence System (PPS) Sensor

Fig 6: Headliner Components - Top

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module (CF5)
2	Cellular, Navigation (UE1) and Digital Radio Antenna (U2K)
3	X397
4	Radio Antenna Base
5	Inside Rearview Mirror
6	Headliner

Fig 7: Headliner Components - Bottom

Courtesy of GENERAL MOTORS CORP.

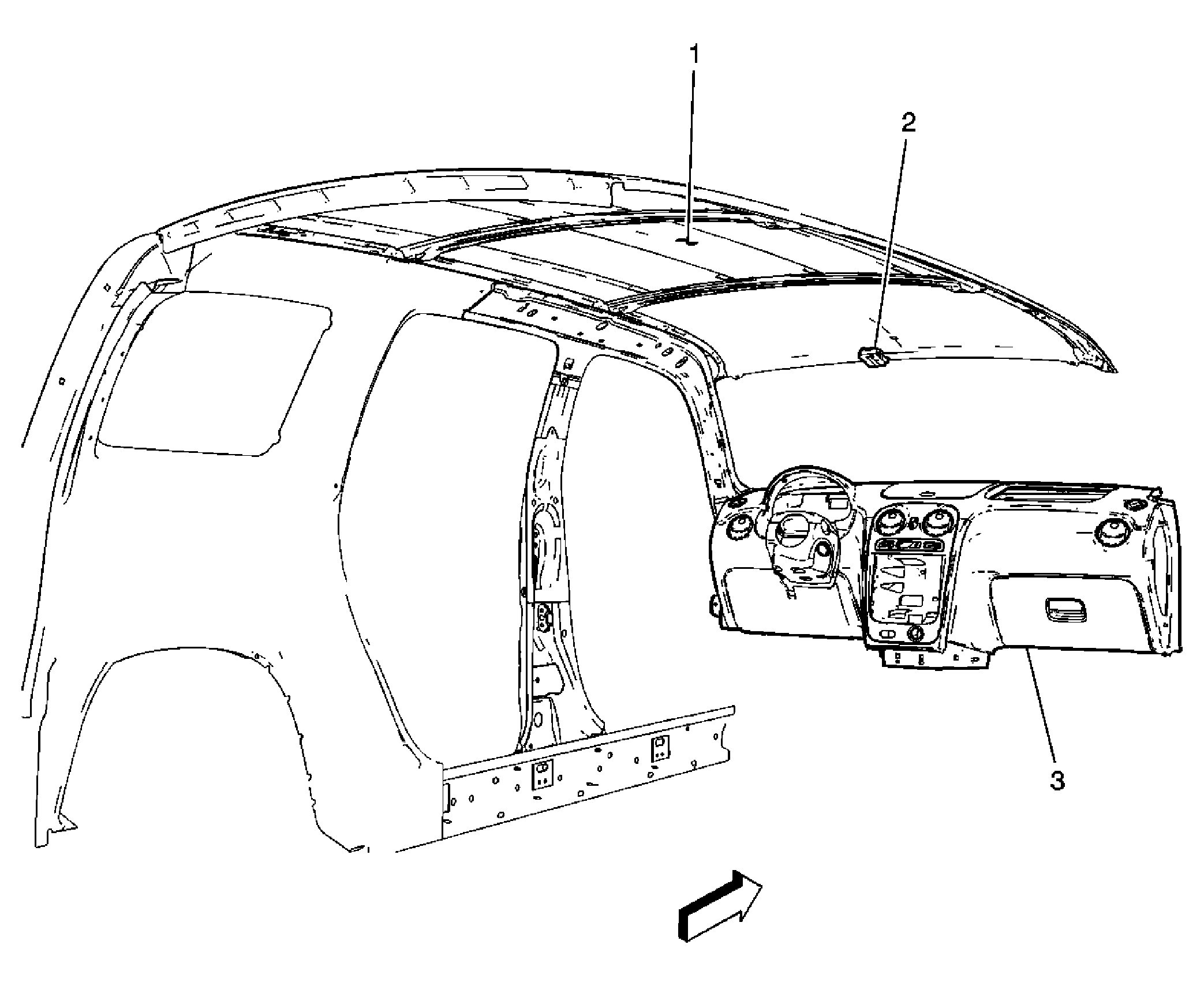

Fig 8: Front Center Of Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Panel
2	Remote Control Door Lock Receiver (RCDLR)
3	Instrument Panel

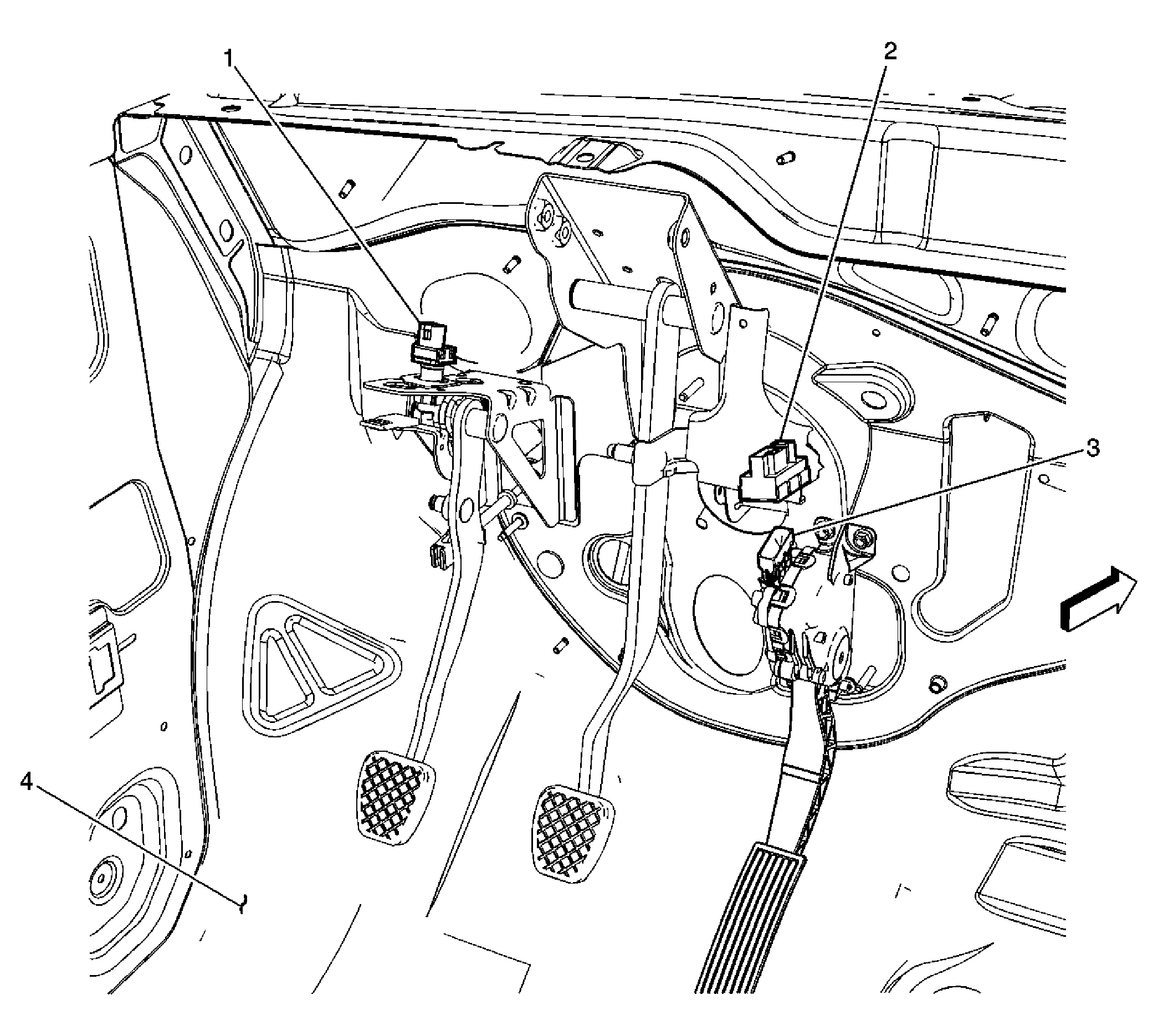

Fig 9: Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Sensor (M86/MU3)
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Floor Panel

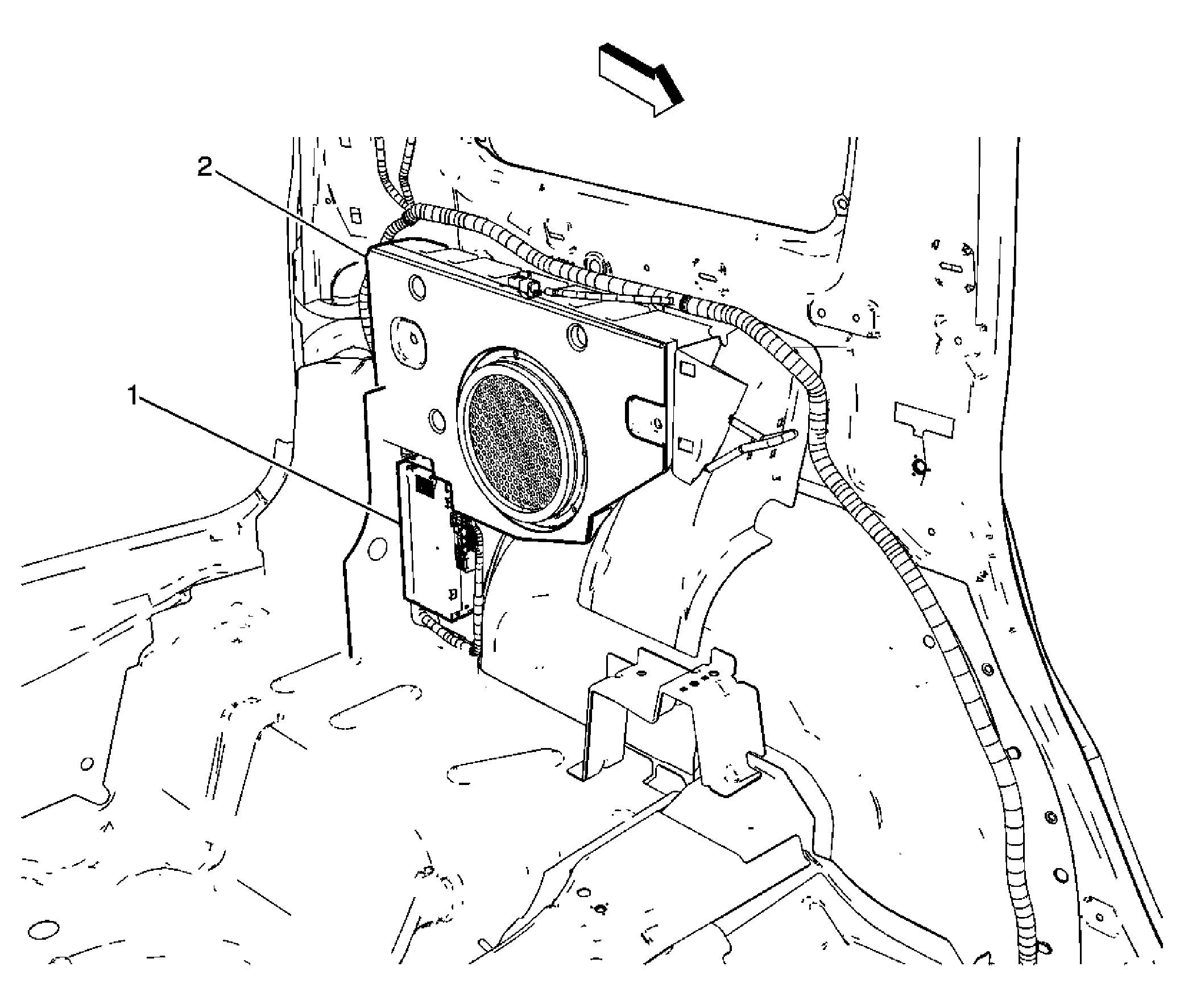

Fig 10: Left Rear Cargo Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Subwoofer (UQ3)
2	Audio Amplifier (UQ3)

Fig 11: Auxiliary Power Outlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Console
2	Auxiliary Power Outlet - Console

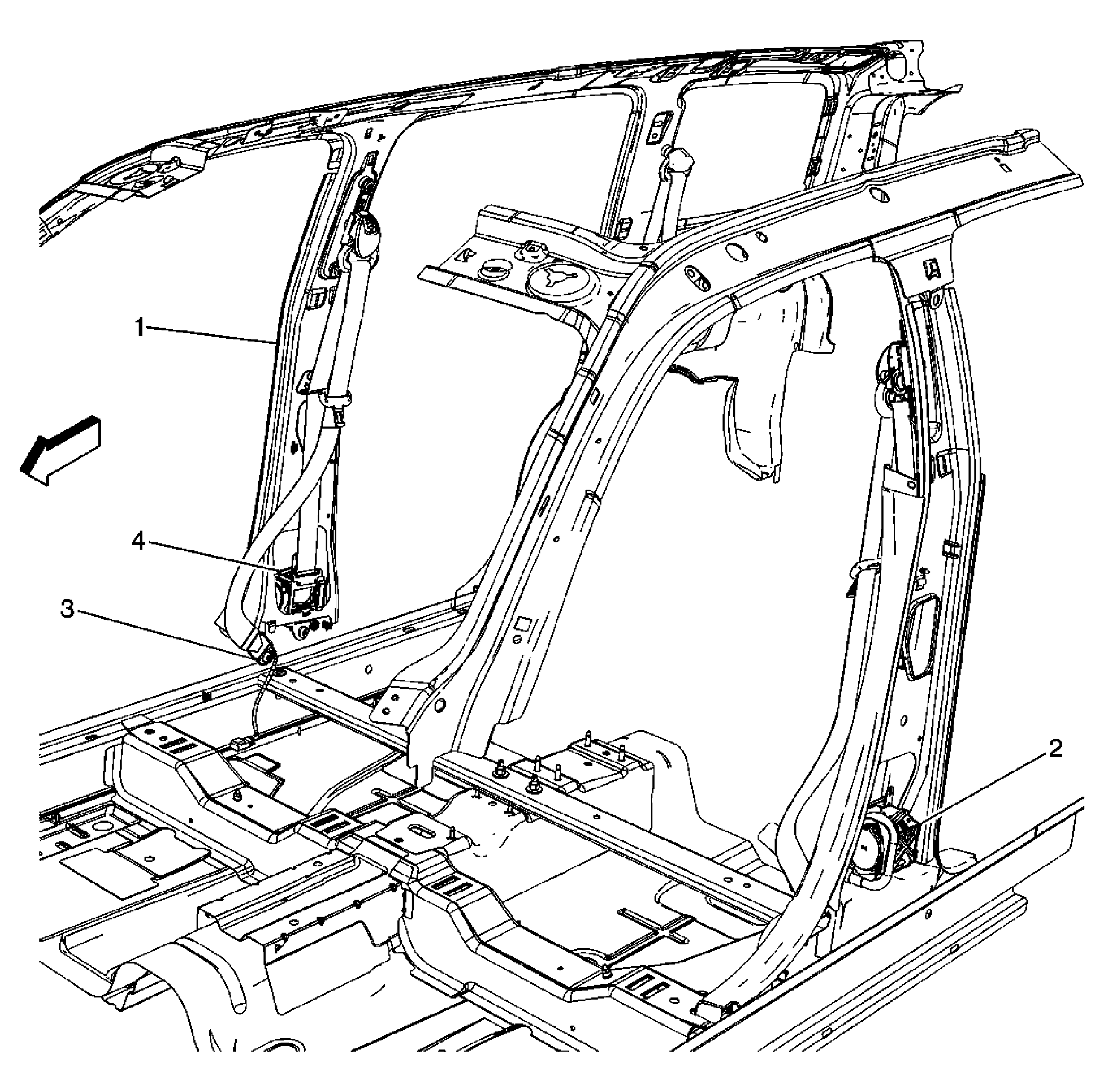

Fig 12: Seat Belt Tensioner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger B Pillar
2	Seat Belt Pretensioner - Left
3	Inflatable Restraint Passenger Seat Belt Tension Sensor
4	Seat Belt Pretensioner - Right

Fig 13: Transmission Floor Shift Control Indicator Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	PRNDL Lamp Socket
2	PRNDL Lamp Bulb

Fig 14: Door Jamb Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Left Front
2	Door Jamb Switch - Right Front
3	Door Jamb Switch - Right Rear (Except Panel Van)
4	Door Jamb Switch - Left Rear (Except Panel Van)

Fig 15: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Body Control Module (BCM)
3	Master Window Switch
4	A/T Shift Control (MN5)
5	Floor Panel
6	Park Brake Switch
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Floor Panel
