Power Distribution Relay: Locations



Electrical Center Identification Views

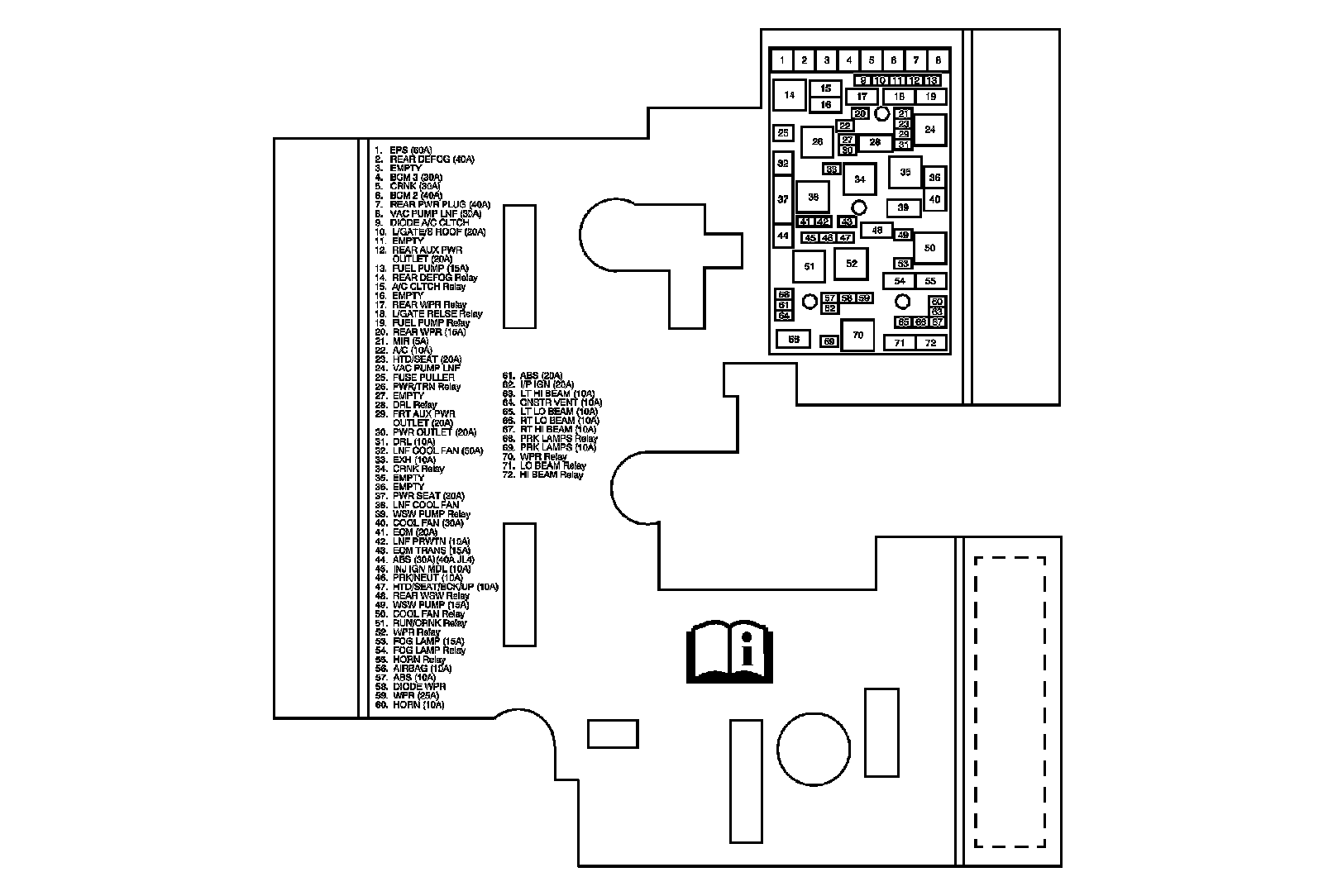

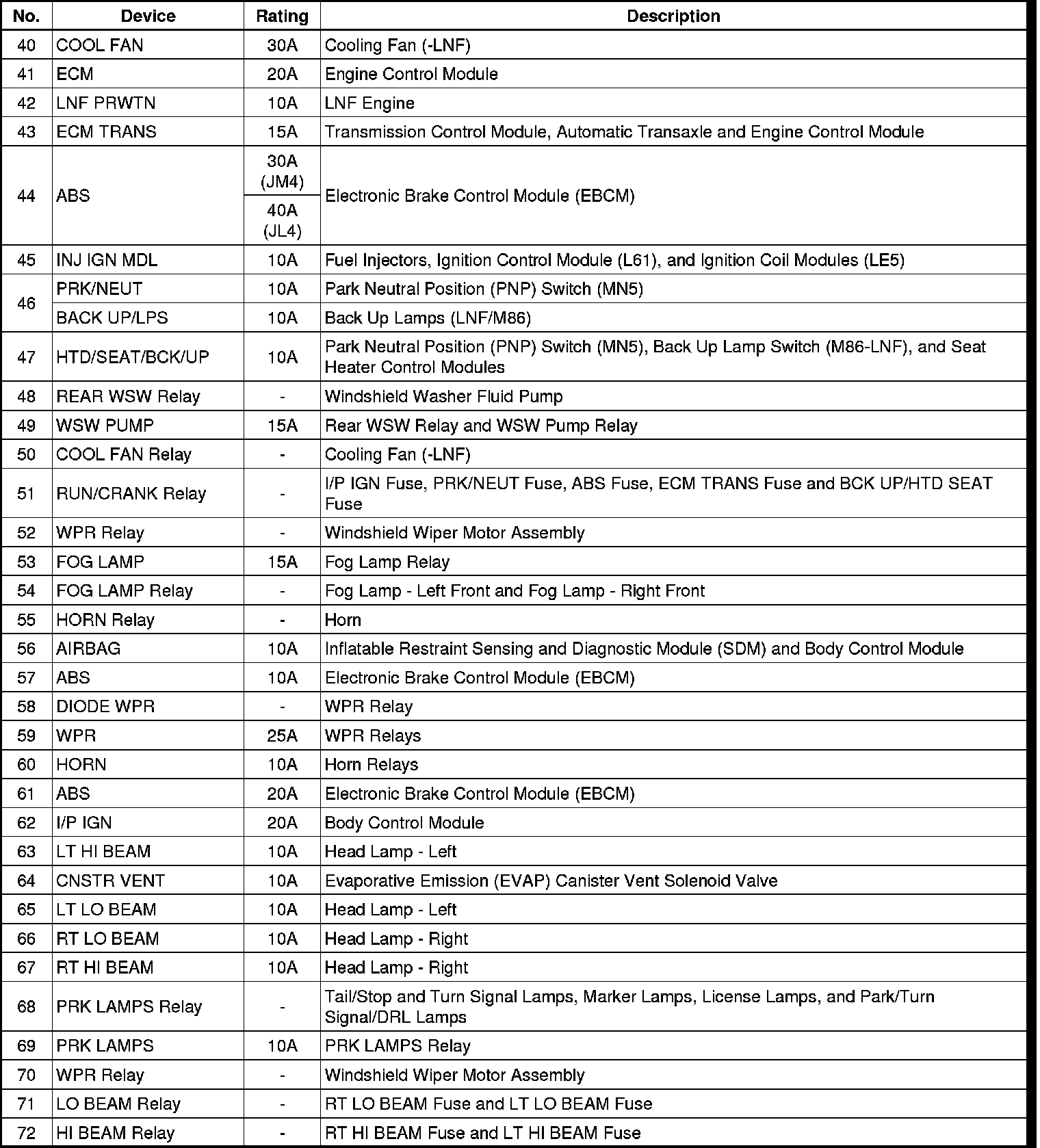

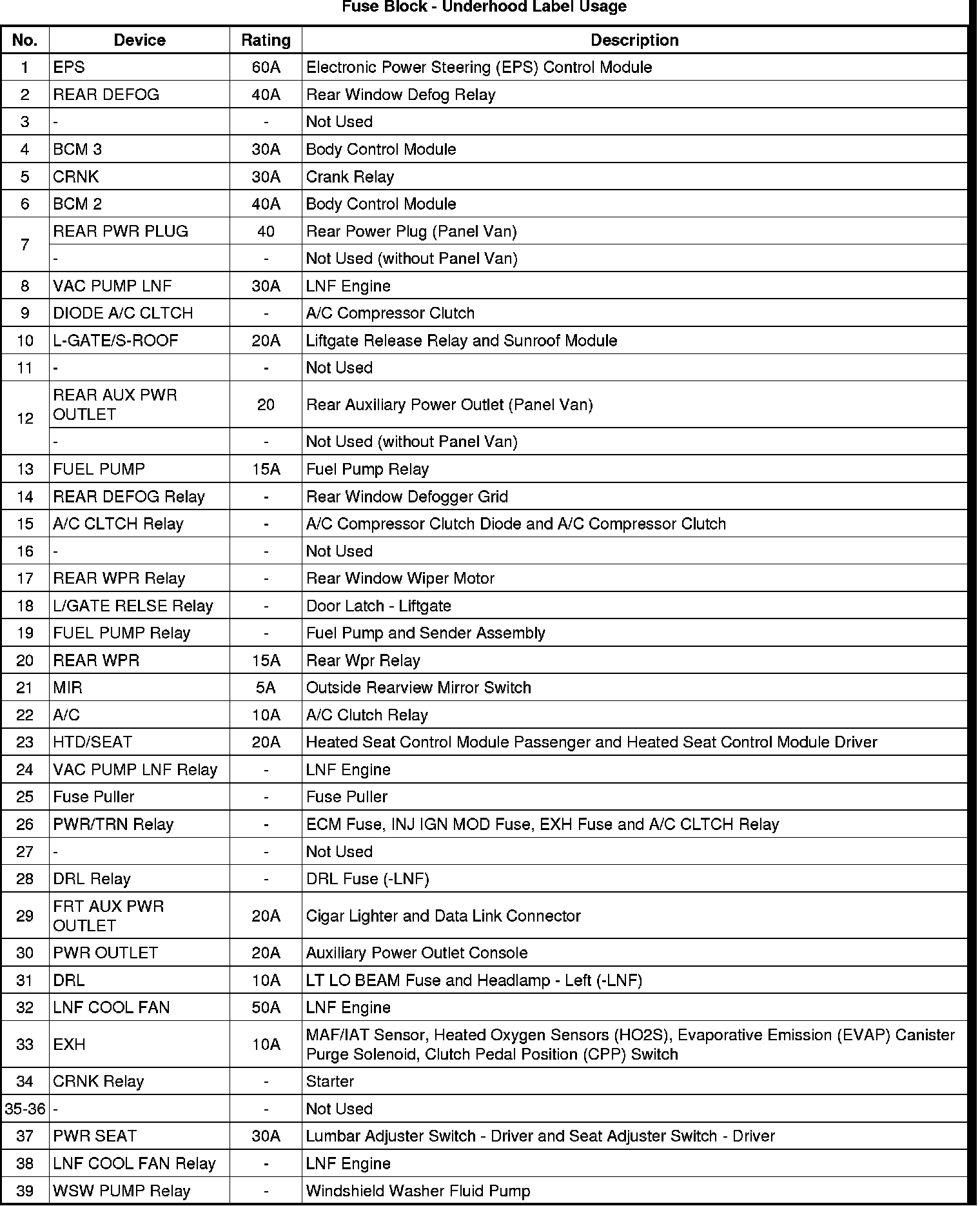

Fuse Block - Underhood Label
