Glow Plug Replacement - Bank 1



Glow Plug Replacement - Bank 1

Removal Procedure




1. Remove the engine cover.
2. Disconnect the negative battery cable.
3. If necessary, remove the left front wheel and tire.
4. Remove the wheelhouse splash shield.
5. Remove the glow plug harness nut(s).
6. Remove the harness from the glow plug(s).

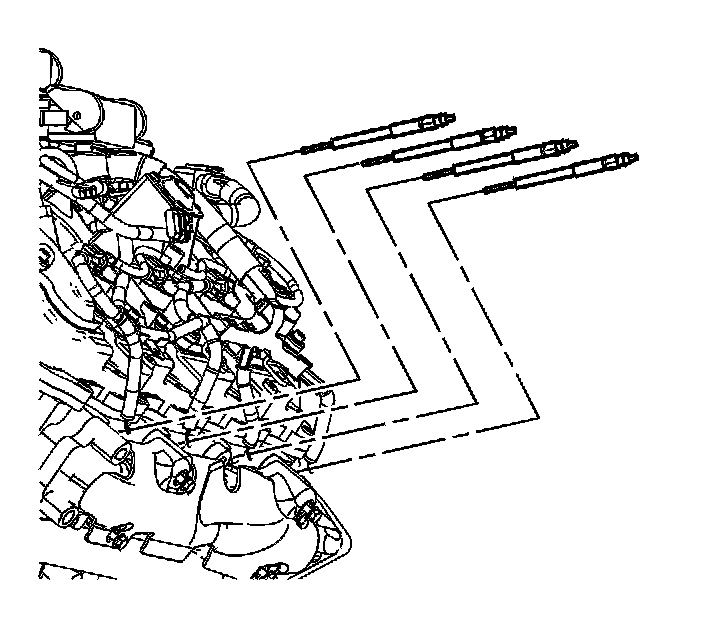

7. Remove the glow plug(s).

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the glow plug(s).

Tighten the plug to 18 N.m (13 lb ft).

2. Install the harness to the glow plug(s).
3. Install the glow plug harness nut(s).

Tighten the nut to 1.7 N.m (15 lb in).

4. Install the left front wheel and tire.
5. Connect the negative battery cable.
6. Install the wheelhouse splash shield.
7. Install the engine cover.
