Home >> Chevrolet >> 2008 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Locations >> Splice Locations >> Master Splice List
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Master Splice List



Master Electrical Component List

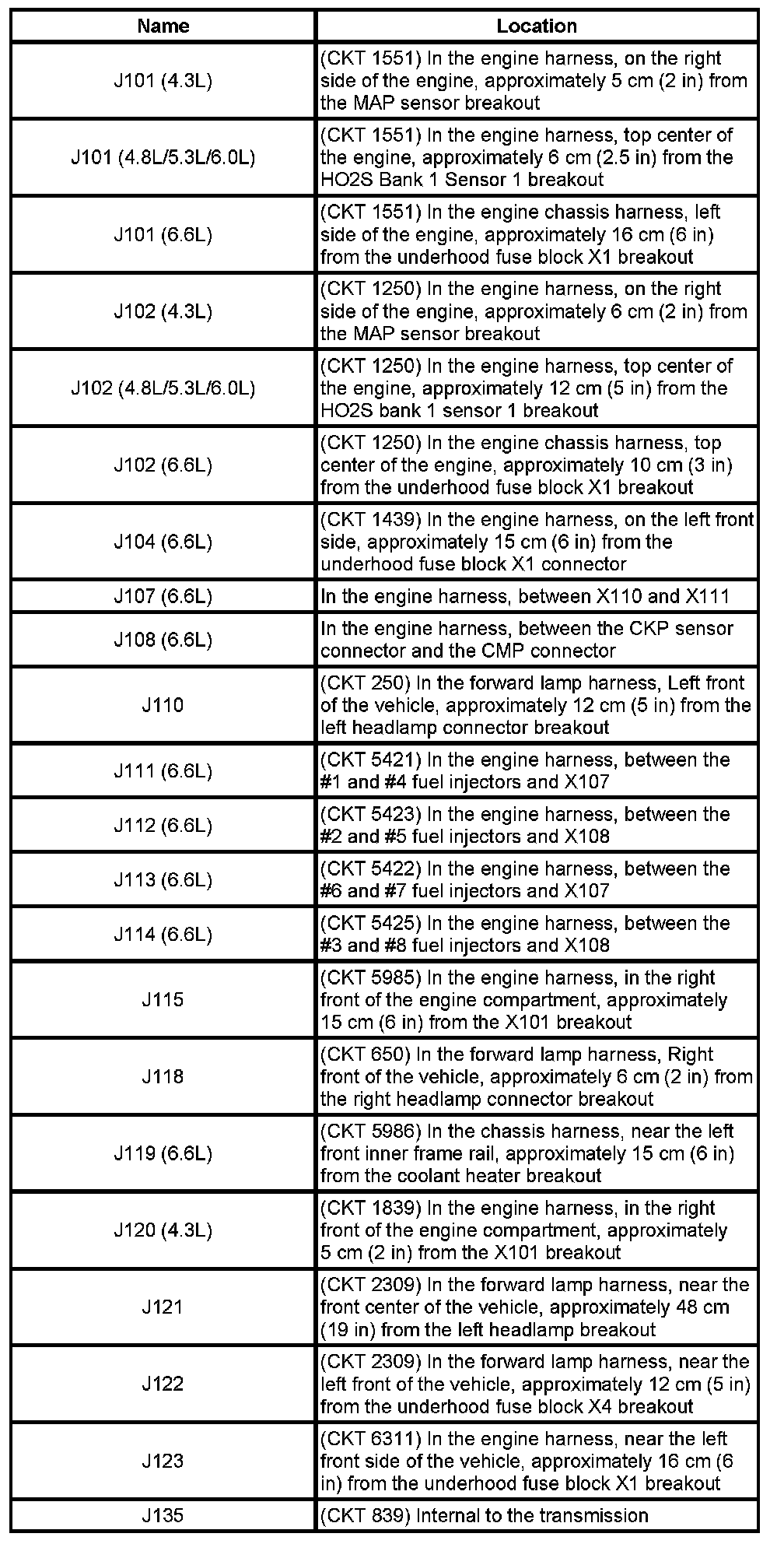

J101 - J135:

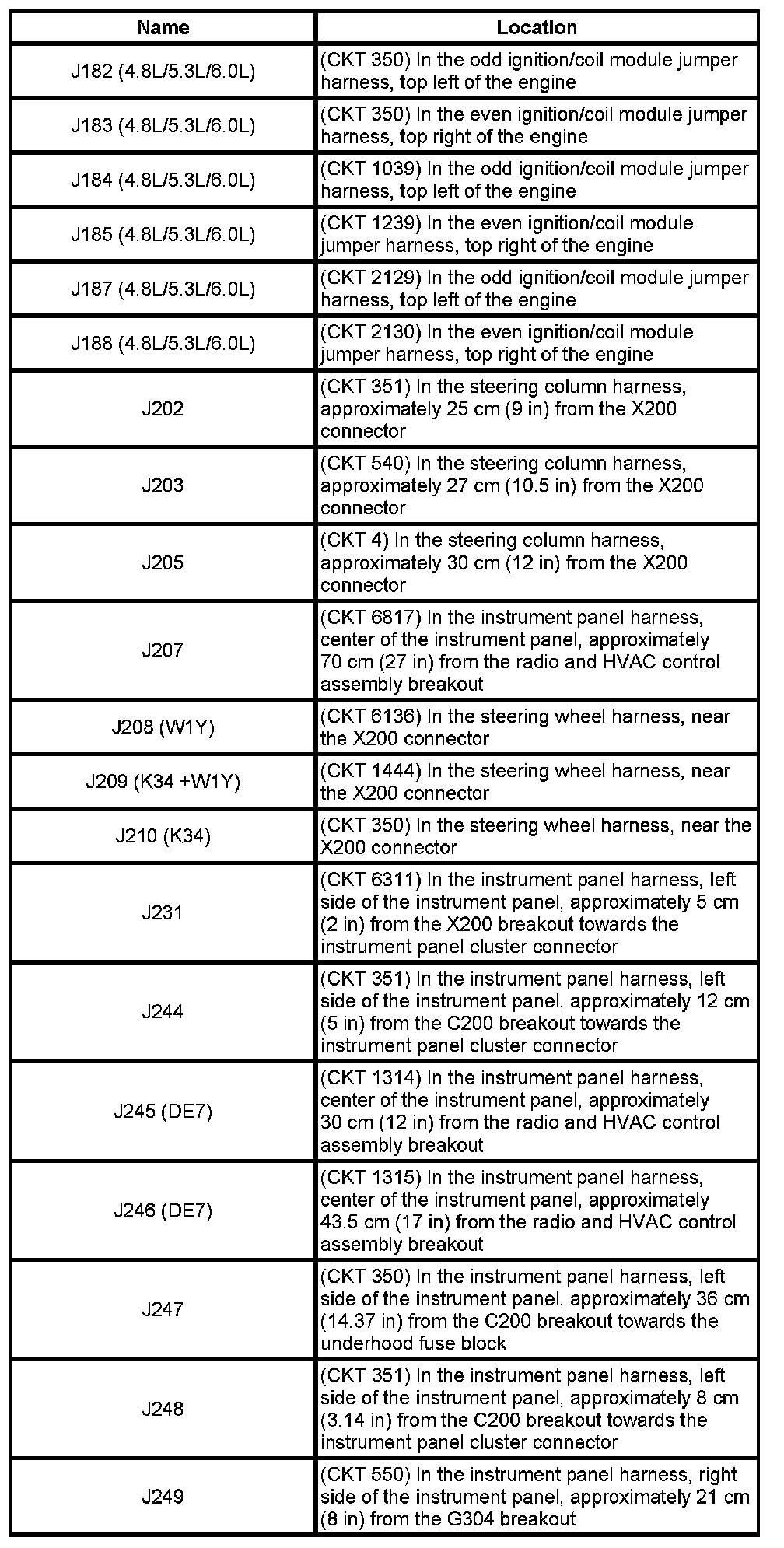

J182 - J249:

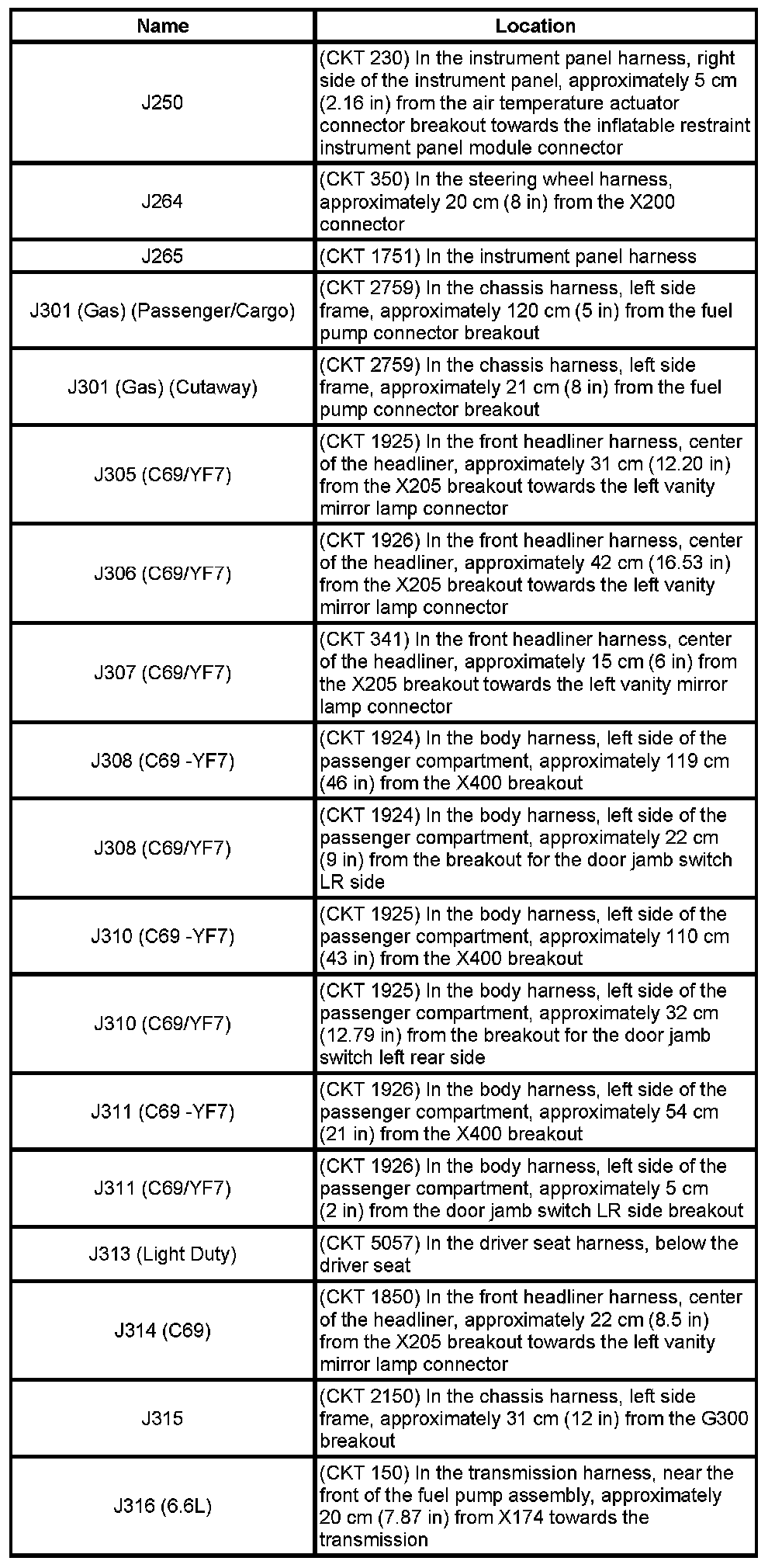

J250 - J316:

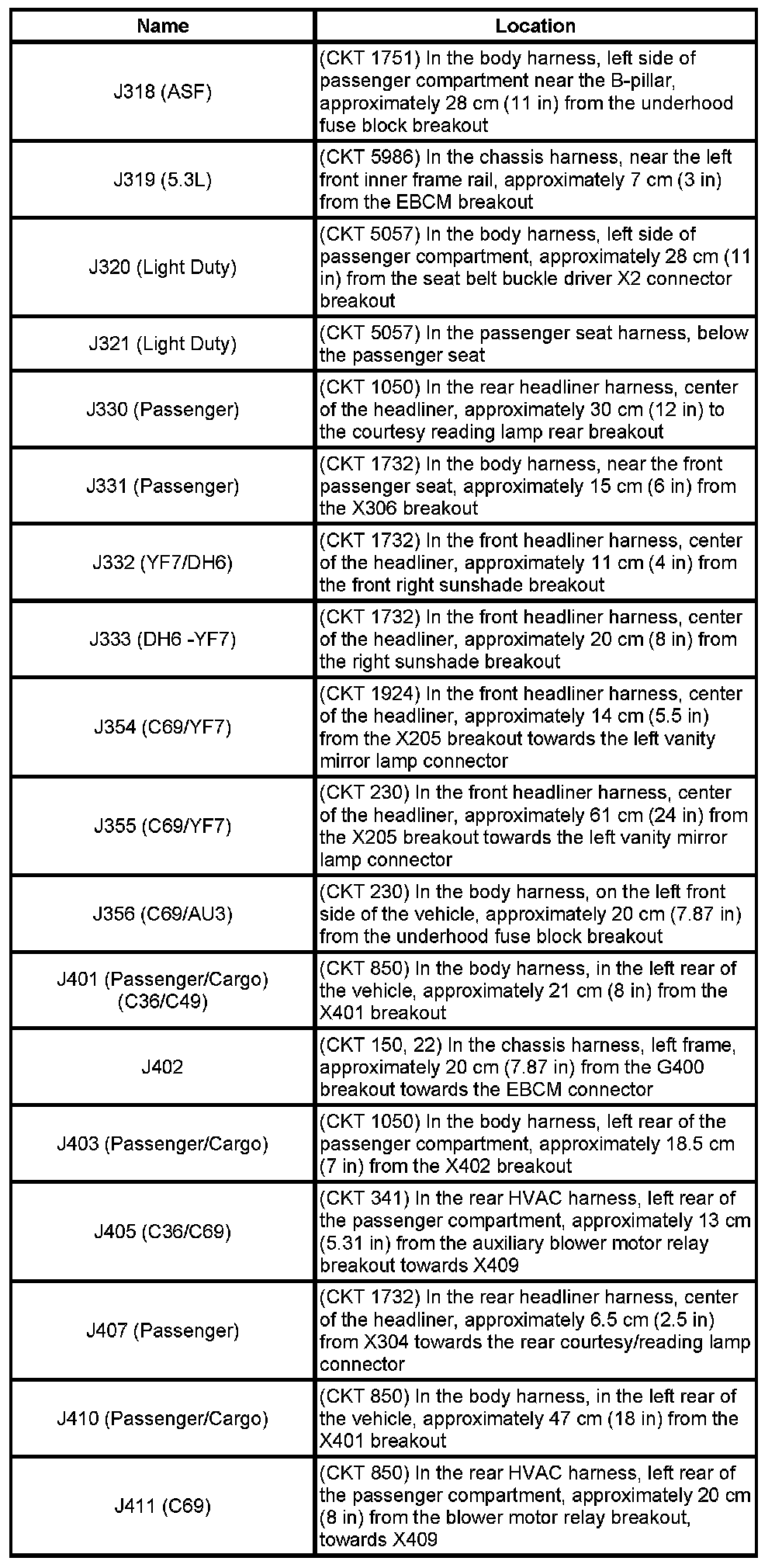

J316 - J411:

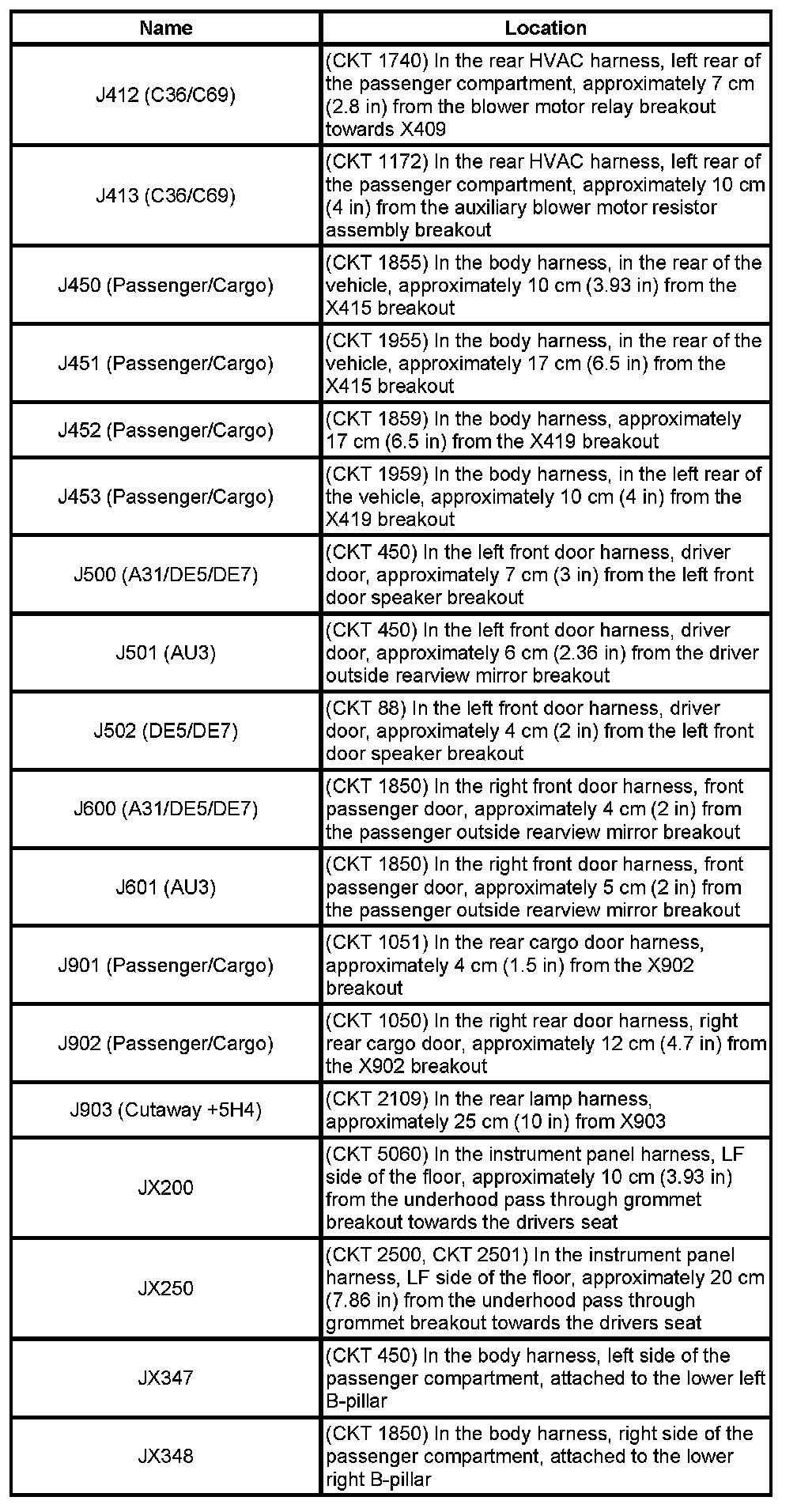

J412 - JX348:
