HVAC Views



Harness Routing Views

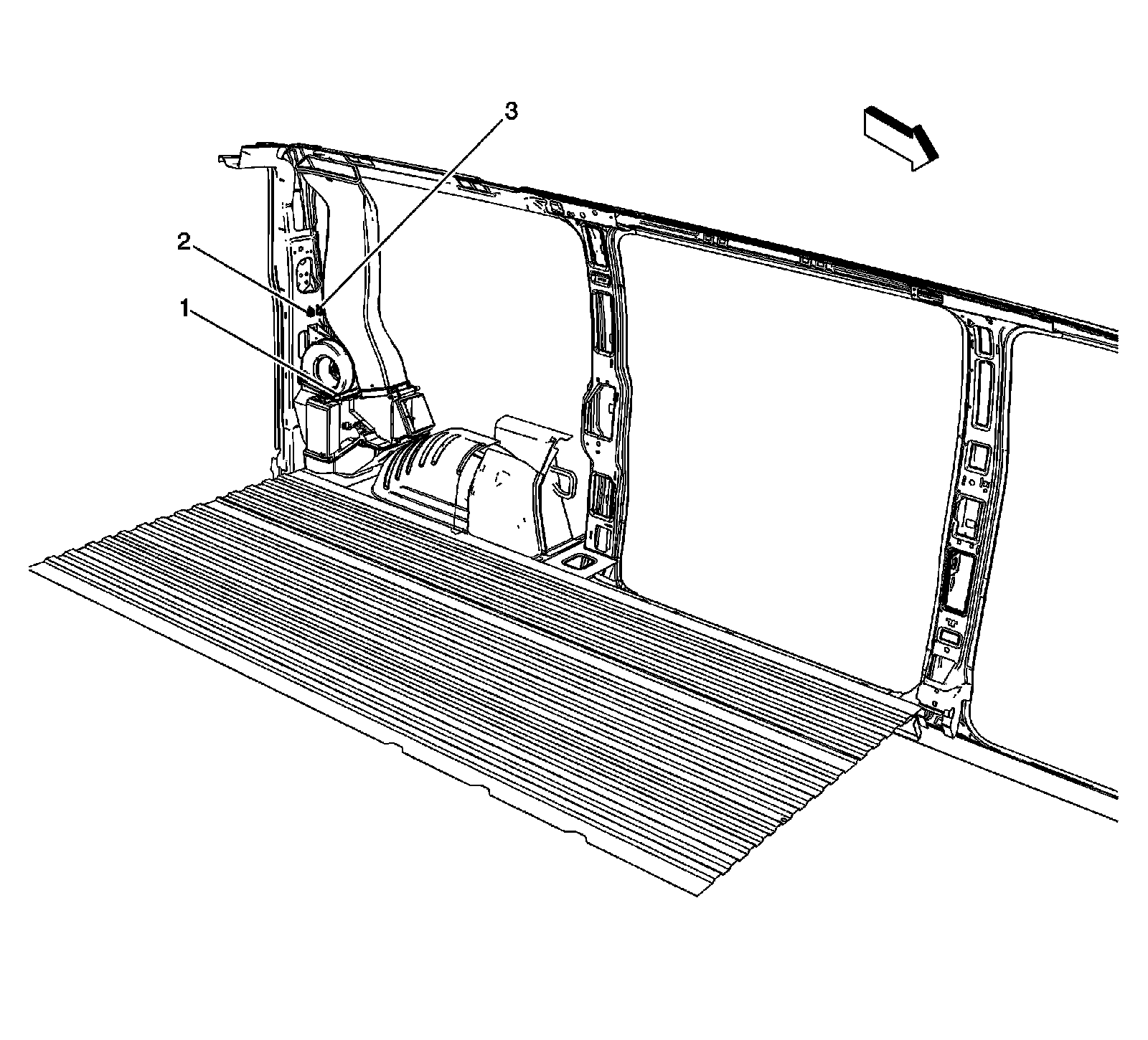

HVAC Module - Auxiliary Harness




1 - Auxiliary HVAC Harness
2 - X409 (C36/C69)
3 - X407 (C36/C69)
