Lamp Views



Harness Routing Views

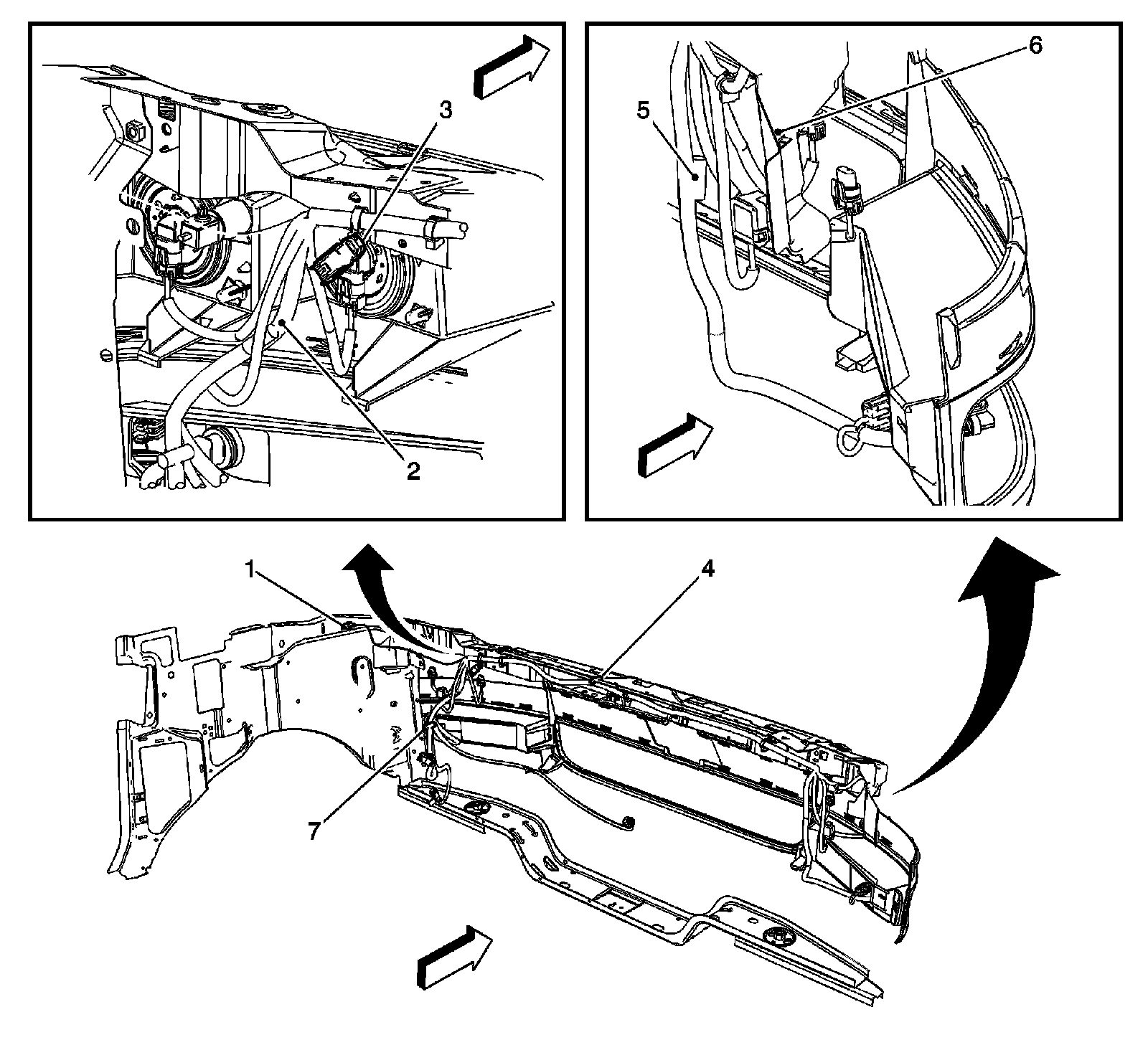

Forward Lamp Harness




1 - G100
2 - J110
3 - X201
4 - J121
5 - J118
6 - G101
7 - J122
