Air Bag Control Module
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM)

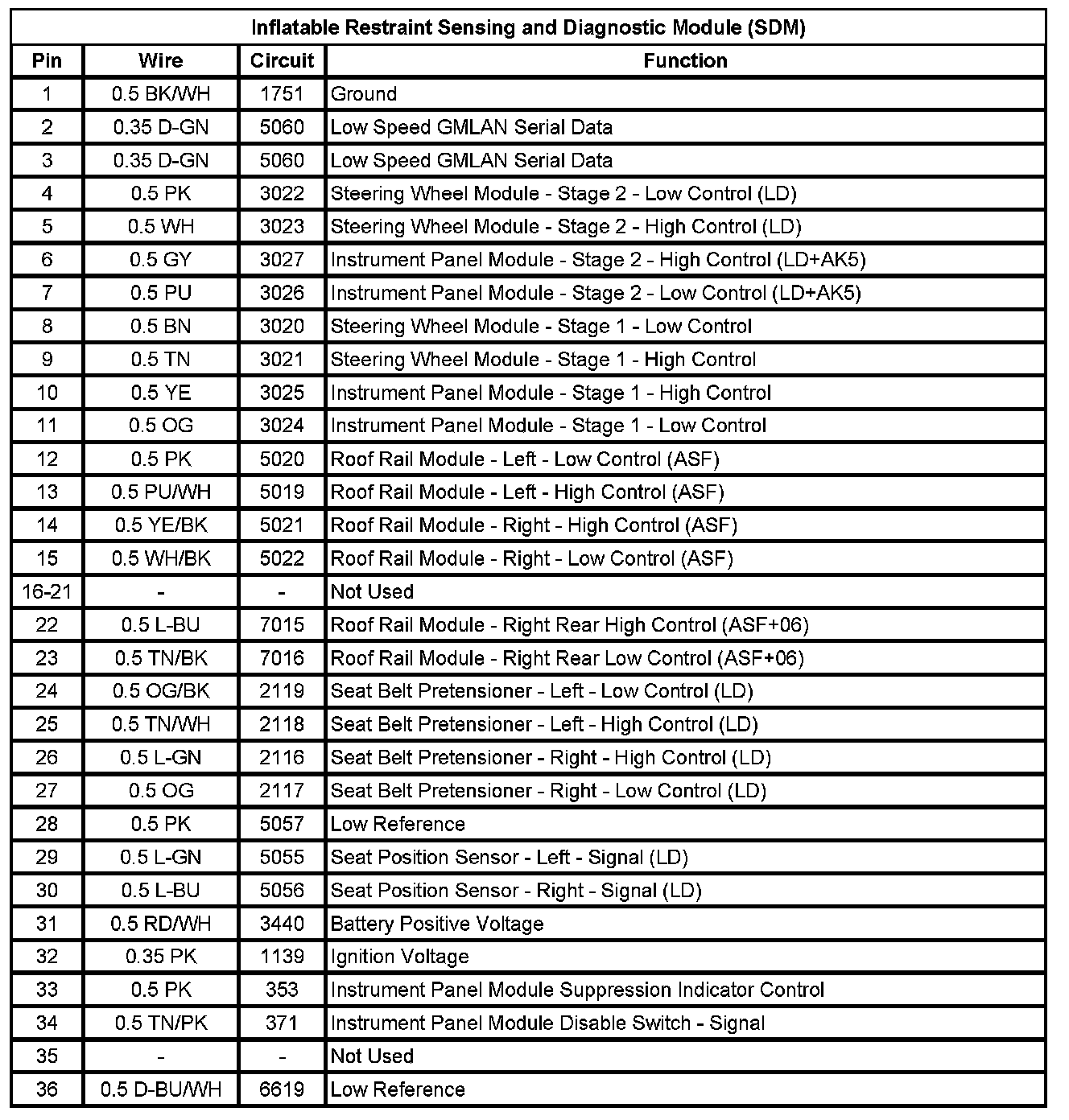

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 36):

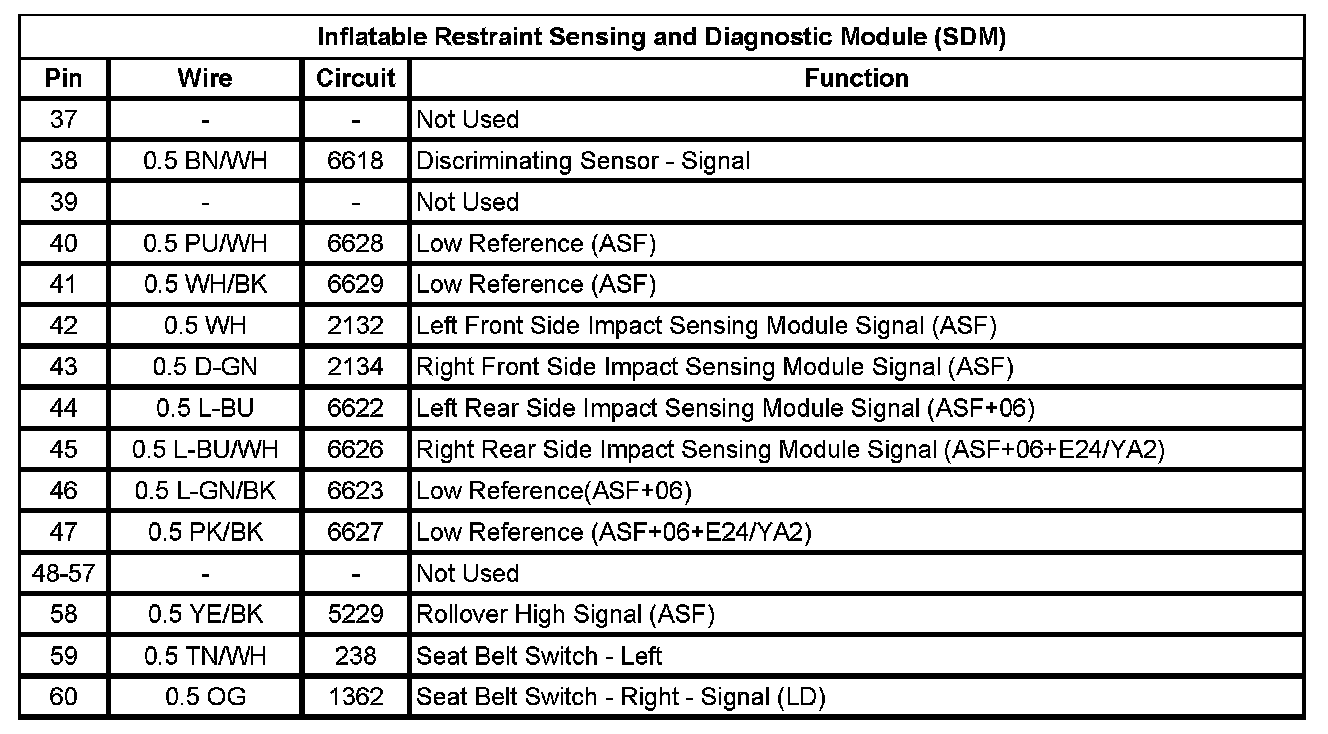

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 37 To 60):
