Powertrain Component Views
Powertrain Component Views

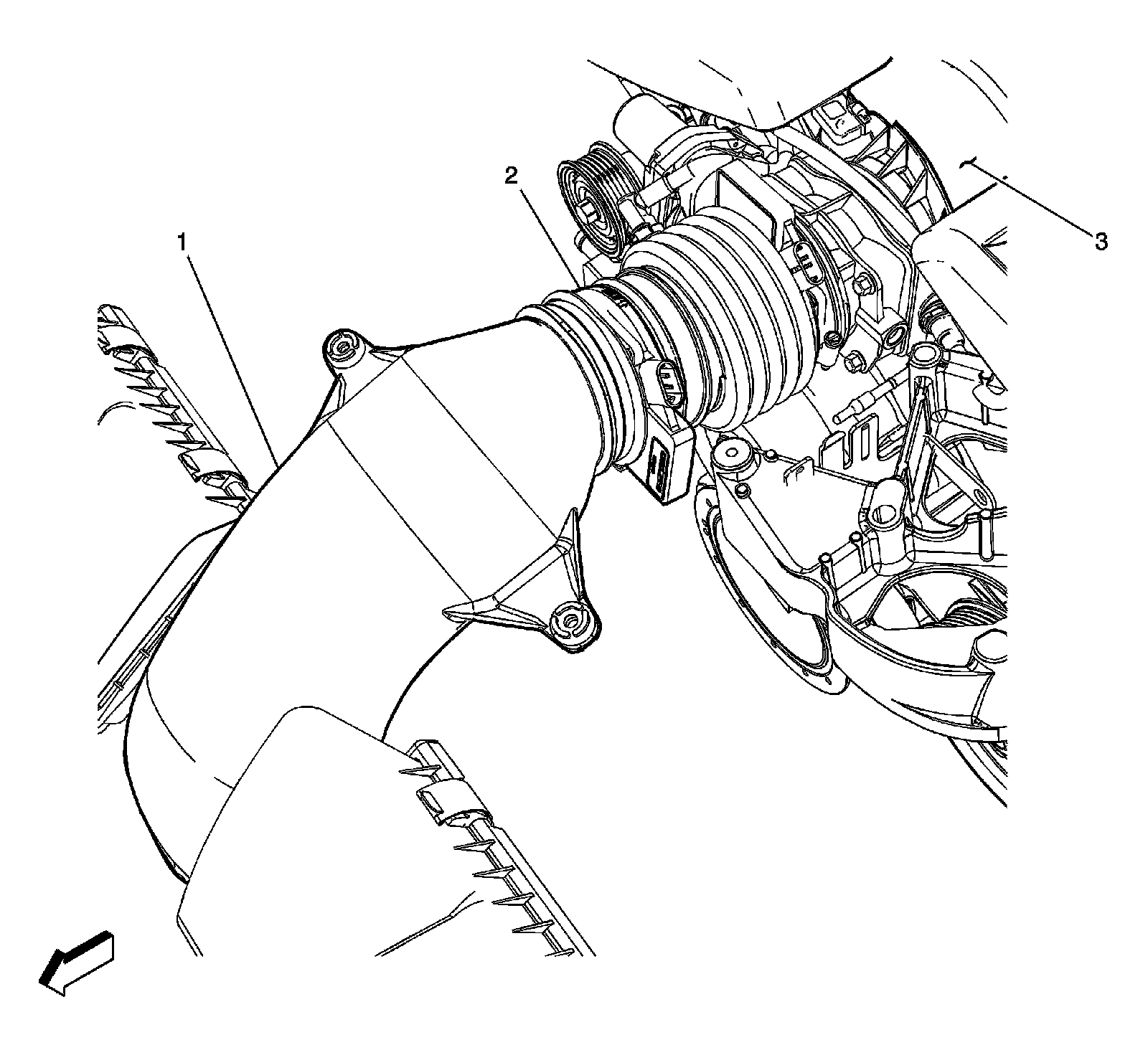

Near the Air Intake Duct
1 - Air Intake Duct
2 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
3 - Intake Manifold

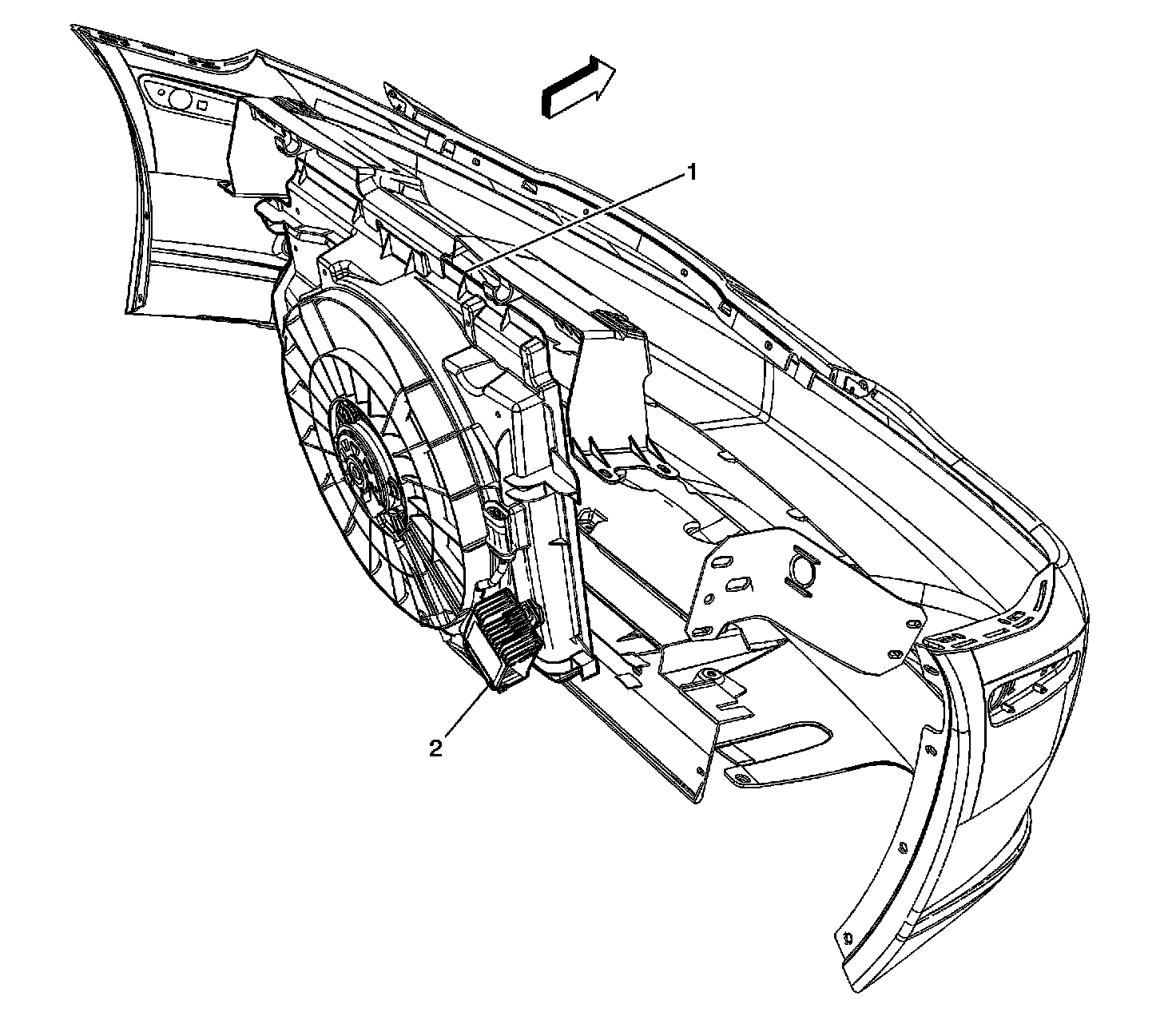

Front Engine Compartment
Front Engine Compartment:
1 - Cooling Fan
2 - Cooling Fan Module

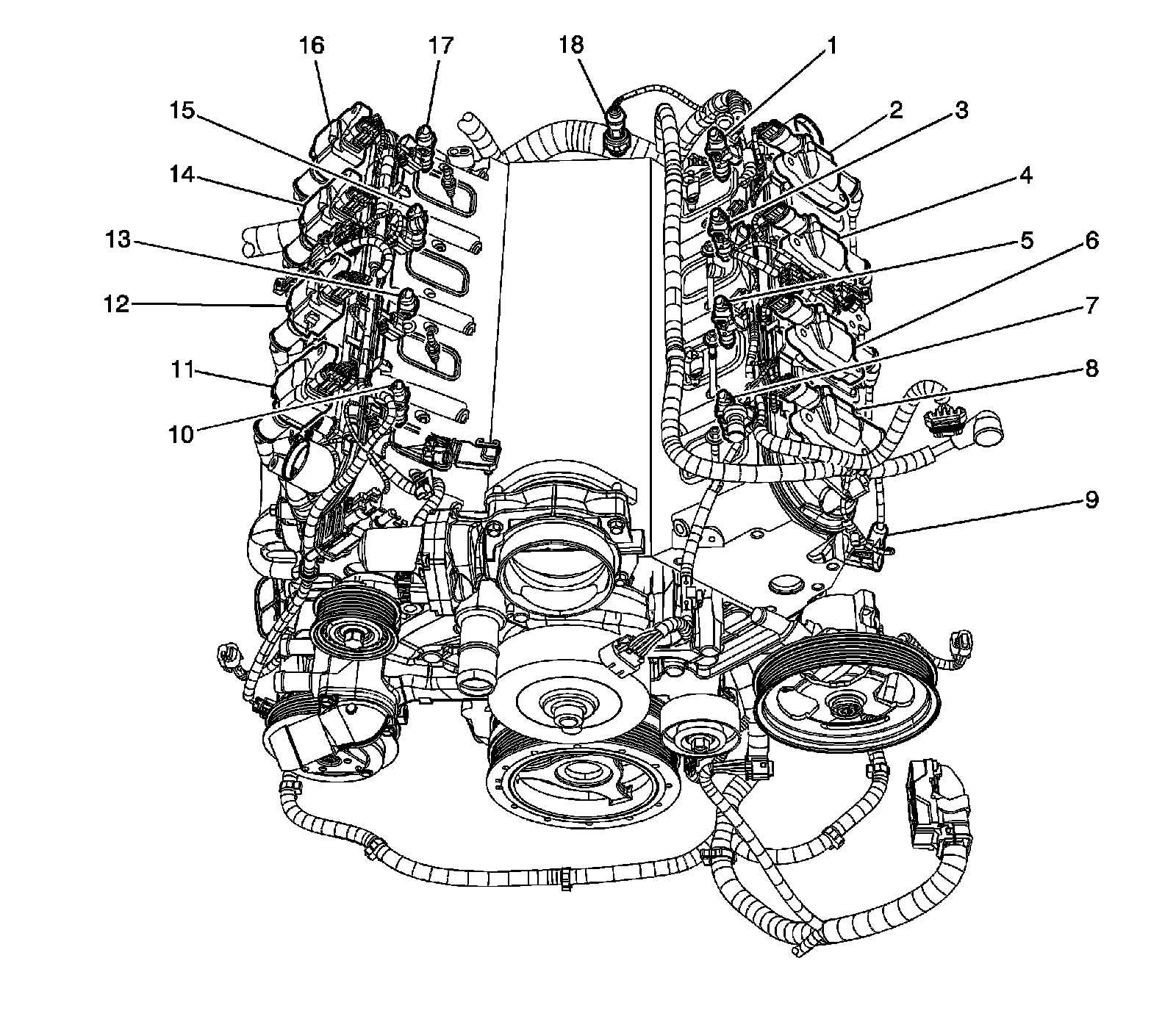

Engine Components
1 - Fuel Injector 7
2 - Ignition Coil 7
3 - Fuel Injector 5
4 - Ignition Coil 5
5 - Fuel Injector 3
6 - Ignition Coil 3
7 - Fuel Injector 1
8 - Ignition Coil 1
9 - Engine Coolant Temperature (ECT) Sensor
10 - Fuel Injector 2
11 - Ignition Coil 2
12 - Ignition Coil 4
13 - Fuel Injector 4
14 - Ignition Coil 6
15 - Fuel Injector 6
16 - Ignition Coil 8
17 - Fuel Injector 8
18 - Engine Oil Pressure (EOP) Sensor

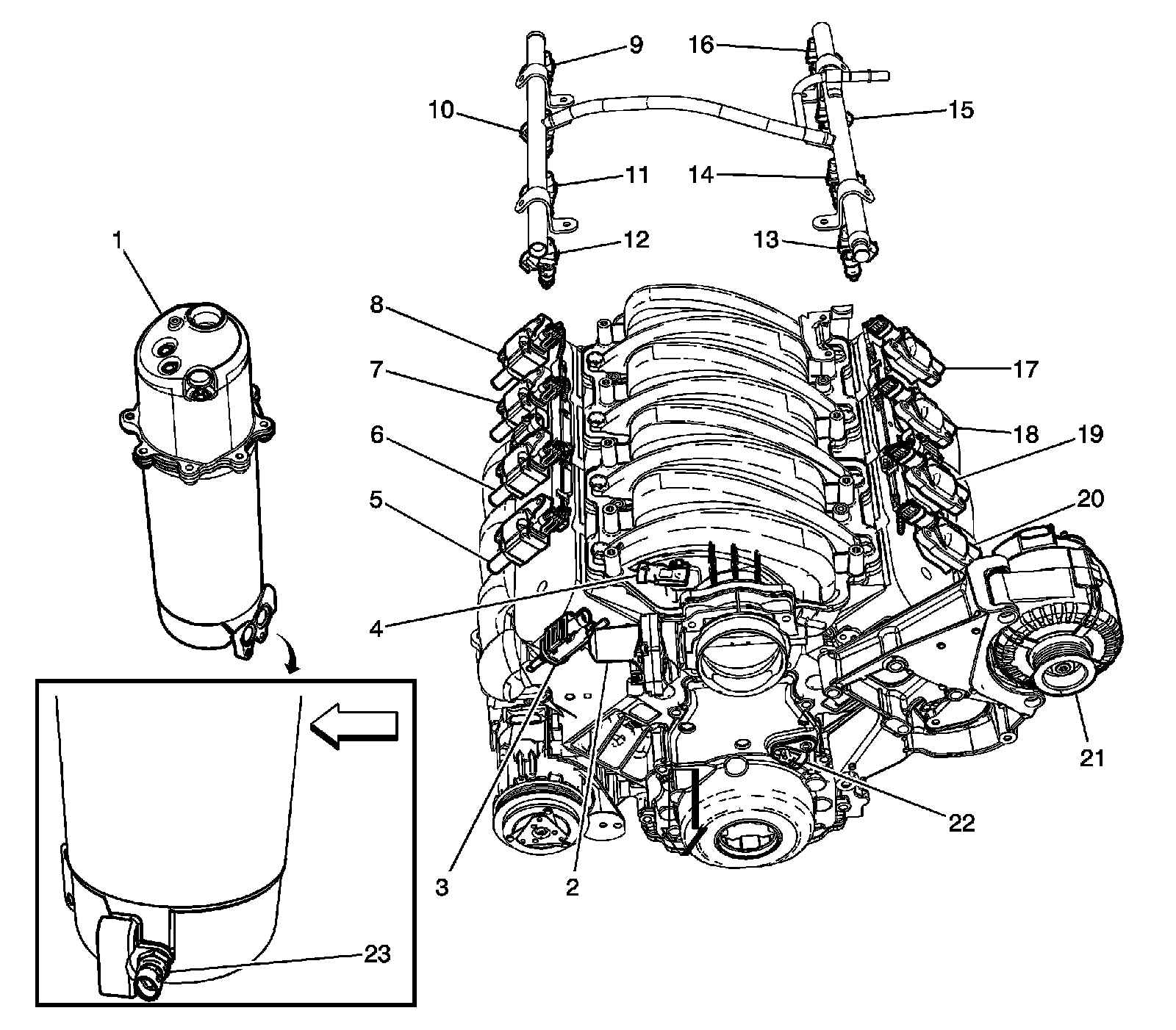

Top of Engine (LS7)
1 - Engine Oil Tank
2 - Throttle Body
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Ignition Coil 2
6 - Ignition Coil 4
7 - Ignition Coil 6
8 - Ignition Coil 8
9 - Fuel Injector 8
10 - Fuel Injector 6
11 - Fuel Injector 4
12 - Fuel Injector 2
13 - Fuel Injector 1
14 - Fuel Injector 3
15 - Fuel Injector 5
16 - Fuel Injector 7
17 - Ignition Coil 7
18 - Ignition Coil 5
19 - Ignition Coil 3
20 - Ignition Coil 1
21 - Generator
22 - Camshaft Position (CMP) Sensor
23 - Engine Oil Temperature (EOT) Sensor

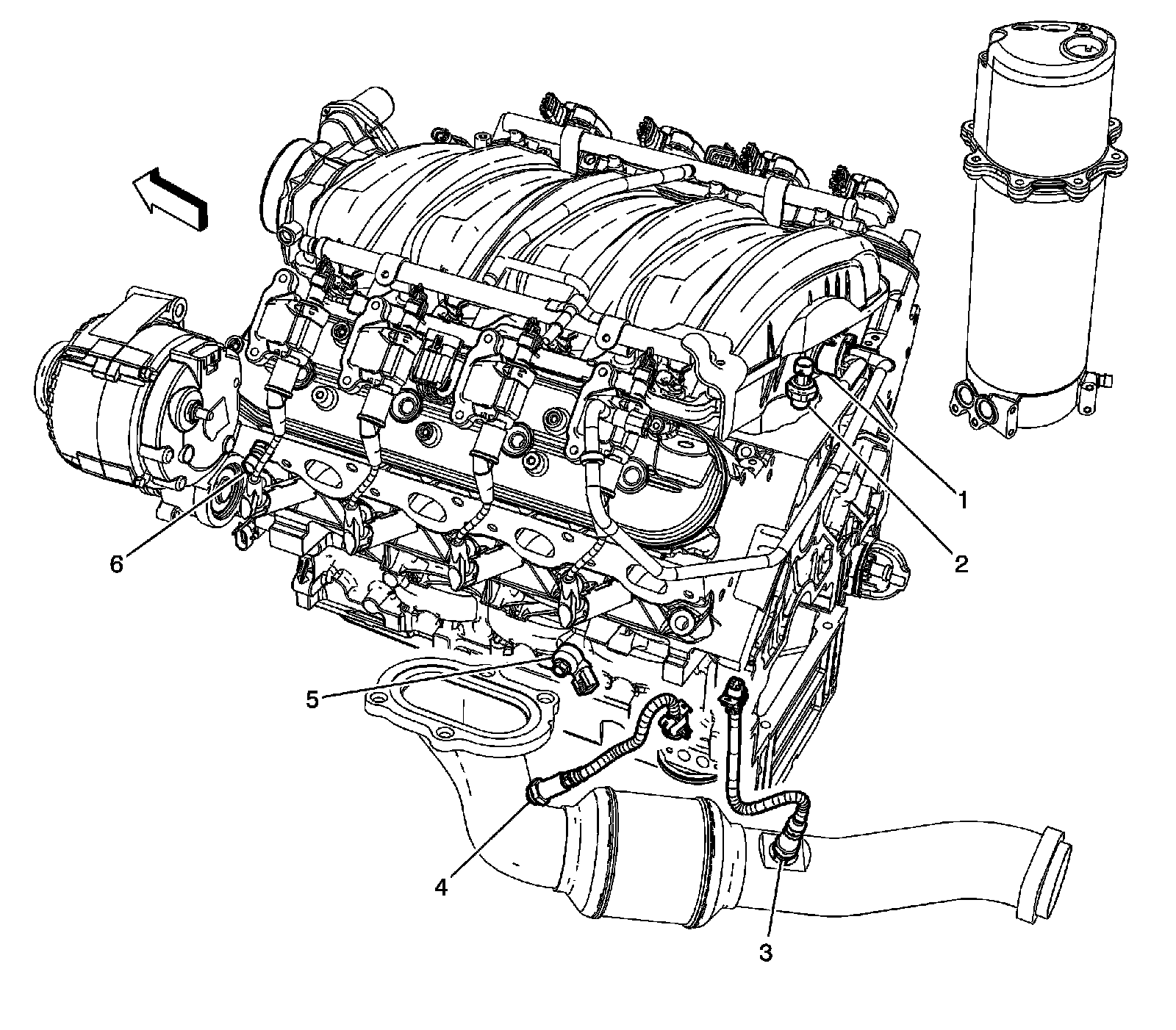

Left Side of Engine (LS7)
1 - Manifold Intake Check Valve
2 - Engine Oil Pressure (EOP) Sensor
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
4 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
5 - Knock Sensor 1
6 - Engine Coolant Temperature (ECT) Sensor

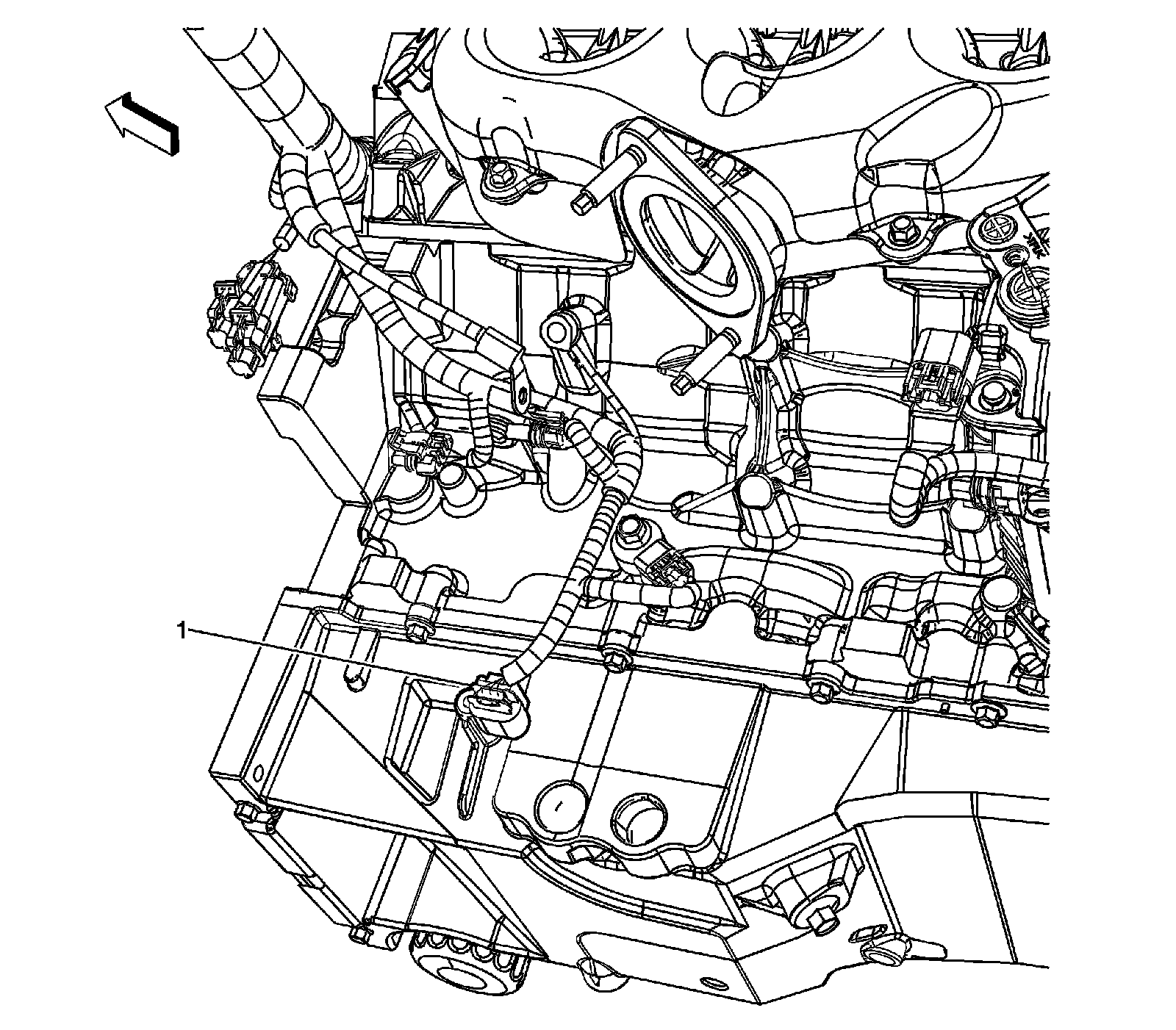

Lower Left Side of Engine
1 - Engine Oil Level/Temperature Sensor

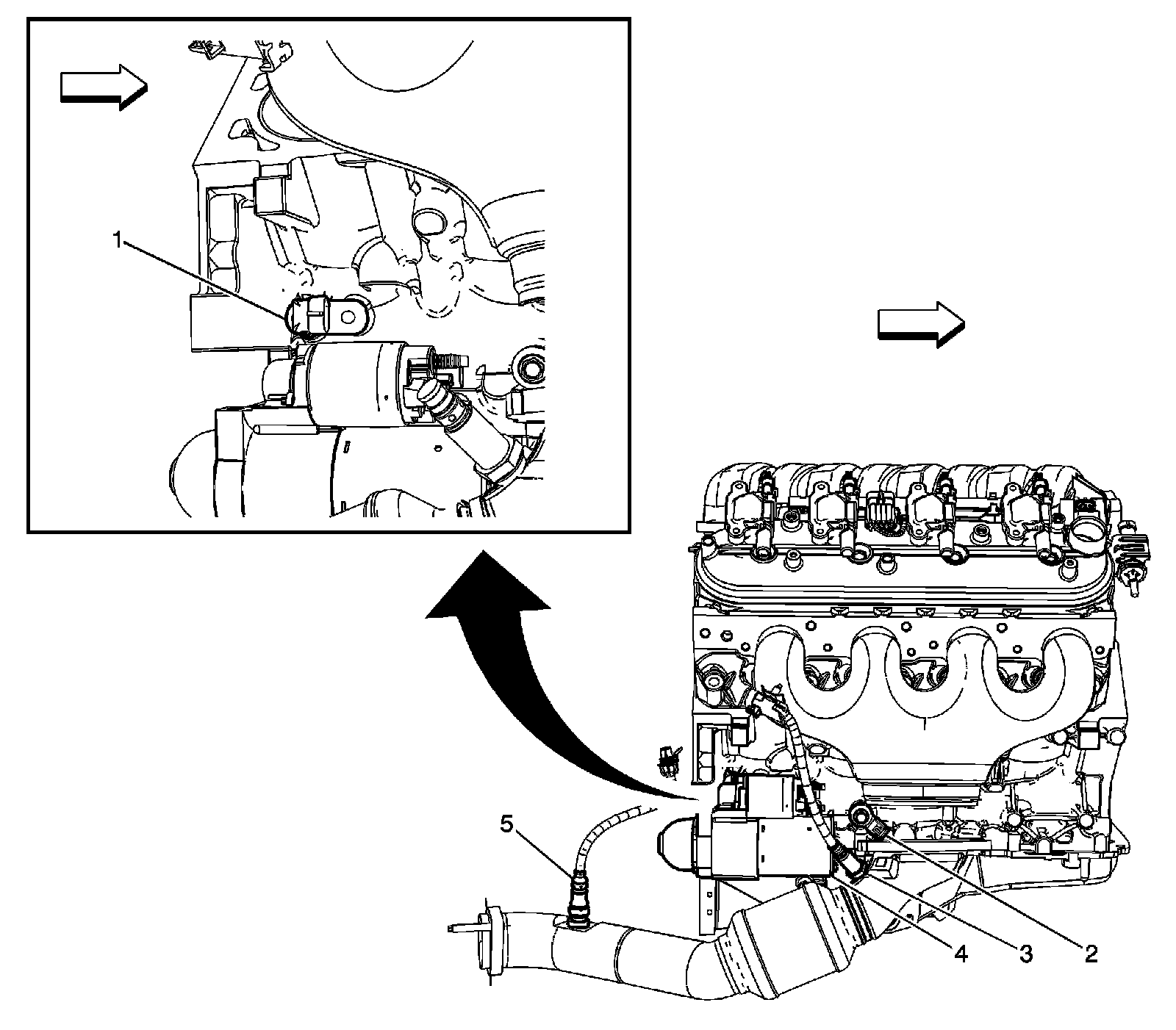

Right Side of Engine (LS7)
1 - Crankshaft Position (CKP) Sensor
2 - Knock Sensor 2
3 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
4 - Starter Motor
5 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

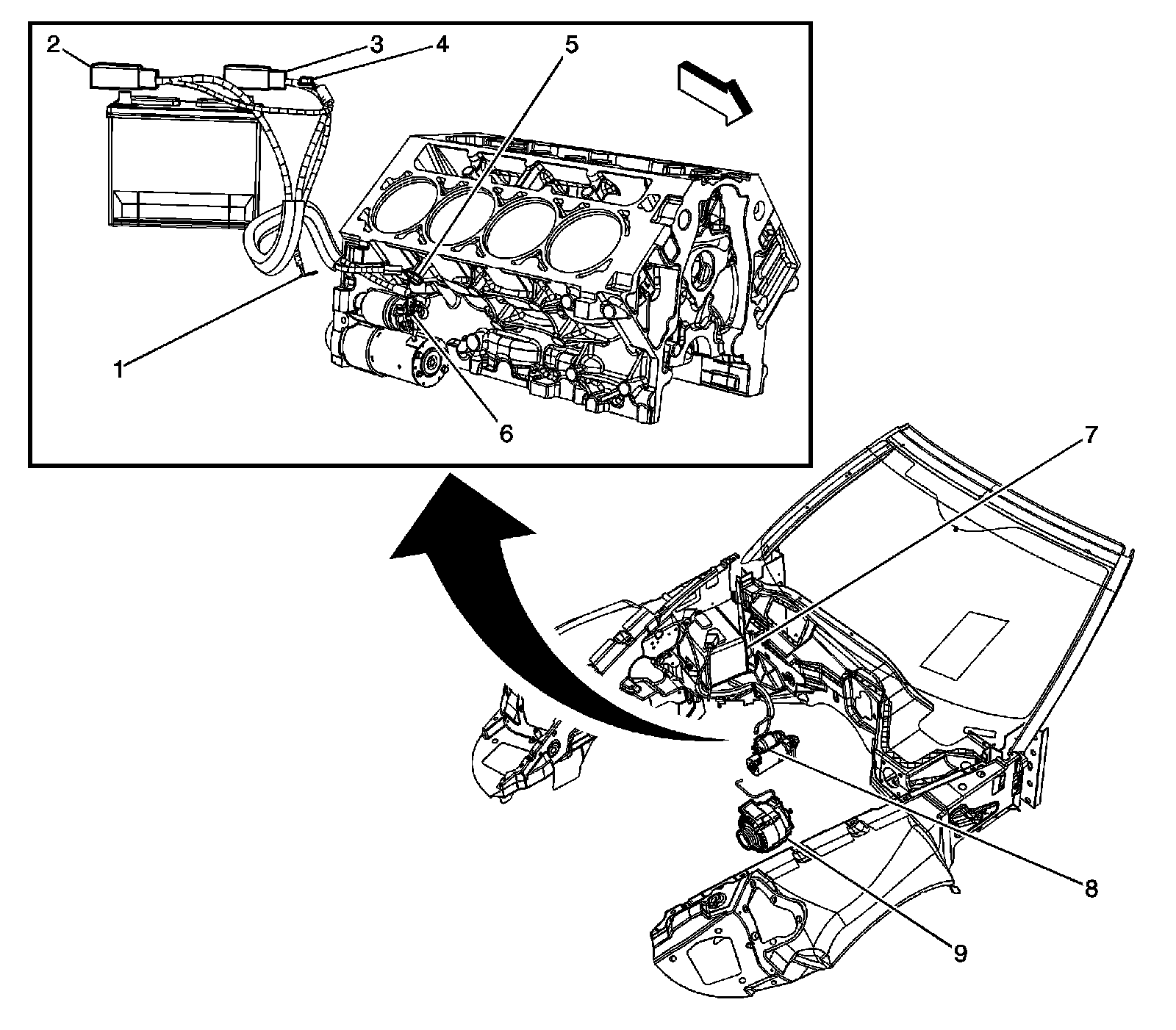

Engine Electrical Components
1 - G104
2 - Battery Positive Cable
3 - Battery Negative Cable
4 - Positive Stud (Fuse Block-Underhood)
5 - G106
6 - Starter Solenoid
7 - Battery
8 - Starter Solenoid
9 - Generator
Transmission
Electronic Components:
1 - TEHC Module Assembly
2 - Input/Output Speed Sensors (ISS/OSS) Assembly
3 - Internal Mode Switch (IMS) Assembly
Manual Transmission
Manual Transmission:
1 - Reverse Inhibit Solenoid
2 - Skip Shift Solenoid
3 - Vehicle Speed Sensor (VSS)

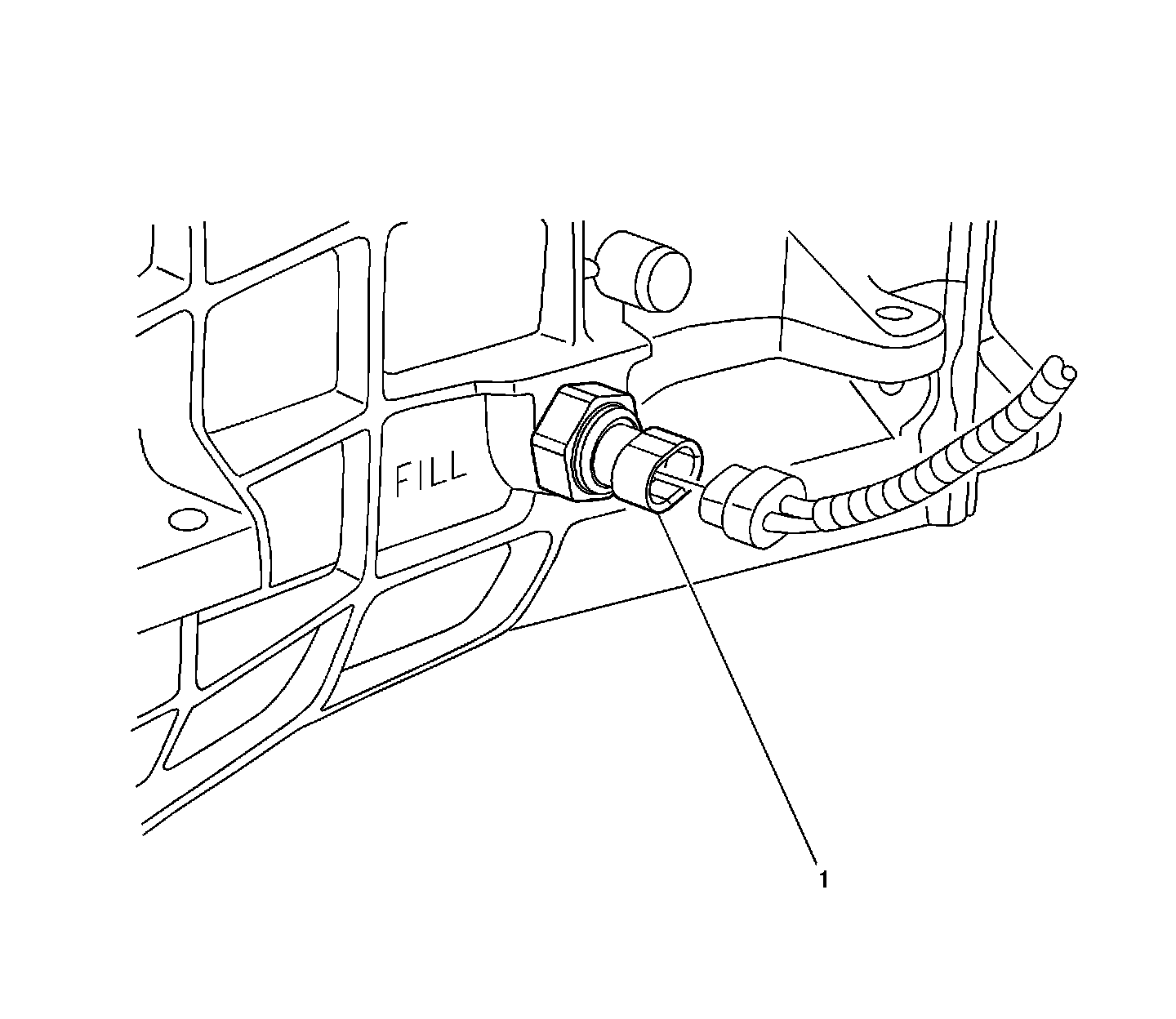

Left Side of the Transmission
Left Side of the Transmission:
1 - Transmission Fluid Temperature (TFT) Sensor

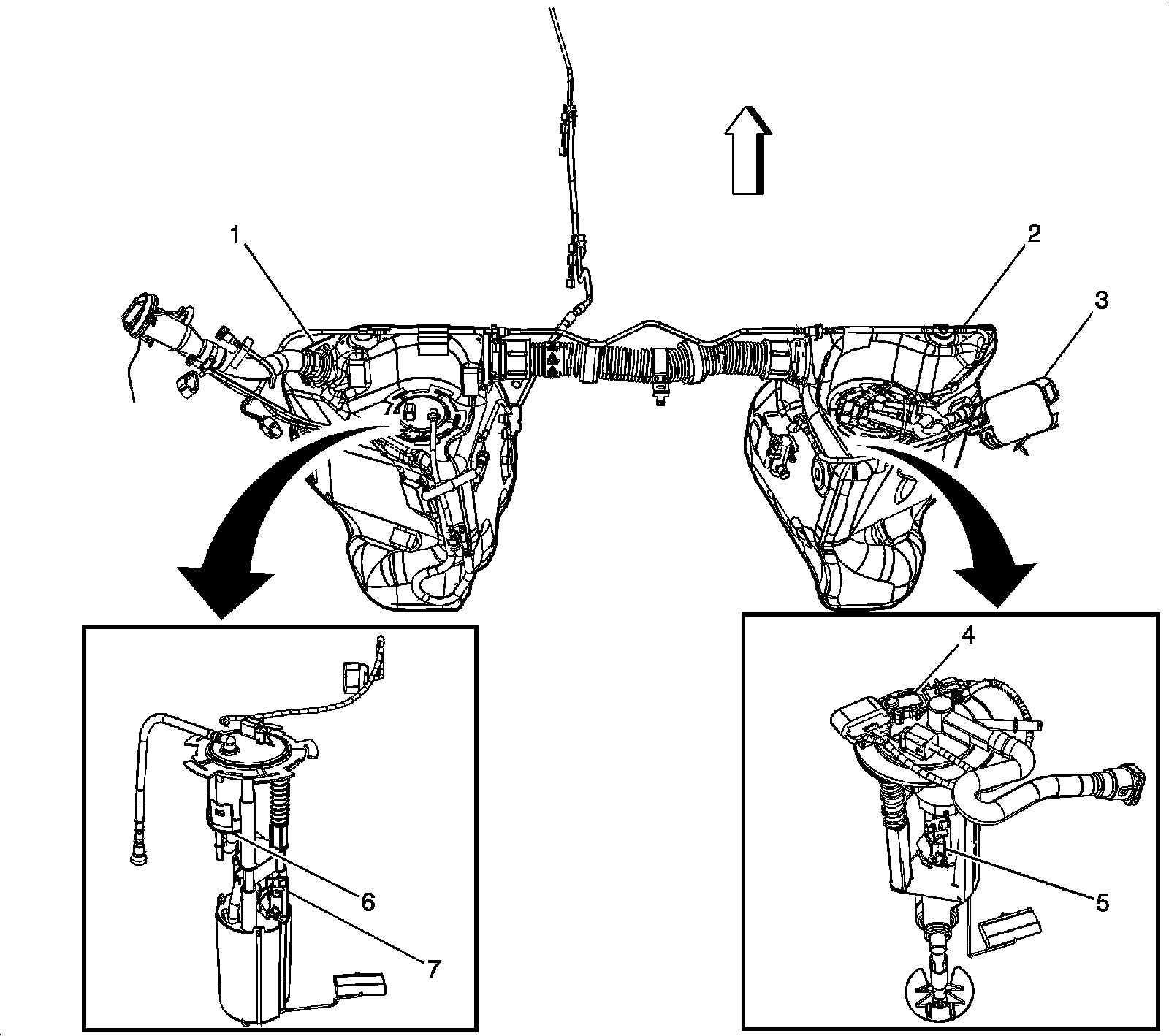

Fuel Tank
1 - Fuel Tank - Left
2 - Fuel Tank - Right
3 - Evaporative (EVAP) Canister Vent Solenoid
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Level Sensor - Right
6 - Fuel Pump and Sender Assembly
7 - Fuel Level Sensor - Left

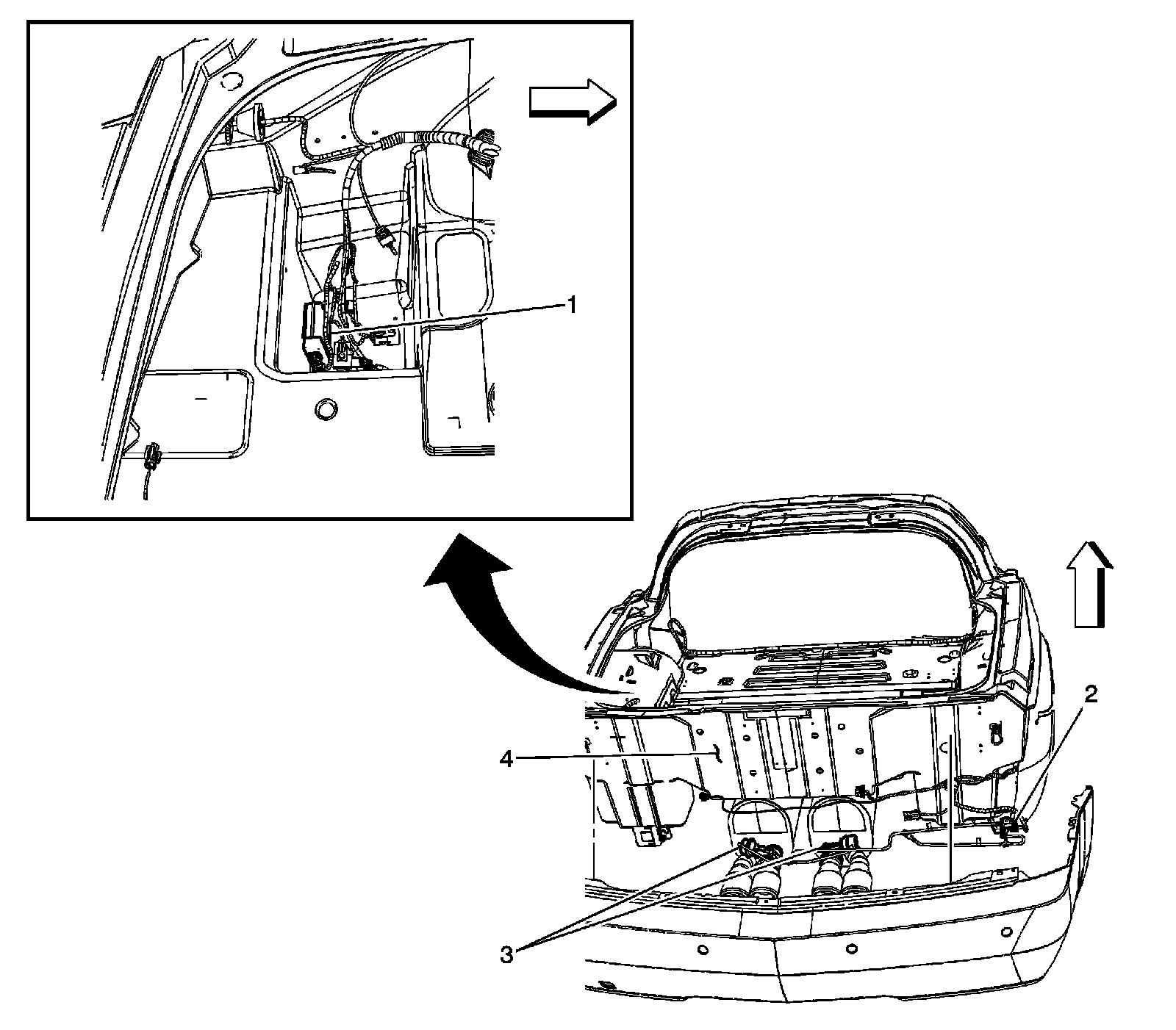

Rear Exhaust Area (LS7)
Rear Exhaust Area (LS7):
1 - Exhaust Tail Pipe Flow Valve Control Module
2 - Exhaust Tail Pipe Flow Control Valve Solenoid
3 - Exhaust Control Valves
4 - Rear Compartment Panel
