Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Cup Holder)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

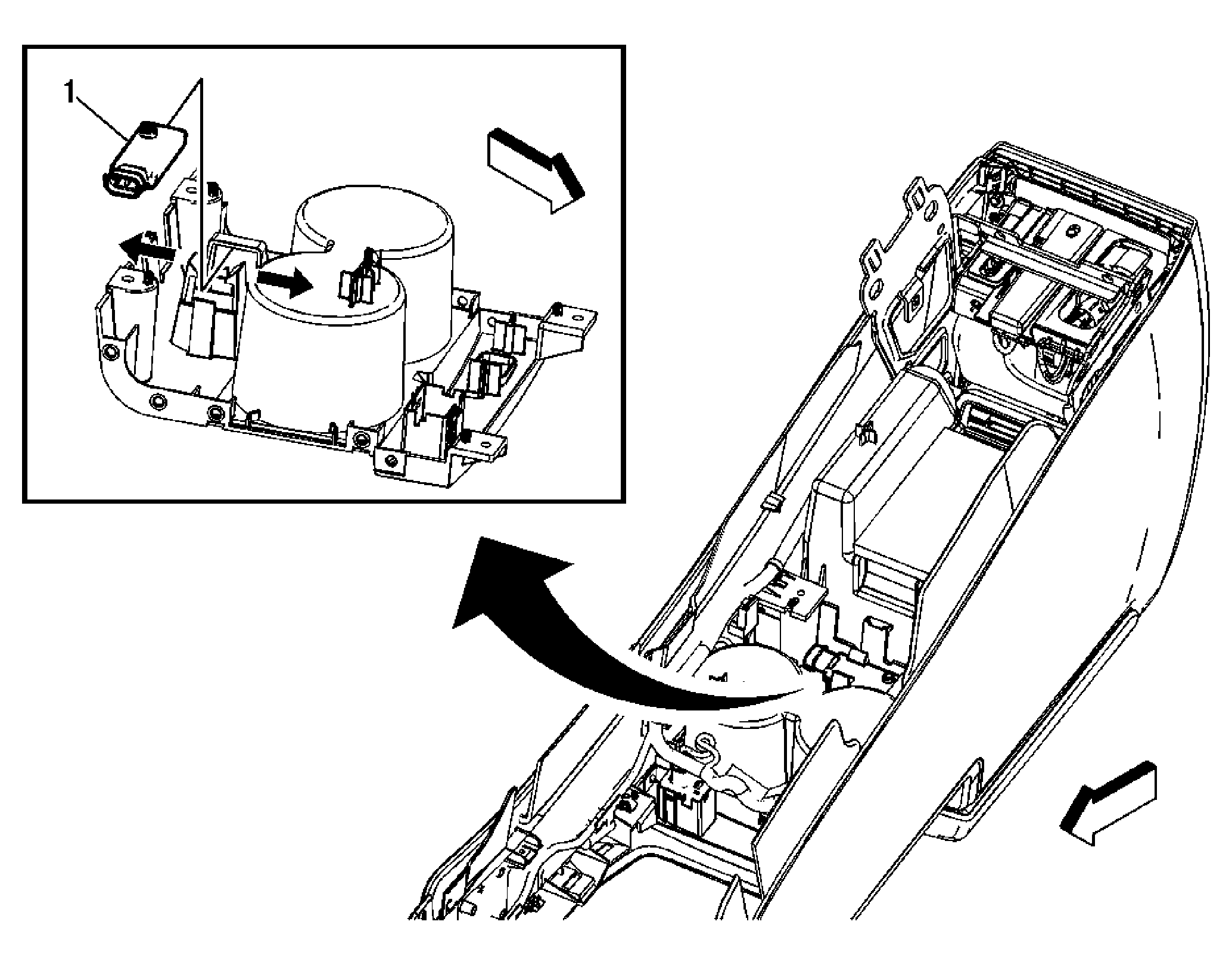

Fig 1: View Of Ignition Lock Key Transmitter Antenna Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove HVAC ducts from the front floor console. Refer to Front Floor Console Cup Holder Replacement .
1	Ignition Lock Key Transmitter Antenna Assembly Tip: Pull tabs out to remove the ignition lock key transmitter antenna from the front floor console cup holder assembly. Disconnect the electrical connector.
