Electronic Brake Control Module: Diagrams



Component Connector End Views

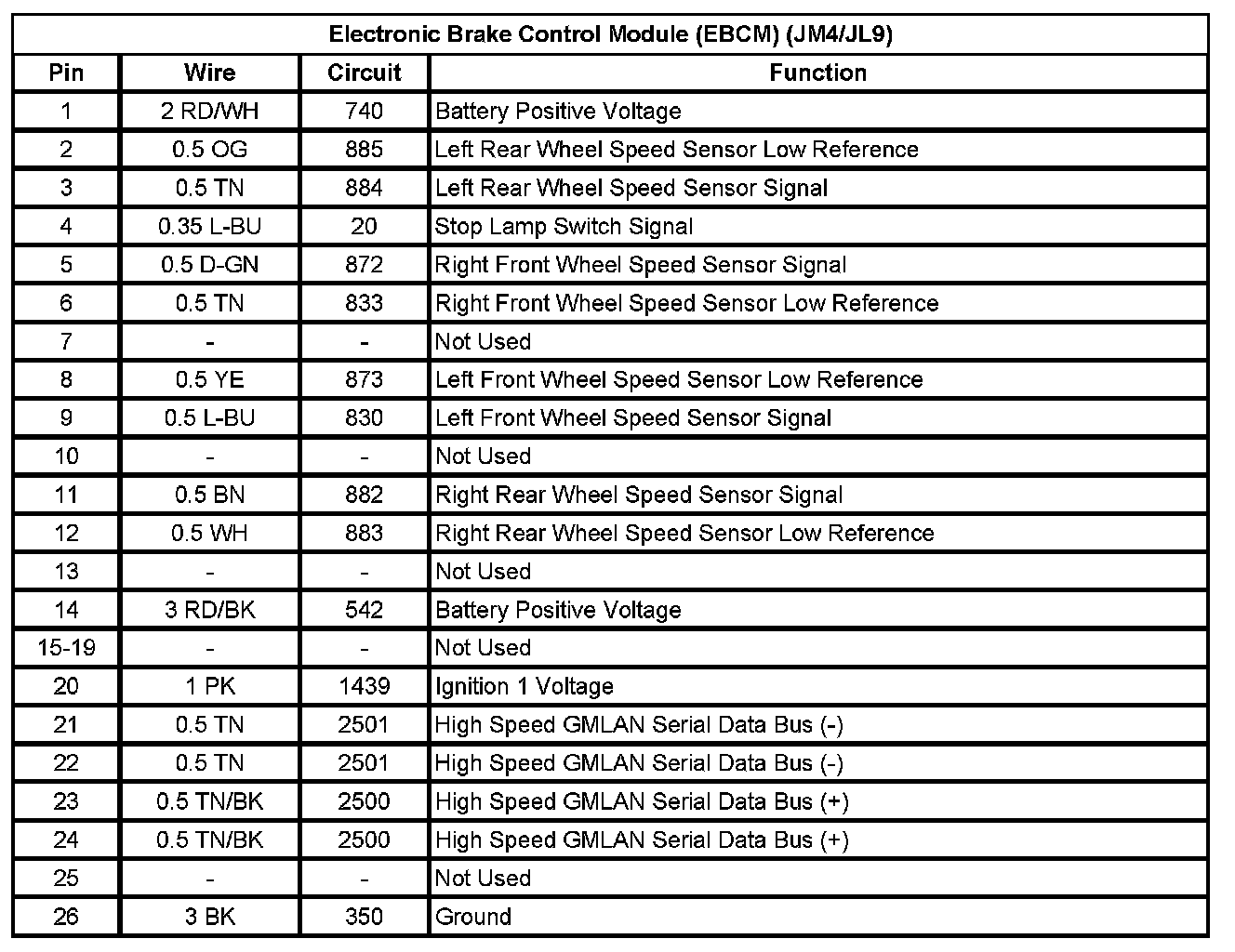

Electronic Brake Control Module (EBCM) (JM4/JL9)

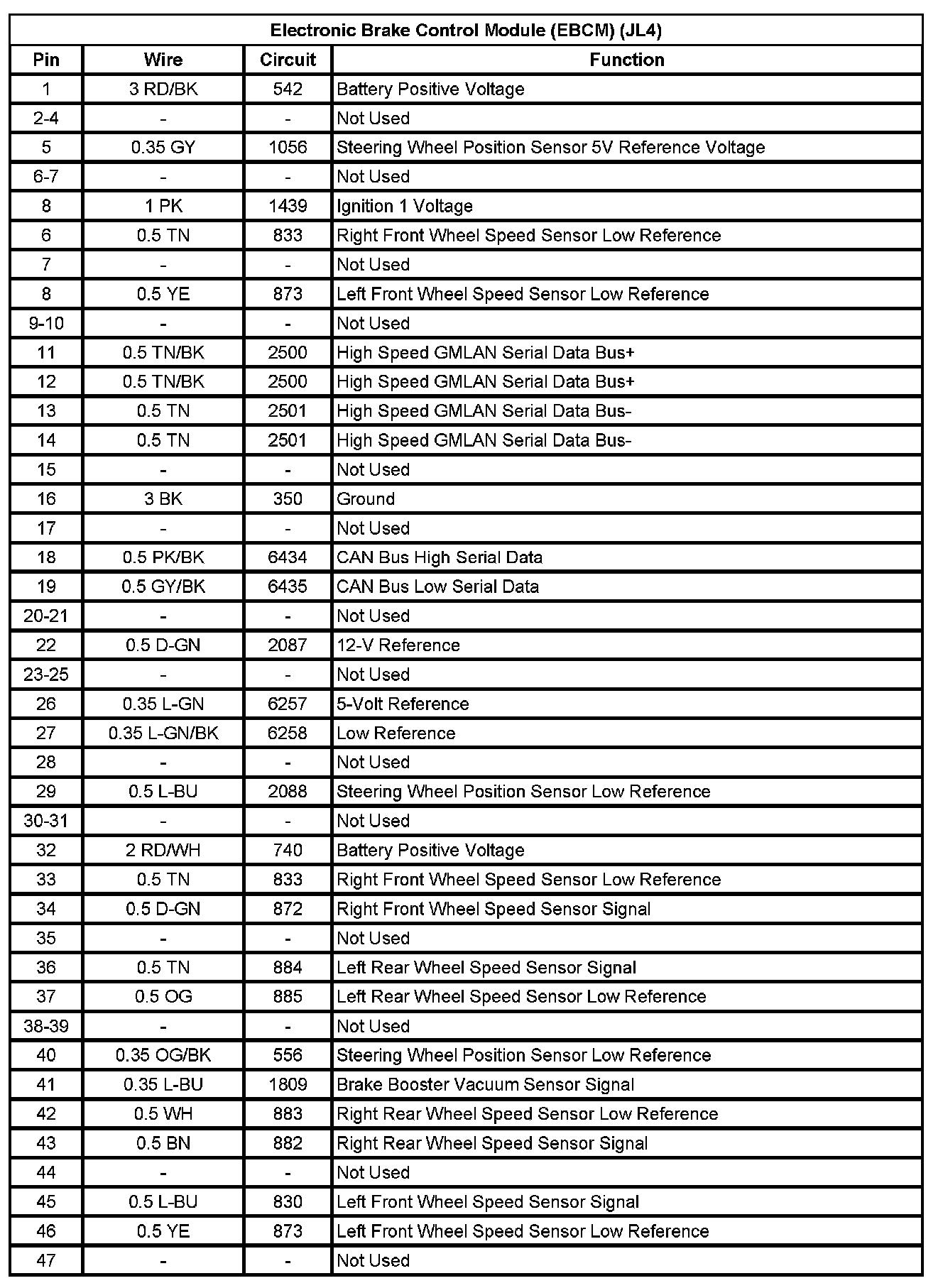

Electronic Brake Control Module (EBCM) (JL4)
