Engine Control Module Connector End Views (Notchback)

Engine Control Module Connector End Views (Notchback)

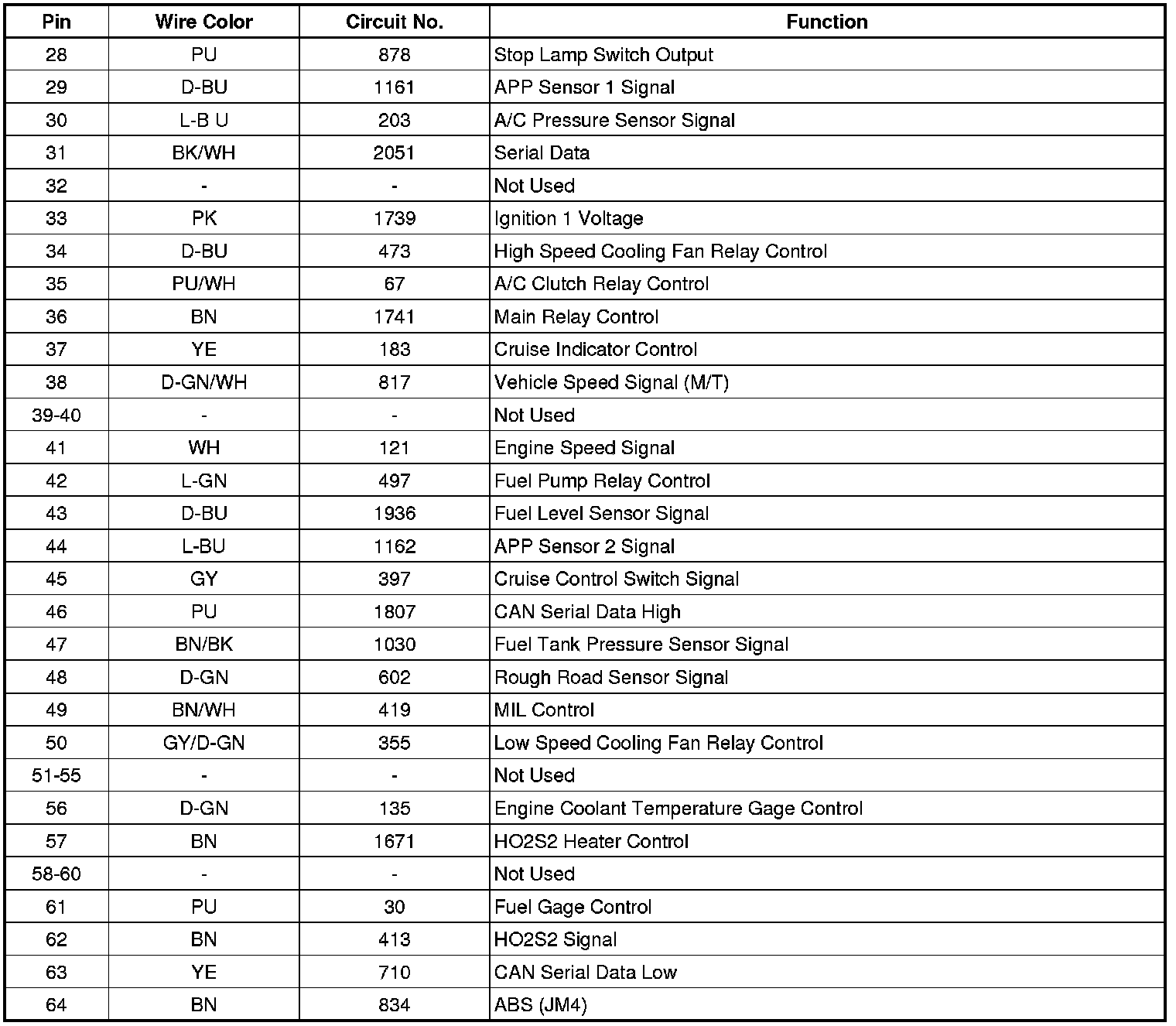

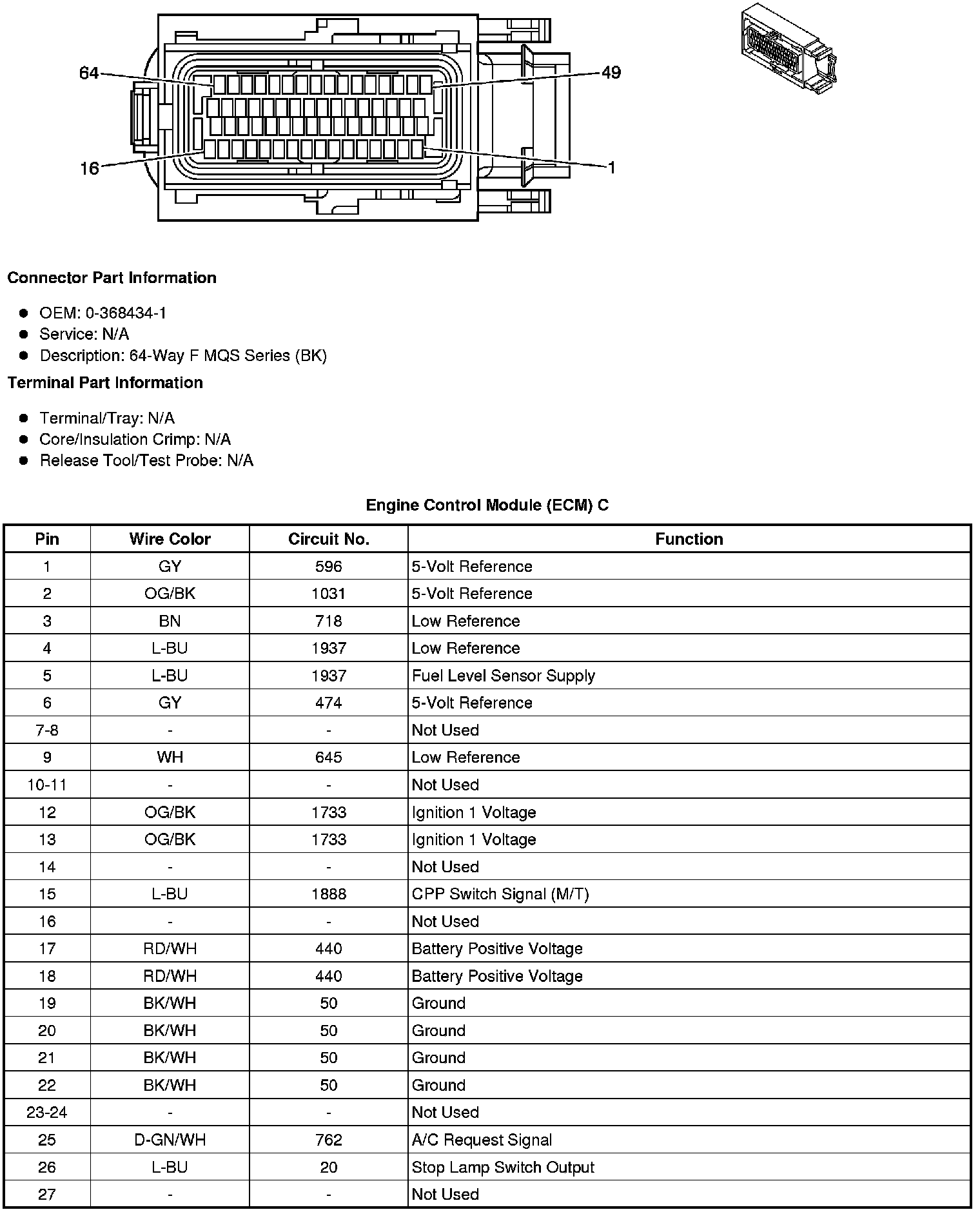

Engine Control Module (ECM) C

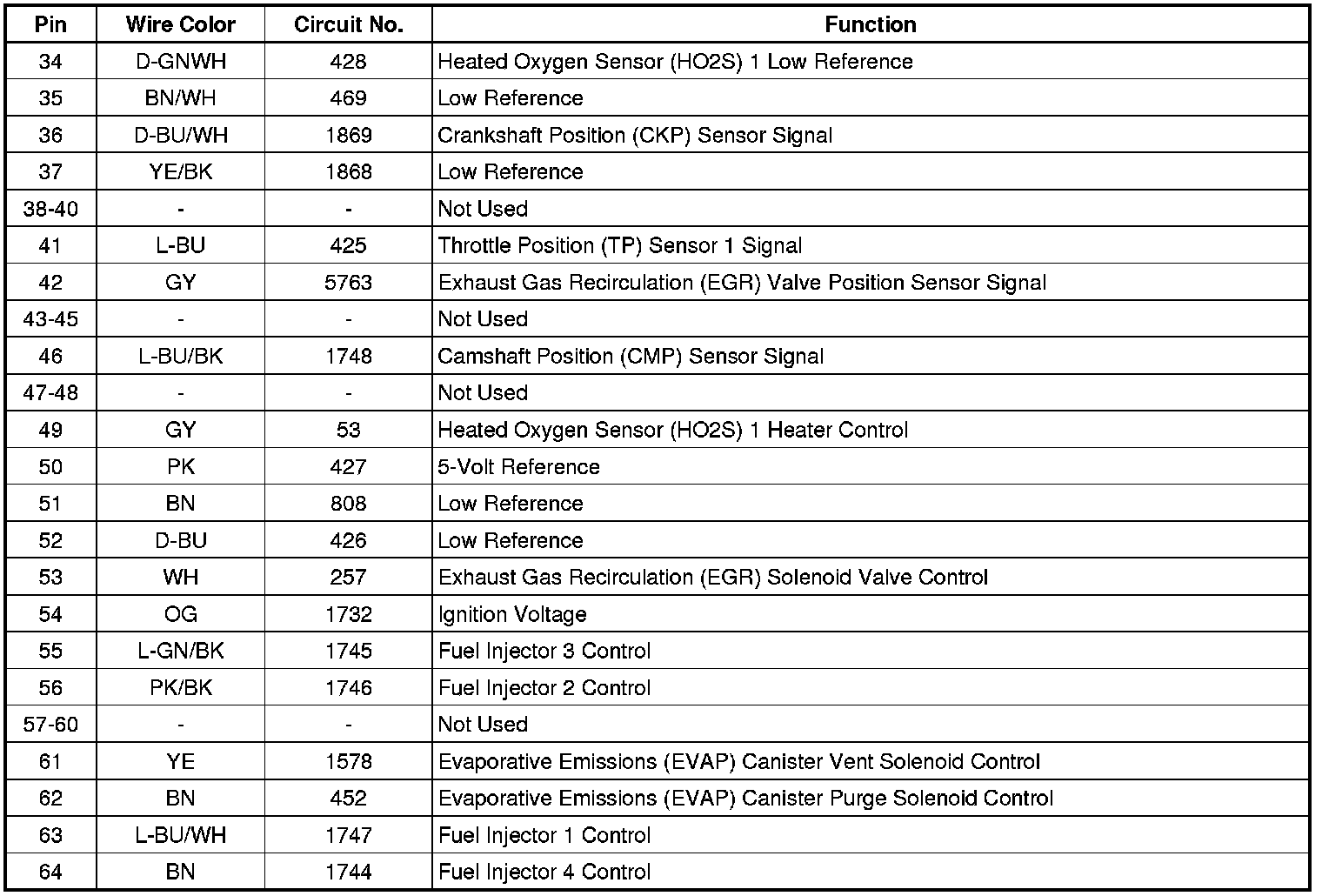

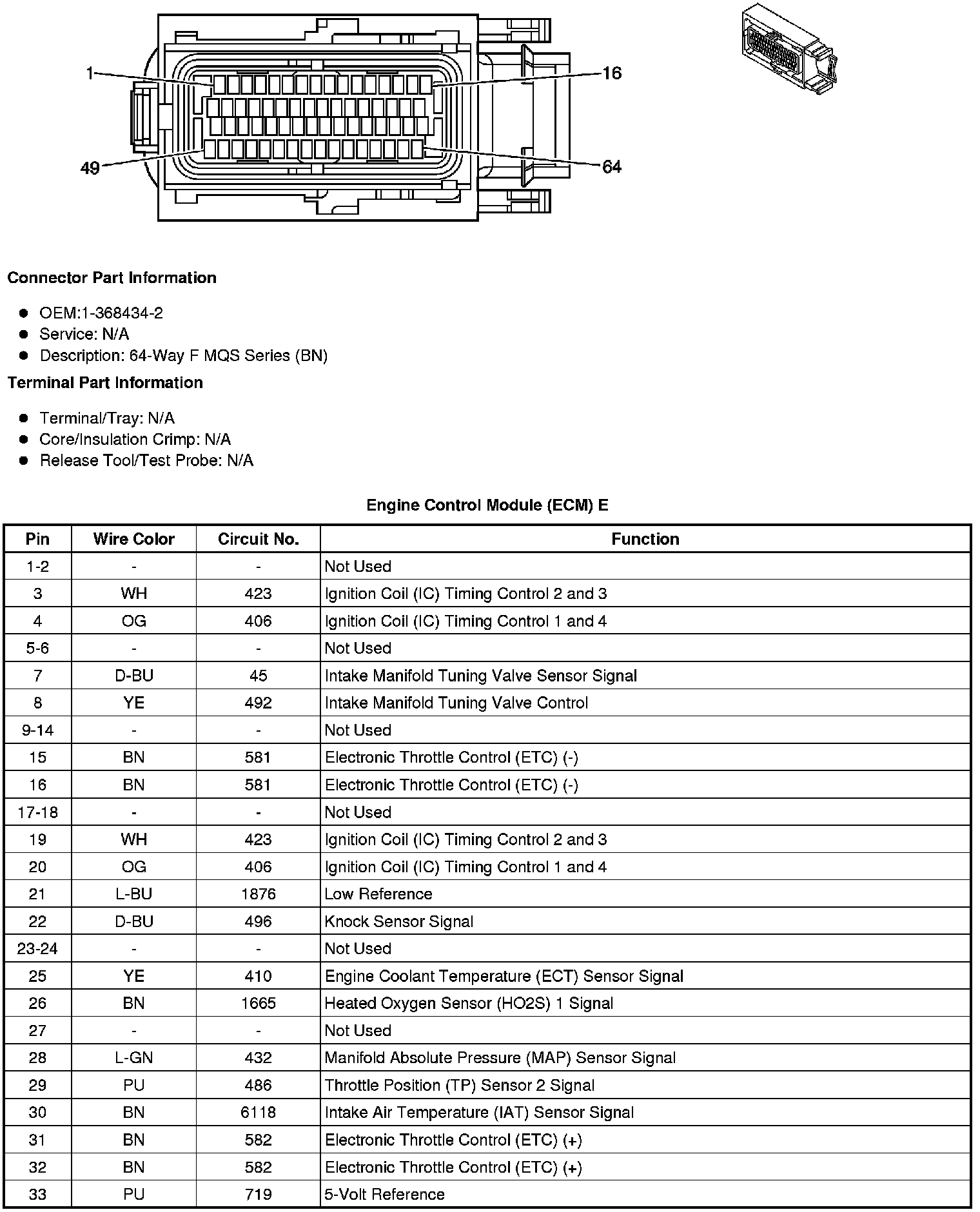

Engine Control Module (ECM) E
