Power Window Switch: Locations

Window Systems Component Views

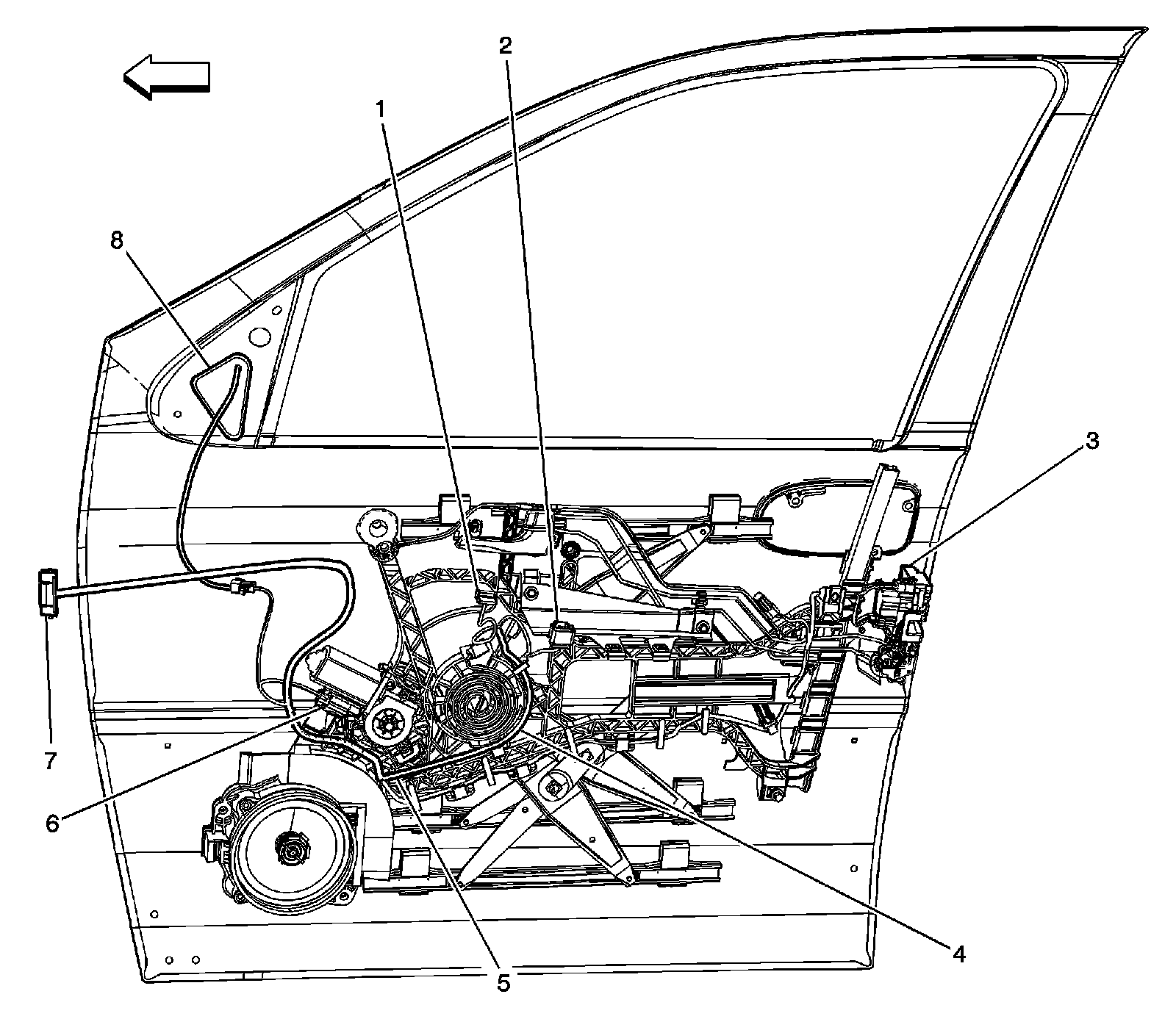

Passenger Door Harness Components




1 - Door Lock Switch - Passenger Connector
2 - Window Switch - Passenger Connector
3 - Door Latch Assembly - Passenger
4 - S660
5 - S666
6 - Window Motor - Passenger
7 - C302 Passenger Door Harness to Body Harness
8 - Outside Rearview Mirror - Passenger
