Fuel Tank Pressure Sensor: Locations



Engine Controls Component Views

Fuel Tank Components (SWB)




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Tank
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
6 - C305 Fuel Tank Harness to Body Harness
7 - S371

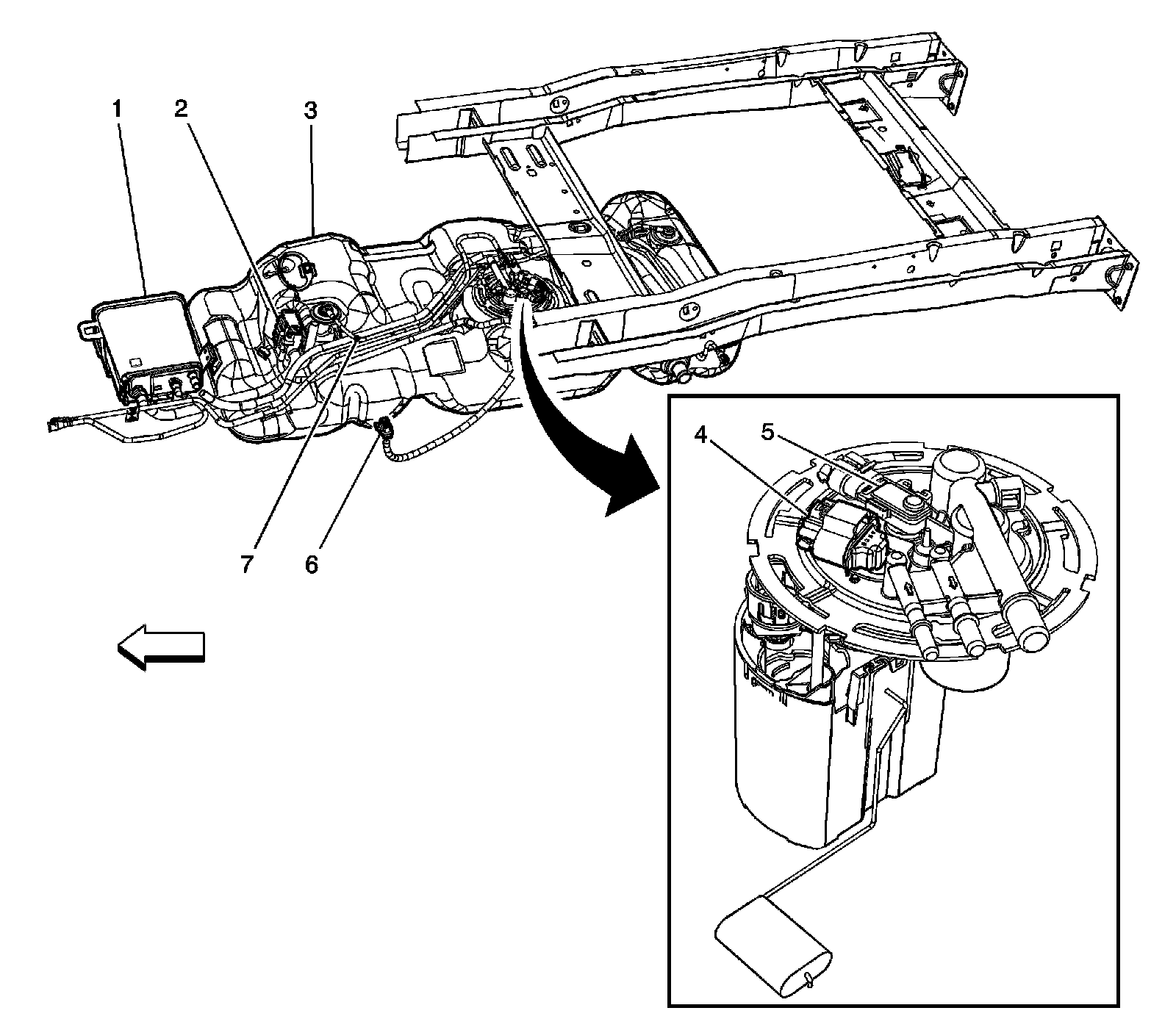

Fuel Tank Components (LWB)




1 - Fuel Tank
2 - Evaporative Emission (EVAP) Canister
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Pump and Sender Assembly
6 - C305 Fuel Tank Harness to Body Harness
7 - S371
