Twist Axle Views

Harness Routing Views

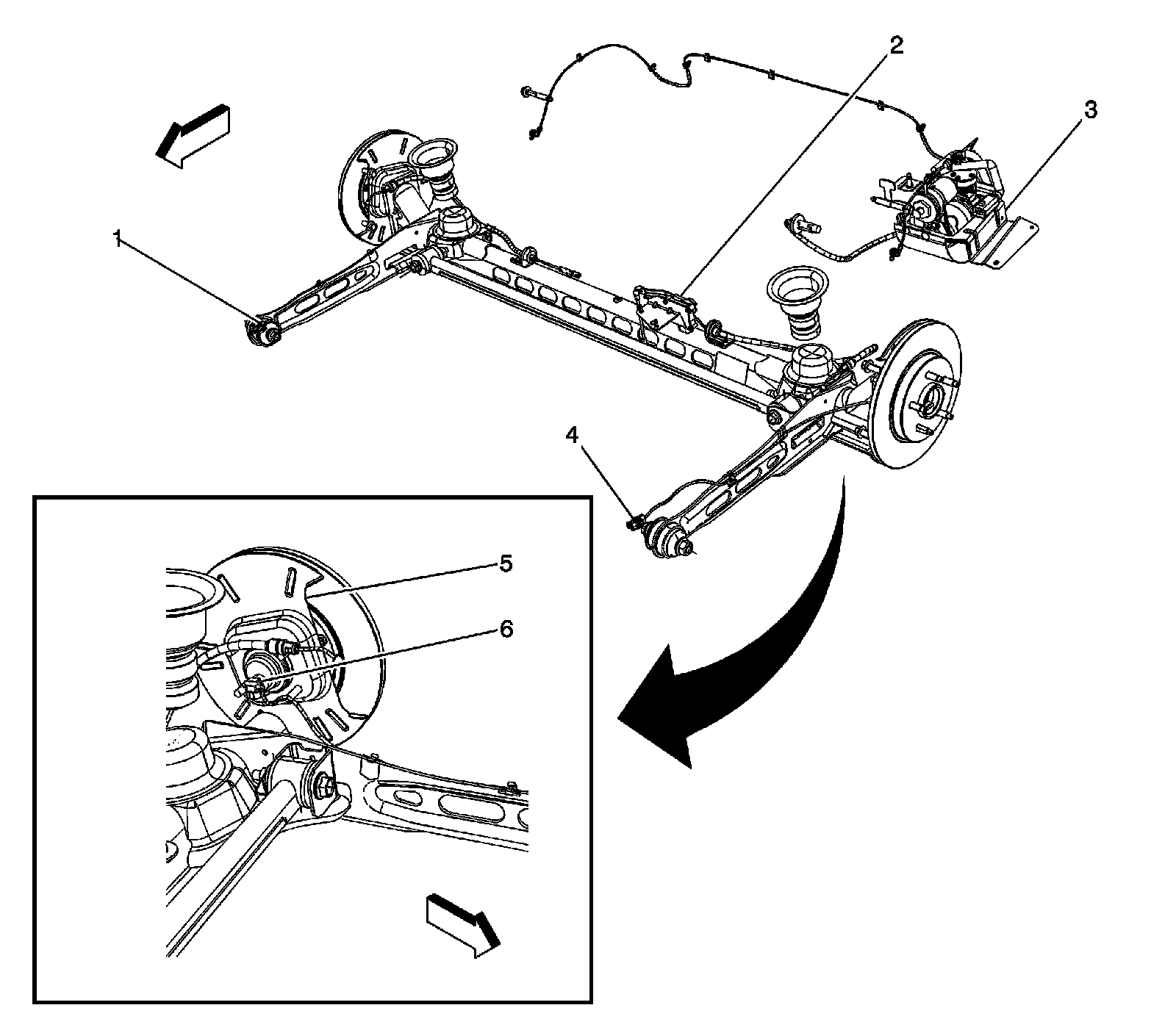

Twist Axle - Rear (FWD)

Twist Axle - Rear (FWD):

1 - C306 RR Wheel Speed Sensor Harness to Rear Cross-Car Jumper Harness
2 - Automatic Level Control (ALC) Sensor (G67)
3 - Automatic Level Control (ALC) Compressor (G67)
4 - C309 LR Wheel Speed Sensor Harness to Rear Cross-Car Jumper Harness
5 - Left Rear Hub
6 - Wheel Speed Sensor (WSS) - LR
