Rear Disc Brake Backing Plate Replacement

Rear Disc Brake Backing Plate Replacement

Caution: Refer to Brake Dust Caution.

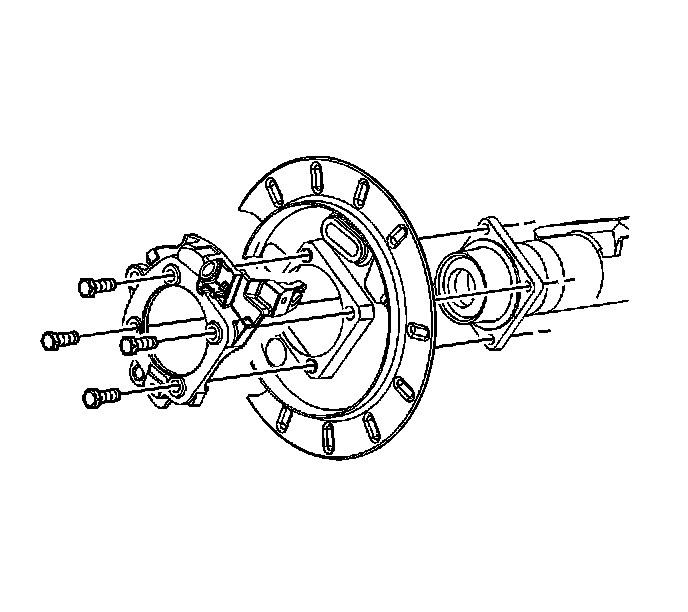

Removal Procedure

1. Remove the park brake backing plate.
2. Remove the disc brake backing plate from the axle housing flange.

Installation Procedure

1. Install the disc brake backing plate to the axle housing flange.
2. Install the park brake backing plate.
