Sunroof Module Bracket Replacement

SUNROOF MODULE BRACKET REPLACEMENT

REMOVAL PROCEDURE




1. Remove the overhead console.

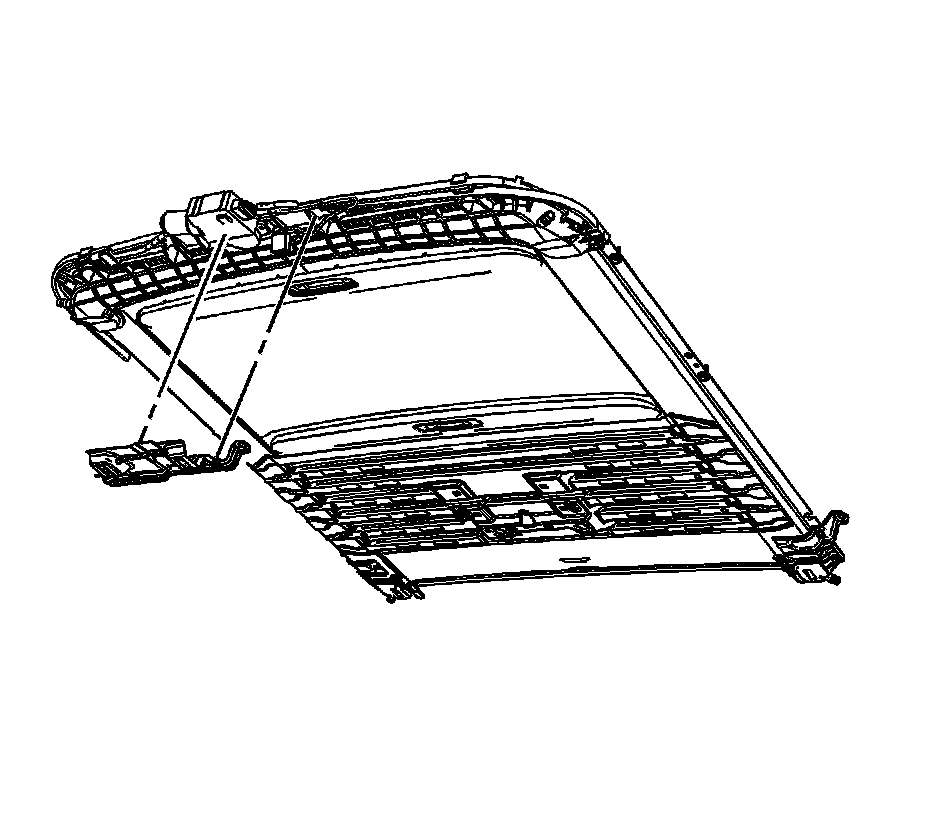

2. Remove one left side screw from the bracket.
3. Carefully pulling down on the front edge of the headliner, swing the bracket downward to release the right side from the module.

INSTALLATION PROCEDURE




1. Install the screw to the bracket.

NOTE: Refer to Fastener Notice.

Tighten the screw to 2 N.m (18 lb in).

2. Install the overhead console.
